WW-138

< REMOVAL AND INSTALLATION >

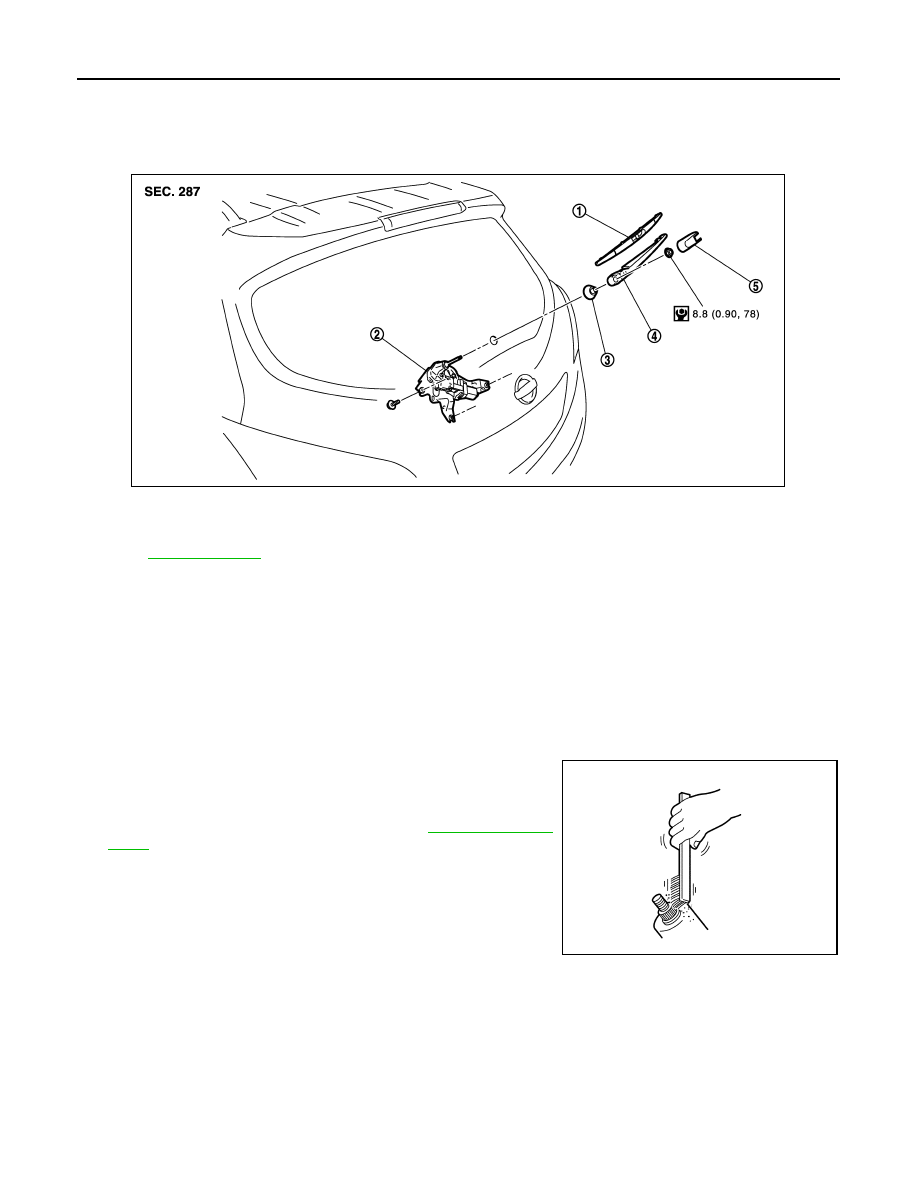

REAR WIPER ARM

REAR WIPER ARM

Exploded View

INFOID:0000000005516068

Removal and Installation

INFOID:0000000005516069

REMOVAL

1.

Operate the rear wiper to the auto stop position.

2.

Remove rear wiper arm cover.

3.

Remove the rear wiper arm mounting nut.

4.

Raise rear wiper arm, and remove wiper arm from the vehicle.

INSTALLATION

1.

Clean wiper arm mount as shown in the figure to prevent nut
from being loosened.

2.

Operate the rear wiper motor to the auto stop position.

3.

Adjust the rear wiper blade position. Refer to

WW-138, "Adjust-

ment"

.

4.

Install the rear wiper arm by tightening the mounting nut.

5.

Inject the washer fluid.

6.

Operate the rear wiper to the auto stop position.

7.

Check that the rear wiper blades stop at the specified position.

8.

Install rear wiper arm cover.

Adjustment

INFOID:0000000005516070

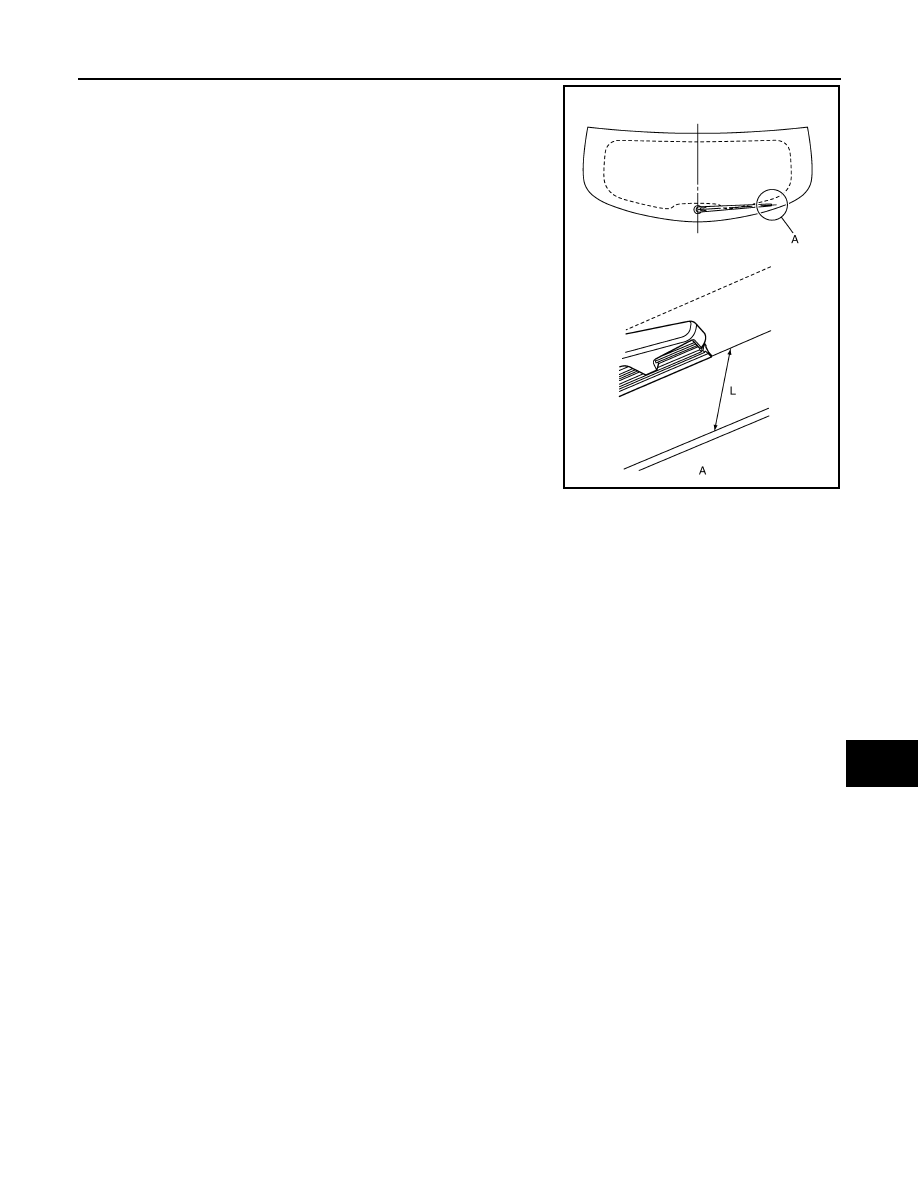

REAR WIPER BLADE POSITION ADJUSTMENT

Clearance between the end of back door glass and top of wiper blade center.

1.

Rear wiper blade

2.

Rear wiper motor

3.

Pivot seal

4.

Rear wiper arm

5.

Rear wiper arm cover

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA1428GB

SKIA0082J

REAR WIPER ARM

WW-139

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Standard clearance

L

: 48.8

±

7.5 mm (1.92

±

 0.295 in)

JPLIA0966ZZ

WW-140

< REMOVAL AND INSTALLATION >

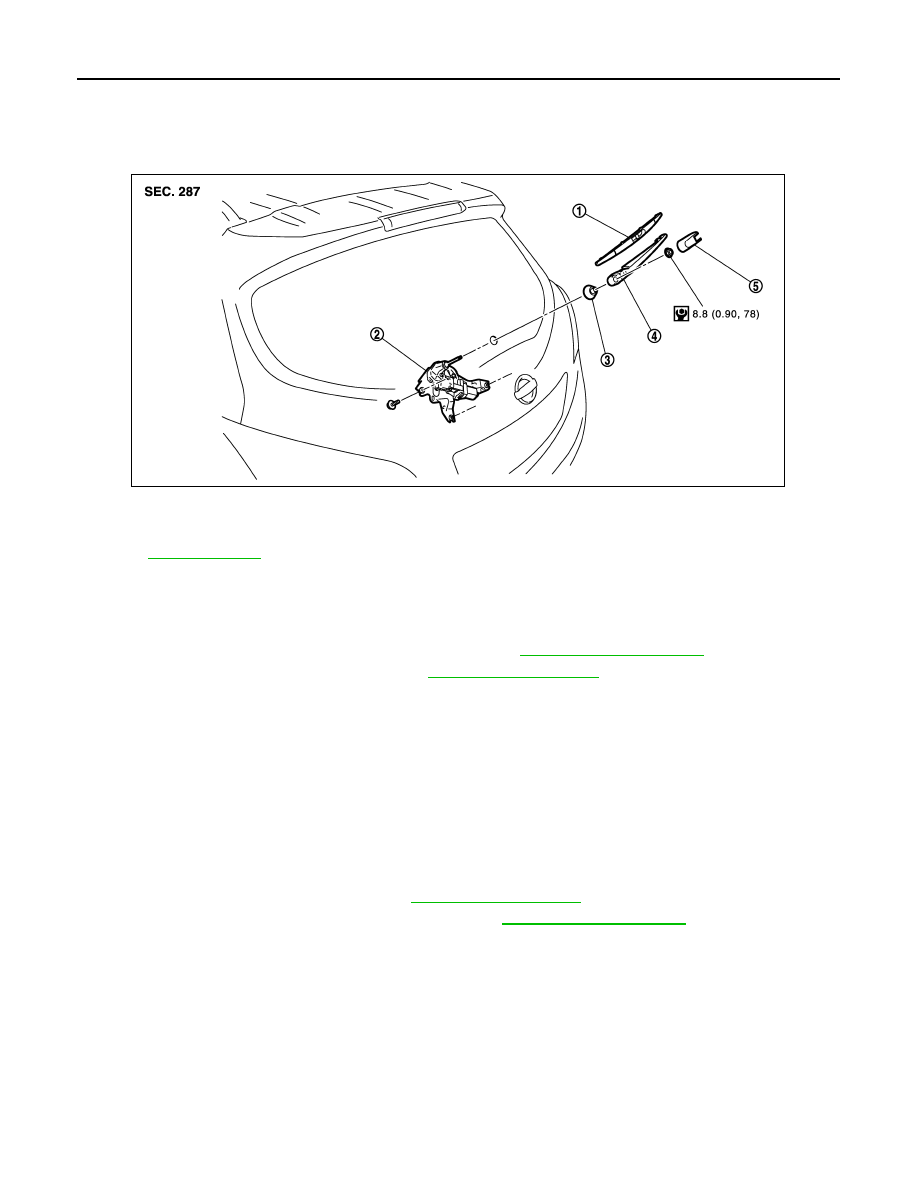

REAR WIPER MOTOR

REAR WIPER MOTOR

Exploded View

INFOID:0000000005516071

Removal and Installation

INFOID:0000000005516072

REMOVAL

1.

Remove rear wiper arm cover and rear wiper arm. Refer to

WW-138, "Exploded View"

.

2.

Remove the back door finisher inner. Refer to

INT-38, "Exploded View"

.

3.

Disconnect the rear wiper motor connector.

4.

Remove the rear wiper motor mounting bolts.

5.

Remove the rear wiper motor from the vehicle.

6.

Remove the pivot seal.

INSTALLATION

1.

Install the pivot seal.

2.

Install the rear wiper motor to the vehicle.

3.

Connect the rear wiper motor connector.

4.

Operate the rear wiper to the auto stop position.

5.

Install the back door finisher inner. Refer to

INT-38, "Exploded View"

.

6.

Install rear wiper arm cover and rear wiper arm. Refer to

WW-138, "Exploded View"

.

1.

Rear wiper blade

2.

Rear wiper motor

3.

Pivot seal

4.

Rear wiper arm

5.

Rear wiper arm cover

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA1428GB

REAR WASHER NOZZLE AND TUBE

WW-141

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

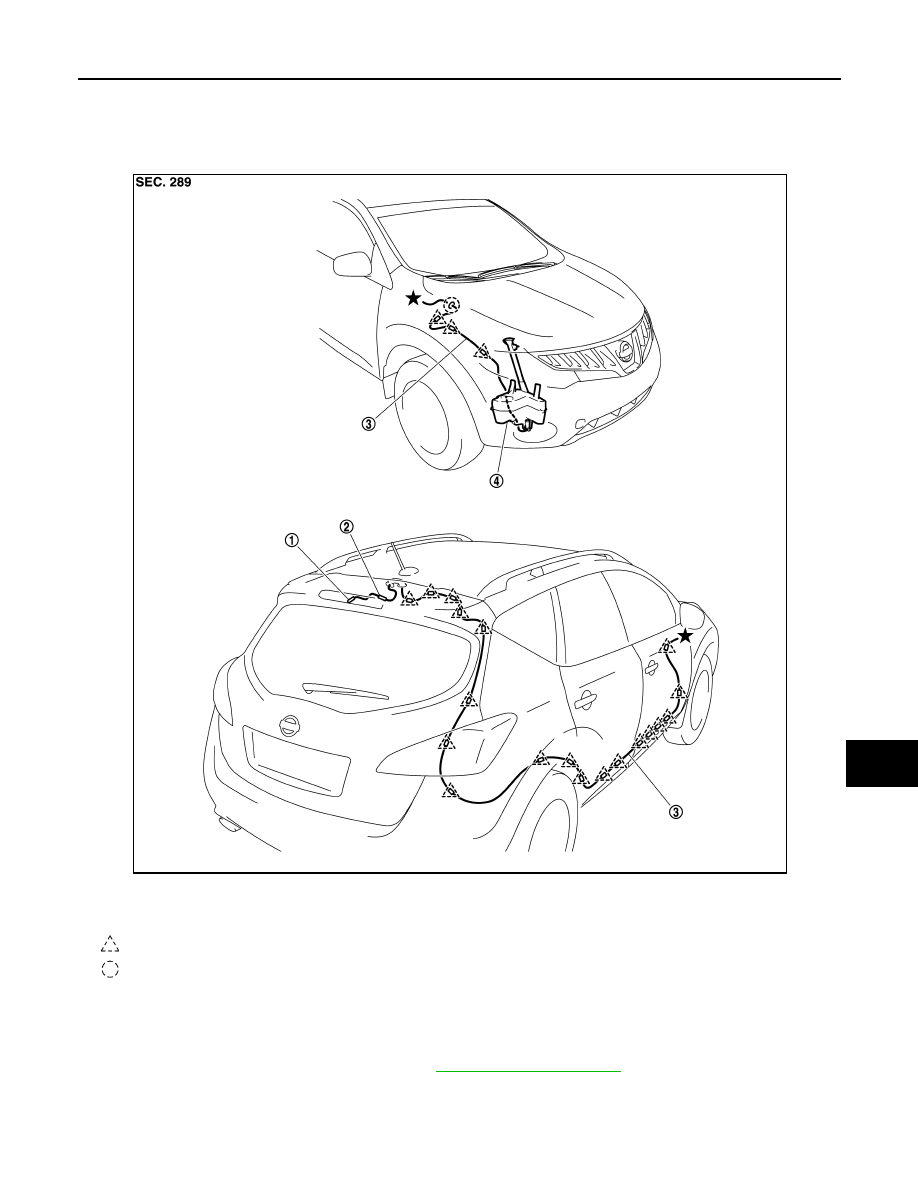

REAR WASHER NOZZLE AND TUBE

Hydraulic Layout

INFOID:0000000005516073

Removal and Installation

INFOID:0000000005516074

REMOVAL

1.

Remove the high-mounted stop lamp. Refer to

EXL-190, "Exploded View"

.

2.

Remove the rear washer tube from the rear washer nozzle.

1.

Rear washer nozzle

2.

Check valve

3.

Rear washer tube

4.

Washer tank

: Clip

: Grommet

JPLIA0879ZZ
