WW-126

< REMOVAL AND INSTALLATION >

WASHER LEVEL SWITCH

WASHER LEVEL SWITCH

Removal and Installation

INFOID:0000000005516051

The washer level switch must be replaced together with the washer tank as an assembly. Refer to

WW-124,

"Removal and Installation"

.

FRONT WASHER NOZZLE AND TUBE

WW-127

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WASHER NOZZLE AND TUBE

Exploded View

INFOID:0000000005516052

Hydraulic Layout

INFOID:0000000005516053

Removal and Installation

INFOID:0000000005516054

REMOVAL

1.

Remove cowl top cover. Refer to

EXT-21, "Exploded View"

.

2.

Disconnect front washer tube from front washer nozzle.

1.

Front washer nozzle

2.

Check valve

3.

Front washer tube

JPLIA0869ZZ

1.

Front washer nozzle

2.

Check valve

3.

Front washer tube

4.

Washer tank

: Clip

JPLIA0870ZZ

WW-128

< REMOVAL AND INSTALLATION >

FRONT WASHER NOZZLE AND TUBE

3.

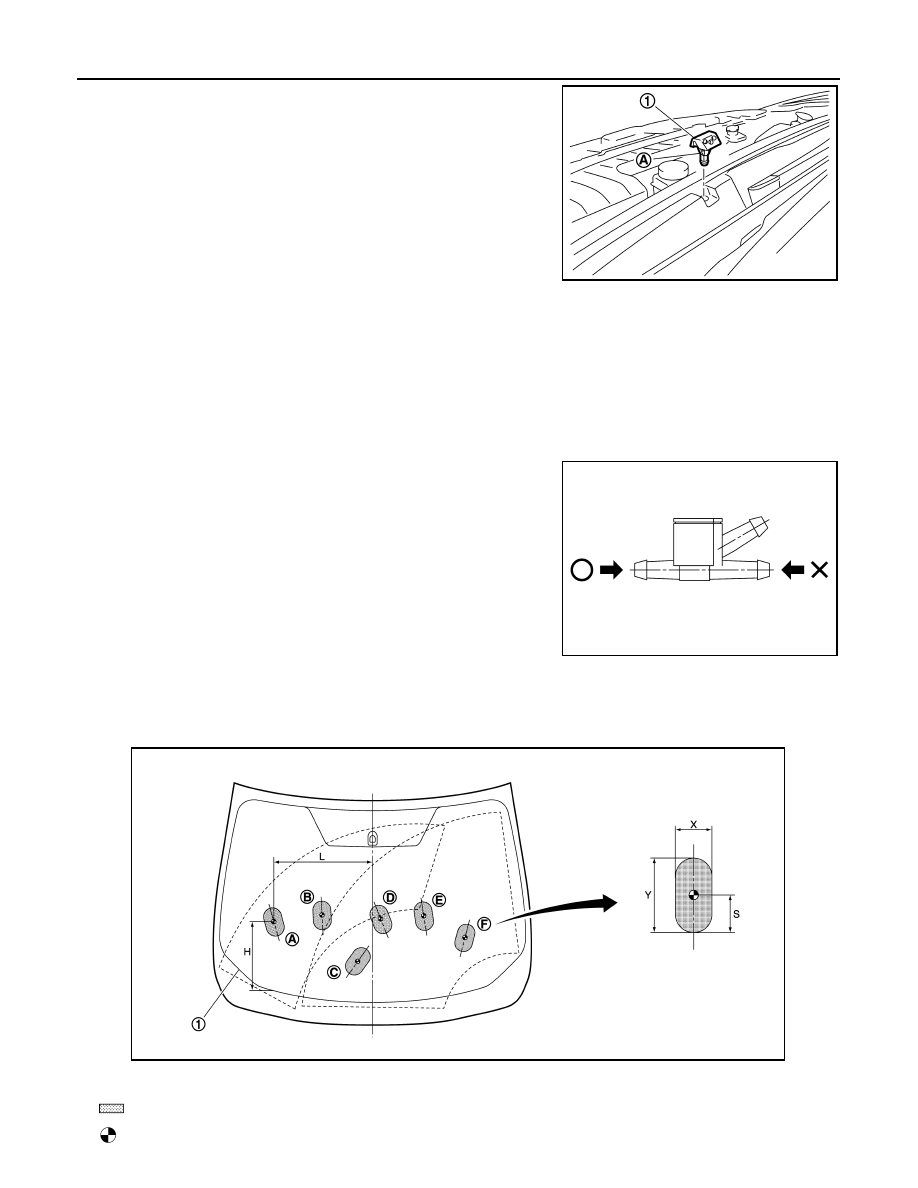

While pressing pawl (A) on the cowl top cover front side of front
washer nozzle (1), remove front washer nozzle from cowl top
cover.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

The spray positions differ, check that left and right nozzles are installed correctly.

Inspection and Adjustment

INFOID:0000000005516055

INSPECTION

Check valve Inspection

Check that air can pass through the hose by blowing forward (toward
the nozzle), and check that air cannot pass through by sucking.

ADJUSTMENT

Washer Nozzle Spray Position Adjustment

Adjust spray positions to match the positions shown in the figure.

JPLIA0871ZZ

JPLIA0685ZZ

1.

Black printed frame line

: Spray area

: Target spray position

JPLIA0872ZZ

FRONT WASHER NOZZLE AND TUBE

WW-129

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Unit: mm (in)

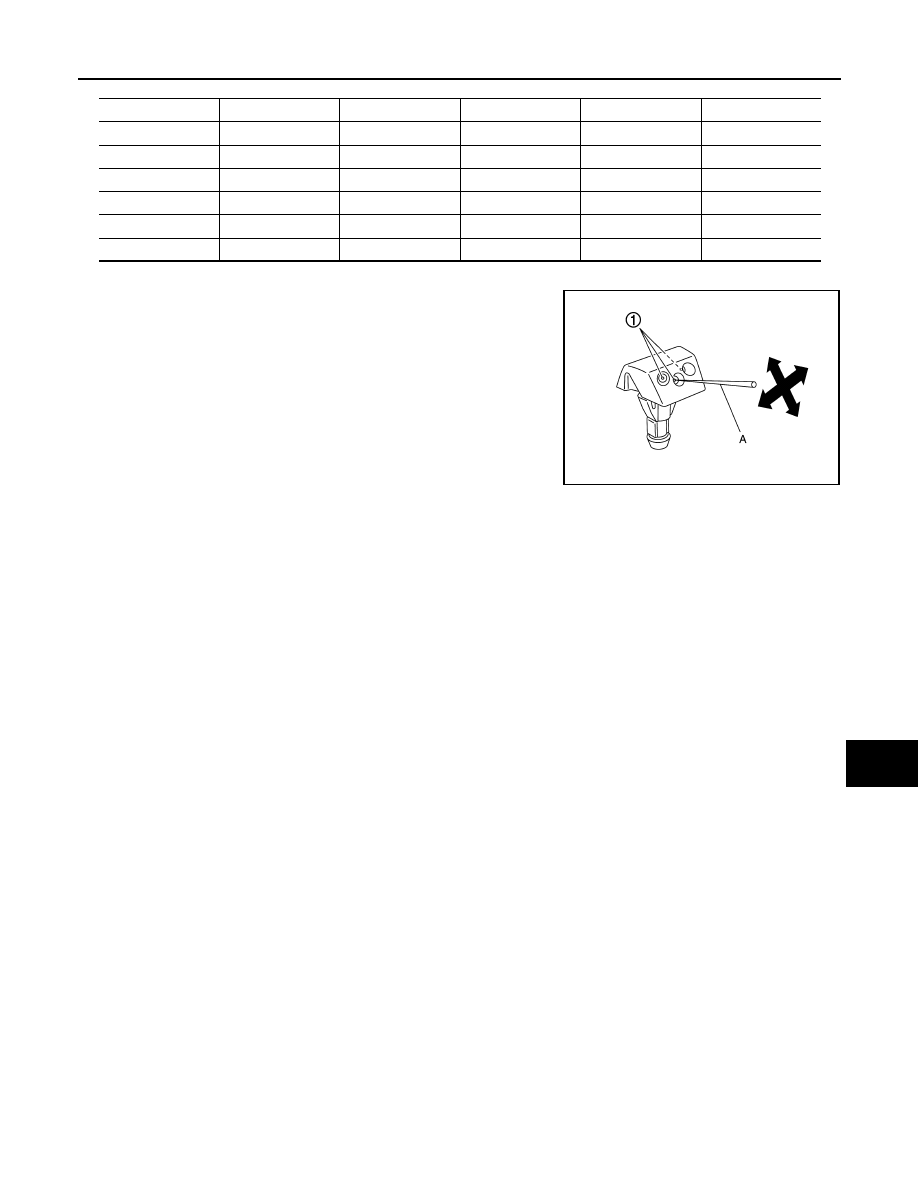

Insert a needle or similar object (A) into the spray opening (1) and
move up/down and left/right to adjust the spray position.
NOTE:
If wax or dust gets into the nozzle, remove wax or dust with a needle
or small pin.

Spray position

H

L

X

Y

S

A

285 (11.22)

429 (16.89)

80 (3.15)

130 (5.12)

65 (2.56)

B

398 (15.67)

232 (9.13)

80 (3.15)

130 (5.12)

65 (2.56)

C

185 (7.28)

69 (2.72)

80 (3.15)

130 (5.12)

65 (2.56)

D

381 (15.00)

37 (1.46)

80 (3.15)

130 (5.12)

65 (2.56)

E

398 (15.67)

232 (9.13)

80 (3.15)

130 (5.12)

65 (2.56)

F

296 (11.65)

421 (16.57)

80 (3.15)

130 (5.12)

65 (2.56)

JPLIA0873ZZ
