WW-10

< SYSTEM DESCRIPTION >

FRONT WIPER AND WASHER SYSTEM

Front wiper HI operating condition

- Ignition switch ON
- Front wiper switch HI
• IPDM E/R turns ON the integrated front wiper relay and the front wiper high relay according to the front wiper

request signal (HI).

FRONT WIPER INT OPERATION

• BCM transmits the front wiper request signal (INT) to IPDM E/R with CAN communication depending on the

front wiper INT operating condition and intermittent operation delay interval according to the wiper intermit-
tent dial position.

Front wiper INT operating condition

- Ignition switch ON
- Front wiper switch INT
• IPDM E/R turns ON the integrated front wiper relay so that the front wiper is operated only once according to

the front wiper request signal (INT).

• BCM detects stop position/except stop position of the front wiper motor according to the front wiper stop

position signal received from IPDM E/R with CAN communication.

• BCM transmits the front wiper request signal (INT) again after the intermittent operation delay interval.

NOTE:
Factory setting of the front wiper intermittent operation is the operation without vehicle speed. Front wiper
intermittent operation can be set to the operation with vehicle speed by CONSULT-III. Refer to

WW-18,

"WIPER : CONSULT-III Function (BCM - WIPER)"

.

Front wiper intermittent operation with vehicle speed

• BCM calculates the intermittent operation delay interval from the following
- Vehicle speed signal (received from the combination meter with CAN communication)
- Wiper intermittent dial position

*: When without vehicle speed setting

FRONT WIPER AUTO STOP OPERATION

• BCM stops transmitting the front wiper request signal when the front wiper switch is turned OFF.
• IPDM E/R detects the front wiper stop position signal from the front wiper motor and detects the front wiper

motor position (stop position/except stop position).

Wiper intermittent

dial position

Intermittent

operation

interval

Intermittent operation delay Interval (s)

Vehicle speed

0 – 5 km/h

(0 – 3.1 MPH)

5 – 35 km/h

(3.1 – 21.7 MPH)

35 – 65 km/h*

(21.7 – 40.4 MPH)

65 km/h (40.4 MPH)

or more

1

Short

↑

↓

Long

0.8

0.6

0.4

0.24

2

4

3

2

1.2

3

10

7.5

5

3

4

16

12

8

4.8

5

24

18

12

7.2

6

32

24

16

9.6

7

42

31.5

21

12.6

JPLIA1256GB

FRONT WIPER AND WASHER SYSTEM

WW-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

• When the front wiper request signal is stopped, IPDM E/R turns ON the front wiper relay until the front wiper

motor returns to the stop position.

NOTE:
• BCM stops the transmitting of the front wiper request signal when the ignition switch is OFF.
• IPDM E/R turns the front wiper relay OFF when the ignition switch is OFF.

FRONT WIPER OPERATION LINKED WITH WASHER

• BCM transmits the front wiper request signal (LO) to IPDM E/R with CAN communication according to the

washer linked operating condition of the front wiper.

• BCM transmits the front wiper request signal (LO) so that the front wiper operates approximately 2 times

when the front washer switch OFF is detected.

Washer linked operating condition of front wiper

- Ignition switch ON
- Front washer switch ON (0.4 second or more)
• IPDM E/R turns ON the integrated front wiper relay according to the front wiper request signal (LO).
• The washer pump is grounded through the combination switch with the front washer switch ON.

FRONT WIPER FAIL-SAFE OPERATION

IPDM E/R performs the fail-safe function when the front wiper auto stop circuit is malfunctioning. Refer to

PCS-30, "Fail-safe"

.

JPLIA0410GB

WW-12

< SYSTEM DESCRIPTION >

FRONT WIPER AND WASHER SYSTEM

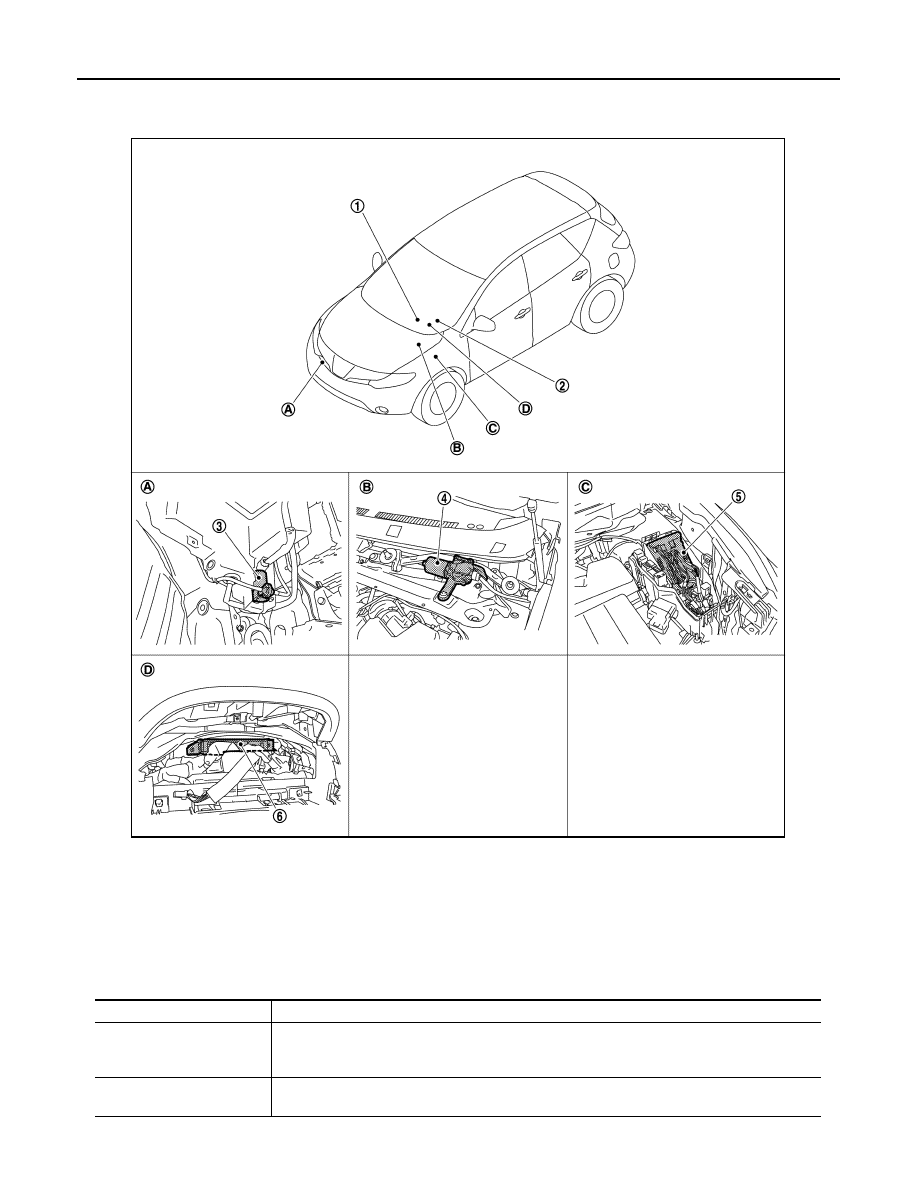

WITHOUT RAIN SENSOR : Component Parts Location

INFOID:0000000005515999

WITHOUT RAIN SENSOR : Component Description

INFOID:0000000005516000

1.

Combination switch

2.

Combination meter

3.

Washer pump

4.

Front wiper motor

5.

IPDM E/R

6.

BCM

A.

Radiator core support (RH)

B.

Cowl top, left side of engine room

C.

Engine room (left side)

D.

Behind combination meter

JPLIA0908ZZ

Part

Description

BCM

• Judges each switch status by the combination switch reading function.
• Requests (with CAN communication) the front wiper relay and the front wiper high relay ON to

IPDM E/R.

IPDM E/R

• Controls the integrated relay according to the request (with CAN communication) from BCM.
• Performs the auto stop control of the front wiper.

FRONT WIPER AND WASHER SYSTEM

WW-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Combination switch
(Wiper & washer switch)

Refer to

BCS-9, "System Diagram"

.

Combination meter

Transmits the vehicle speed signal to BCM with CAN communication.

Part

Description
