Nissan Murano Z51. Manual - part 1529

WT-54

< PERIODIC MAINTENANCE >

ROAD WHEEL

• Perform the ID registration, after tire rotation. Refer to

WT-22, "ID REGISTRATION PROCEDURE : Special

Repair Requirement"

.

ROAD WHEEL TIRE ASSEMBLY

WT-55

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

REMOVAL AND INSTALLATION

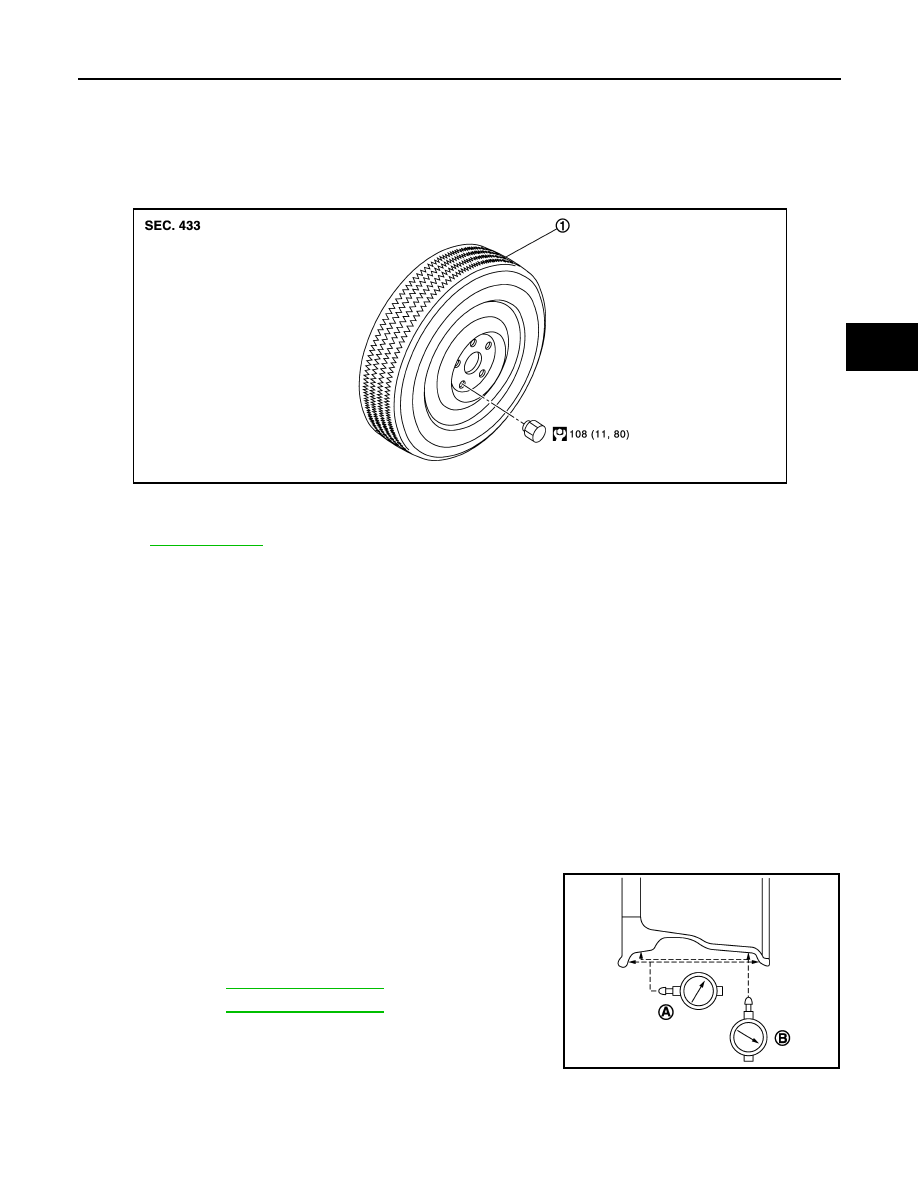

ROAD WHEEL TIRE ASSEMBLY

Exploded View

INFOID:0000000005576023

Removal and Installation

INFOID:0000000005576024

REMOVAL

1.

Remove wheel nuts.

2.

Remove tire assembly.

INSTALLATION

Install in the reverse order of removal.

Inspection

INFOID:0000000005514453

ALUMINUM WHEEL

1.

Check tires for wear and improper inflation.

2.

Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel
runout.

a.

Remove tire from aluminum wheel and mount on a tire balance machine.

b.

Set dial indicator as shown in the figure.

c.

If the lateral deflection (A) or vertical deflection (B) for radial
runout value exceeds the limit, replace aluminum wheel.

STEEL WHEEL

1.

Check tires for were and improper inflation.

1.

Tire assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JSGIA0639GB

Limit

A:

Refer to

WT-60, "Road Wheel"

.

B:

Refer to

WT-60, "Road Wheel"

.

SEIA0737E

WT-56

< REMOVAL AND INSTALLATION >

ROAD WHEEL TIRE ASSEMBLY

2.

Check wheels for deformation, clacks and other damage. If deformed, remove wheel and check wheel
runout.

a.

Remove tire from steel wheel and mount wheel on a tire balance machine.

b.

Set two dial indicators as shown in the illustration.

c.

Set each dial indicator to “0”.

d.

Rotate wheel and check dial indicators at several points around
the circumference of the wheel.

e.

Calculate runout at each point as shown below.

f.

Select maximum positive runout value and the maximum nega-
tive value. Add the two values to determine total runout.

CAUTION:

In case a positive or negative value is not available, use the
maximum value (negative or positive) for total runout.

g.

If the total runout value exceeds limit, replace steel wheel.

Lateral runout limit (A):

(

+

)/2

Radial runout limit (B):

(

+

)/2

Limit

A:

Refer to

WT-60, "Road Wheel"

.

B:

Refer to

WT-60, "Road Wheel"

.

SEIA0738E

TRANSMITTER

WT-57

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

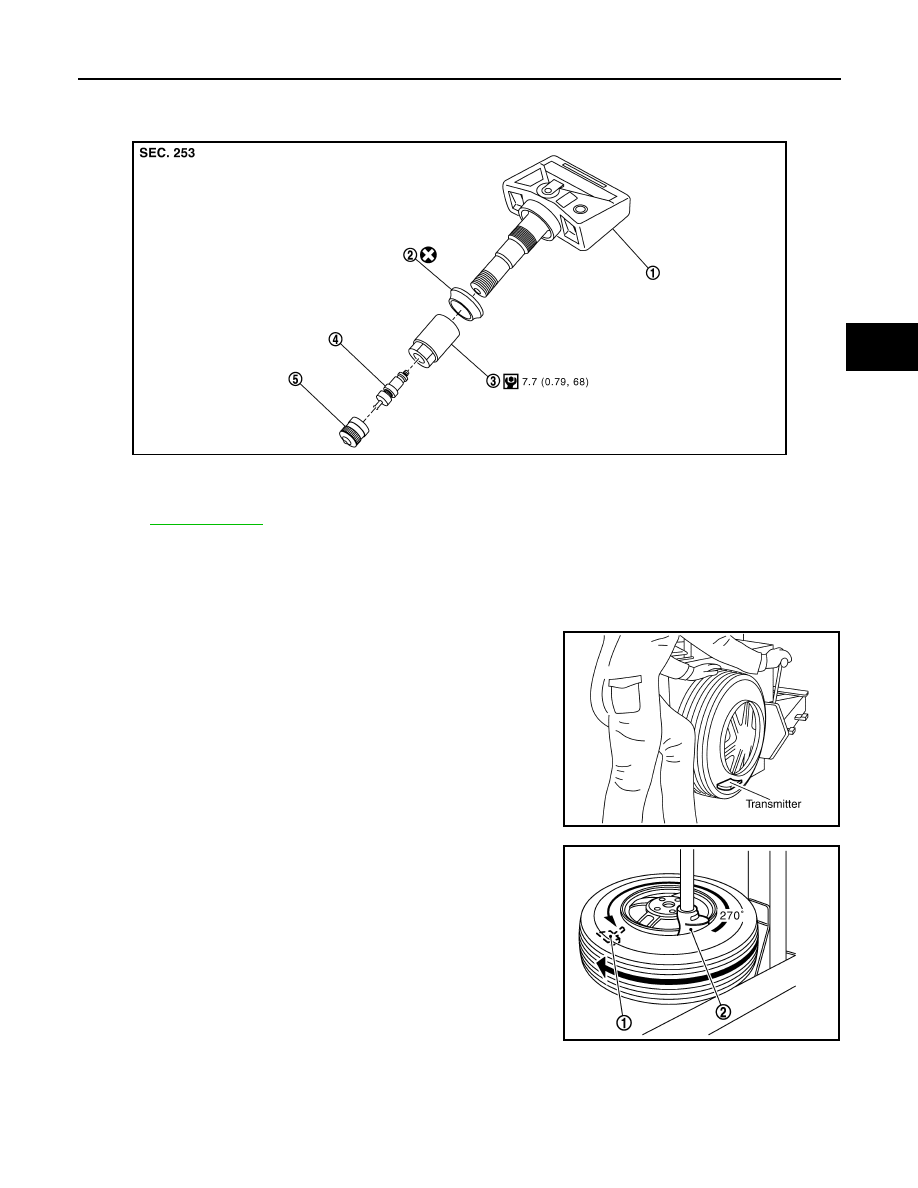

TRANSMITTER

Exploded View

INFOID:0000000005514455

Removal and Installation

INFOID:0000000005514456

REMOVAL

1.

Deflate tire. Unscrew transmitter retaining nut and allow transmitter to fall into tire.

2.

Gently bounce tire so that transmitter falls to bottom of tire.
Place on tire changing machine and break both tire beads
ensuring that the transmitter remains at the bottom of the tire.

3.

Turn tire so that valve hole is at bottom and bounce so that
transmitter (1) is near valve hole. Carefully lift tire onto turntable
and position valve hole (and transmitter) 270 degree from
mounting/dismounting head (2).

4.

Lubricate tire well and remove first side of the tire. Reach inside
the tire and remove the transmitter.

INSTALLATION

JPEIC0041GB

1.

Transmitter

2.

Grommet seal

3.

Valve nut

4.

Valve core

5.

Cap

Refer to

GI-4, "Components"

 for symbols in figure.

SEIA0047E

JPEIC0014GB
