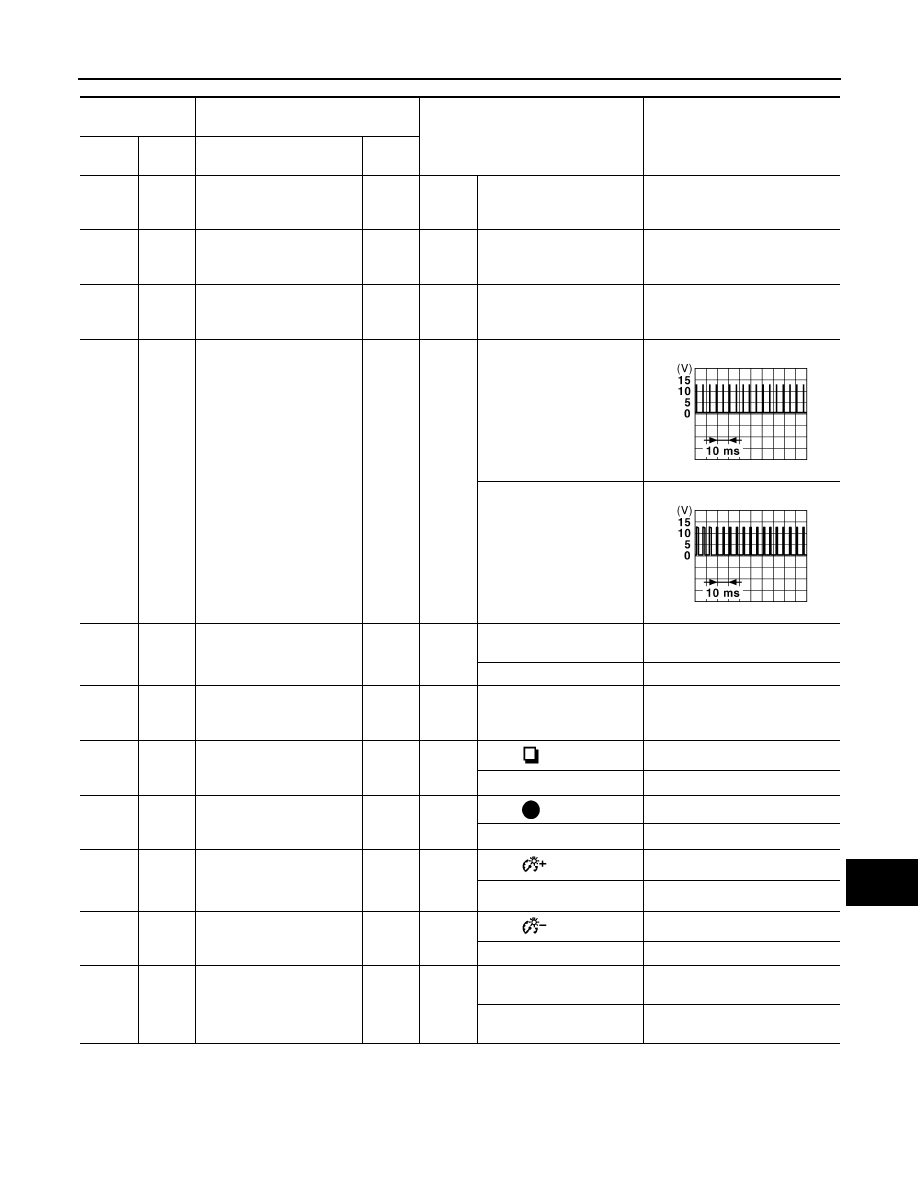

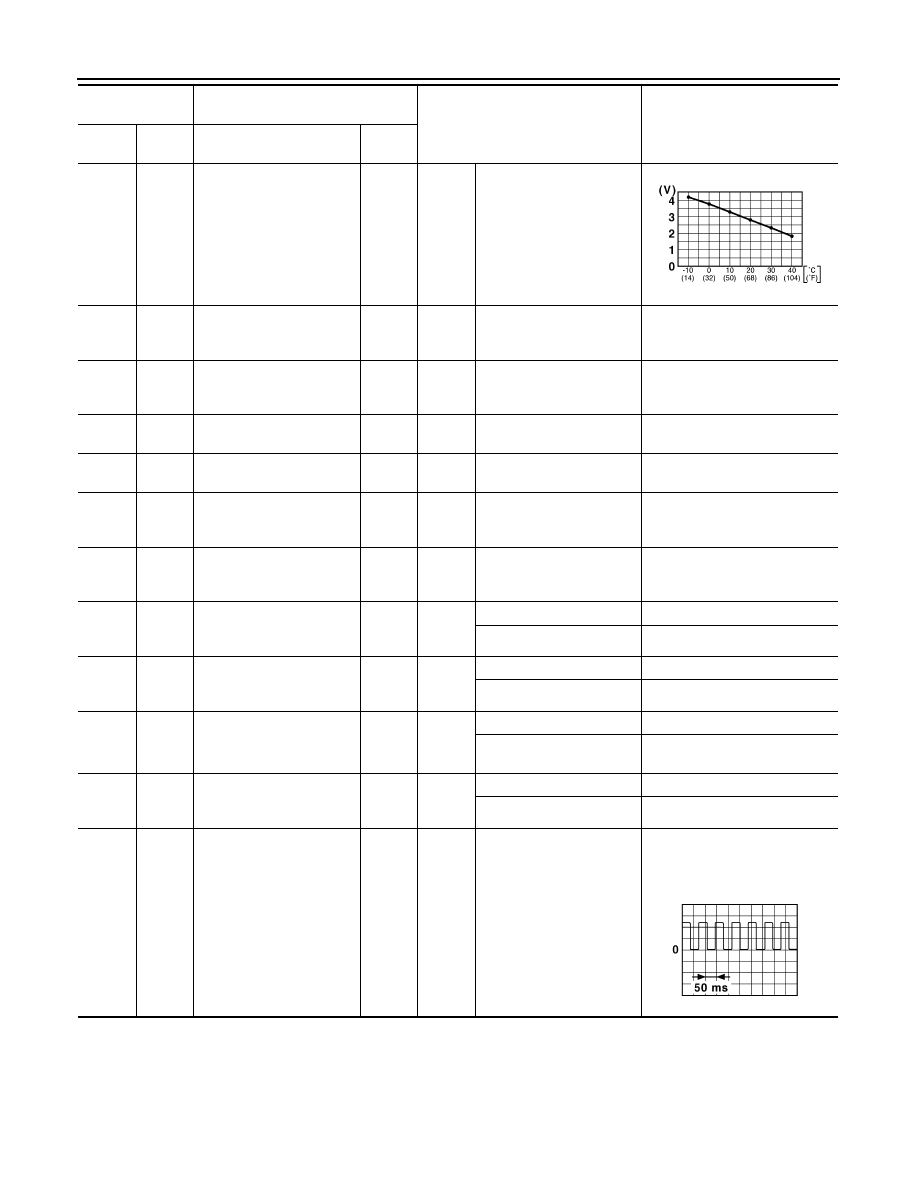

WCS COMBINATION METER WCS-37 < ECU DIAGNOSIS INFORMATION > C D E F G H I J K L M B A O P Terminal No. (Wire color) Description Condition Value (Approx.) + – Signal name Input/ Output 1 (Y) Ground Battery power supply Input Ignition — Battery voltage 2 (O) Ground IGN signal Input Ignition — Battery voltage 3 (B) Ground Ground — Ignition — 0 V 5 (SB) Ground Illumination control signal Output Ignition • Lighting switch 1ST is maximum • Lighting switch 1ST is minimum 8 (SB) 10 (O) Trip reset signal Input Ignition When trip reset switch is 0 V Other than the above 5 V 10 (O) Ground Meter control switch ground — Ignition — 0 V 11 (L) 10 (O) Enter switch signal Input Ignition When is pressed. 0 V Other than the above 5 V 12 (R) 10 (O) Select switch signal Input Ignition When is pressed. 0 V Other than the above 5 V 13 (Y *1 or V *2 ) 10 (O) Illumination control switch Input Ignition When is pressed. 0 V Other than the above 5 V 14 (GR) 10 (O) Illumination control switch Input Ignition When is pressed. 0 V Other than the above 5 V 15 (BR) Ground Air bag signal Input Ignition Air bag warning lamp 4 V Air bag warning lamp 0 V JPNIA0828GB JPNIA0827GB |
