DUCT AND GRILLE

VTL-59

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

3.

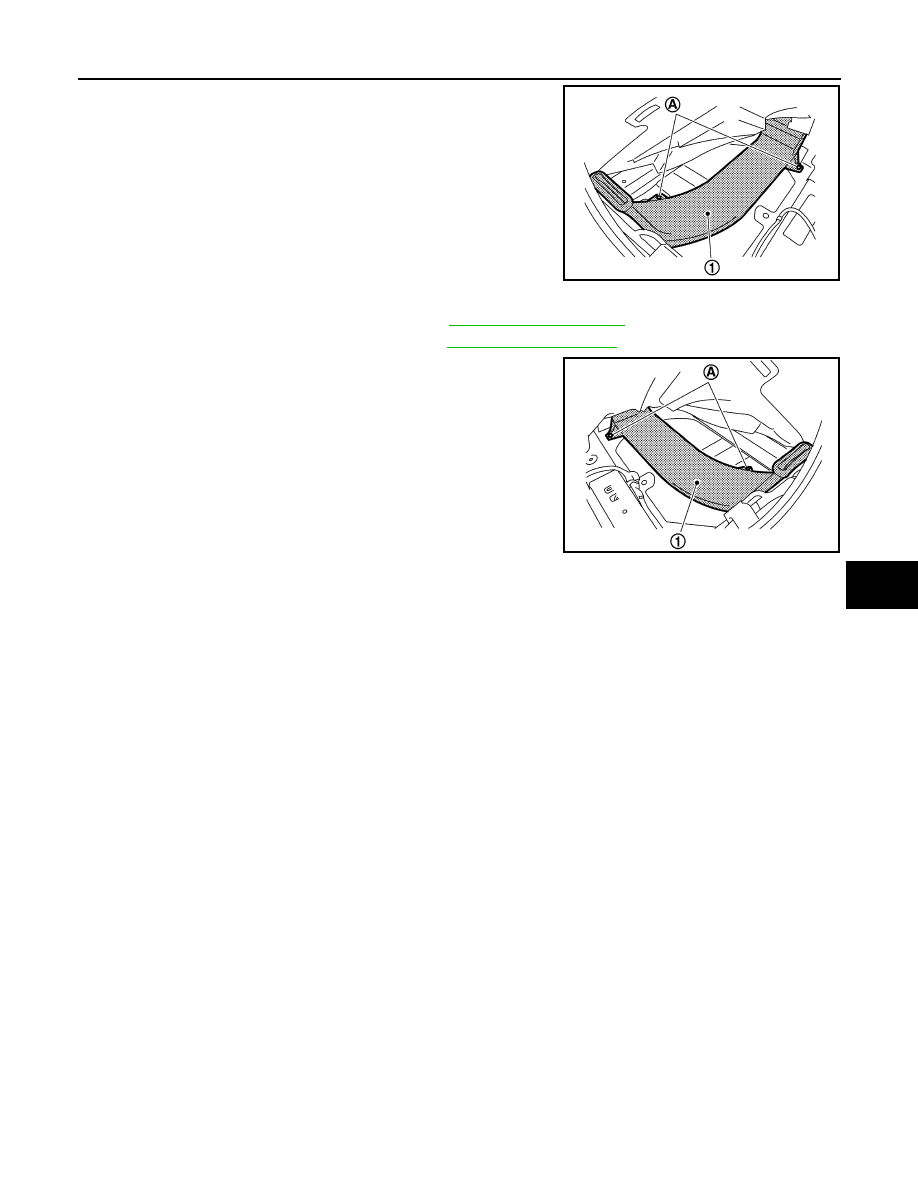

Remove the mounting screws (A), and then remove rear ventila-
tor duct 3 (left) (1).

Passenger side

1.

Remove the front seat assembly (right). Refer to

SE-105, "Exploded View"

.

2.

Pull up the passenger side floor carpet. Refer to

INT-24, "Exploded View"

.

3.

Remove the mounting screws (A), and then remove rear ventila-
tor duct 3 (right) (1).

INSTALLATION

Install in the reverse order of removal.

REAR VENTILATOR DUCT 4

JPIIA0591ZZ

JPIIA0592ZZ

VTL-60

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

DUCT AND GRILLE

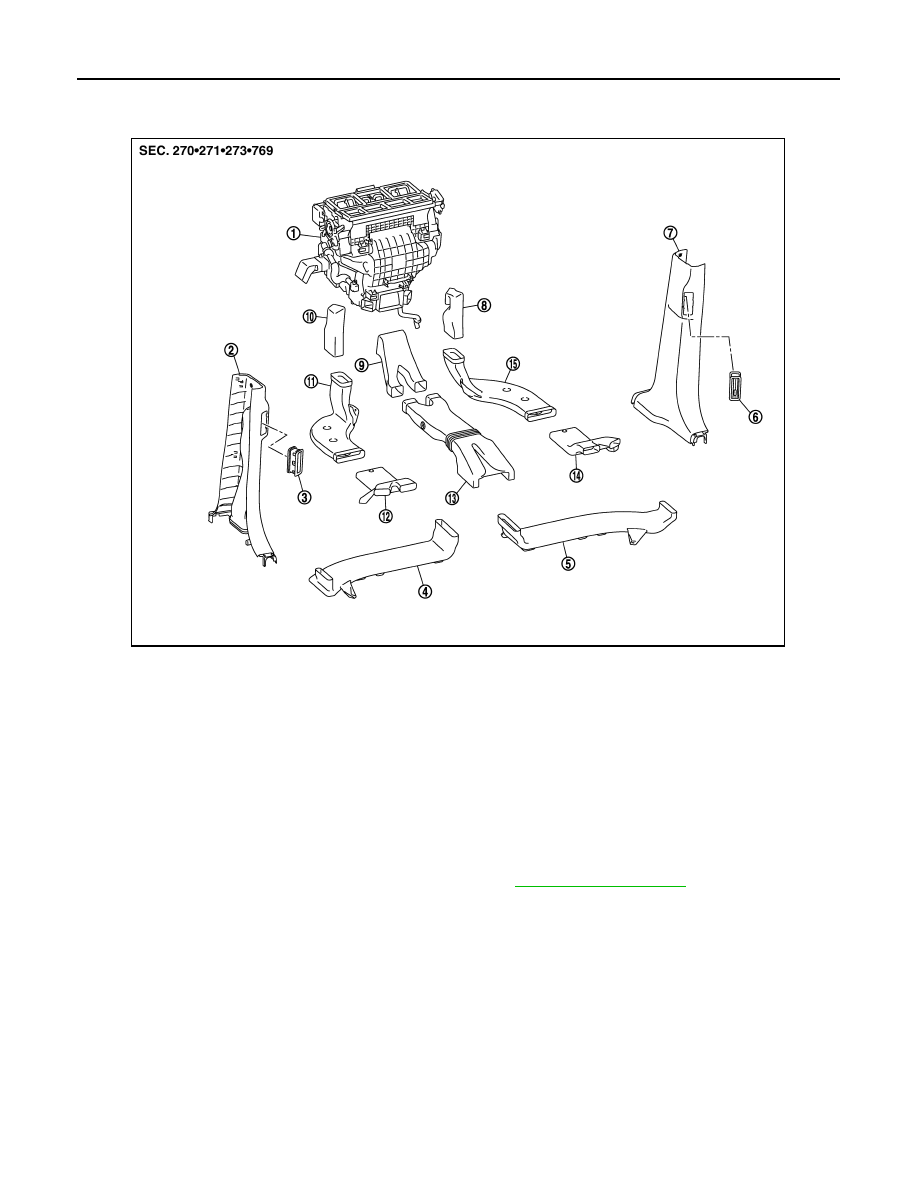

REAR VENTILATOR DUCT 4 : Exploded View

INFOID:0000000005517157

REAR VENTILATOR DUCT 4 : Removal and Installation

INFOID:0000000005517158

REMOVAL

1.

Remove the center pillar lower garnish (left/right). Refer to

INT-20, "Exploded View"

.

INSTALLATION

Install in the reverse order of removal.

REAR FOOT DUCT 1

1.

Heater & cooling unit assembly

2.

Rear ventilator duct 4 (center pillar lower
garnish left)

3.

Rear ventilator grille (left)

4.

Rear ventilator duct 3 (left)

5.

Rear ventilator duct 3 (right)

6.

Rear ventilator grille (right)

7.

Rear ventilator duct 4 (center pillar lower
garnish right)

8.

Rear foot duct 1 (right)

9.

Rear ventilator duct 1

10.

Rear foot duct 1 (left)

11.

Rear foot duct 2 (left)

12. Rear foot duct 3 (left)

13.

Rear ventilator duct 2

14.

Rear foot duct 3 (right)

15. Rear foot duct 2 (right)

JPIIA0457ZZ

DUCT AND GRILLE

VTL-61

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

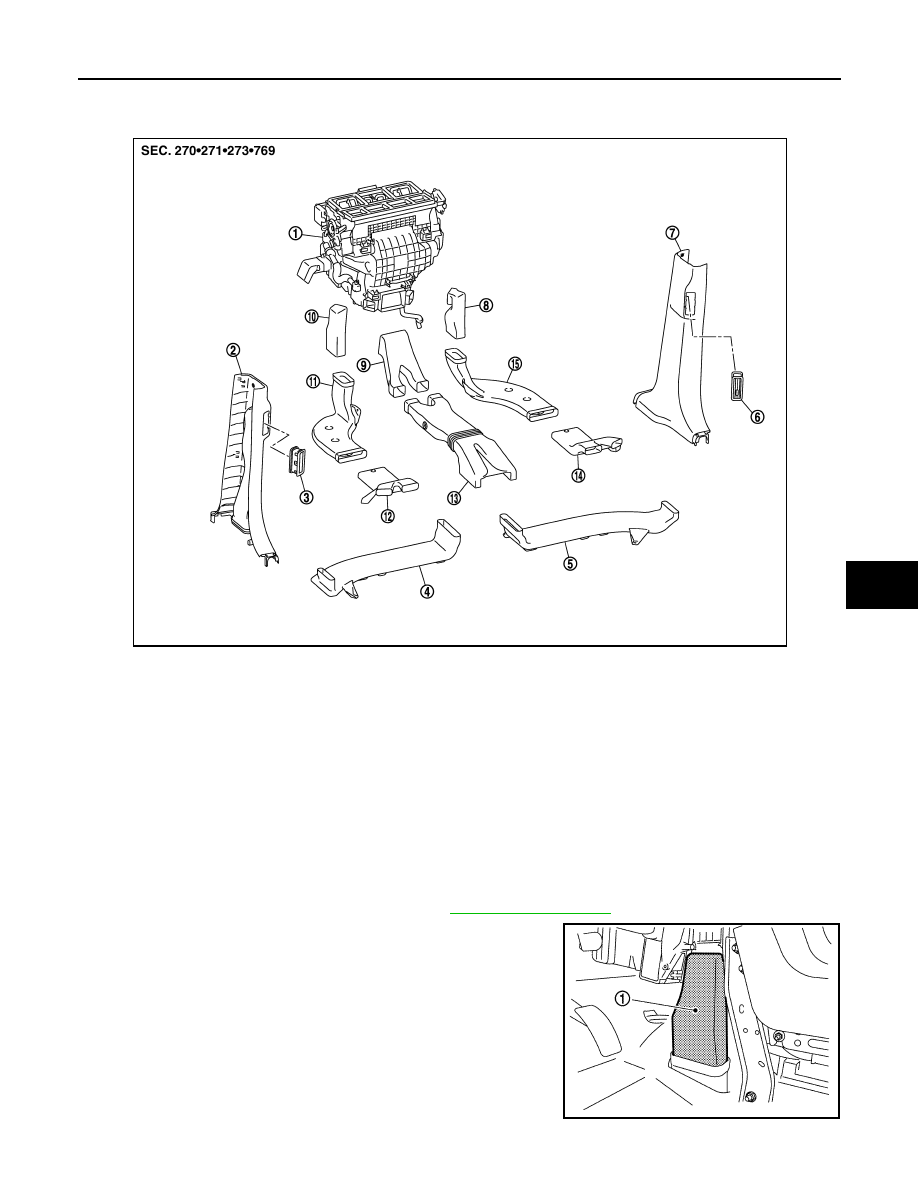

REAR FOOT DUCT 1 : Exploded View

INFOID:0000000005517159

REAR FOOT DUCT 1 : Removal and Installation

INFOID:0000000005517160

REMOVAL

Driver side

1.

Remove the instrument lower cover LH. Refer to

IP-20, "Exploded View"

.

2.

Remove the rear foot duct 1 (left) (1).

Passenger side

1.

Heater & cooling unit assembly

2.

Rear ventilator duct 4 (center pillar lower
garnish left)

3.

Rear ventilator grille (left)

4.

Rear ventilator duct 3 (left)

5.

Rear ventilator duct 3 (right)

6.

Rear ventilator grille (right)

7.

Rear ventilator duct 4 (center pillar lower
garnish right)

8.

Rear foot duct 1 (right)

9.

Rear ventilator duct 1

10.

Rear foot duct 1 (left)

11.

Rear foot duct 2 (left)

12. Rear foot duct 3 (left)

13.

Rear ventilator duct 2

14.

Rear foot duct 3 (right)

15. Rear foot duct 2 (right)

JPIIA0457ZZ

JPIIA0595ZZ

VTL-62

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

DUCT AND GRILLE

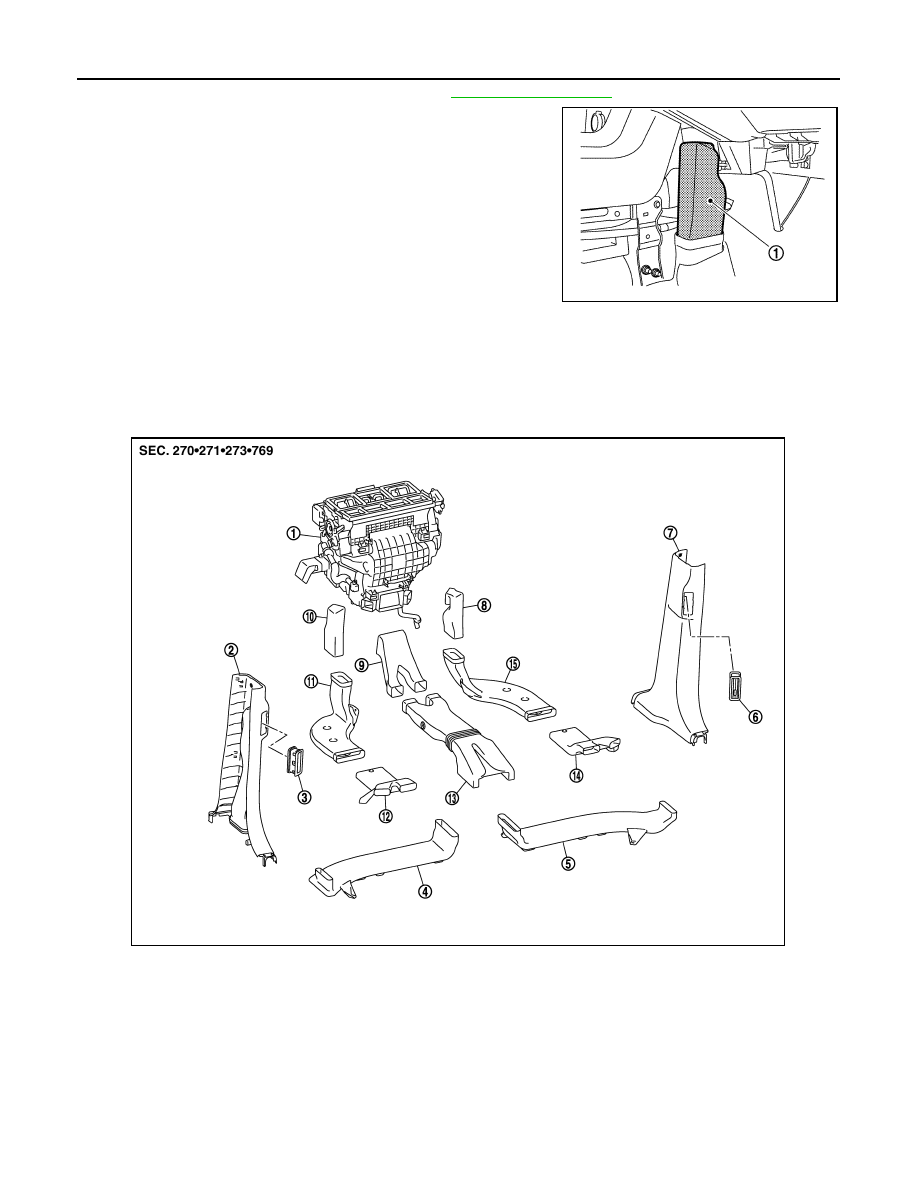

1.

Remove the instrument lower cover RH. Refer to

IP-20, "Exploded View"

.

2.

Remove the rear foot duct 1 (right) (1).

INSTALLATION

Install in the reverse order of removal.

REAR FOOT DUCT 2

REAR FOOT DUCT 2 : Exploded View

INFOID:0000000005517161

JPIIA0596ZZ

1.

Heater & cooling unit assembly

2.

Rear ventilator duct 4 (center pillar lower
garnish left)

3.

Rear ventilator grille (left)

4.

Rear ventilator duct 3 (left)

5.

Rear ventilator duct 3 (right)

6.

Rear ventilator grille (right)

7.

Rear ventilator duct 4 (center pillar lower
garnish right)

8.

Rear foot duct 1 (right)

9.

Rear ventilator duct 1

10.

Rear foot duct 1 (left)

11.

Rear foot duct 2 (left)

12. Rear foot duct 3 (left)

13.

Rear ventilator duct 2

14.

Rear foot duct 3 (right)

15. Rear foot duct 2 (right)

JPIIA0457ZZ
