Nissan Murano Z51. Manual - part 1453

CVT SHIFT SELECTOR

TM-163

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

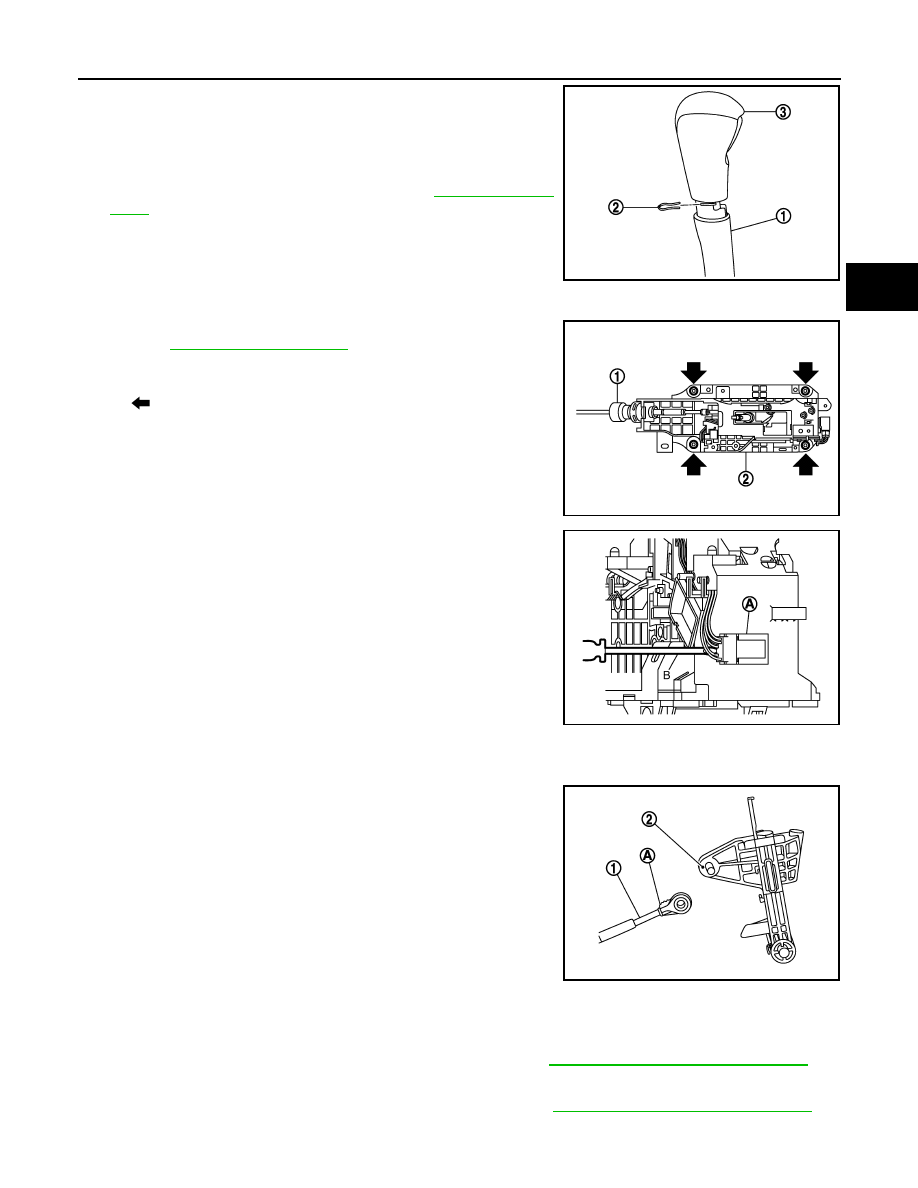

3.

Slide knob cover (1) below selector lever downward.

CAUTION:

Be careful not to damage knob cover.

4.

Pull lock pin (2) out of selector lever knob (3).

5.

Remove selector lever knob and knob cover.

6.

Remove center console assembly. Refer to

IP-20, "Exploded

View"

.

7.

Move selector lever to “P” position.

8.

Remove control cable (1) from CVT shift selector assembly.
Refer to

TM-164, "Exploded View"

.

9.

Remove CVT shift selector assembly (2).

10. Remove CVT shift selector connector (A) using a flat-bladed

screwdriver (B).

11. Remove shift lock unit from CVT shift selector assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.
When installing control cable (1) to CVT shift selector assembly (2),
check that control cable is fully pressed in with the ribbed (A) surface
facing upward.

Inspection and Adjustment

INFOID:0000000005514108

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT positions after installing CVT shift selector. Refer to

TM-159, "Inspection and Adjustment"

.

INSPECTION AFTER INSTALLATION

Check the CVT positions after adjusting the CVT positions. Refer to

TM-159, "Inspection and Adjustment"

.

JPDIA0606ZZ

: Nut

JPDIA0615ZZ

JPDIA0616ZZ

JPDIA0609ZZ

TM-164

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

CONTROL CABLE

CONTROL CABLE

Exploded View

INFOID:0000000005514109

Removal and Installation

INFOID:0000000005514110

REMOVAL

CAUTION:

Make sure that parking brake is applied before removal/installation.
1.

Remove control cable from CVT shift selector assembly. Refer to

TM-162, "Exploded View"

.

2.

Remove air duct (inlet). Refer to

EM-31, "Exploded View"

.

3.

Remove battery and battery bracket. Refer to

PG-119, "Exploded View"

.

4.

Remove air cleaner case. Refer to

EM-31, "Exploded View"

.

5.

Remove nut (

).

6.

Remove control cable (1) from manual lever (A).

7.

Remove lock plate (2) from control cable.

8.

Remove control cable from bracket (3).

9.

Remove front foot duct RH. Refer to

VTL-61, "REAR FOOT

DUCT 1 : Exploded View"

 (without 7 inch display),

VTL-118,

"REAR VENTILATOR DUCT 1 : Exploded View"

 (with 7 inch dis-

play).

1.

CVT shift selector assembly

2.

Control cable

3.

Lock plate

4.

Bracket

5.

Transaxle assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIA0611GB

JPDIA0601ZZ

CONTROL CABLE

TM-165

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

10. Remove the control cable (1) from the vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.
When installing control cable (1) to CVT shift selector assembly (2),
check that control cable is fully pressed in with the ribbed (A) surface
facing upward.

Inspection and Adjustment

INFOID:0000000005514111

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT positions after installing control cable. Refer to

TM-159, "Inspection and Adjustment"

.

INSPECTION AFTER INSTALLATION

Check the CVT positions after adjusting the CVT positions. Refer to

TM-159, "Inspection and Adjustment"

.

A

:  Dash  trim

: Bolt

JPDIA0629ZZ

JPDIA0609ZZ

TM-166

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

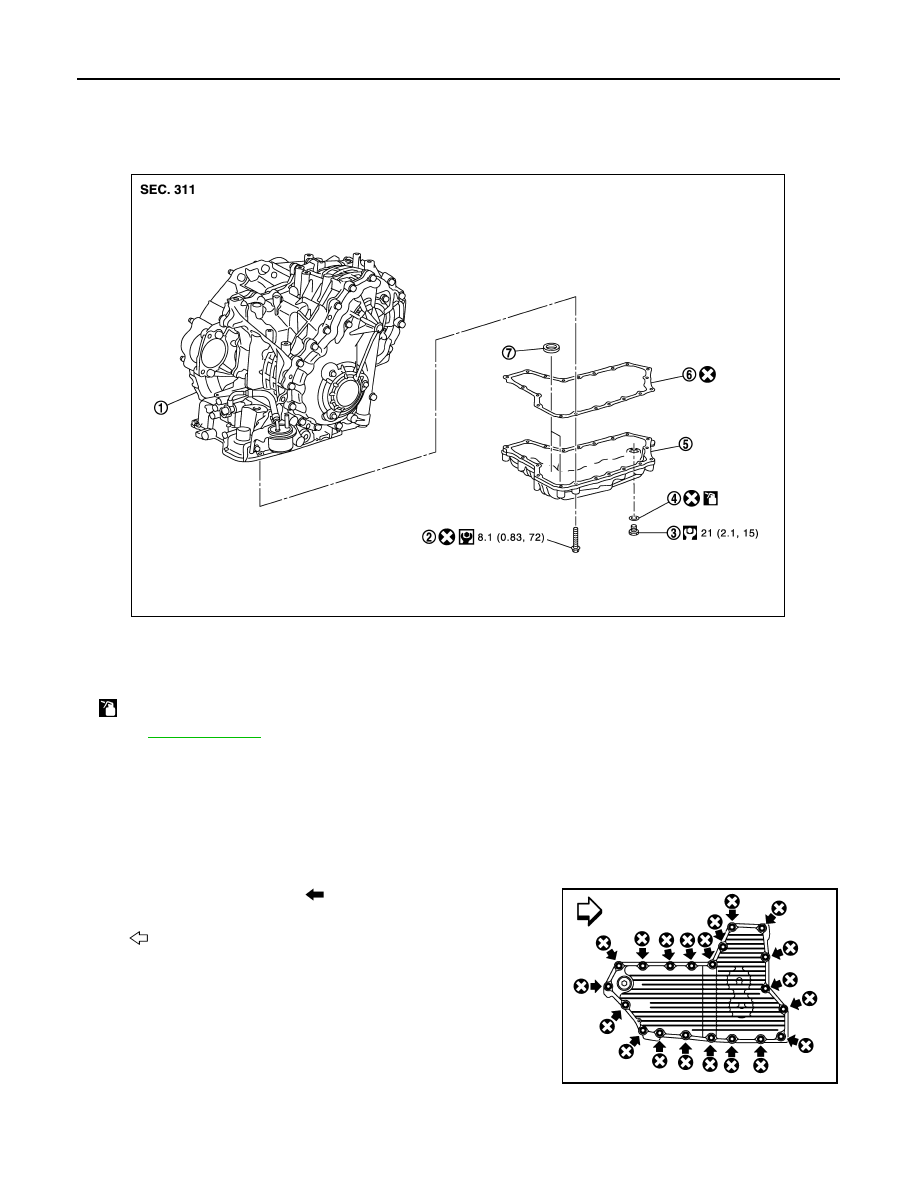

OIL PAN

OIL PAN

Exploded View

INFOID:0000000005514112

Removal and Installation

INFOID:0000000005514113

REMOVAL

1.

Remove engine under cover with power tool.

2.

Remove drain plug.

3.

Remove O-ring from drain plug.

4.

Remove oil pan fitting bolts (

).

5.

Remove oil pan.

1.

Transaxle assembly

2.

Oil pan fitting bolt

3.

Drain plug

4.

O-ring

5.

Oil pan

6.

Oil pan gasket

7.

Magnet

: Apply CVT Fluid NS-2.

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIA0608GB

: Vehicle front

SCIA8135J
