Nissan Murano Z51. Manual - part 1393





ST-10

< PREPARATION >

PREPARATION

Commercial Service Tools

INFOID:0000000005589174

KV48103500
(J-26357)
Oil pressure gauge

Measuring oil pump relief pressure

KV48102500
(J-33914)
Oil pressure gauge adapter

Measuring oil pump relief pressure

Tool number
(Kent-Moore No.)
Tool name

Description

S-NT547

S-NT542

Tool name

Description

Power tool

Loosening bolts and nuts

Ball joint remover

Remove steering outer socket

Open head

Tighten end cover assembly

PBIC0190E

S-NT146

ZZA0822D

PREPARATION

ST-11

< PREPARATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

Drift
a: 15 mm (0.59 in) dia.
b: 10 mm (0.39 in) dia.

Installing rotor snap ring

Drift
a: 36 mm (1.42 in) dia.
b: 20 mm (0.79 in) dia.

Installing oil pump oil seal

Tool name

Description

S-NT474

S-NT474

ST-12

< PERIODIC MAINTENANCE >

POWER STEERING FLUID

PERIODIC MAINTENANCE

POWER STEERING FLUID

Inspection

INFOID:0000000005514470

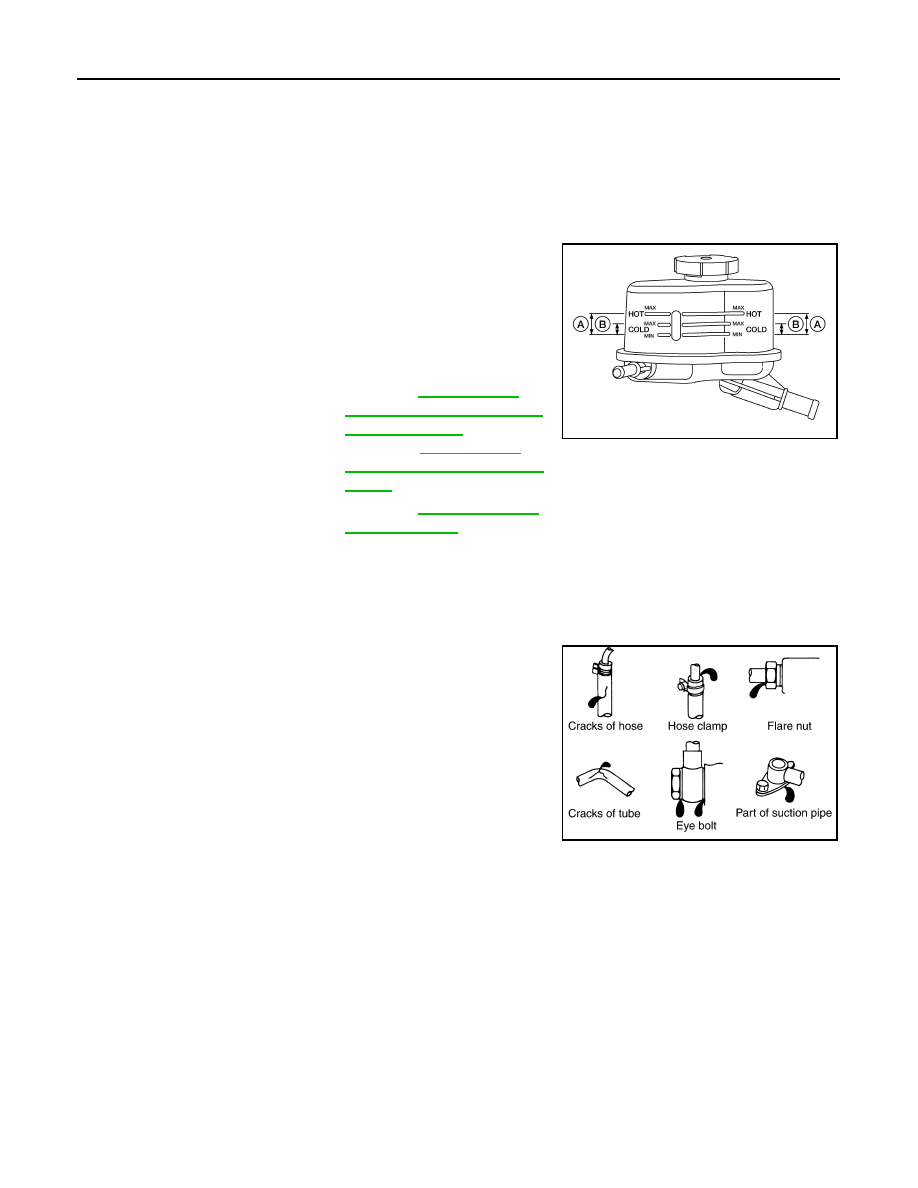

FLUID LEVEL

1.

Check fluid level with engine stopped.

2.

Ensure that fluid level is between MIN and MAX.

3.

Fluid levels at HOT and COLD are different. Do not confuse
them.

CAUTION:

• The fluid level should not exceed the MAX line. Excessive fluid causes fluid leakage from the

cap.

• Never reuse drained power steering fluid.

FLUID LEAKAGE

Check hydraulic connections for fluid leakage, cracks, damage,
looseness, or wear.

1.

Run the engine until the fluid temperature reaches 50 to 80

°

C

(122 to 176

°

F) in reservoir tank, and keep engine speed idle.

2.

Turn steering wheel several times from full left stop to full right
stop.

3.

Hold steering wheel at each lock position for five seconds and
carefully check for fluid leakage.

CAUTION:

Never hold the steering wheel in a locked position for more
than 10 seconds. (There is the possibility that power steer-
ing oil pump assembly may be damaged.)

4.

If fluid leakage at connections is noticed, then loosen flare nut and then retighten. Do not overtighten con-
nector as this can damage O-ring, washer and connector.

5.

If fluid leakage from oil pump is noticed, check oil pump.

6.

Check steering gear boots for accumulation of fluid leaked from steering gear.

AIR BLEEDING HYDRAULIC SYSTEM

If air bleeding is not complete, the following symptoms can be observed.
• Bubbles are created in reservoir tank.
• Clicking noise can be heard from oil pump.
• Excessive buzzing in the oil pump.

NOTE:
Fluid noise may occur in the steering gear or oil pump. This does not affect performance or durability of the
system.

1.

Turn steering wheel several times from full left stop to full right stop with engine off.

CAUTION:

HOT (A)

: Fluid temperature 50 – 80

°

C (122 – 176

°

F)

COLD (B)

: Fluid temperature 0 – 30

°

C (32 – 86

°

F)

Recommended fluid

: Refer to

MA-15, "FOR

NORTH AMERICA : Fluids
and Lubricants"

(For North

America),

MA-16, "FOR

MEXICO : Fluids and Lubri-
cants"

(For Mexico).

Fluid capacity

: Refer to

ST-46, "General

Specifications"

.

ALGIA0002GB

SGIA0506E

POWER STEERING FLUID

ST-13

< PERIODIC MAINTENANCE >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

Fill reservoir tank with a sufficient amount of fluid so that fluid level is not below the MIN line while
turning steering wheel.

2.

Start the engine and hold steering wheel at each lock position for 3 second at idle to check for fluid leak-
age.

3.

Repeat step 2 above several times at approximately 3 second intervals.

CAUTION:

Never hold the steering wheel in a locked position for more than 10 seconds. (There is the possi-
bility that oil pump may be damaged.)

4.

Check fluid for bubbles and white contamination.

5.

Stop the engine if bubbles and white contamination do not drain out. Perform step 2 and 3 above after
waiting until bubbles and white contamination drain out.

6.

Stop the engine, and then check fluid level.
