FRONT SIDE AIR BAG MODULE

SR-45

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

FRONT SIDE AIR BAG MODULE

Exploded View

INFOID:0000000005518928

Removal and Installation

INFOID:0000000005518929

REMOVAL

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3

minutes.

• Always work from the rear of the front side air bag module.
• Never use the air tools or electric tools for servicing.
1.

Remove the front seat. Refer to

SE-112, "Removal and Installation"

.

2.

Remove the seatback board. Refer to

SE-105, "Exploded View"

.

3.

Remove the front side air bag module fixing nuts, and/or harness connector.

4.

Remove the front side air bag module.

CAUTION:

• Always place the front side air bag module with pad side fac-

ing upward.

• Never impact the front side air bag module.

1.

Seatback flame

2.

Seat cushion flame

3.

Front side air bag module

A.

Front side air bag harness connector

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0514GB

: Upward

JMHIA0274ZZ

SR-46

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

FRONT SIDE AIR BAG MODULE

• Replace the front side air bag module if it has been dropped

or sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into front side air bag module.
• Never disassemble the front side air bag module.
• Never expose the front side air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the front side air bag module.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Never use the old fixing nuts after removal, replace with the new nuts.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT-III. Refer to

SRC-186, "Diagnosis

Description"

.

• After the work is completed, check that no malfunctioning system is detected by air bag warning

lamp.

JMHIA0009ZZ

SIDE CURTAIN AIR BAG MODULE

SR-47

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

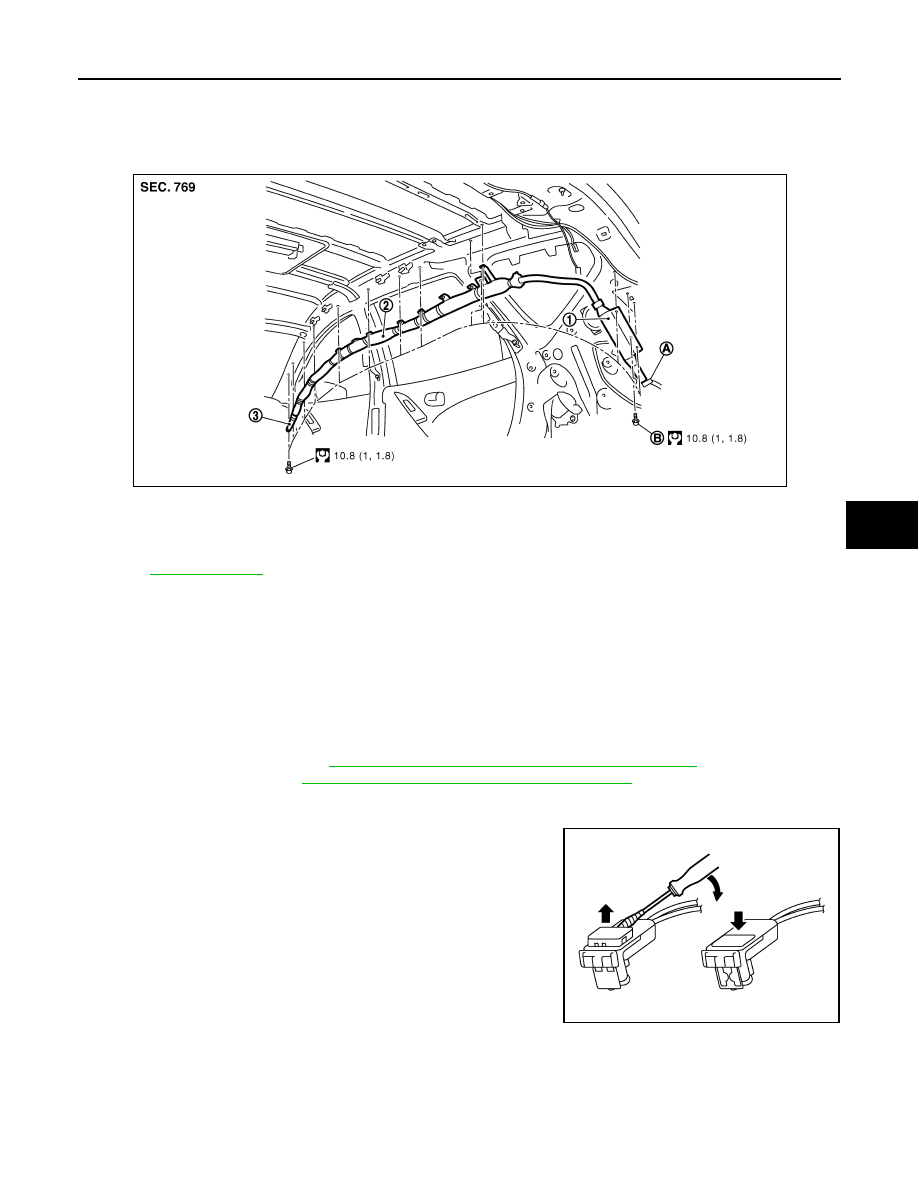

SIDE CURTAIN AIR BAG MODULE

Exploded View

INFOID:0000000005518930

Removal and Installation

INFOID:0000000005518931

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use air tools or electric tools for servicing.

REMOVAL

1.

Remove the headlining.
• Normal roof models: Refer to

INT-27, "NORMAL ROOF : Removal and Installation"

.

• Sunroof models: Refer to

INT-30, "SUNROOF : Removal and Installation"

.

2.

Remove the side curtain air bag harness connector.

CAUTION:

• For installing/removing the side curtain air bag harness

connector, insert thin screwdriver wrapped in tape into
notch, lift lock and remove the connector.

• Install the connector with lock raised, and push lock into

the connector.

• After installing the connector, check that the lock is

pushed securely into it.

3.

Remove the fixing bolts, and then remove the side curtain air bag module.

CAUTION:

1.

Side curtain air bag inflator

2.

Side curtain air bag

3.

Strap

A.

Side curtain air bag harness connec-
tor

B.

Ground bolt

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0513GB

PHIA0953J

SR-48

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

SIDE CURTAIN AIR BAG MODULE

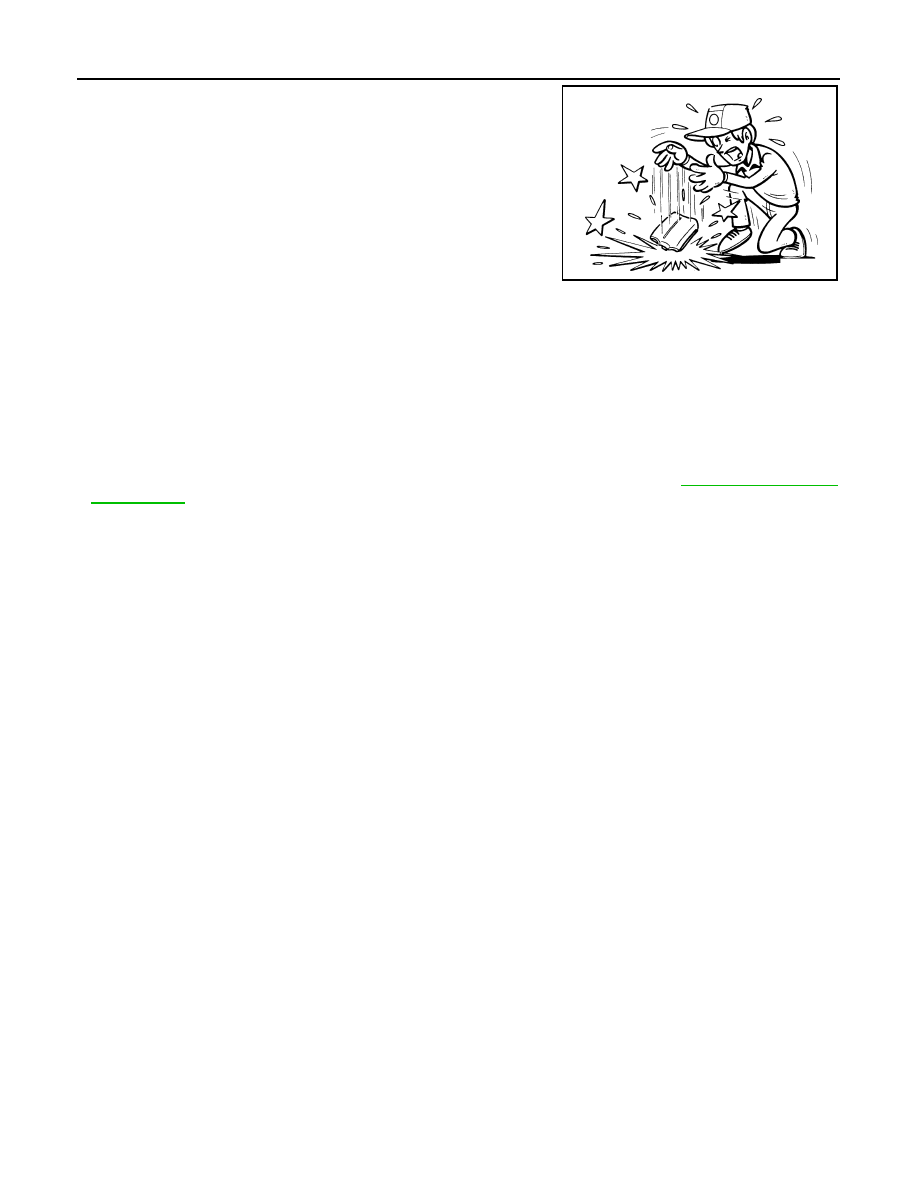

• Never impact the side curtain air bag module.
• Replace the side curtain air bag module if it has been dropped

or sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into the side curtain air bag module.
• Never disassemble the side curtain air bag module.
• Never expose the side curtain air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the side curtain air bag module.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT-III. Refer to

SRC-17, "Diagnosis

Description"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.
