SB-6

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR) and Automatic Locking Retractors (ALR)

NOTE:
All seat belt retractors are Emergency Locking Retractors (ELR) type. In an emergency (sudden stop) the
retractor locks and prevent the webbing from extending any further. All 3-point type seat belt retractors except
the driver seat belt also have an Automatic Locking Retractors (ALR) mode. The ALR mode (also called child
restraint mode) is used when installing child seats. The ALR mode is activated when the seat belt is fully
extended. When the webbing is then retracted partially, the ALR mode automatically locks the seat belt in a
specific position so the webbing cannot be extended any further. To cancel the ALR mode, allow the seat belt
to fully wind back into the retractor.
Check the seat belt retractors with the following test(s) to determine if a retractor assembly is operating prop-
erly.

ELR Function Stationary Check

Grasp the shoulder webbing and pull forward quickly. The retractor should lock and prevent the belt from
extending further.

ALR Function Stationary Check

1.

Pull out the entire length of the seat belt from the retractor until a click is heard.

2.

Retract the webbing partially. A clicking noise should be heard as the webbing retracts indicating that the
retractor is in the Automatic Locking Retractors (ALR) mode.

3.

Grasp the seat belt and try to pull out the retractor. The webbing must lock and not extend any further. If it
does not operate normally, replace the retractor assembly.

4.

Allow the entire length of the webbing to retract to cancel the automatic locking mode.

ELR Function Moving Check

WARNING:

Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a
large, empty parking lot). Road surface must be paved and dry. Never perform the following test on
wet or gravel roads or on public streets and highways. This could result in an accident and serious
personal injury. The driver and passenger must be prepared to brace themselves in the event that the
retractor does not lock.

1.

Fasten driver seat belt. Buckle a passenger into the seat for the belt that is to be tested.

2.

Proceed to the designated safe area.

3.

Drive the vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a sudden stop and the
driver and passenger must be prepared to brace themselves in the event that the retractor does not lock.
Apply brakes firmly and make a very hard stop.

During stopping, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock,
perform the retractor off-vehicle check.

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

1.

Remove the seat belt retractor.
Remove the front seat belt assembly. Refer to

SB-7, "SEAT BELT RETRACTOR : Removal and Installa-

tion"

.

2.

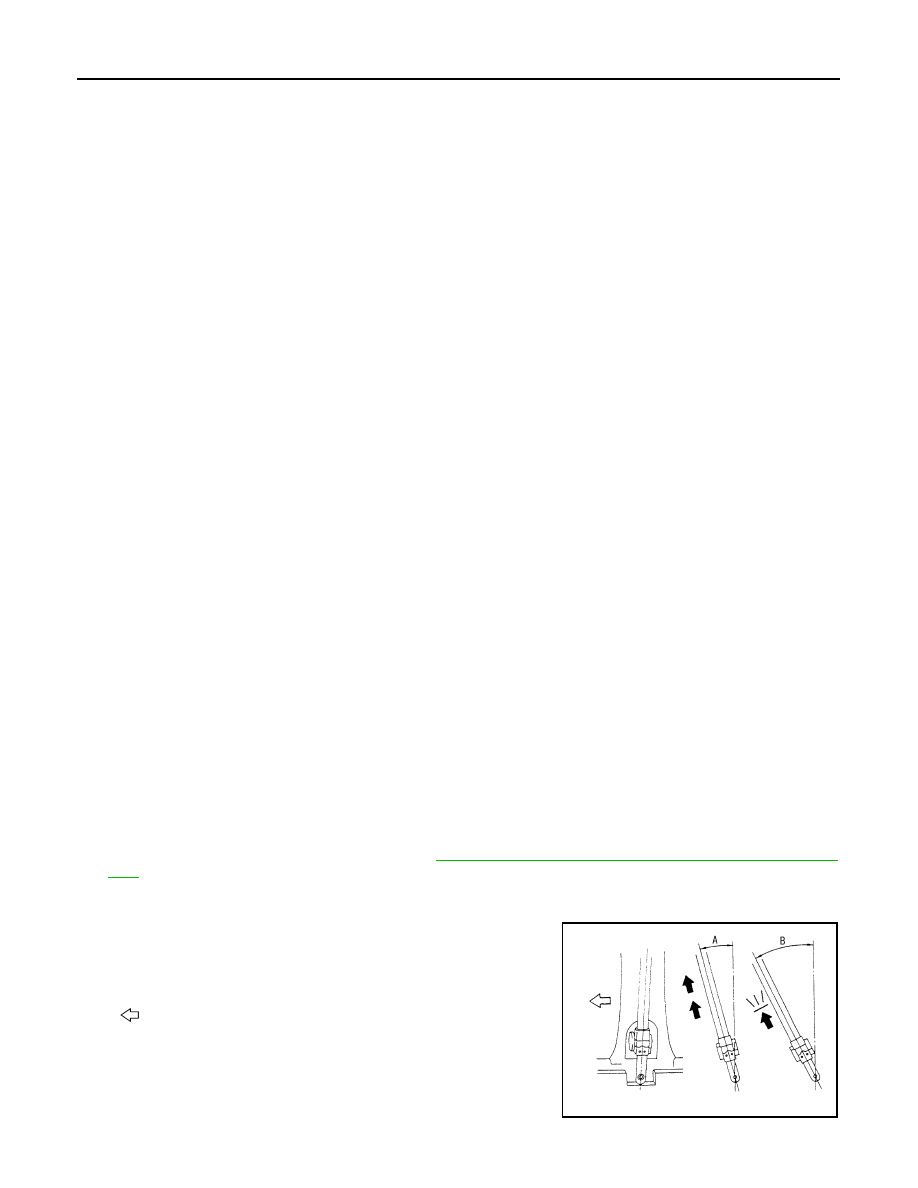

Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without
twisting the retractor assembly as shown in the illustration.
A: The webbing can be pulled out when the retractor is tilted 15
degrees or less.
B: The webbing cannot be pulled out when the retractor is tilted
35 degrees or more.
• A and B show tilting angles.

: Vehicle front.

PHIA0954J

FRONT SEAT BELT

SB-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

Replace the seat belt assembly if it does not operate normally.

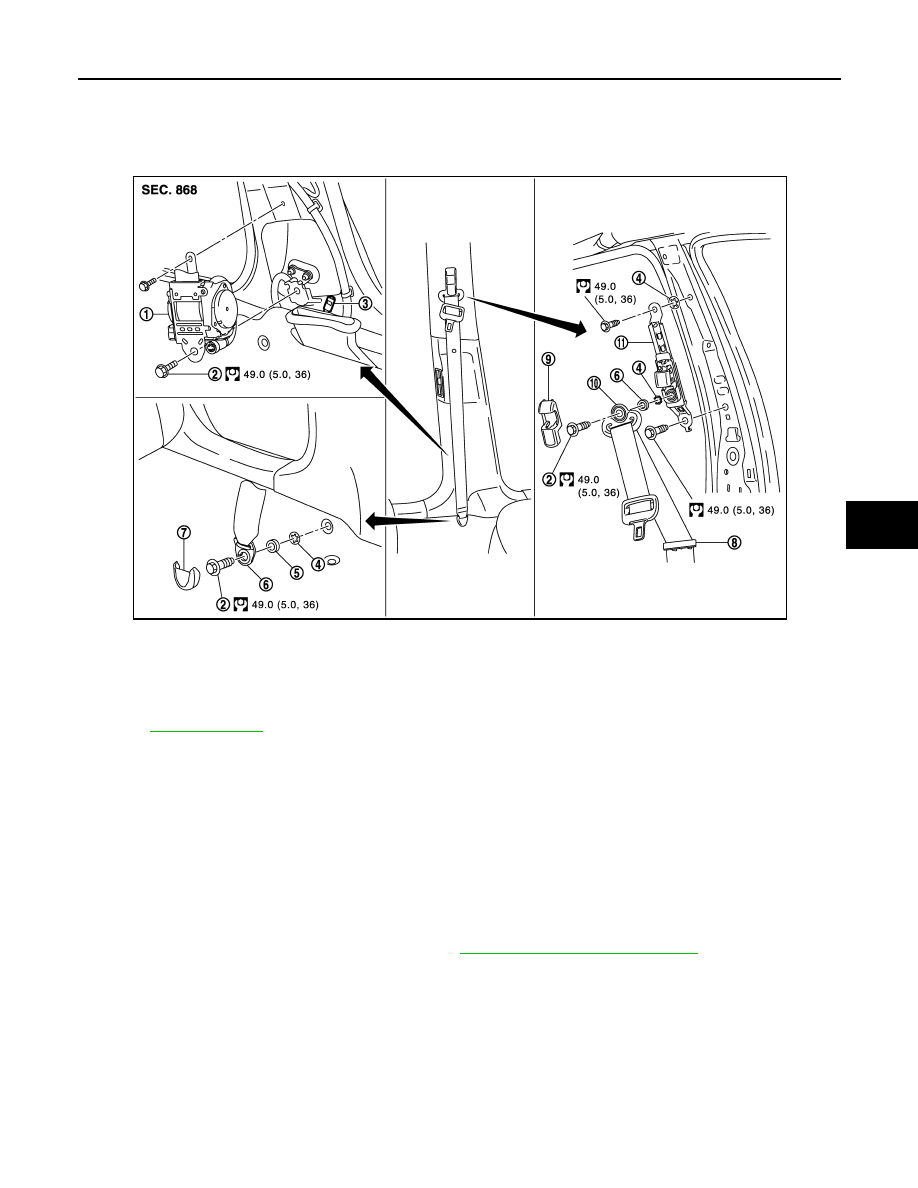

SEAT BELT RETRACTOR : Exploded View

INFOID:0000000005513464

SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000005513465

REMOVAL

CAUTION:

Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3
minutes.

1.

Remove the shoulder anchor.
• Remove the shoulder anchor cover.
• Remove the fixing anchor bolt of the shoulder anchor.

2.

Remove the seat belt assembly.
• Remove the center pillar lower garnish. Refer to

INT-20, "Removal and Installation"

.

• Disconnect the seat belt pre-tensioner connector.

CAUTION:

1.

Pre-tensioner seat belt retractor

2.

Anchor bolt

3.

Seat belt pre-tensioner connector

4.

Retaining washer

5.

Spacer

6.

Outer anchor

7.

Outer anchor cover

8.

Seat belt guide

9.

Shoulder anchor cover

10. Shoulder anchor

11.

Seat belt adjuster

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0518GB

SB-8

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT

• For installing/removing seat belt pre-tensioner connec-

tor, insert thin screwdriver wrapped in tape into notch,
lift lock and remove connector.

• Install connector with lock raised, and push lock into

connector.

• Remove the fixing bolt and anchor bolt of the pre-tensioner seat retractor.
• Remove the seat belt guide.

3.

Remove the seat belt adjuster.
• Remove the center pillar upper garnish. Refer to

INT-20, "Removal and Installation"

.

• Remove the fixing bolts of the seat belt adjuster.

INSTALLATION

Install in the reverse order of removal.

SEAT BELT BUCKLE

SEAT BELT BUCKLE : Inspection

INFOID:0000000005513466

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either damage or improper operation is noted. Seat belt pre-
tensioners should be replaced even if the seat belts were not in use during a frontal collision in which
the air bags were deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).
• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioner must be replaced even if the seat belts were not in use during the collision in

which the air bags were deployed.

PRELIMINARY CHECKS

1.

Check the seat belt warning lamp for proper operation as follows:

a.

Turn ignition switch ON. The seat belt warning lamp should illuminate.

b.

Fasten driver seat belt. The seat belt warning lamp should turn OFF.

2.

If the air bag warning lamp is blinking, conduct self-diagnosis using CONSULT-III and air bag warning
lamp. Refer to

SRC-17, "Diagnosis Description"

.

3.

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

4.

Repeat steps above if necessary to check the other seat belts.

PHIA0953J

FRONT SEAT BELT

SB-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

SEAT BELT BUCKLE : Exploded View

INFOID:0000000005513467

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000005513468

REMOVAL

Remove the seat belt buckle.
• Remove the front seat from vehicle. Refer to

SE-112, "Removal and Installation"

(for ease of tool operation

in narrow space.)

• Disconnect the seat belt buckle harness connector.
• Remove the fixing anchor bolt of the seat belt buckle.

INSTALLATION

Install in the reverse order of removal.

1.

Seat belt buckle

2.

Anchor bolt

3.

Wave washer

4.

Plain washer

5.

Retaining washer

6.

Seat belt buckle harness connector

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0519GB
