Nissan Murano Z51. Manual - part 1159





PWO-12

< REMOVAL AND INSTALLATION >

POWER SOCKET

POWER SOCKET

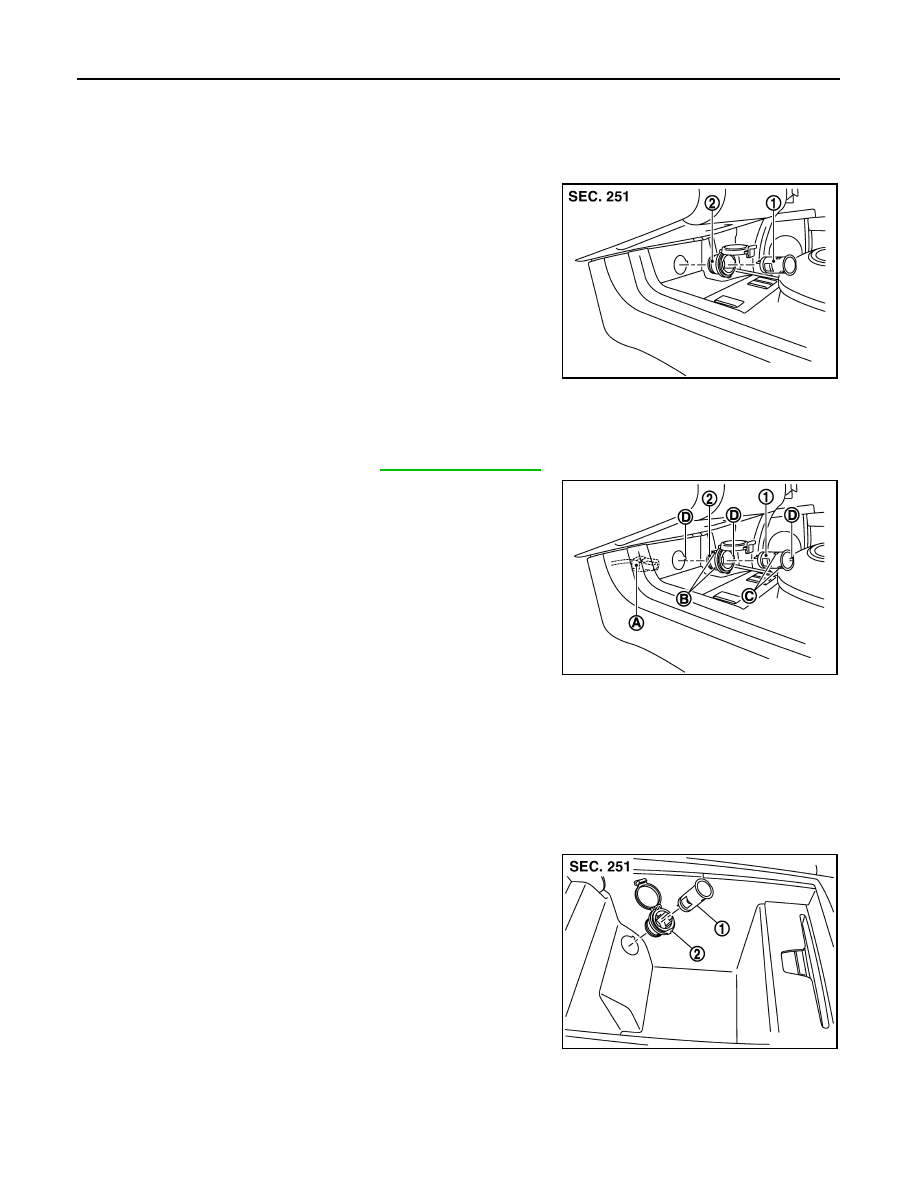

FRONT POWER SOCKET

FRONT POWER SOCKET : Exploded View

INFOID:0000000005513240

FRONT POWER SOCKET : Removal and Installation

INFOID:0000000005513241

REMOVAL

1.

Remove front console pocket. Refer to

IP-20, "Exploded View"

.

2.

Disconnect power socket connector (A).

3.

Pull out inner socket (1) by pushing the ring pawl (B) from the
inner socket hole (square) (C).

4.

Remove ring (2) from front console pocket while pressing pawls.

INSTALLATION

Install in the reverse order of removal.
NOTE:
Align the cut outs of inner socket, ring, and front console pocket.

CONSOLE POWER SOCKET

CONSOLE POWER SOCKET : Exploded View

INFOID:0000000005513242

Console Power Socket with DVD Player

Console Power Socket without DVD Player

1

: Inner socket

2

:  Ring

JPMIA0782ZZ

D

: Cut out

JPMIA0783ZZ

1

: Inner socket

2

:  Ring

JPMIA0788ZZ

PWO

POWER SOCKET

PWO-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

CONSOLE POWER SOCKET : Removal and Installation

INFOID:0000000005513243

REMOVAL (WITH DVD PLAYER)

1.

Remove console rear finisher. Refer to

IP-20, "Exploded View"

.

2.

Disconnect power socket connector (A).

3.

Pull out inner socket (1) by pushing the ring pawl (B) from the
inner socket hole (square) (C).

4.

Remove ring (2) from console box while pressing pawls.

REMOVAL (WITHOUT DVD PLAYER)

1.

Remove console finisher assembly. Refer to

IP-20, "Exploded View"

.

2.

Disconnect power socket connector (A).

3.

Pull out inner socket (1) by pushing the ring pawl (B) from the
inner socket hole (square) (C).

4.

Remove ring (2) from console box while pressing pawls.

INSTALLATION

Install in the reverse order of removal.
NOTE:
Align the cut outs of inner socket, ring, and console box.

LUGGAGE ROOM POWER SOCKET

1

: Inner socket

2

:  Ring

JPMIA0786ZZ

D

: Cut out

JPMIA0789ZZ

D

: Cut out

JPMIA0787ZZ

PWO-14

< REMOVAL AND INSTALLATION >

POWER SOCKET

LUGGAGE ROOM POWER SOCKET : Exploded View

INFOID:0000000005513244

LUGGAGE ROOM POWER SOCKET : Removal and Installation

INFOID:0000000005513245

REMOVAL

1.

Remove luggage side finisher lower (RH). Refer to

INT-34, "Exploded View"

.

2.

Disconnect power socket connector (A).

3.

Remove retainer (1) and remove power socket assembly.

4.

Pull out inner socket (2) by pushing the ring pawl (D) from the
inner socket hole (square) (C).

5.

Remove ring (3) from luggage side finisher lower (RH) while
pressing pawls.

INSTALLATION

Install in the reverse order of removal.
NOTE:
Align the cut outs of inner socket, ring, and luggage side finisher lower (RH).

1

: Inner socket

2

:  Ring

3

:  Retainer

JPMIA1299ZZ

B

: Cut out

JPMIA1300ZZ

RAX-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

RAX

A

B

RAX

N

O

P

CONTENTS

REAR AXLE

2WD

SYMPTOM DIAGNOSIS  ...............................

2

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

2

NVH Troubleshooting Chart  ......................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Commercial Service Tool  ..........................................

3

PERIODIC MAINTENANCE ..........................

4

REAR WHEEL HUB AND HOUSING  .................

4

Inspection ..................................................................

4

REMOVAL AND INSTALLATION ................

5

REAR WHEEL HUB AND HOUSING  .................

5

Exploded View  ..........................................................

5

Removal and Installation ...........................................

5

Inspection ..................................................................

6

SERVICE DATA AND SPECIFICATIONS
(SDS) .............................................................

7

SERVICE DATA AND SPECIFICATIONS
(SDS) ...................................................................

7

Wheel Bearing ...........................................................

7

AWD

SYMPTOM DIAGNOSIS  ...............................

8

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

8

NVH Troubleshooting Chart  ......................................

8

PRECAUTION ...............................................

9

PRECAUTIONS ..................................................

9

Precautions for Drive Shaft .......................................

9

PREPARATION ...........................................

10

PREPARATION .................................................

10

Commercial Service Tool  ........................................

10

PERIODIC MAINTENANCE  ........................

11

REAR WHEEL HUB AND HOUSING  ...............

11

Inspection ................................................................

11

REAR DRIVE SHAFT ........................................

12

Inspection ................................................................

12

REMOVAL AND INSTALLATION  ...............

13

REAR WHEEL HUB AND HOUSING  ...............

13

Exploded View .........................................................

13

Removal and Installation  .........................................

13

Inspection ................................................................

14

REAR DRIVE SHAFT ........................................

15

Exploded View .........................................................

15

Removal and Installation  .........................................

15

WHEEL SIDE  .............................................................

16

WHEEL SIDE : Disassembly and Assembly  ...........

16

FINAL DRIVE SIDE ....................................................

18

FINAL DRIVE SIDE : Disassembly and Assembly ....

18

Inspection ................................................................

20

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

22

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

22

Wheel Bearing  .........................................................

22

Drive Shaft ...............................................................

22
