POWER WINDOW MAIN SWITCH

PWC-119

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

REMOVAL AND INSTALLATION

POWER WINDOW MAIN SWITCH

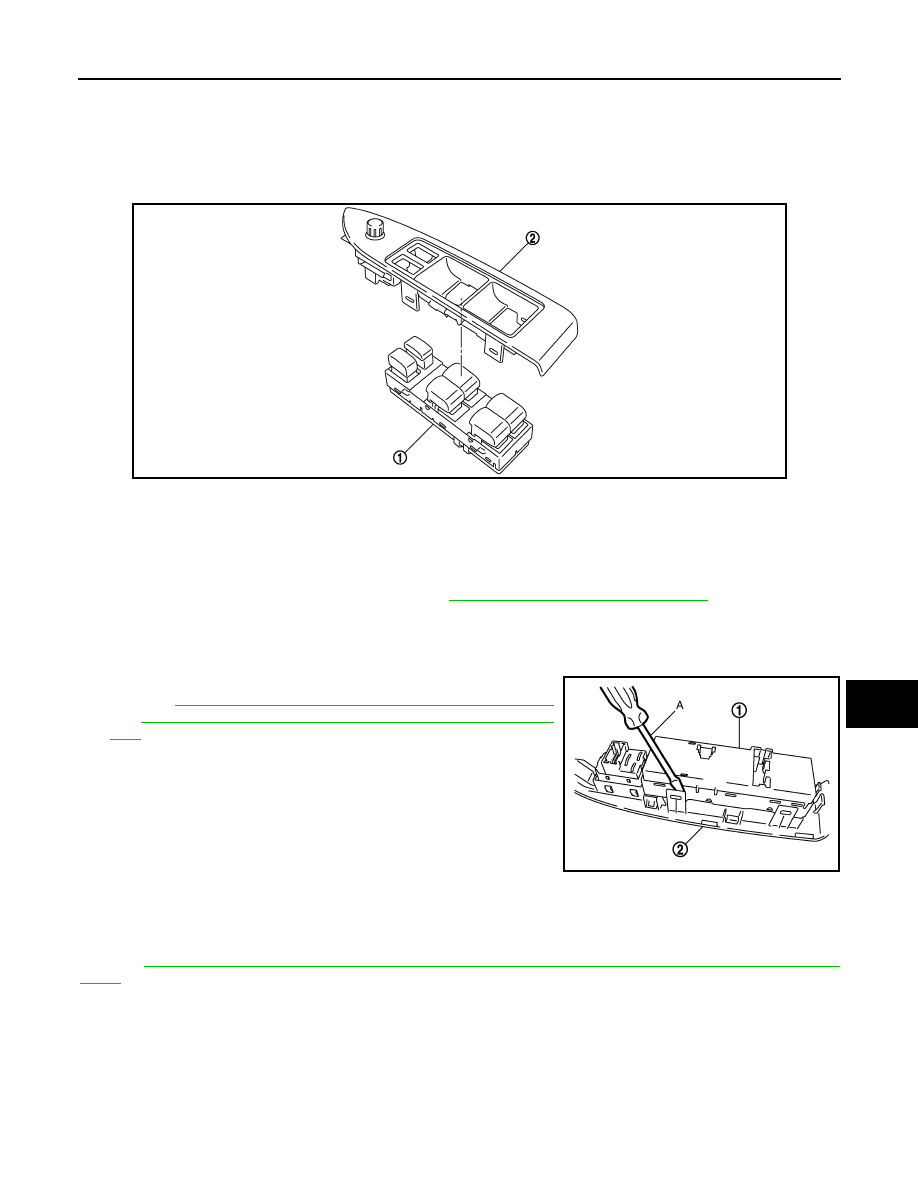

Exploded View

INFOID:0000000005513389

NOTE:
The same procedure is also performed for front power window switch (passenger side) and rear power switch
(LH & RH).
Refer to removal and installation procedure. Refer to

PWC-119, "Removal and Installation"

.

Removal and Installation

INFOID:0000000005513390

REMOVAL

1.

Remove the power window main switch finisher (2).
Refer to

INT-12, "FRONT DOOR FINISHER : Exploded View"

and

INT-12, "FRONT DOOR FINISHER : Removal and Installa-

tion"

.

2.

Power window main switch (1) is removed from power window
main switch finisher (2) using flat-head screw driver (A) etc.

CAUTION:

Do not fold the pawl of power window main switch finisher.
NOTE:
The same procedure is also performed for front power window
switch (passenger side) and rear power window switch (LH & RH).

INSTALLATION

Install in the reverse order of removal.
NOTE:
Power window main switch is exchanged or is detached it is necessary to do the initialization procedure.
Refer to

PWC-6, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-

ment"

.

JMKIA1823ZZ

1.

Power window main switch

2.

Power window main switch finisher

JMKIA1822ZZ

PWO

PWO-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

PWO

A

O

P

N

CONTENTS

POWER OUTLET

DTC/CIRCUIT DIAGNOSIS  ..........................

2

CIGARETTE LIGHTER  .......................................

2

Wiring Diagram - CIGARETTE LIGHTER -  ...............

2

POWER SOCKET  ...............................................

4

Wiring Diagram - POWER SOCKET - .......................

4

PRECAUTION ...............................................

9

PRECAUTIONS ...................................................

9

FOR USA AND CANADA ............................................

9

FOR USA AND CANADA : Precaution for Supple-
mental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER" ..............................

9

FOR MEXICO  ..............................................................

9

FOR MEXICO : Precaution for Supplemental Re-
straint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" ...................................................

9

REMOVAL AND INSTALLATION ...............

11

CIGARETTE LIGHTER  .....................................

11

Exploded View .........................................................

11

Removal and Installation  .........................................

11

POWER SOCKET  .............................................

12

FRONT POWER SOCKET .........................................

12

FRONT POWER SOCKET : Exploded View  ...........

12

FRONT POWER SOCKET : Removal and Instal-
lation ........................................................................

12

CONSOLE POWER SOCKET  ...................................

12

CONSOLE POWER SOCKET : Exploded View ......

12

CONSOLE POWER SOCKET : Removal and In-
stallation ..................................................................

13

LUGGAGE ROOM POWER SOCKET .......................

13

LUGGAGE ROOM POWER SOCKET : Exploded
View .........................................................................

14

LUGGAGE ROOM POWER SOCKET : Removal
and Installation  ........................................................

14

PWO-2

< DTC/CIRCUIT DIAGNOSIS >

CIGARETTE LIGHTER

DTC/CIRCUIT DIAGNOSIS

CIGARETTE LIGHTER

Wiring Diagram - CIGARETTE LIGHTER -

INFOID:0000000005513235

JCMWM3147GB

PWO

CIGARETTE LIGHTER

PWO-3

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM4860GB
