Nissan Murano Z51. Manual - part 1114

PG

POWER SUPPLY ROUTING CIRCUIT

PG-73

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM4962GB

PG-74

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

JCMWM4963GB

PG

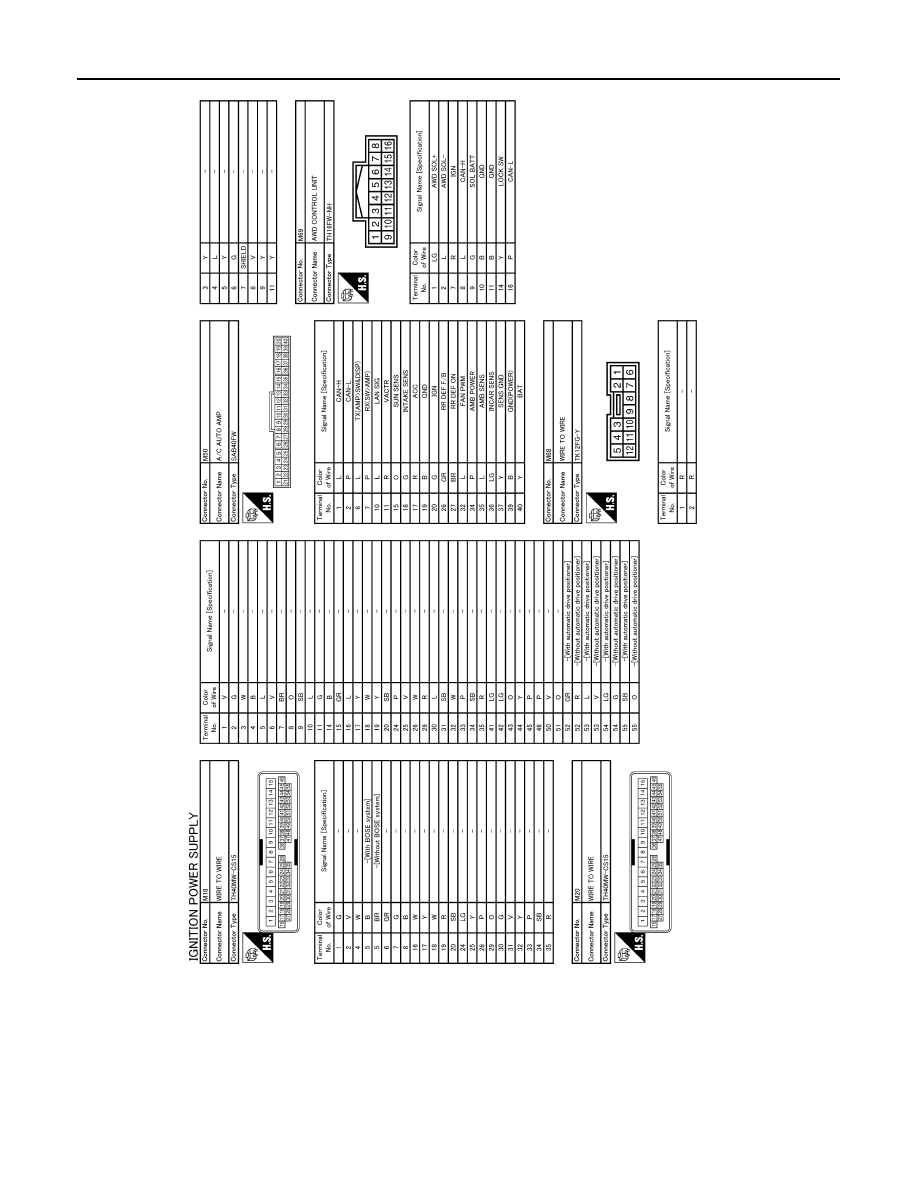

POWER SUPPLY ROUTING CIRCUIT

PG-75

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM4964GB

PG-76

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

JCMWM4965GB
