CHARGING THE BATTERY

CAUTION:

• Never “quick charge” a fully discharged battery.
• Keep the battery away from open flame while it is being charged.
• When connecting the charger, connect the leads first, then turn on the charger. Never turn on the

charger first, as this may cause a spark.

• If battery electrolyte temperature rises above 55

°

C (131

°

F), stop charging. Always charge battery at

a temperature below 55

°

C (131

°

F).

Charging Rates

Do not charge at more than 50 ampere rate.

NOTE:
The ammeter reading on your battery charger will automatically decrease as the battery charges. This indi-
cates that the voltage of the battery is increasing normally as the state of charge improves. The charging amps
indicated above refer to initial charge rate.
• If, after charging, the specific gravity of any two cells varies more than 0.050, the battery should be replaced.

Work Flow

INFOID:0000000005516885

TROUBLE DIAGNOSIS WITH BATTERY SERVICE CENTER

For battery testing, use Battery Service Center (J-48087). For details and operating instructions, refer to Tech-
nical Service Bulletin and/or Battery Service Center User Guide.

12 (10)

0.028

18 (0)

0.032

Battery electrolyte temperature [

°

C (

°

F)]

Add to specific gravity reading

Corrected specific gravity

Approximate charge condition

1.260 - 1.280

Fully charged

1.230 - 1.250

3/4 charged

1.200 - 1.220

1/2 charged

1.170 - 1.190

1/4 charged

1.140 - 1.160

Almost discharged

1.110 - 1.130

Completely discharged

Amps

Time

50

1 hour

25

2 hours

10

5 hours

5

10 hours

PG-6

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY ROUTING CIRCUIT

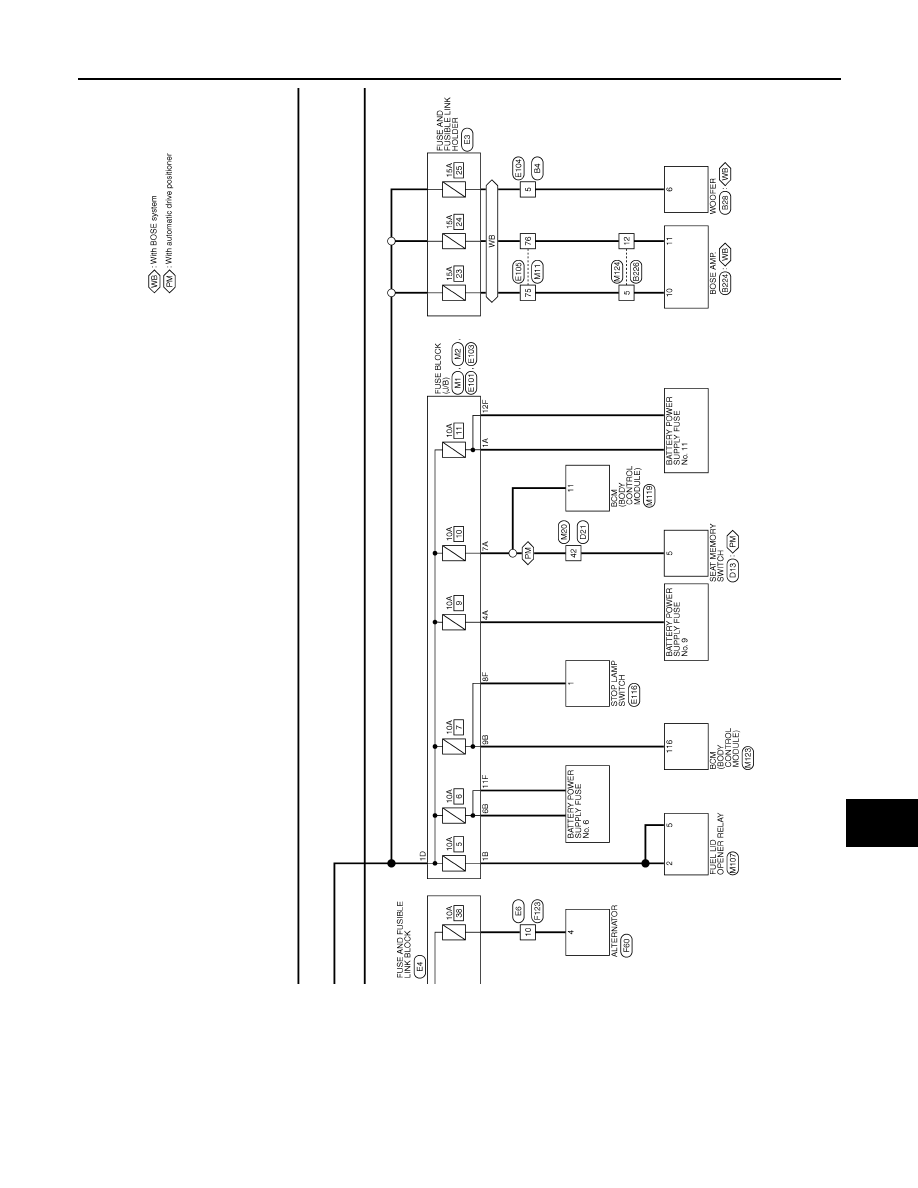

Wiring Diagram - BATTERY POWER SUPPLY -

INFOID:0000000005516886

JCMWM4903GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-7

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

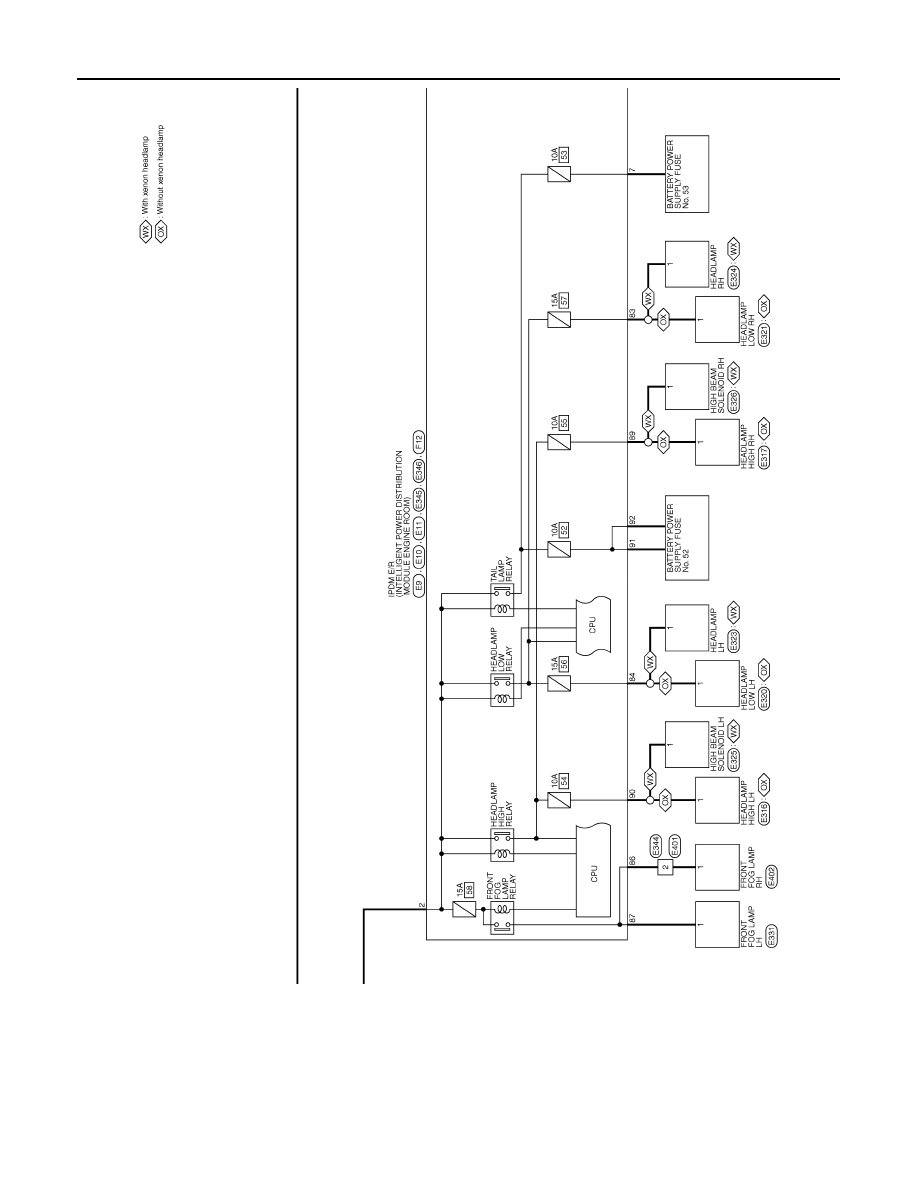

JCMWM4904GB

PG-8

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

JCMWM4905GB
