MIR-40

< ECU DIAGNOSIS INFORMATION >

[WITH ADP]

DRIVER SEAT CONTROL UNIT

JCJWM1029GB

DRIVER SEAT CONTROL UNIT

MIR-41

< ECU DIAGNOSIS INFORMATION >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

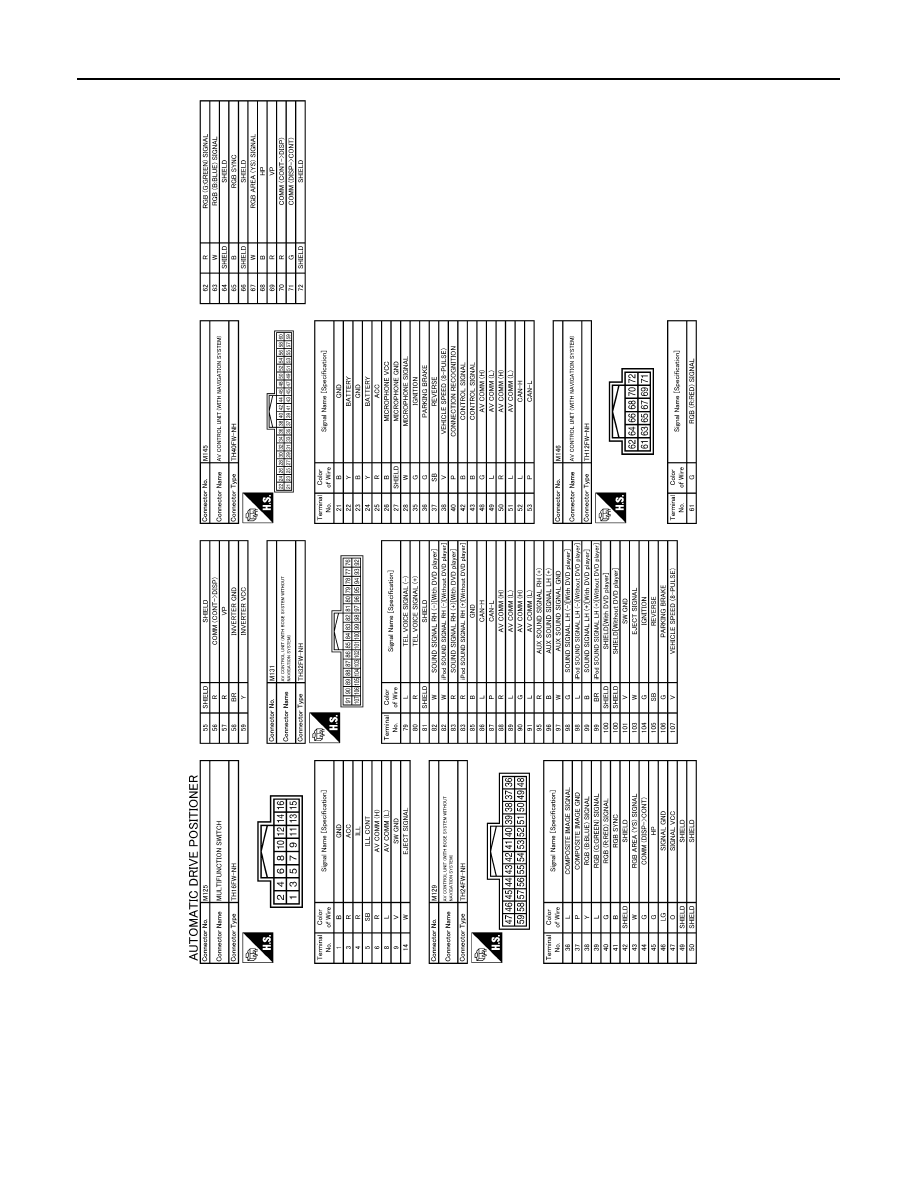

JCJWM1030GB

MIR-42

< ECU DIAGNOSIS INFORMATION >

[WITH ADP]

DRIVER SEAT CONTROL UNIT

Fail Safe

INFOID:0000000005712156

The fail-safe mode may be activated if the following symptoms are observed.

JCJWM1031GB

DRIVER SEAT CONTROL UNIT

MIR-43

< ECU DIAGNOSIS INFORMATION >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DTC Index

INFOID:0000000005712157

*1

:

• 0: Current malfunction is present

• 1-39: Displayed if any previous malfunction is present when current condition is normal. The numeral value increases by one at each

IGN ON to OFF cycle from 1 to 39. The counter remains at 39 even if the number of cycles exceeds it. However, the counter is reset
to 1 if any malfunction is detected again, the normal operation is resumed and the ignition switch is turned from OFF to ON.

Operating in

fail-safe mode

Malfunction Item

Related

DTC

Diagnosis

Only manual functions operate normally.

CAN communication

U1000

ADP-41

CONTROL UNIT

U1010

ADP-42

EEPROM

B2130

ADP-43

Only manual functions, except door mirror, operate normally.

UART communication

B2128

ADP-50

Only manual functions, except seat sliding, operate normally.

Seat sliding output

B2112

ADP-44

Only manual functions, except seat reclining, operate normally.

Seat reclining output

B2113

ADP-46

Only manual functions, except steering tilt, operate normally.

Steering column tilt output

B2116

ADP-48

CONSULT-III

display

Timing

*1

Item

Reference page

Current mal-

function

Previous mal-

function

CAN COMM CIRCUIT
[U1000]

0

1-39

CAN communication

ADP-41

CONTROL UNIT
[U1010]

0

1-39

Control unit

ADP-42

SEAT SLIDE
[B2112]

0

1-39

Seat slide motor output

ADP-44

SEAT RECLINING
[B2113]

0

1-39

Seat reclining motor output

ADP-46

STEERING TILT
[B2116]

0

1-39

Tilt motor output

ADP-48

UART COMM
[B2128]

0

1-39

UART communication

ADP-50

EEPROM
[B2130]

0

1-39

EEPROM

ADP-43
