AV CONTROL UNIT

AV-175

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JCNWM3193GB

AV-176

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

AV CONTROL UNIT

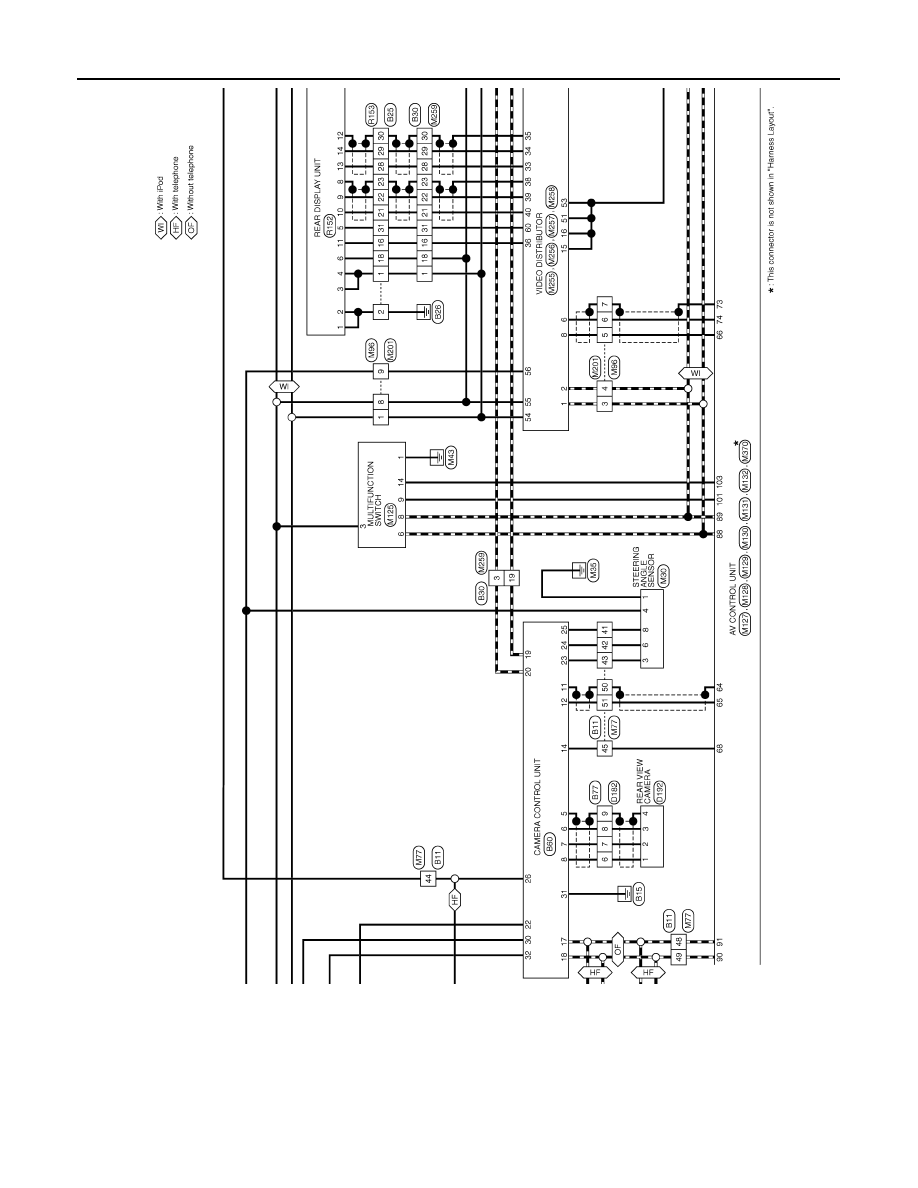

Wiring Diagram - BOSE AUDIO WITHOUT NAVIGATION WITH DVD ENTERTAIN-
MENT SYSTEM -

INFOID:0000000005528581

NOTE:

JCNWM3194GB

AV

AV CONTROL UNIT

AV-177

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

In this section, PRESET SWITCH and MULTIFUNCTION SWITCH are written as the MULTIFUNCTION
SWITCH.

JCNWM1872GB

AV-178

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

AV CONTROL UNIT

JCNWM1873GB
