AV

REAR VIEW MONITOR SYSTEM

AV-63

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000005528464

Part name

Description

AV CONTROL UNIT

• Camera image signal is input from camera control unit, and it is output to front

display unit when input reverse signal.

• Image on display is changed to rear view monitor with the communication for

AV control unit and front display unit.

• Warning displayed in rear view monitor image is illustrated.

FRONT DISPLAY UNIT

• Camera image signal is input from AV control unit.
• RGB image signal for warning display is input from AV control unit.
• Rear view monitor image is changed with the serial communication for AV con-

trol unit.

CAMERA CONTROL UNIT

• Camera image signal is input from rear view camera. Camera image signal

output to AV control unit.

• Power (camera ON signal) is transmitted to rear view camera.
• AV control unit recognizes the presence of camera system with camera con-

nection recognition signal.

• Camera control unit is connected via AV communication.

REAR VIEW CAMERA

• The image of vehicle rear view is transmitted to camera control unit.
• It receives the power (camera ON signal) from the camera control unit and op-

erates.

STEERING ANGLE SENSOR

Steering signal necessary for possible route line control is transmitted to camera
control unit.

AV-64

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

AUDIO SYSTEM

AUDIO SYSTEM

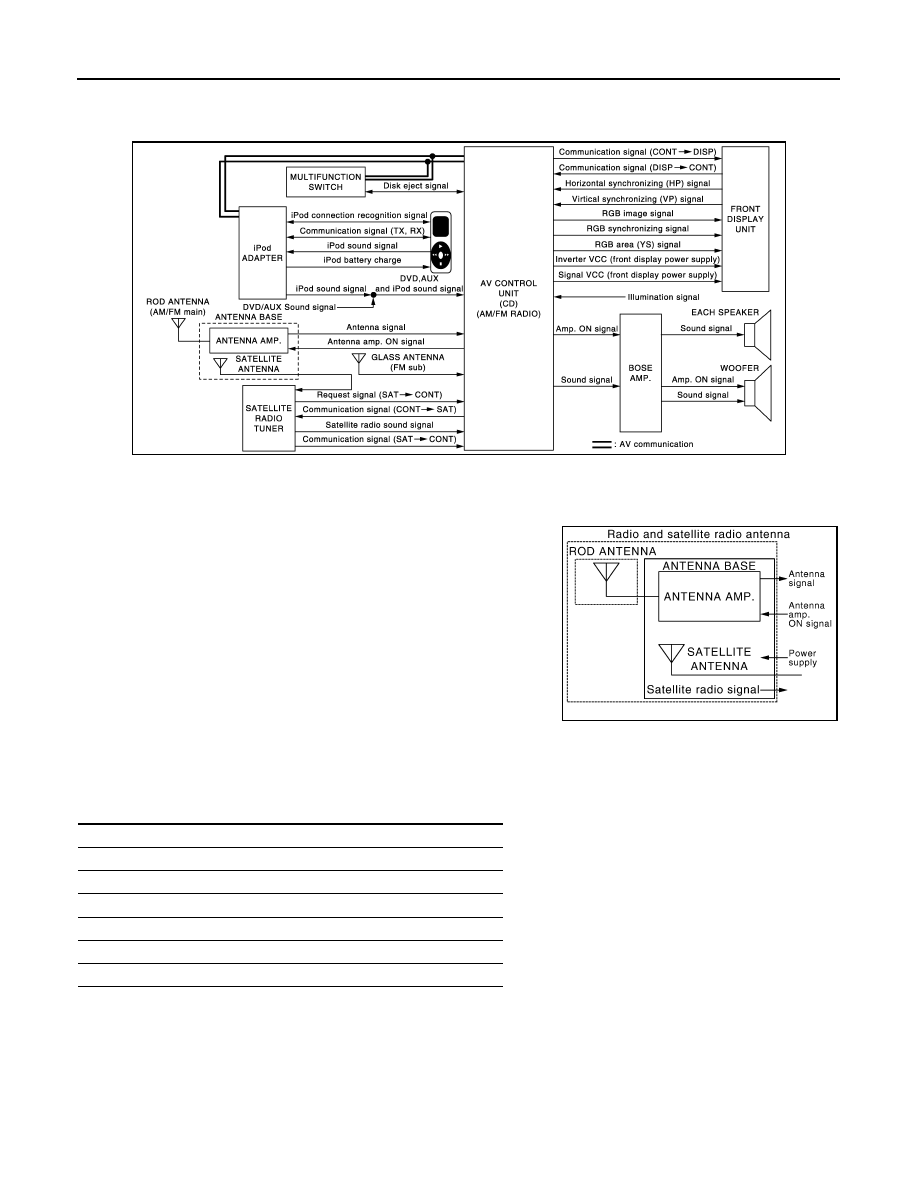

System Diagram

INFOID:0000000005528465

NOTE:
• Woofer, illustrated in the above figure, integrates two woofers and a woofer amp.
• In this section, PRESET SWITCH and MULTIFUNCTION SWITCH are written as the MULTIFUNCTION

SWITCH.

• An antenna base integrated with radio antenna amp. and satellite

radio antenna is adopted.

System Description

INFOID:0000000005528466

The audio system is equipped with the following functions. Each function can be operated with the multifunc-
tion switch, preset switch or steering switch. It indicates the operation status of AUDIO to the front display unit.

FUNCTION DESCRIPTION

Operating Signal

• Audio system operation can be performed with multifunction switch, preset switch, and steering switch.
• Operating signal is transmitted to AV control unit with AV communication when it is operated by multifunction

switch or preset switch. The disk ejection operating signal is performed by wiring harness.

• Operating signal is transmitted to AV control unit with steering switch signal when it is operated by steering

switch.

JSNIA1065GB

JSNIA1062GB

Function

AM/FM radio

Satellite radio

CD mode

iPod connection

AUX mode

DVD mode

AV

AUDIO SYSTEM

AV-65

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Screen Front Display

• The display switching of the screen is performed with the serial communication signal between the front dis-

play unit and the AV control unit.

• The image signal to display operating condition is performed with RGB image signal, RGB area signal and

RGB image synchronizing signal.

AM/FM Radio Mode

• AM/FM radio tuner is built into AV control unit.
• AM/FM radio wave is received by rod antenna, next it is amplified by antenna amp., and finally it is input to

AV control unit. The FM sub antenna is installed on the back door window glass and the AV control unit is
received.

• Audio signal is input to BOSE amp. and BOSE amp. outputs to woofer and each speaker for AV control unit.

Satellite Radio Mode

• Satellite radio tuner is controlled by serial communication and request signal with AV control unit.
• Satellite radio wave is received by satellite radio antenna, and it is input to satellite radio tuner. Satellite radio

tuner outputs satellite radio sound signal to AV control unit. AV control unit outputs satellite radio sound sig-
nal to BOSE amp. and BOSE amp. outputs the sound signal to each speaker and woofer.

CD Mode

• CD function is built into AV control unit.
• AV control unit outputs audio signal to BOSE amp. and BOSE amp. outputs to woofer and each speaker

when CD is inserted to AV control unit.

iPod Connection

• Connect iPod

®

 and iPod adapter with wire harness and iPod adapter input iPod sound signal from iPod

®

.

When iPod mode is selected, iPod adapter output iPod sound signal to AV control unit. AV control unit output
sound signal to BOSE amp., and BOSE amp. output sound signal to woofer and each speaker.

• Receiving/transmitting of iPod

®

 operation signals are performed as follows:

- between AV control unit and iPod adapter: AV communication.
- between iPod

®

 and iPod adapter: serial communication.

• The iPod

®

 connection status can be recognized if iPod adapter receives iPod connection recognition signal.

• The iPod adapter can charge iPod

®

.

AUX Mode

Refer to

AV-55, "System Description"

.

DVD Mode

Refer to

AV-68, "System Description"

.

AV-66

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

AUDIO SYSTEM

Component Parts Location

INFOID:0000000005528467

1.

Center speaker

2.

Front squawker LH

3.

Front door speaker LH

4.

Rear door speaker LH

5.

Rear speaker LH

6.

Satellite radio tuner

7.

TEL adapter unit

8.

BOSE amp.

9.

Woofer

10. Rear view camera

11. Camera control unit

12. Rear speaker RH

13.

Antenna base (antenna amp. and sat-
ellite antenna)

14. Rear door speaker RH

15. Rear display unit

16. Front door speaker RH

17. Front squawker RH

18. Microphone

19. Steering angle sensor

20. Steering switch

21. Auxiliary input jacks

22. Video distributor

23. iPod connector

24. DVD player

25. iPod adapter

26. Preset switch

27. AV control unit

28. Multifunction switch

29. Front display unit

A.

Luggage floor finisher is removed con-
dition

B.

Luggage floor finisher is removed con-
dition

C.

Luggage side finisher lower RH is re-
moved condition

D.

Spiral cable part

E.

Console rear finisher is removed con-
dition

F.

Console finisher is removed condition

JSNIA1097ZZ
