AUDIO UNIT

AV-27

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

13

(O)

14

(P)

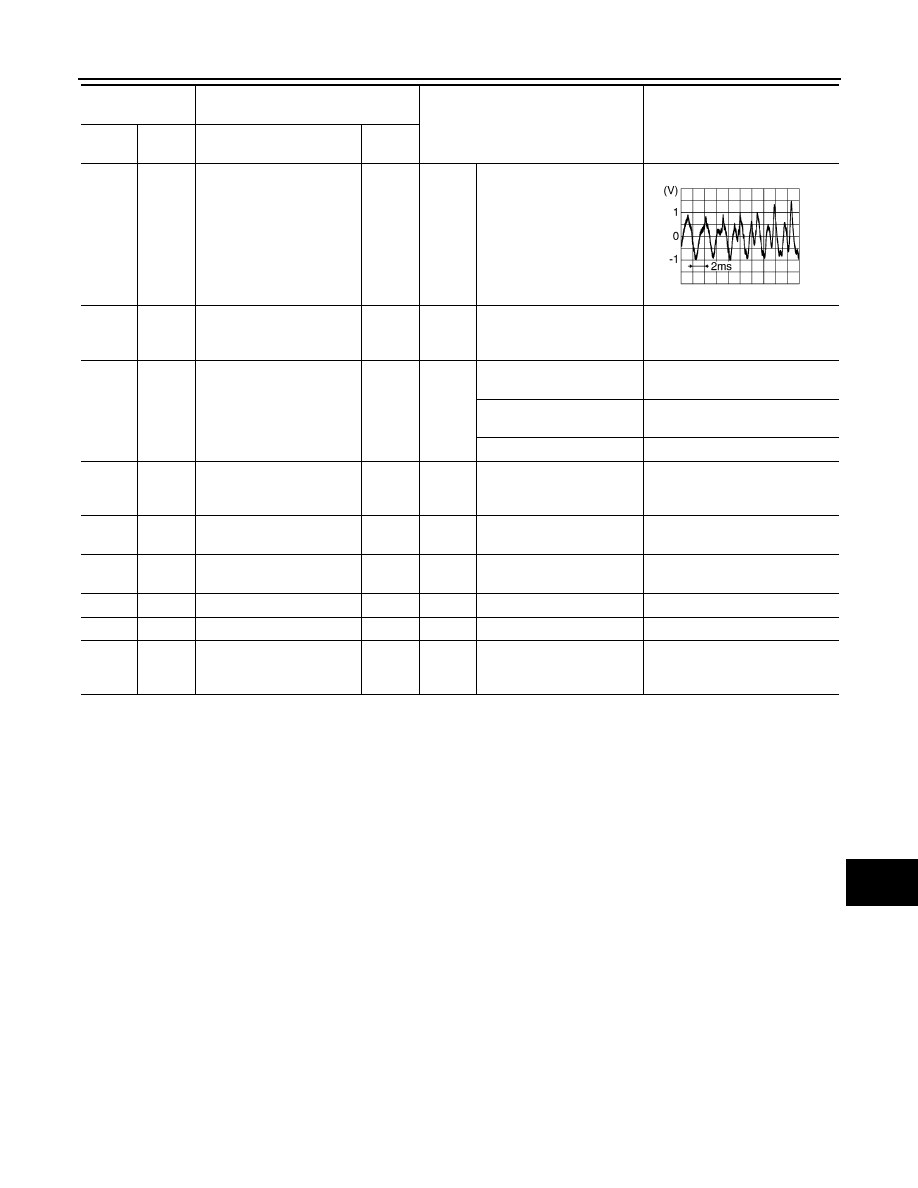

Sound signal rear RH

Output

Ignition

switch

ON

Sound output.

15

(SB)

Ground

Steering switch signal
ground

—

Ignition

switch

ON

—

0  V

16

(Y)

15

(SB)

Steering switch signal B

Input

Ignition

switch

ON

Keep pressing VOL DOWN
switch.

0 V

Keep pressing VOL UP
switch.

1.0 V

Except for above.

5.0 V

19

(Y)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

33

(G)

Ground

AV communication signal
(L)

Input/

Output

—

—

—

34

(R)

Ground

AV communication signal
(H)

Input/

Output

—

—

—

35

—

FM sub

Input

—

—

—

36

—

AM-FM main

Input

—

—

—

37

Ground

Antenna amp. ON signal

Output

Ignition

switch

ACC

—

12.0  V

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

AV-28

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO]

AUDIO UNIT
