< ECU DIAGNOSIS INFORMATION >

DRIVER SEAT CONTROL UNIT

31

(BR/W)

Ground

Telescopic sensor signal

Input

Telescopic

Operate

Other than above

0 or 5

32

(W/L)

Ground

UART communication
(TX/RX)

Input

Ignition switch ON

33

(W)

Ground

Sensor power supply

Output

—

Battery voltage

Terminal No.

(wire color)

Description

Condition

Voltage (V)

(Approx)

+

-

Signal name

Input/

Output

JMJIA1391ZZ

DRIVER SEAT CONTROL UNIT

ADP-121

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

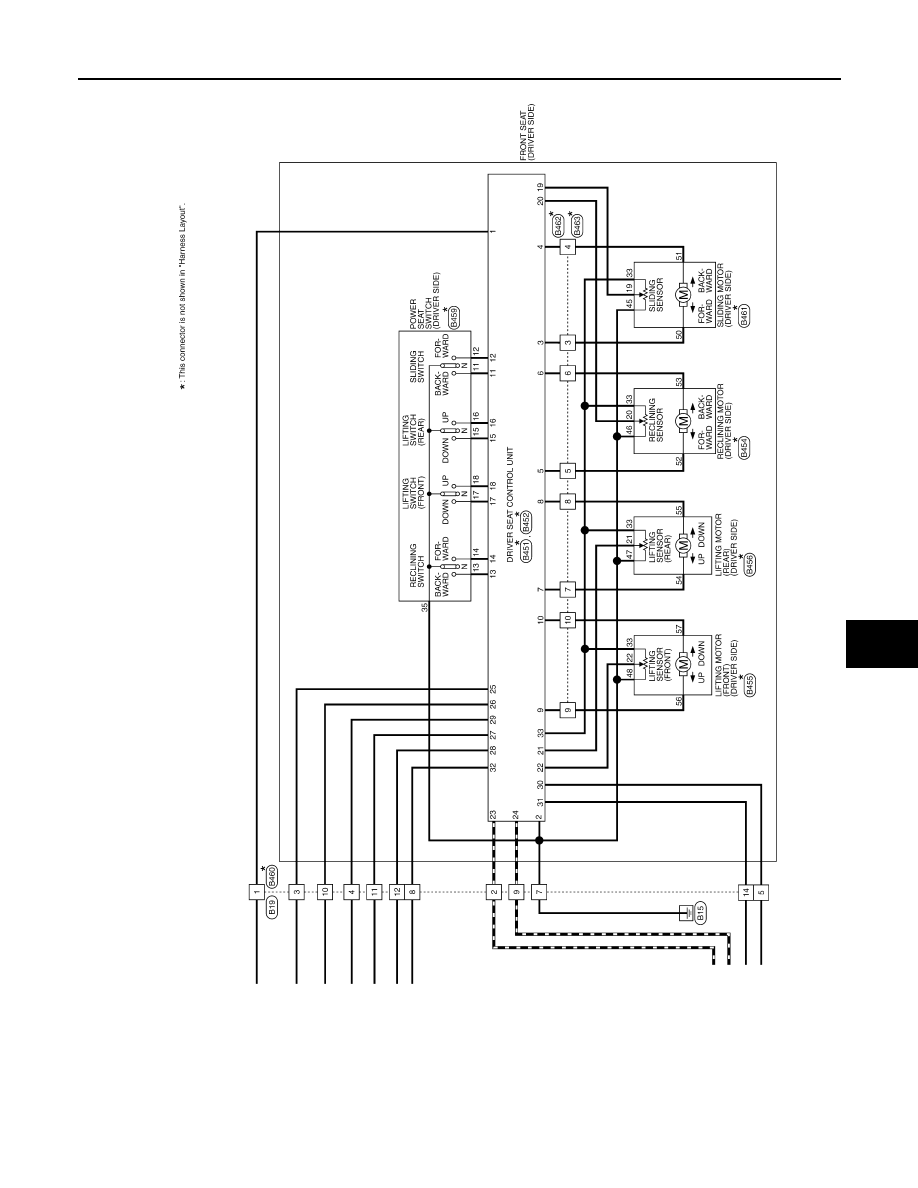

Wiring Diagram - AUTOMATIC DRIVE POSITIONER CONTROL SYSTEM -

INFOID:0000000005515416

JCJWM0709GB

ADP-122

< ECU DIAGNOSIS INFORMATION >

DRIVER SEAT CONTROL UNIT

JCJWM0710GB

DRIVER SEAT CONTROL UNIT

ADP-123

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

JCJWM0711GB
