ADP-24

< SYSTEM DESCRIPTION >

AUTOMATIC DRIVE POSITIONER SYSTEM

MEMORY FUNCTION : Component Parts Location

INFOID:0000000005515283

1.

BCM M118, M119, M122, M123

2.

Automatic drive positioner control unit
M75, M104

3.

Combination meter

4.

Tilt & telescopic switch M102

5.

Key slot M99

6.

Seat memory switch D13

7.

Door mirror remote control switch
D14

8.

Front door switch (driver side) B34

9.

Tilt motor  M116

JMJIA1409ZZ

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-25

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

MEMORY FUNCTION : Component Description

INFOID:0000000005515284

CONTROL UNITS

INPUT PARTS

Switches

Sensors

OUTPUT PARTS

EXIT ASSIST FUNCTION

10. Telescopic motor M117

11.

Door mirror (driver side) D3

12. Reclining motor B461

13. Sliding, Lifting switch

(Power seat switch B459)

14. Reclining switch

(Power seat switch B459)

15. Driver seat control unit B451,B452

16. Sliding motor B461

17. Lifting motor (front) B455

18. Lifting motor (rear) B456

A.

Behind the combination meter

B.

View with instrument driver lower
panel removed

C.

View with instrument driver lower
panel removed

D.

View with seat cushion and seatback
pad removed

E.

Backside of the seat cushion

Item

Function

Driver seat control unit

• The address of each part is recorded.
• Operates each motor of seat to the registered position.
• Requests the operations of steering column and door mirror to automatic drive

positioner control unit

Automatic drive positioner control unit

Operates the steering column and door mirror with the instructions from the driver
seat control.

Item

Function

Memory switch 1/2

The registration and memory function can be performed with its operation.

Item

Function

Door mirror sensor
(driver side/passenger side)

Detect the up/down and left/right position of outside mirror face.

Tilt & telescopic sensor

Detect the up/down and left/right position of steering column.

Lifting sensor (front)

Detect the up/down position of seat lifting (front).

Lifting sensor (rear)

Detect the up/down position of seat lifting (rear).

Reclining sensor

Detect the tilt of seatback.

Sliding sensor

Detect the front/rear position of seat.

Item

Function

Door mirror motor
(driver side/passenger side)

Move the outside mirror face upward/downward and leftward/rightward.

Tilt and telescopic motor

Move the steering column upward/downward and frontward/rearward.

Lifting motor (front)

Move the seat lifter (front) upward/downward.

Lifting motor (rear)

Move the seat lifter (rear) upward/downward.

Reclining motor

Tilt and raise up the seatback.

Sliding motor

Slide the seat frontward/rearward.

Memory indicator

Illuminates or blinks according to the registration/operation status.

ADP-26

< SYSTEM DESCRIPTION >

AUTOMATIC DRIVE POSITIONER SYSTEM

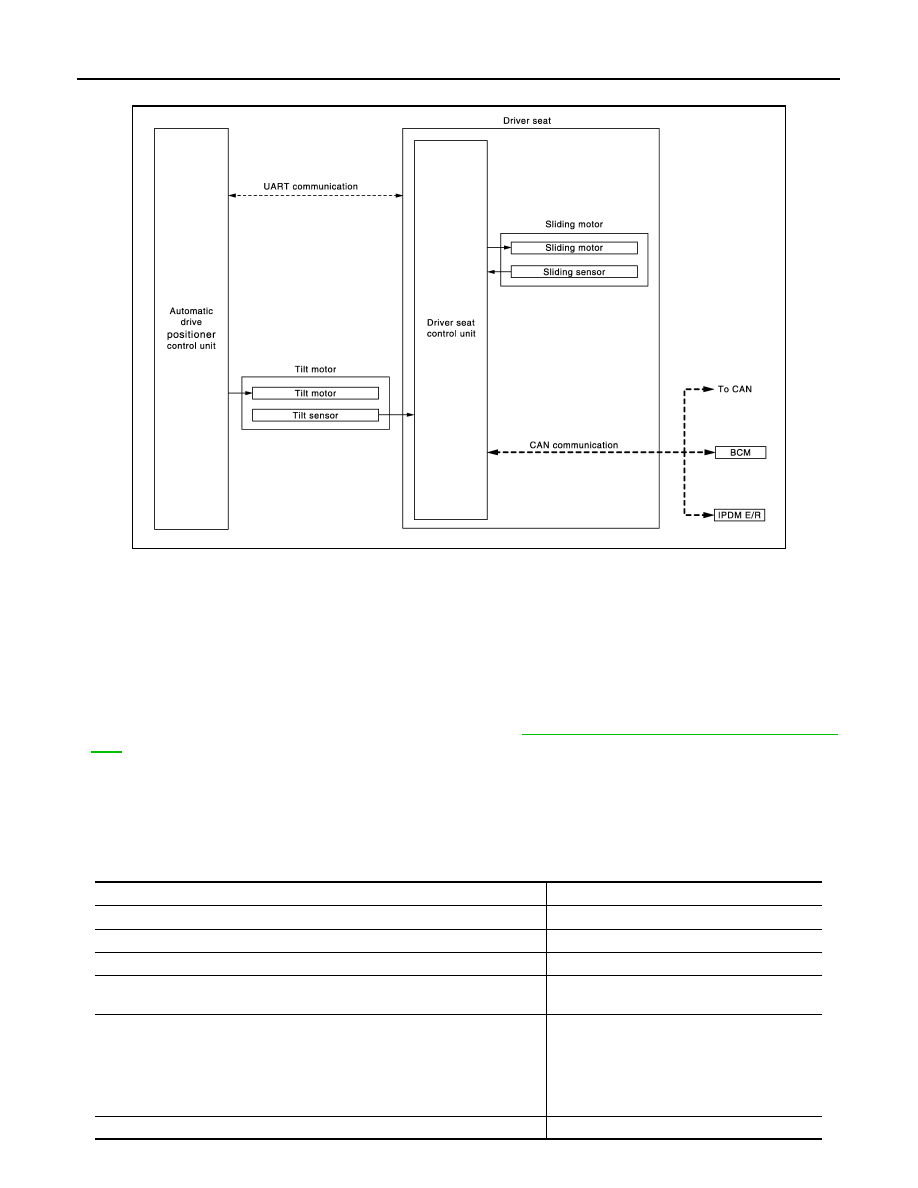

EXIT ASSIST FUNCTION : System Diagram

INFOID:0000000005515285

EXIT ASSIST FUNCTION : System Description

INFOID:0000000005515286

OUTLINE

When exiting, the condition is satisfied, the seat is moved backward 40 mm (1.57 in) from normal sitting posi-
tion and the steering is moved to the most upper position.
The seat slide amount and the steering operation at entry/exit operation can be changed.
NOTE:
• This function is set to ON before delivery (initial setting).
• Further information for the system setting procedure. Refer to

ADP-9, "SYSTEM INITIALIZATION : Descrip-

tion"

.

OPERATION PROCEDURE

1.

Open the driver door with ignition switch in OFF position.(Intelligent Key is not inserted into key slot)

2.

Driver seat and steering column will move to the exiting position.

OPERATION CONDITION

Satisfy all of the following items. The exit assist function is not performed if these items are not satisfied.

JMJIA1462GB

Item

Request status

Ignition position

OFF

System setting [Entry/exit assist function (seat/steering)]

ON

Initialization

Done

Key switch

OFF

(Intelligent Key is not inserted into key slot)

Switch inputs
• Power seat switch
• Tilt & telescopic switch
• Door mirror remote control switch
• Set switch
• Memory switch

OFF

(Not operated)

A/T selector lever

P position

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-27

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

DETAIL FLOW

Order

Input

Output

Control unit condition

1

Door switch
(Driver side)

—

Driver seat control unit receives door switch signal (driver side/
open) from BCM via CAN communication.

2

—

Motors
(Seat sliding, tilt)

Driver seat control unit operates the seat sliding motor, which recog-
nizes that the driver side door is opened with ignition switch OFF.
Driver seat control unit then requests the operations of tilt motor to
auto drive positioner control unit via UART communication. The au-
tomatic drive positioner control unit operates each motor for a con-
stant amount.
