INSPECTION AND ADJUSTMENT

Select “Work support”.

>> GO TO 7.

7.

 WITH CONSULT-III - STEP 2

1.

Select “EXIT SEAT SLIDE SETTING”, “EXIT TILT SETTING” or “SEAT SLIDE VOLUME SET” then touch
display to change between ON and OFF.

-

EXIT SEAT SLIDE SETTING: Entry/exit assist (seat)

-

EXIT TILT SETTING: Entry/exit assist (steering column)

2.

Then touch “OK”.

>> END

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

SYSTEM DESCRIPTION

AUTOMATIC DRIVE POSITIONER SYSTEM

AUTOMATIC DRIVE POSITIONER SYSTEM

AUTOMATIC DRIVE POSITIONER SYSTEM : System Diagram

INFOID:0000000005515273

JMJIA1459GB

ADP-14

< SYSTEM DESCRIPTION >

AUTOMATIC DRIVE POSITIONER SYSTEM

AUTOMATIC DRIVE POSITIONER SYSTEM : System Description

INFOID:0000000005515274

OUTLINE

The system automatically moves the driver seat, steering column and door mirror position by the driver seat
control unit and the automatic drive positioner control unit. The driver seat control unit corresponds with the
automatic drive positioner control unit by UART communication.

NOTE:
The lumbar support system and the side support system are controlled independently with no link to the auto-
matic drive positioner system.

Function Description

Manual function

The driving position (seat, steering column and door mirror position) can be adjusted
by using the power seat switch, tilt & telescopic switch or door mirror remote control
switch.

Memory function

The seat, steering column and door mirror move to the stored driving position by
pressing seat memory switch (1 or 2).

Entry/Exit assist function

Exit

On exit, the seat moves backward and the steering column moves upward.

Entry

On entry, the seat and steering column returns from exiting position to the previous
driving position.

Intelligent Key interlock function

Perform memory operation, exiting operation and entry operation by Intelligent Key
unlock operation or driver side door request switch unlock operation.

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

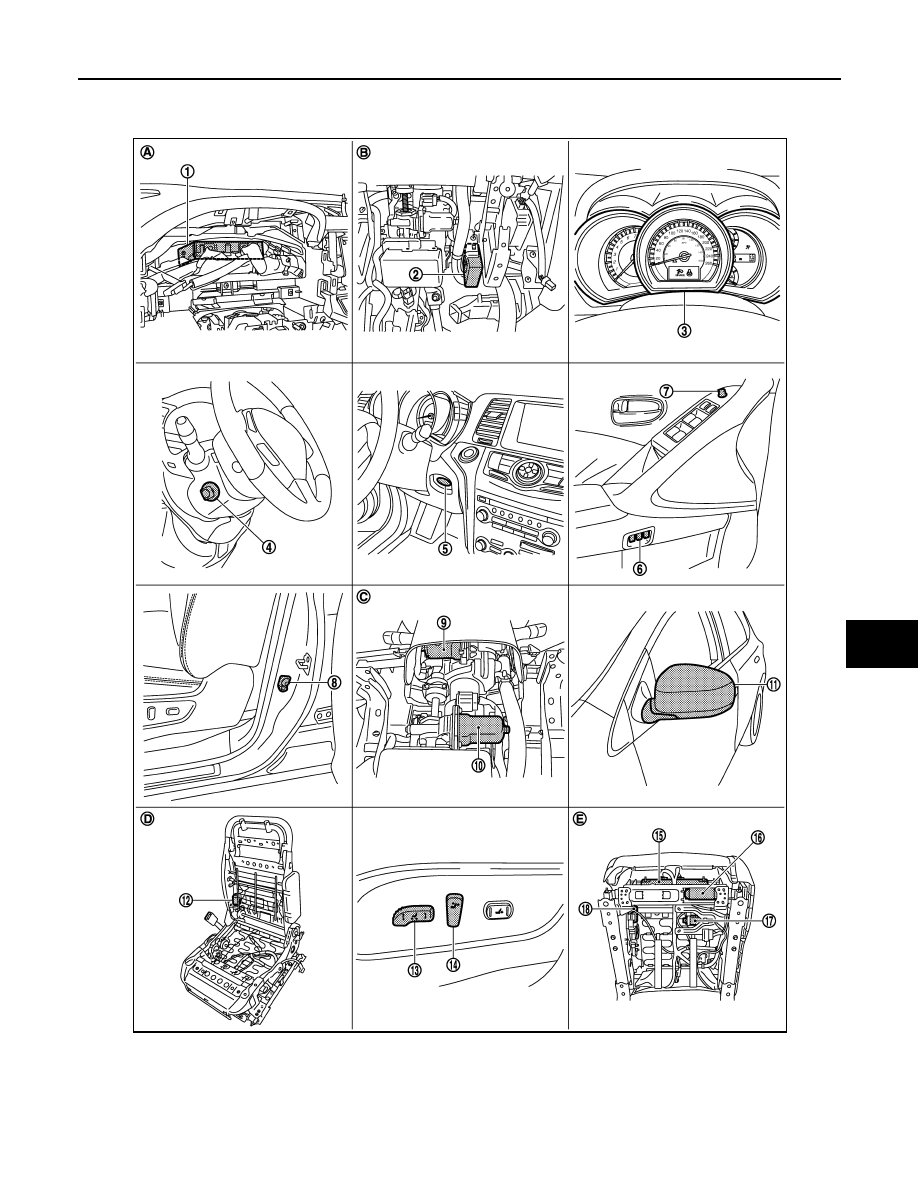

AUTOMATIC DRIVE POSITIONER SYSTEM : Component Parts Location

INFOID:0000000005515275

1.

BCM  M118,  M119,  M122,  M123

2.

Automatic drive positioner control unit
M75, M104

3.

Combination meter

4.

Tilt & telescopic switch M102

5.

Key slot M99

6.

Seat memory switch D13

7.

Door mirror remote control switch
D14

8.

Front door switch (driver side) B34

9.

Tilt motor  M116

JMJIA1409ZZ
