ENGINE OIL

LU-9

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

3.

Disconnect harness connector at oil pressure switch (2), and
remove oil pressure switch using deep socket (commercial ser-
vice tool).

CAUTION:

Never drop or shock oil pressure switch.

4.

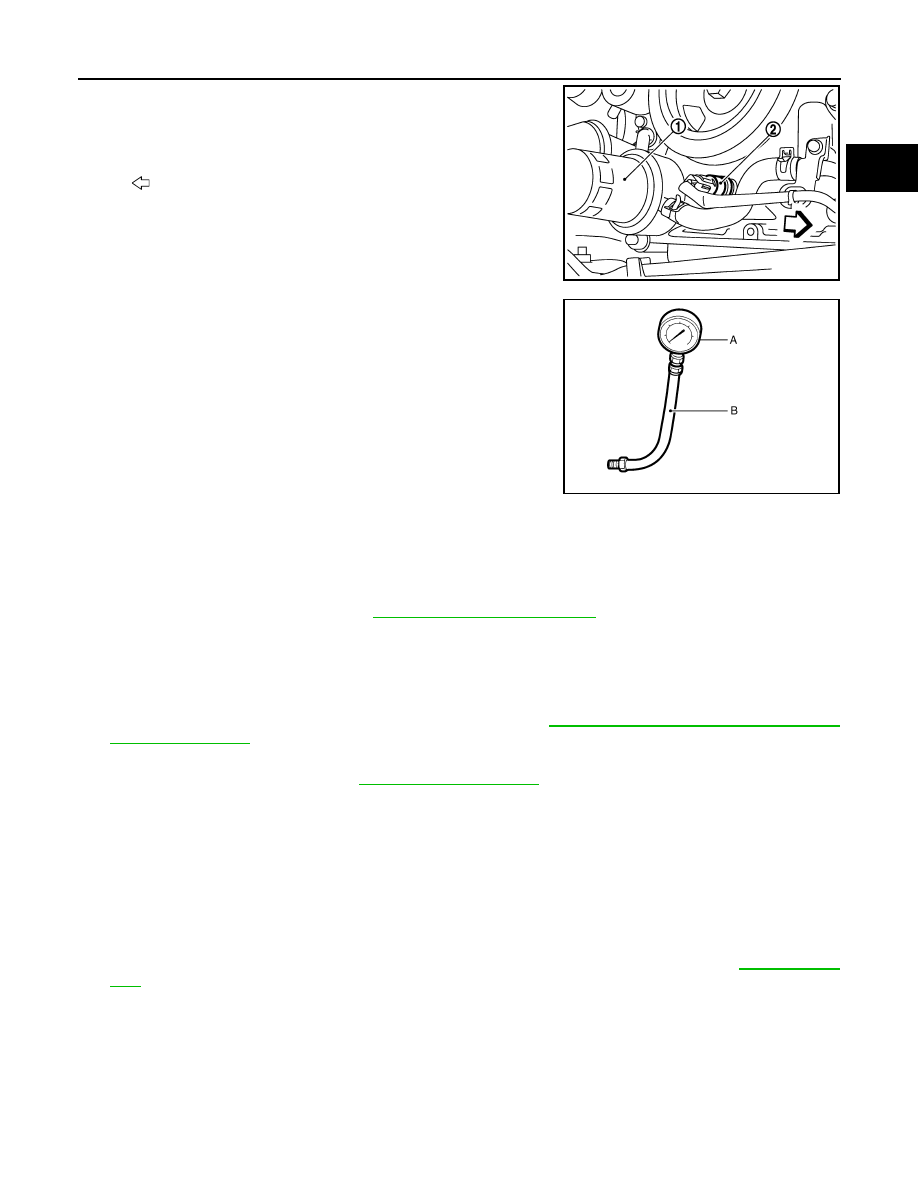

Install the oil pressure gauge [SST: ST25051001 (J-25695-1)]
(A) and hose [SST: ST25052000 (J-25695-2)] (B).

5.

Start the engine and warm it up to normal operating temperature.

6.

Check the engine oil pressure with engine running under no-load.
NOTE:
When the engine oil temperature is low, the engine oil pressure becomes high.

If difference is extreme, check engine oil passage and oil pump for engine oil leakage.

7.

After the inspections, install oil pressure switch as follows:

a.

Remove old liquid gasket adhering to oil pressure switch and the mating surface.

b.

Apply liquid gasket and tighten oil pressure switch to the specification.
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-22, "Recommended Chemical Prod-

ucts and Sealants"

.

c.

After warming up engine, check there is no leakage of engine oil with running engine.

Draining

INFOID:0000000009718806

WARNING:

• Be careful not to get burn yourself, as engine oil may be hot.
• Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct skin

contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand cleaner as
soon as possible.

1.

Warm up the engine, and check for engine oil leakage from engine components. Refer to

LU-8, "Inspec-

tion"

.

2.

Stop the engine and wait for 10 minutes.

3.

Loosen oil filler cap.

1

: Oil filter

: Vehicle front

JPBIA1677ZZ

JPBIA0074ZZ

Engine oil pressure

: Refer to

LU-17, "Engine Oil Pressure"

.

Tightening torque

Refer to

EM-43, "Exploded View"

.

LU-10

< PERIODIC MAINTENANCE >

ENGINE OIL

4.

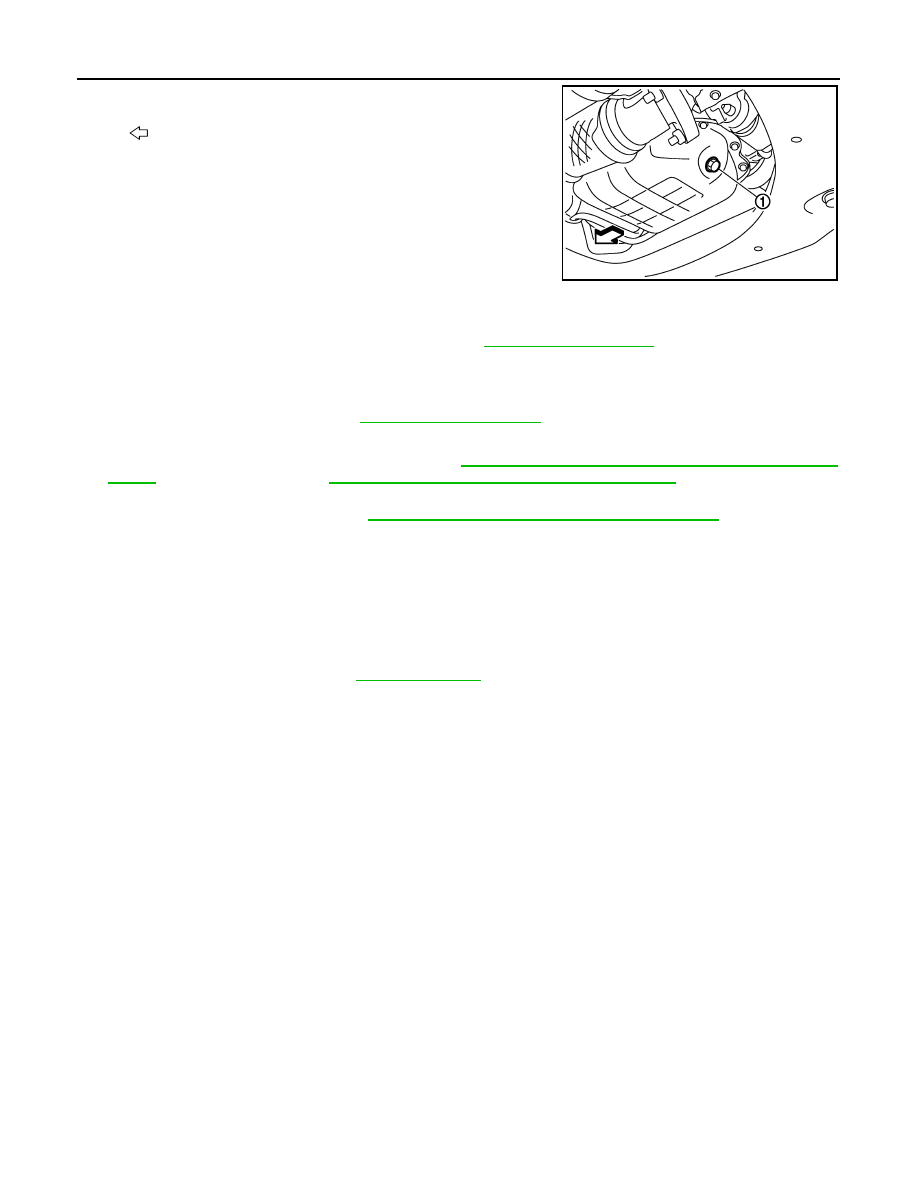

Remove drain plug (1) and then drain engine oil.

Refilling

INFOID:0000000009718807

1.

Install drain plug with new drain plug washer. Refer to

EM-43, "Exploded View"

.

CAUTION:

Be sure to clean drain plug and install with new drain plug washer.

2.

Refill with new engine oil.
Engine oil specification and viscosity: Refer to

MA-15, "FOR NORTH AMERICA : Fluids and Lubri-

cants"

 (for North America) or

MA-16, "FOR MEXICO : Fluids and Lubricants"

 (for Mexico).

CAUTION:

• When filling engine oil, never pull out oil level gauge.
• The refill capacity depends on the engine oil temperature and drain time. Use these specifica-

tions for reference only.

• Always use oil level gauge to determine the proper amount of engine oil in engine.

3.

Warm up the engine and check area around drain plug and oil filter for engine oil leakage.

4.

Stop the engine and wait for 10 minutes.

5.

Check the engine oil level. Refer to

LU-8, "Inspection"

.

: Vehicle front

JPBIA1676ZZ

Tightening torque

: Refer to

EM-43, "Exploded View"

.

Engine oil capacity

Refer to

LU-17, "Periodical Maintenance Specification"

.

OIL FILTER

LU-11

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

OIL FILTER

Removal and Installation

INFOID:0000000009718808

REMOVAL

CAUTION:

• Oil filter is provided with relief valve. Use genuine NISSAN oil filter or equivalent.
• Be careful not to get burned when engine and engine oil may be hot.
• When removing, prepare a shop cloth to absorb any engine oil leakage or spillage.
• Never allow engine oil to adhere to drive belt.
• Completely wipe off any engine oil that adheres to engine and vehicle.

1.

Remove splash guard (RH). Refer to

EXT-26, "FENDER PROTECTOR : Exploded View"

.

2.

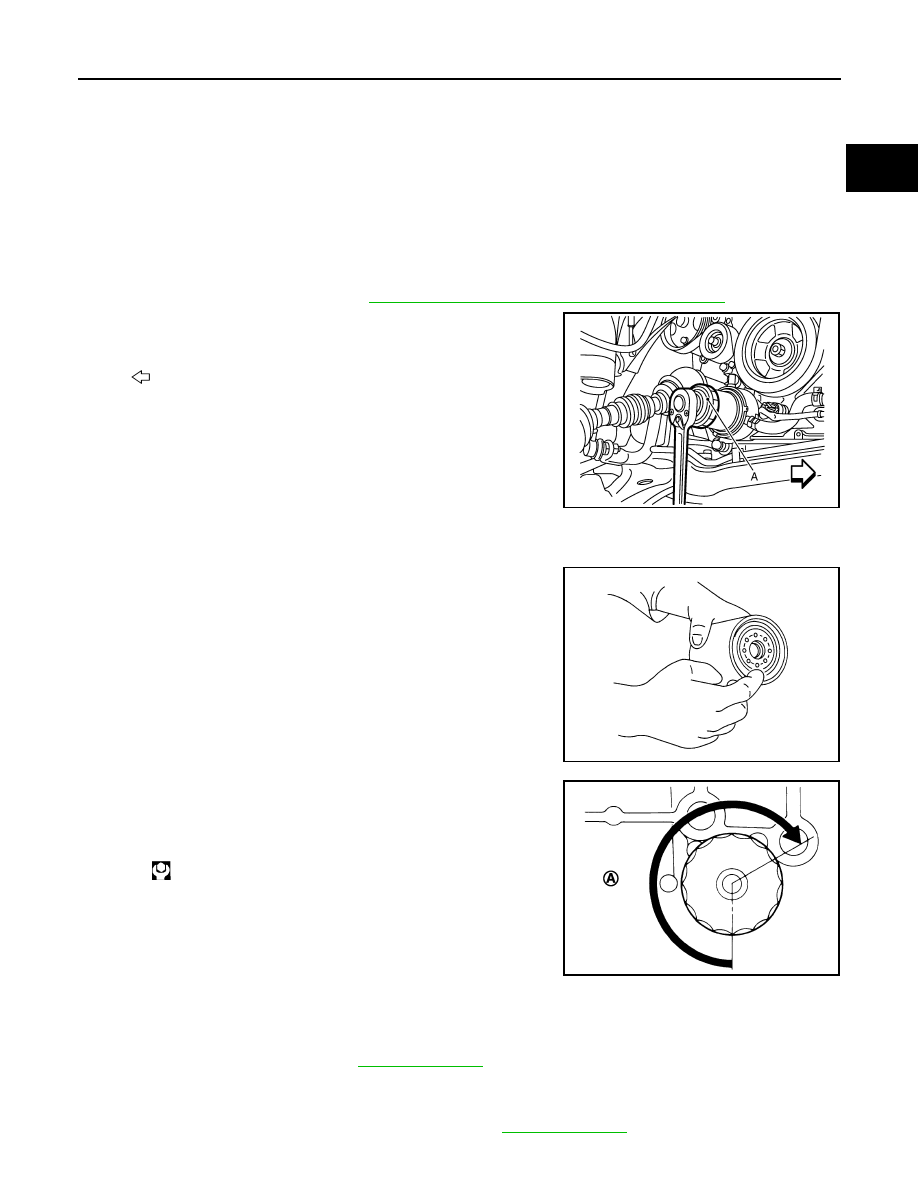

Using oil filter wrench [SST: KV10115801 (J-38956)] (A), remove
oil filter.

INSTALLATION

1.

Remove foreign materials adhering to oil filter installation surface.

2.

Apply engine oil to the oil seal contact surface of new oil filter.

3.

Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn (A). Or tighten to the specification.

Inspection

INFOID:0000000009718809

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

LU-8, "Inspection"

.

2.

Start the engine, and check there is no leakage of engine oil.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level, and adjust the level. Refer to

LU-8, "Inspection"

.

: Vehicle front

JPBIA1678ZZ

SMA010

Oil filter:

: 17.7 N·m (1.8 kg-m, 13 ft-lb)

JPBIA0077ZZ

LU-12

< REMOVAL AND INSTALLATION >

OIL COOLER

REMOVAL AND INSTALLATION

OIL COOLER

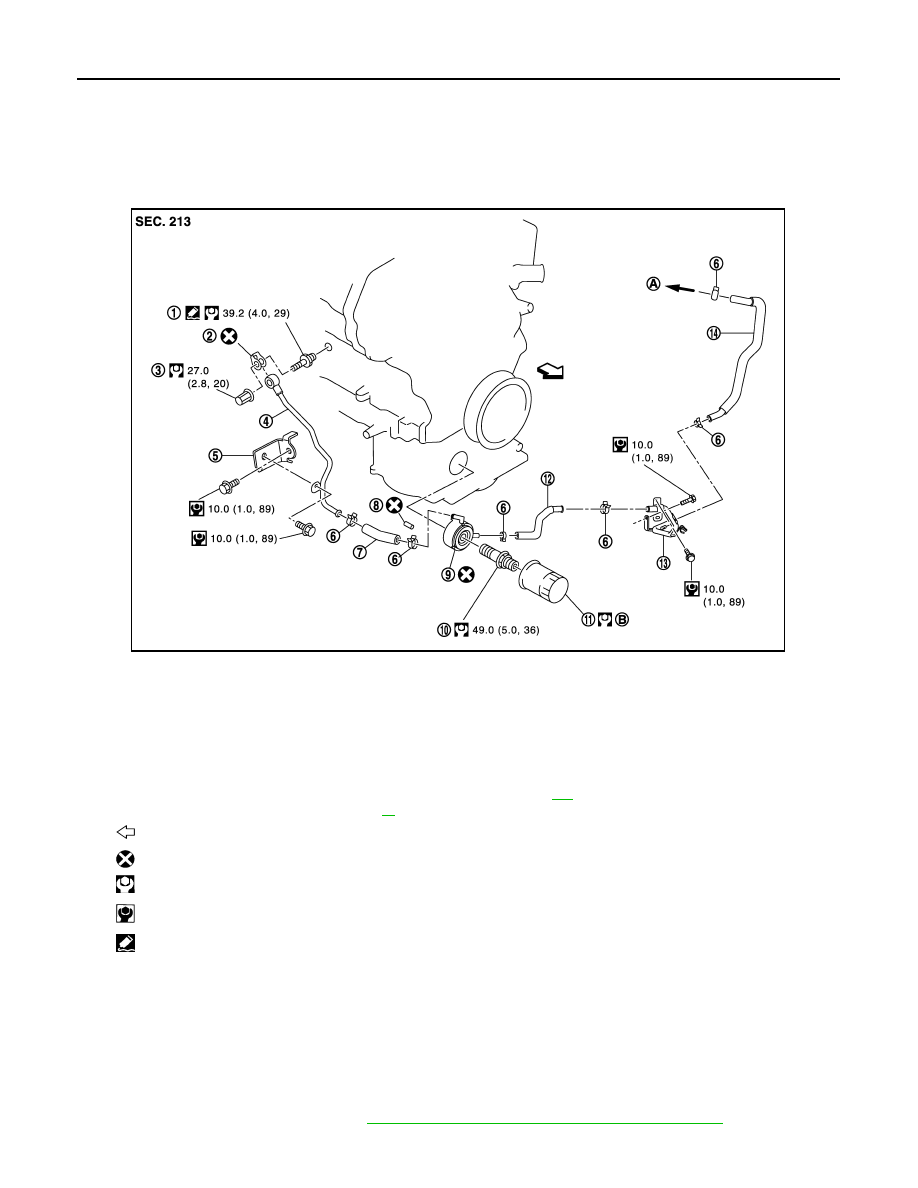

Exploded View

INFOID:0000000009718810

Removal and Installation

INFOID:0000000009718811

REMOVAL

WARNING:

Be careful not to get burn yourself, as engine oil and engine coolant may be hot.
NOTE:
When remove oil cooler only, step 2 is unnecessary.

1.

Remove splash guard (RH). Refer to

EXT-26, "FENDER PROTECTOR : Exploded View"

.

1.

Connector bolt

2.

Copper gasket

3.

Water drain plug

4.

Water pipe

5.

Bracket

6.

Clamp

7.

Water hose

8.

Relief valve

9.

Oil cooler

10.

Connector bolt

11.

Oil filter

12.

Water hose

13.

Water pipe

14.

Water hose

A.

To water connector

B.

Comply with the installation proce-
dure when tightening.Refer to

LU-

11

: Engine front

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Sealing point

JPBIA1679GB
