LAN

CAN COMMUNICATION SYSTEM

LAN-39

< DTC/CIRCUIT DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

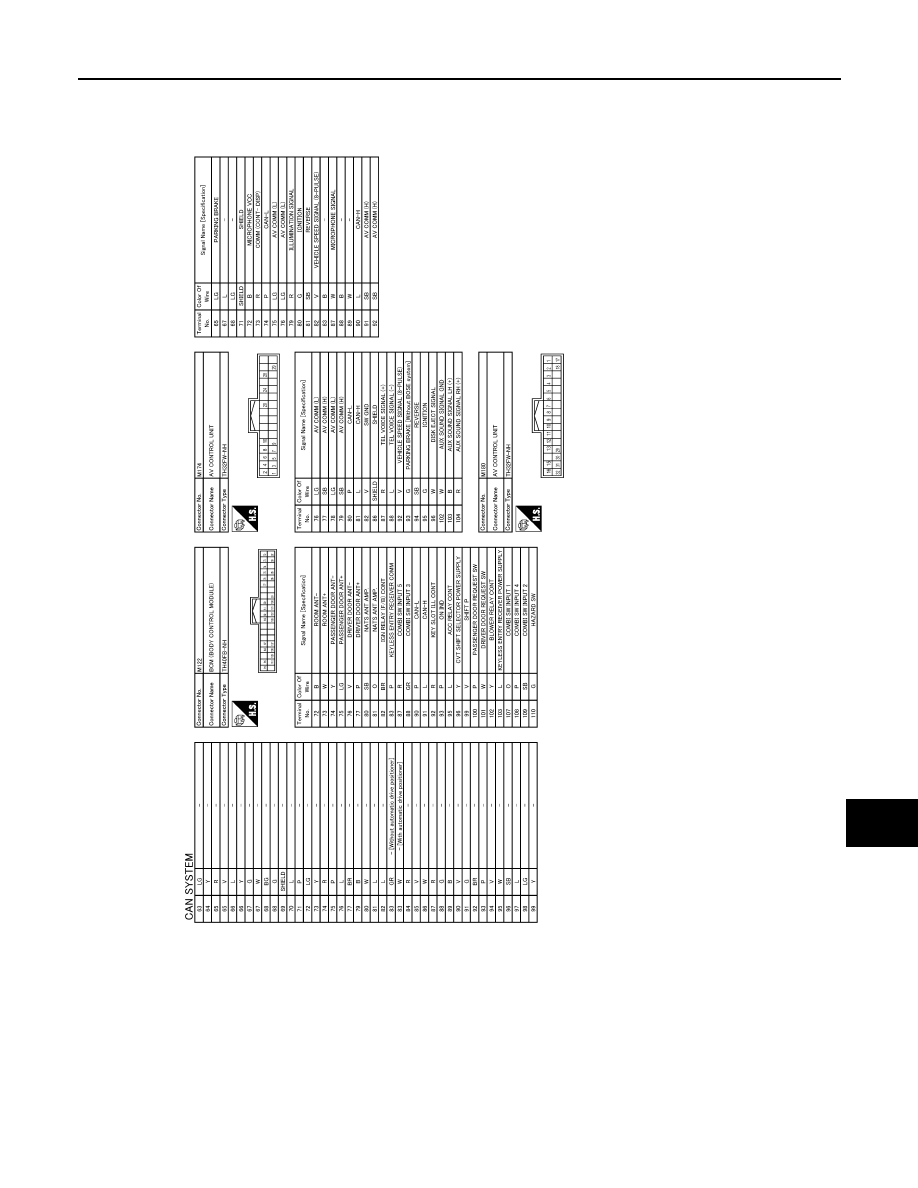

JRMWE5844GB

LAN-40

< DTC/CIRCUIT DIAGNOSIS >

[CAN]

CAN COMMUNICATION SYSTEM

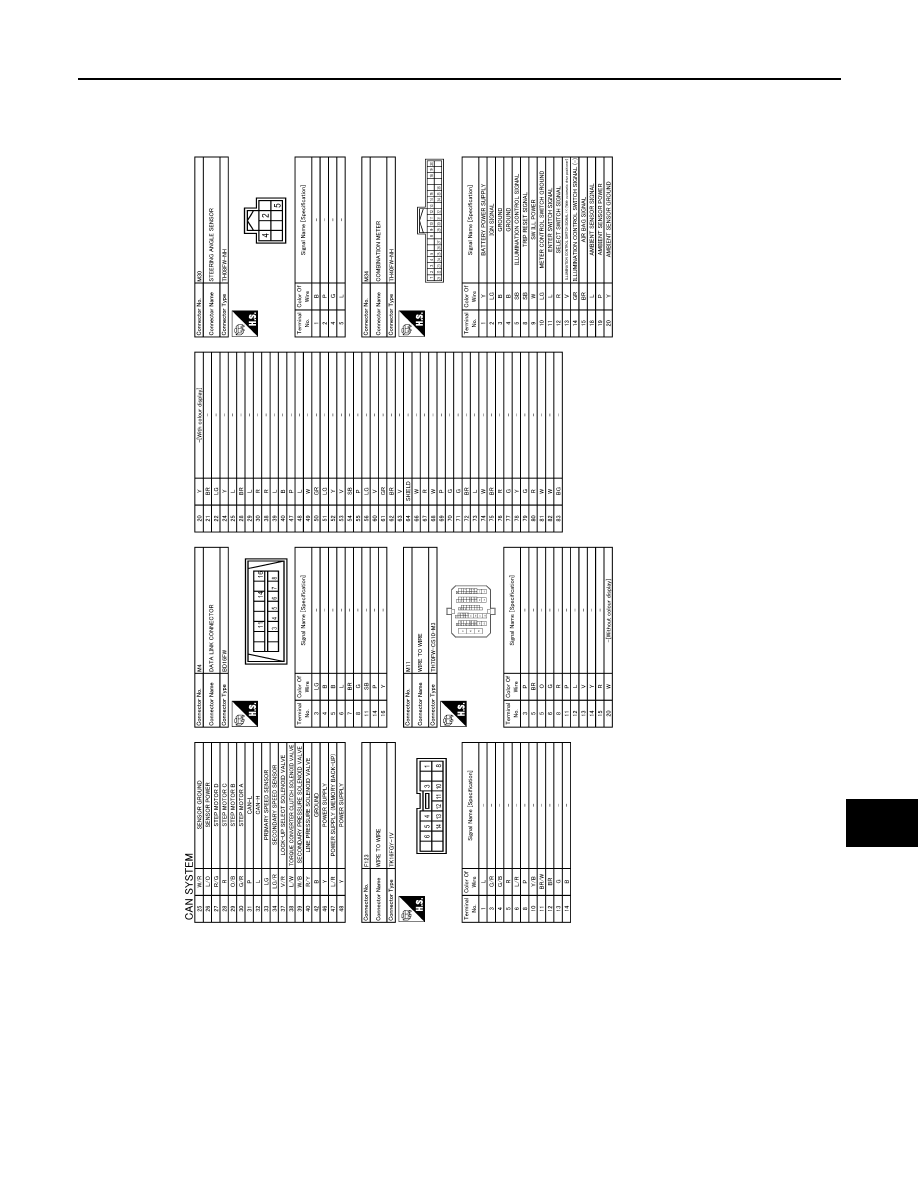

JRMWE5845GB

LAN

CAN COMMUNICATION SYSTEM

LAN-41

< DTC/CIRCUIT DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

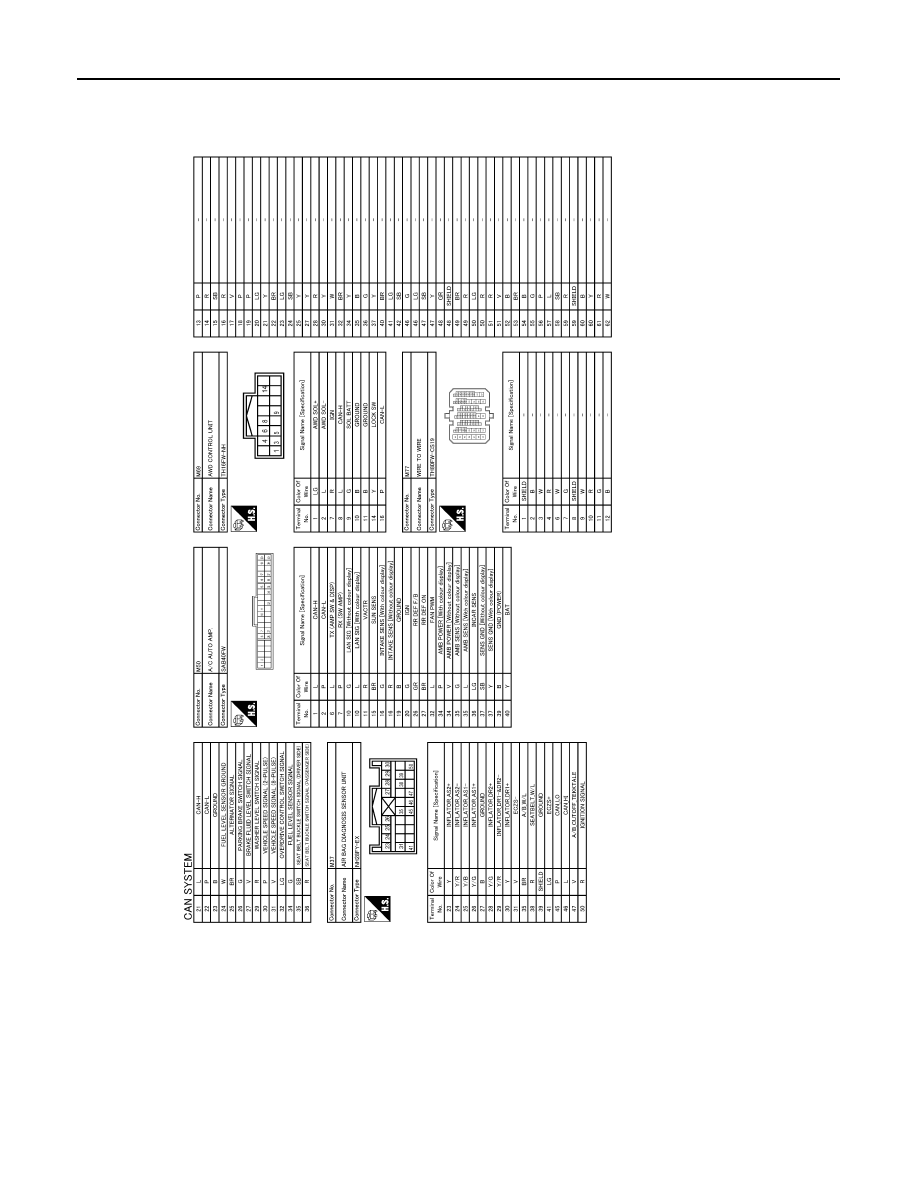

JRMWE5846GB

LAN-42

< DTC/CIRCUIT DIAGNOSIS >

[CAN]

MALFUNCTION AREA CHART

MALFUNCTION AREA CHART

Main Line

INFOID:0000000009720839

Branch Line

INFOID:0000000009720840

Short Circuit

INFOID:0000000009720841

Malfunction area

Reference

Main line between camera control unit and combination meter

LAN-44, "Diagnosis Procedure"

Main line between driver seat control unit and automatic back
door control unit

LAN-43, "Diagnosis Procedure"

Main line between automatic back door control unit and combi-
nation meter

LAN-45, "Diagnosis Procedure"

Main line between combination meter and data link connector

LAN-46, "Diagnosis Procedure"

Main line between data link connector and TCM

LAN-47, "Diagnosis Procedure"

Malfunction area

Reference

ECM branch line circuit

LAN-48, "Diagnosis Procedure"

Driver seat control unit branch line circuit

LAN-49, "Diagnosis Procedure"

Camera control unit branch line circuit

LAN-50, "Diagnosis Procedure"

Automatic back door control unit branch line circuit

LAN-51, "Diagnosis Procedure"

AWD control unit branch line circuit

LAN-52, "Diagnosis Procedure"

AV control unit branch line circuit

LAN-53, "Diagnosis Procedure"

A/C auto amp. branch line circuit

LAN-54, "Diagnosis Procedure"

Combination meter branch line circuit

LAN-55, "Diagnosis Procedure"

Air bag diagnosis sensor unit branch line circuit

LAN-56, "Diagnosis Procedure"

BCM branch line circuit

LAN-57, "Diagnosis Procedure"

Data link connector branch line circuit

LAN-58, "Diagnosis Procedure"

Steering angle sensor branch line circuit

LAN-59, "Diagnosis Procedure"

ABS actuator and electric unit (control unit) branch line circuit

LAN-60, "Diagnosis Procedure"

TCM branch line circuit

LAN-61, "Diagnosis Procedure"

IPDM E/R branch line circuit

LAN-62, "Diagnosis Procedure"

Malfunction area

Reference

CAN communication circuit

LAN-63, "Diagnosis Procedure"
