INL-100

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

COMBINATION METER

Reference Value

INFOID:0000000010129271

VALUES ON THE DIAGNOSIS TOOL

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Monitor Item

Condition

Value/Status

SPEED METER
[km/h]

Ignition switch
ON

While driving

Equivalent to speedometer reading
NOTE:
655.35 is displayed when the malfunc-
tion signal is received

SPEED OUTPUT
[km/h]

Ignition switch
ON

While driving

Equivalent to speedometer reading
NOTE:
655.35 is displayed when the malfunc-
tion signal is received

ODO OUTPUT
[km/h or mph]

Ignition switch
ON

—

Equivalent to odometer reading in
combination meter

TACHO METER
[rpm]

Ignition switch
ON

While driving

Equivalent to tachometer reading
NOTE:
8191.875 is displayed when the mal-
function signal is received

FUEL METER
[L]

Ignition switch
ON

—

Values according to fuel level

W TEMP METER
[

°

C]

Ignition switch
ON

—

Values according to engine coolant
temperature
NOTE:
215 is displayed when the malfunction
signal is input

FUEL CAP W/L

Ignition switch
ON

Fuel filler cap warning display ON

On

Fuel filler cap warning display OFF

Off

ABS W/L

Ignition switch
ON

ABS warning lamp ON

On

ABS warning lamp OFF

Off

VDC/TCS IND

Ignition switch
ON

VDC OFF indicator lamp ON

On

VDC OFF indicator lamp OFF

Off

SLIP IND

Ignition switch
ON

VDC warning lamp ON

On

VDC waning lamp OFF

Off

BRAKE W/L

Ignition switch
ON

Brake warning lamp ON

On

Brake warning lamp OFF

Off

DOOR W/L

Ignition switch
ON

Door warning lamp ON

On

Door warning lamp OFF

Off

HI-BEAM IND

Ignition switch
ON

High-beam indicator lamp ON

On

High-beam indicator lamp OFF

Off

TURN IND

Ignition switch
ON

Turn signal indicator lamp ON

On

Turn signal indicator lamp OFF

Off

LIGHT IND

Ignition switch
ON

Light indicator lamp ON

On

Light indicator lamp OFF

Off

OIL W/L

Ignition switch
ON

Oil pressure warning lamp ON

On

Oil pressure warning lamp OFF

Off

COMBINATION METER

INL-101

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

MIL

Ignition switch
ON

Malfunction indicator lamp ON

On

Malfunction indicator lamp OFF

Off

CRUISE IND

Ignition switch
ON

CRUISE indicator lamp ON

On

CRUISE indicator lamp OFF

Off

O/D OFF IND

Ignition switch
ON

O/D OFF indicator lamp ON

On

O/D OFF indicator lamp OFF

Off

4WD W/L

Ignition switch
ON

AWD warning lamp ON

On

AWD warning lamp OFF

Off

4WD LOCK IND

Ignition switch
ON

AWD LOCK indicator lamp ON

On

AWD LOCK indicator lamp OFF

Off

FUEL W/L

Ignition switch
ON

Low-fuel warning lamp ON

On

Low-fuel warning lamp OFF

Off

WASHER W/L

Ignition switch
ON

Washer warning displayed

On

Washer warning not displayed

Off

AIR PRES W/L

Ignition switch
ON

Low tire pressure lamp ON

On

Low tire pressure lamp OFF

Off

KEY G/Y W/L

Ignition switch
ON

Key warning lamp (green/yellow) ON

On

Key warning lamp (green/yellow) OFF

Off

LCD

Ignition switch
ON

Engine start information display

B&P I

Ignition switch
ACC

Engine start information display

B&P N

Ignition switch
LOCK

Key ID warning display

ID NG

Ignition switch
LOCK

Steering lock information display

ROTAT

Ignition switch
LOCK

P position warning display

SFT P

Ignition switch
LOCK

Intelligent Key insert information display

INSRT

Ignition switch
LOCK

Intelligent Key low battery warning display

BATT

Ignition switch
ON

Take away warning display

NO KY

Ignition switch
LOCK

Key warning display

OUTKY

Ignition switch
ON

ACC warning display

LK WN

SHIFT IND

Ignition switch
ON

Shift position indicator P display

P

Shift position indicator R display

R

Shift position indicator N display

N

Shift position indicator D display

D

Shift position indicator L display

L

O/D OFF SW

Ignition switch
ON

Overdrive control switch ON

On

Overdrive control switch OFF

Off

M RANGE SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

Monitor Item

Condition

Value/Status

INL-102

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

NOTE:

Some items are not available according to vehicle specification.

NM RANGE SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

AT SFT UP SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

AT SFT DWN SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

ST SFT UP SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

ST SFT DWN SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

PKB SW

Ignition switch
ON

Parking brake switch ON

On

Parking brake switch OFF

Off

BUCKLE SW

Ignition switch
ON

Seat belt (driver side) not fastened

On

Seat belt (driver side) fastened

Off

BRAKE OIL SW

Ignition switch
ON

Brake fluid level switch ON

On

Brake fluid level switch OFF

Off

DISTANCE
[km]

Ignition switch
ON

—

Possible driving distance calculated by
combination meter

A/C AMP CONN

Ignition switch
ON

Other than the following

On

Receives ambient sensor power signal

Off

ENTER SW

Ignition switch
ON

When

 is pressed

On

Other than the above

Off

SELECT SW

Ignition switch
ON

When

 is pressed

On

Other than the above

Off

OUTSIDE TEMP
[

°

C] or [

°

F]

Ignition switch
ON

—

Equivalent to ambient temperature
NOTE:
This may not match the indicated value
on the information display.

FUEL LOW SIG

Ignition switch
ON

Low fuel warning displayed

On

Low fuel warning not displayed

Off

BUZZER

Ignition switch
ON

Buzzer ON

On

Buzzer OFF

Off

BSW IND

Ignition switch
ON

Blind Spot Intervention ON indicator (green)
ON

On

Blind Spot Intervention ON indicator (green)
OFF

Off

BSW W/L

Ignition switch
ON

BSW/Blind Spot Intervention warning lamp
(yellow) ON

On

BSW/Blind Spot Intervention warning lamp
(yellow) OFF

Off

LDW IND

Ignition switch
ON

Lane departure warning lamp (yellow) or
LDW ON indicator lamp (green) ON

On

Lane departure warning lamp (yellow) and
LDW ON indicator lamp (green) OFF

Off

Monitor Item

Condition

Value/Status

COMBINATION METER

INL-103

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

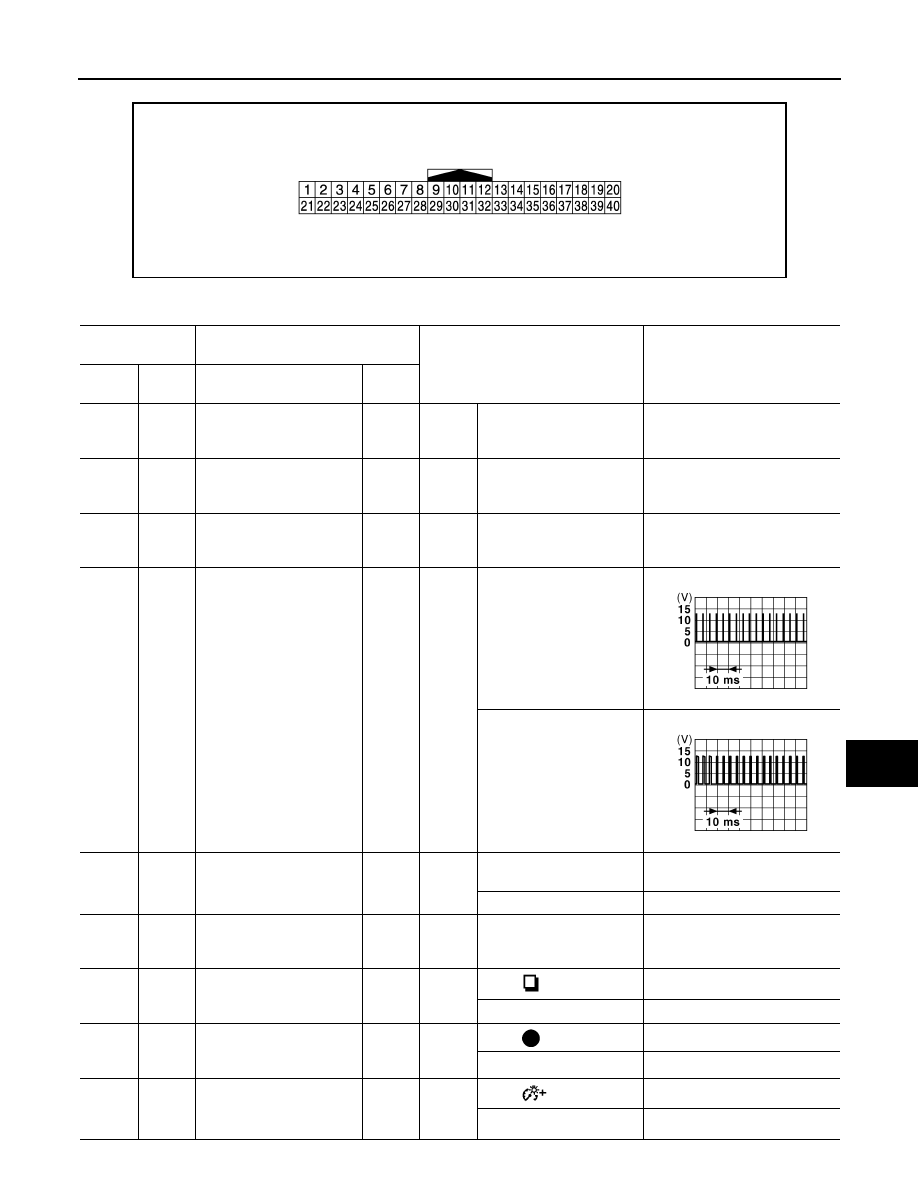

TERMINAL LAYOUT

PHYSICAL VALUES

JPNIA0968GB

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

1

(Y)

Ground

Battery power supply

Input

Ignition
switch
OFF

—

Battery voltage

2

(LG)

Ground

IGN signal

Input

Ignition
switch
ON

—

Battery voltage

3

(B)

Ground

Ground

—

Ignition
switch
ON

—

0  V

5

(SB)

Ground

Illumination control signal

Output

Ignition
switch
ON

• Lighting switch 1ST
• When meter illumination

is maximum

• Lighting switch 1ST
• When meter illumination

is minimum

8

(SB)

10

(LG)

Trip reset signal

Input

Ignition
switch
ON

When trip reset switch is
pressed.

0 V

Other than the above

5 V

10

(LG)

Ground

Meter control switch ground

—

Ignition
switch
ON

—

0  V

11

(L)

10

(LG)

Enter switch signal

Input

Ignition
switch
ON

When

 is pressed.

0 V

Other than the above

5 V

12

(R)

10

(LG)

Select switch signal

Input

Ignition
switch
ON

When

is

pressed.

0 V

Other than the above

5 V

13

(Y

*1

 or

V

*2

)

10

(LG)

Illumination control switch
signal (+)

Input

Ignition
switch
ON

When

 is pressed.

0 V

Other than the above

5 V
