BCM (BODY CONTROL MODULE)

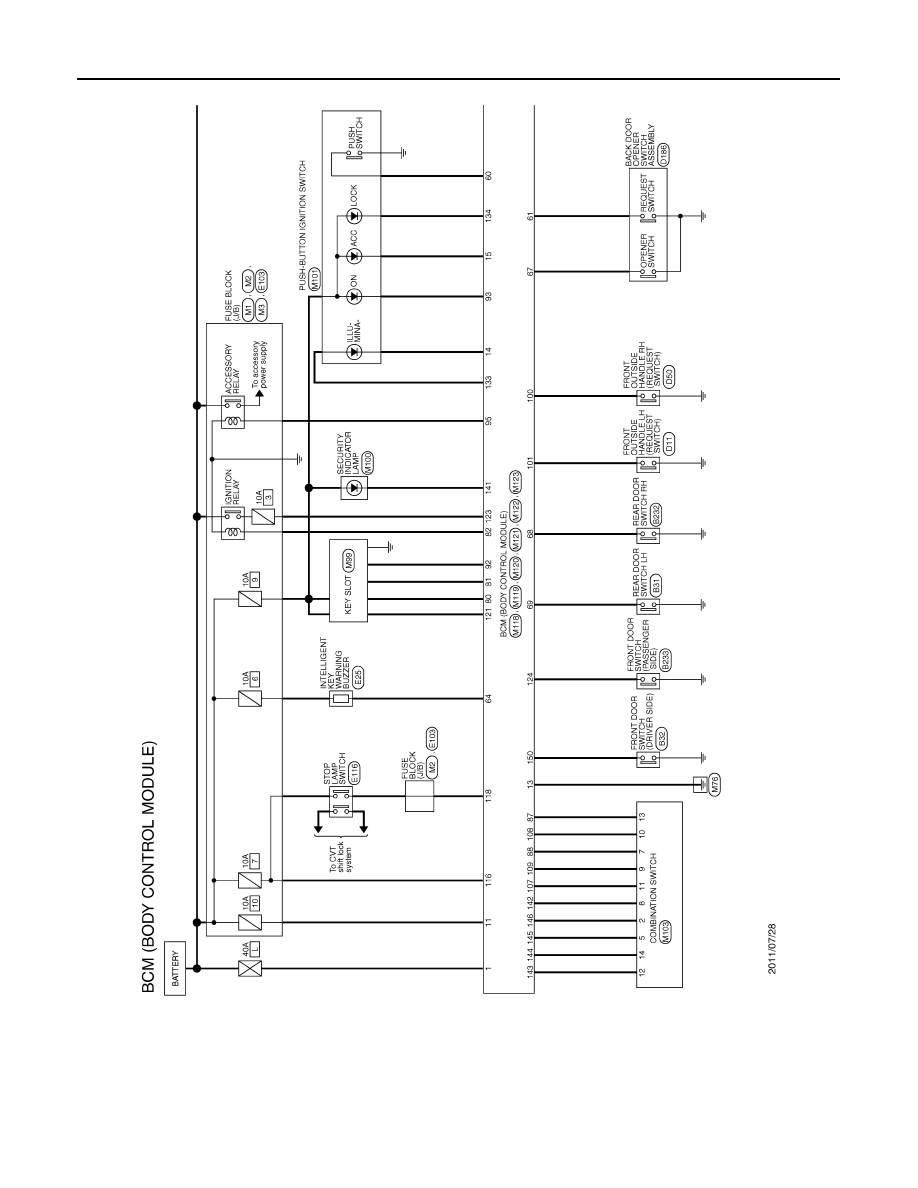

Wiring Diagram - BCM -

INFOID:0000000010129267

JRMWC5024GB

BCM (BODY CONTROL MODULE)

INL-81

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

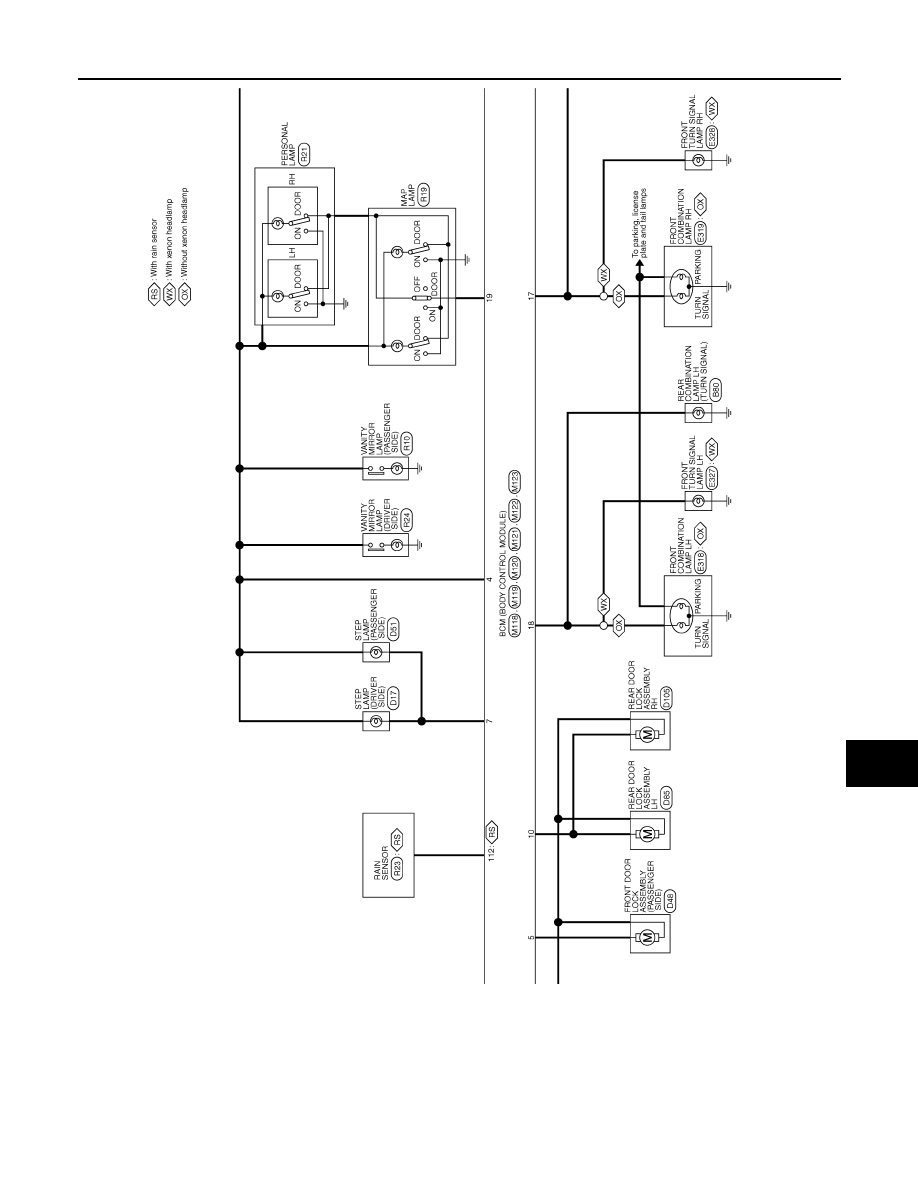

JRMWC5025GB

INL-82

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

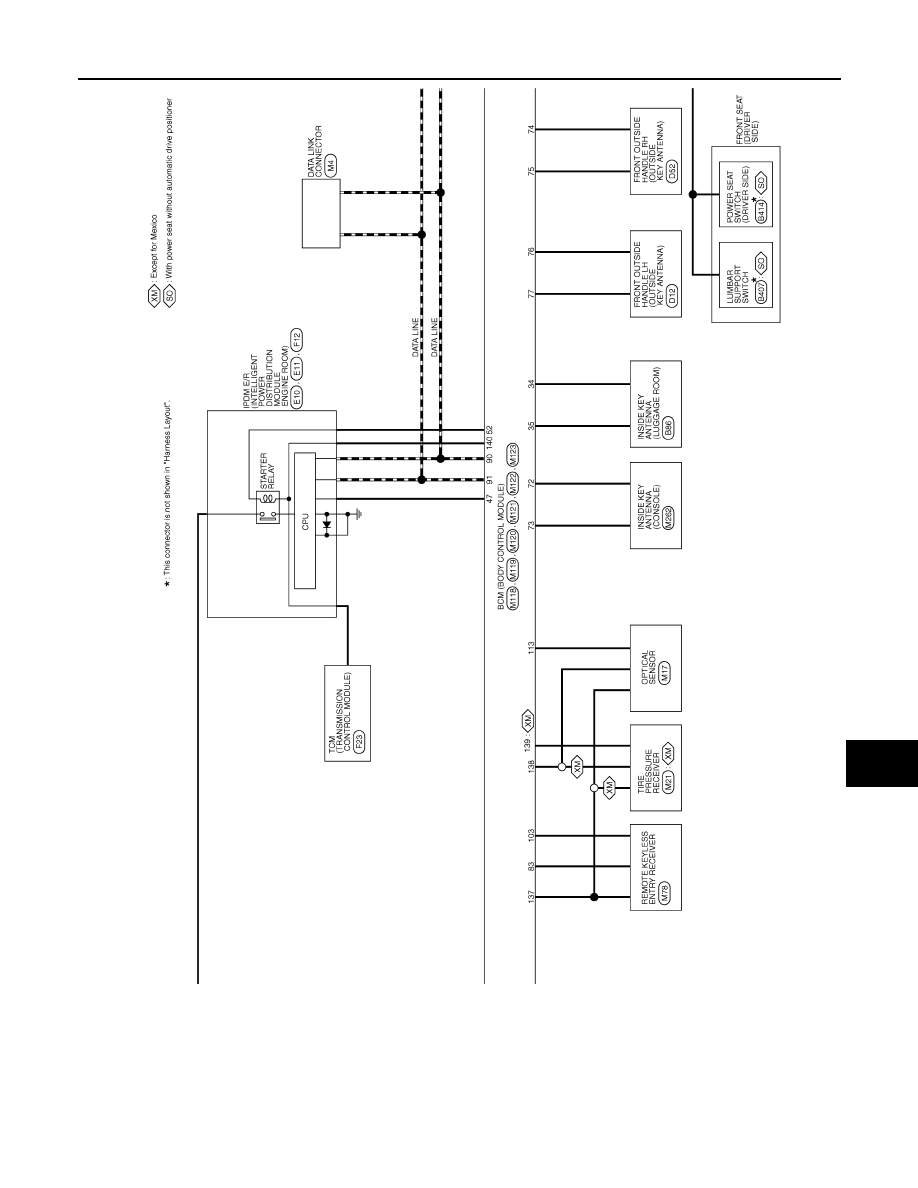

JRMWC5026GB

BCM (BODY CONTROL MODULE)

INL-83

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

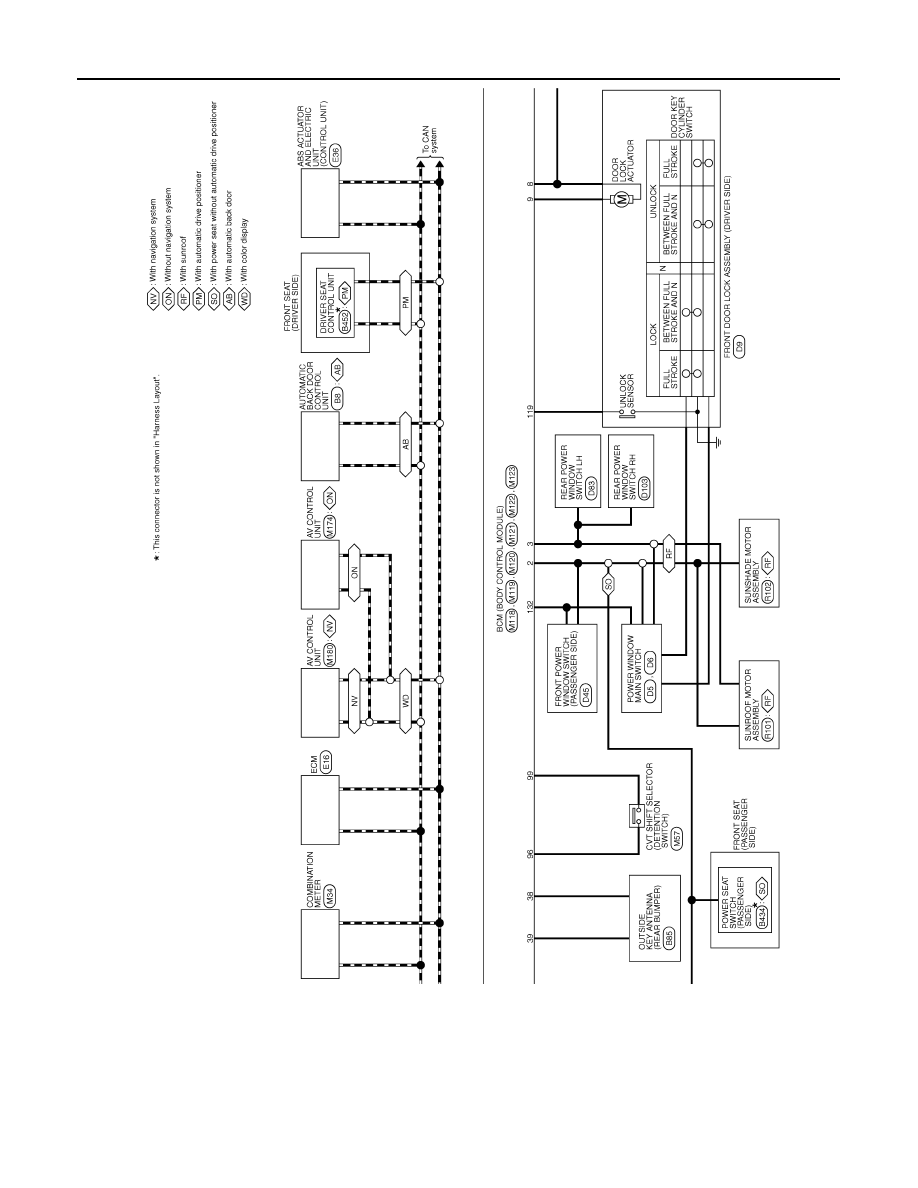

JRMWC5027GB
