POWER SUPPLY AND GROUND CIRCUIT

POWER SUPPLY AND GROUND CIRCUIT

A/C AUTO AMP.

A/C AUTO AMP. : Description

INFOID:0000000009722200

COMPONENT DESCRIPTION

A/C Auto Amp. (Air Conditioner Automatic Amplifier)

The A/C auto amp. (1) has a built-in microcomputer that processes
information sent from various sensors needed for air conditioner
operation. The air mix door motor(s), the mode door motor, the
intake door motor, the upper ventilator door motor, the blower motor
and the compressor are then controlled.
When the various switches and temperature control dial are oper-
ated, data is input to the A/C auto amp. from the AV control unit
using CAN communication.
The A/C auto amp. is operated with control mechanisms. Signals
from various switches and Potentio Temperature Control (PTC) are
directly entered into the A/C auto amp.

Power Supply and Ground Circuit for A/C Auto Amp.

A/C AUTO AMP. : Component Function Check

INFOID:0000000009722201

1.

CHECK OPERATION

1.

Press the AUTO switch, and then check that “AUTO” is shown on the display.

2.

Operate the temperature control dial (driver side). Check that the fan speed or outlet changes. (The dis-
charge air temperature or fan speed varies depending on the ambient temperature, in-vehicle tempera-
ture, and temperature setting.)

Does it operate normally?

YES

>> INSPECTION END

NO

>> Perform trouble diagnosis for the A/C system. Refer to

HAC-202, "A/C AUTO AMP. : Diagnosis

Procedure"

.

A/C AUTO AMP. : Diagnosis Procedure

INFOID:0000000009722202

1.

INSPECTION BY FAIL-SAFE FUNCTION

1.

Turn the ignition switch ON.

2.

After approximately 30 seconds, check that the air conditioner is operated by the fail-safe function (the
operation display of air conditioner is not performed). Refer to

HAC-229, "Fail-Safe"

.

Is the fail-safe function operated?

YES

>> GO TO 5.

NO

>> GO TO 2.

2.

CHECK A/C AUTO AMP. POWER SUPPLY CIRCUIT

1.

Disconnect the A/C auto amp. connector.

2.

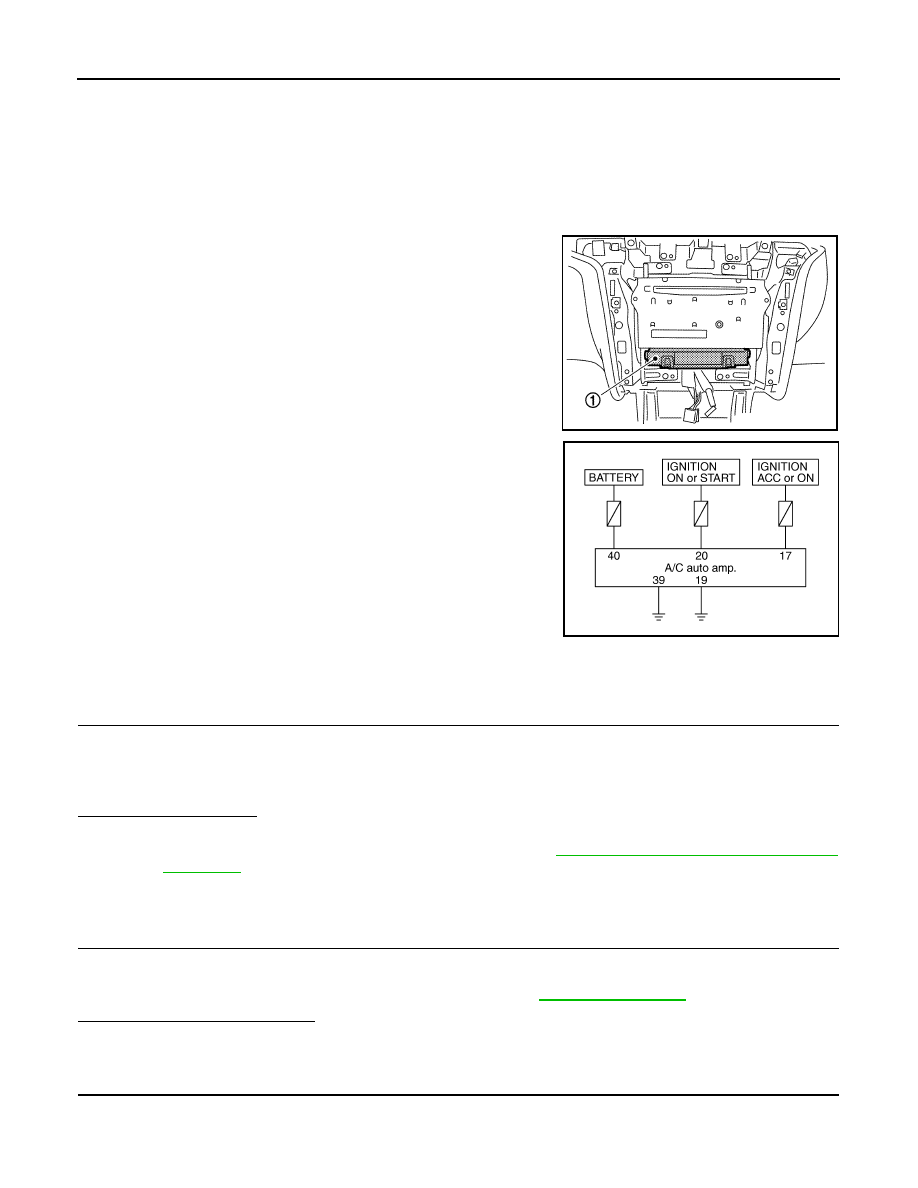

Check voltage between A/C auto amp. harness connector and ground.

JPIIA0609ZZ

JPIIA0617GB

POWER SUPPLY AND GROUND CIRCUIT

HAC-203

< DTC/CIRCUIT DIAGNOSIS >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK FUSE

Check 10A fuses [Nos. 3, 6 and 19, located in the fuse block (J/B)].
NOTE:
Refer to

PG-91, "Fuse, Connector and Terminal Arrangement"

.

Is the inspection result normal?

YES

>> Repair the harnesses or connectors.

NO

>> Replace the fuse after repairing the applicable circuit.

4.

CHECK A/C AUTO AMP. CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Check continuity between A/C auto amp. harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair the harnesses or connectors.

5.

CHECK PRESET SWITCH

Check the preset switch. Refer to

AV-155, "Removal and Installation"

 (base audio without navigation),

AV-286,

"Removal and Installation"

 (bose audio without navigation) or

AV-458, "Removal and Installation"

 (bose audio

with navigation).

Is the inspection result normal?

YES

>> Replace the A/C auto amp.

NO

>> Repair or replace parts according to the inspection results.

(+)

(

−

)

Voltage

A/C auto amp.

—

Ignition switch position

Connector

Terminal

OFF

ACC

ON

M50

17

Ground

Approx. 0 V

Battery voltage

Battery voltage

20

Approx. 0 V

Approx. 0 V

Battery voltage

40

Battery voltage

Battery voltage

Battery voltage

A/C auto amp.

—

Continuity

Connector

Terminal

M50

19

Ground

Existed

39
