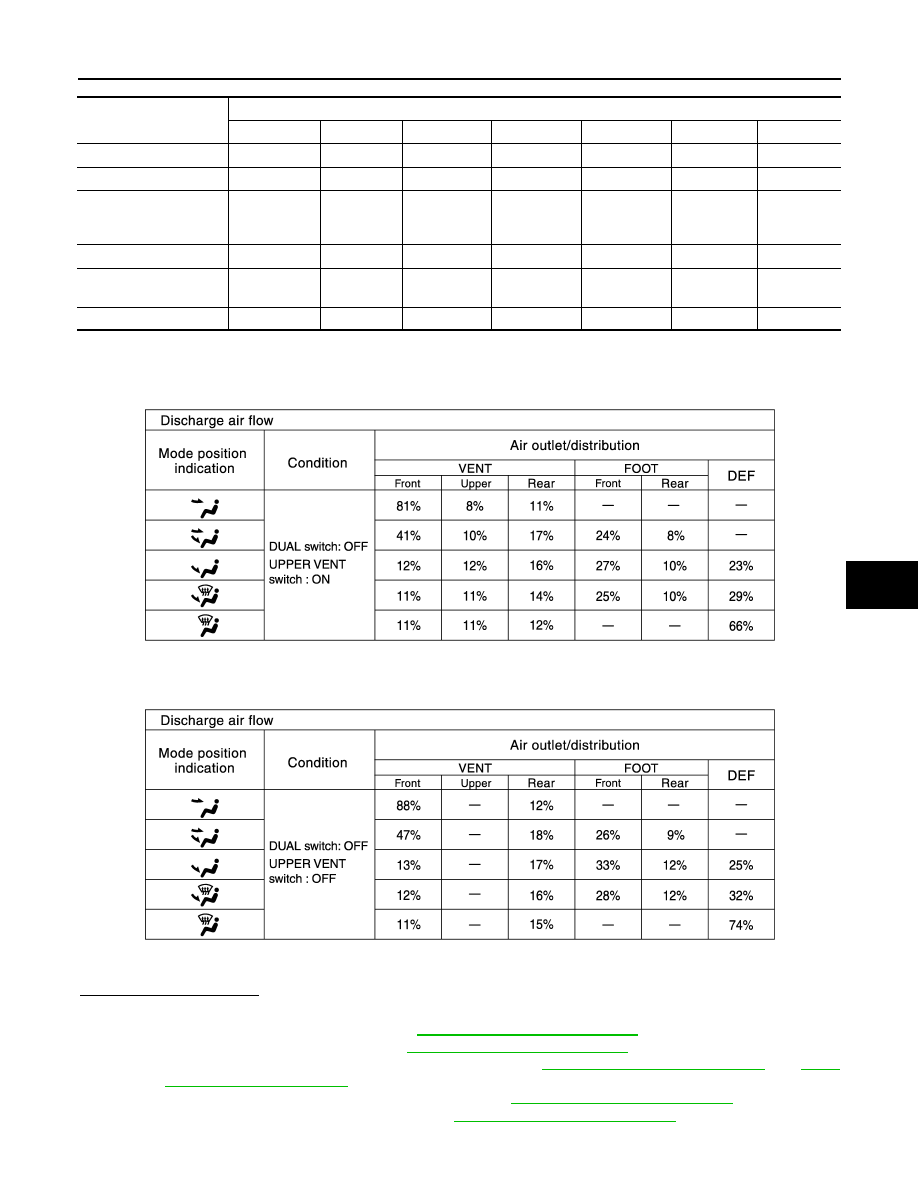

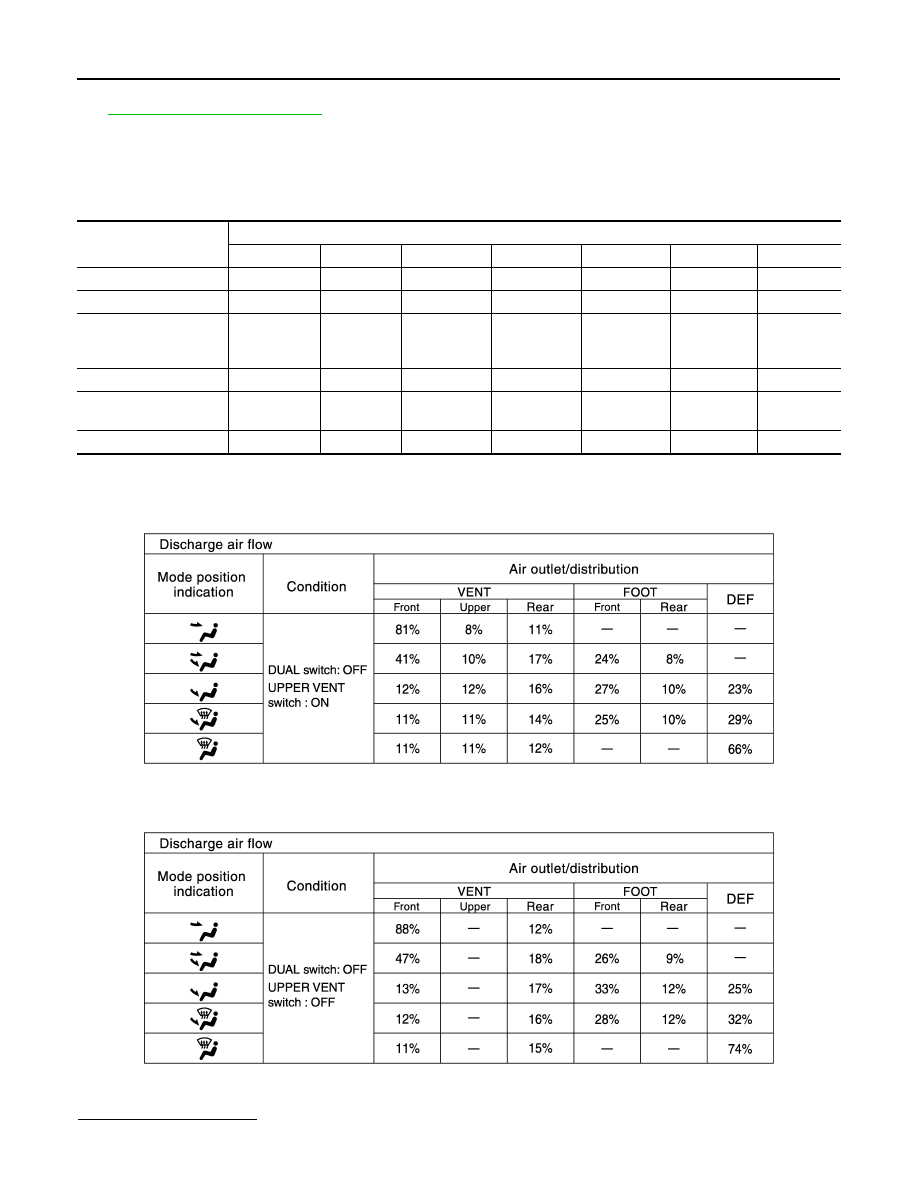

HAC-110 < SYMPTOM DIAGNOSIS > [WITHOUT 7 INCH DISPLAY] INSUFFICIENT COOLING 1. Using CONSULT, perform “HVAC TEST” “ACTIVE TEST” of HVAC to check each output device. Refer to . NOTE: 2. Refer to the table and check the outlet, inlet, air flow temperature, blower motor control signal, magnet NOTE: Perform the inspection of each output device after starting the engine because the compressor is operated. Does it operate normally? YES >> GO TO 7. Test item MODE 1 MODE 2 MODE 3 MODE 4 MODE 5 MODE 6 MODE 7 Mode door position VENT1 VENT2 B/L1 B/L2 FOOT D/F DEF Intake door position REC REC 20%FRE 20%FRE FRE FRE FRE Air mix door position FULL COLD FULL HOT FULL COLD FULL HOT FULL HOT FULL HOT FULL HOT Blower motor duty ratio 35% 35% 61% 61% 81% 81% 35% Compressor (Magnet ON ON ON ON OFF OFF ON Upper ventilator door OPEN SHUT OPEN SHUT SHUT SHUT SHUT JPIIA0509GB JPIIA0510GB |
