< ECU DIAGNOSIS INFORMATION >

[WITHOUT 7 INCH DISPLAY]

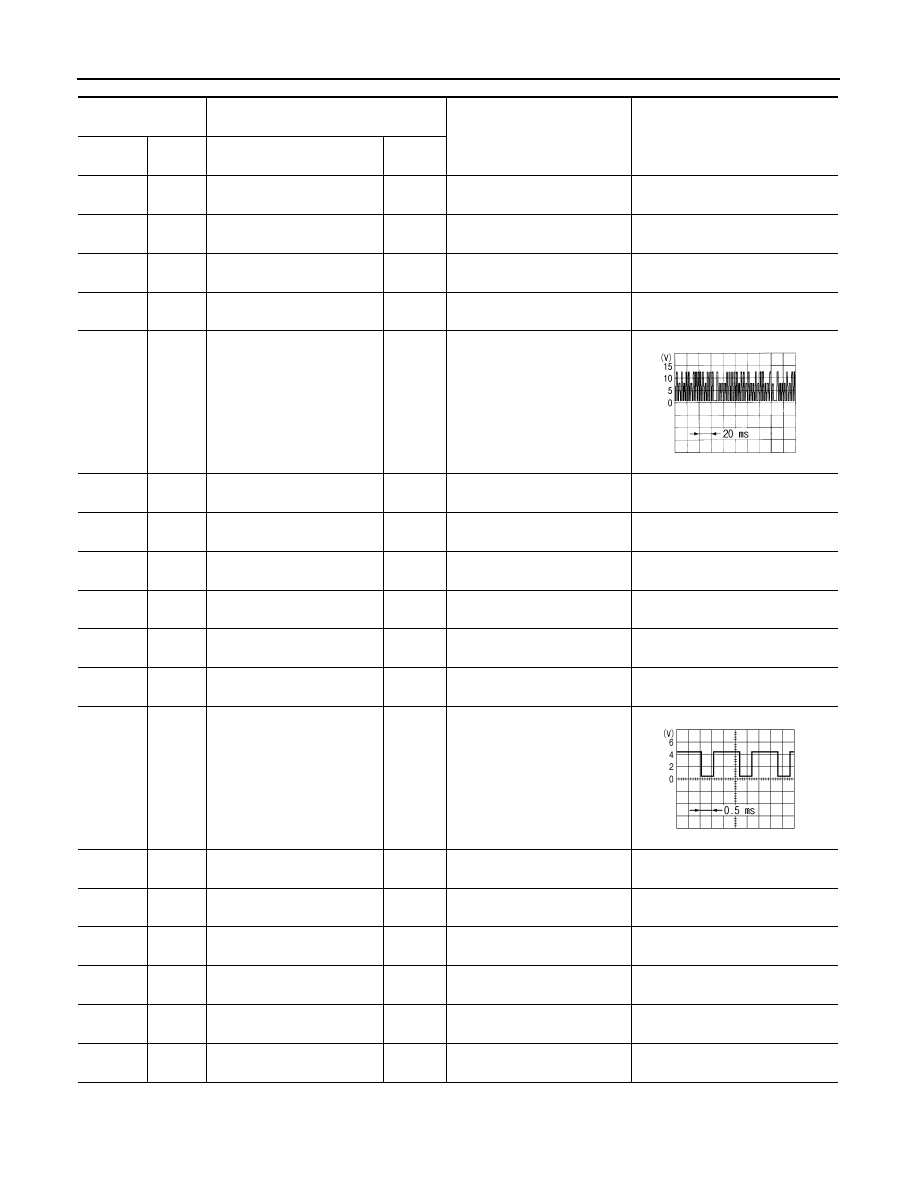

ECM

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

*1: This may vary depending on internal resistance of the tester.

*2: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to

PG-3, "How to Handle Battery"

.

100

(G)

—

Sensor ground
(Accelerator pedal position
sensor 2)

—

—

—

102

(R)

112

(B)

PNP signal

Input

[Ignition switch: ON]
• Selector lever: P or N position

BATTERY VOLTAGE
(11 - 14 V)

[Ignition switch: ON]
• Selector lever: Except above

position

0 V

104

(SB)

—

Sensor ground
(Fuel tank temperature sen-
sor)

—

—

—

105

(V)

112

(B)

Power supply for ECM

Input

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14 V)

106

(SB)

112

(B)

Stop lamp switch

Input

[Ignition switch: OFF]
• Brake pedal: Fully released

0 V

[Ignition switch: OFF]
• Brake pedal: Slightly de-

pressed

BATTERY VOLTAGE
(11 - 14 V)

107

(B)

108

(B)

—

ECM ground

—

—

—

109
(W)

112

(B)

EVAP canister vent control
valve

Output

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14 V)

110

(G)

112

(B)

ASCD brake switch

Input

[Ignition switch: ON]
• Brake pedal: Slightly de-

pressed

0 V

[Ignition switch: ON]
• Brake pedal: Fully released

BATTERY VOLTAGE
(11 - 14 V)

111

(B)

112

(B)

—

ECM ground

—

—

—

Terminal No.

Description

Condition

Value

(Approx.)

+

-–

Signal name

Input/

Output

A/C AUTO AMP.

HAC-95

< ECU DIAGNOSIS INFORMATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

A/C AUTO AMP.

Reference Value

INFOID:0000000009722102

VALUES ON THE DIAGNOSIS TOOL

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

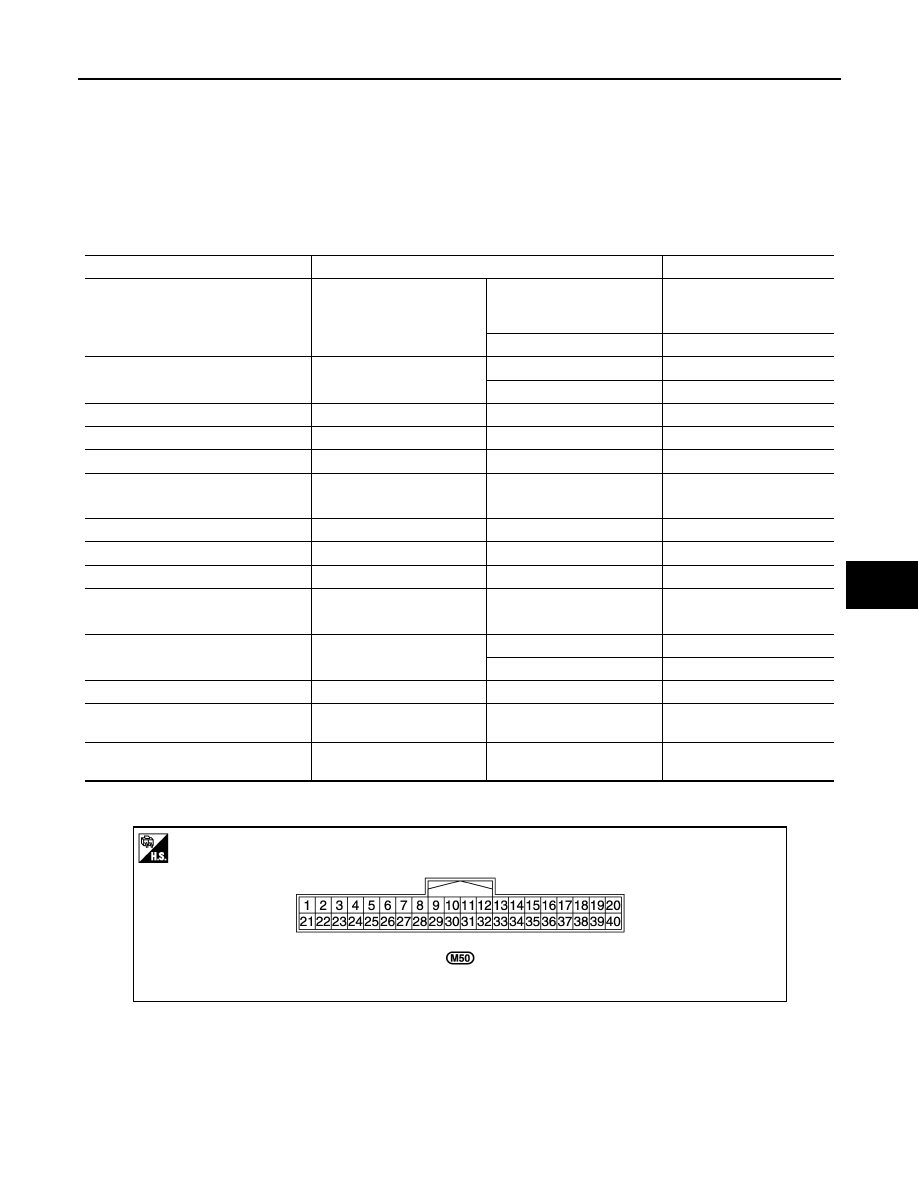

CONSULT MONITOR ITEM

TERMINAL LAYOUT

PHYSICAL VALUES

Monitor item

Condition

Value/Status

COMP REQ SIG

Engine: Run at idle after
warming up

A/C switch: ON
(Compressor operation sta-
tus)

On

A/C switch: OFF

Off

FAN REQ SIG

Engine: Run at idle after
warming up

Blower fan: ON

On

Blower fan: OFF

Off

AMB TEMP SEN

Ignition switch ON

—

22 - 131

°

F (

−

30 - 55

°

C)

IN-VEH TEMP

Ignition switch ON

—

22 - 131

°

F (

−

30 - 55

°

C)

INT TEMP SEN

Ignition switch ON

—

22 - 131

°

F (

−

30 - 55

°

C)

SUNLOAD SEN

Ignition switch ON

—

0 - 1045 w/m

2

(0 - 900 kcal/m

2

·h)

AMB SEN CAL

Ignition switch ON

—

22 - 131

°

F (

−

30 - 55

°

C)

IN-VEH CAL

Ignition switch ON

—

22 - 131

°

F (

−

30 - 55

°

C)

INT TEMP CAL

Ignition switch ON

—

22 - 131

°

F (

−

30 - 55

°

C)

SUNL SEN CAL

Ignition switch ON

—

0 - 1045 w/m

2

(0 - 900 kcal/m

2

·h)

FAN DUTY

Engine: Run at idle after
warming up

Blower fan: ON

25 - 81

Blower fan: OFF

0

XM

Ignition switch ON

—

−

100 - 155

ENG COOL TEMP

Ignition switch ON

—

Values according to coolant
temperature

VEHICLE SPEED

Driving

—

Equivalent to speedometer
reading

JSIIA0964ZZ

HAC-96

< ECU DIAGNOSIS INFORMATION >

[WITHOUT 7 INCH DISPLAY]

A/C AUTO AMP.

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

−

Signal name

Input/

Output

1

(L)

—

CAN-H

Input/

Output

—

—

2

(P)

—

CAN-L

Input/

Output

—

—

6

(L)

Ground

TX (AMP > SW·DISP)

 Input

—

—

7

(P)

Ground

RX (SW > AMP)

Output

—

—

10

(G)

Ground

LAN signal

Input/

Output

—

11

(R)

Ground

Power supply for each door
motor

Input

Ignition switch ON

Battery voltage

15

(BR)

Ground

Sunload sensor

Input

—

—

16

(R)

Ground

Intake sensor

Input

—

—

17

(W)

Ground

Power supply from ACC

—

Ignition switch ACC

Battery voltage

19

(B)

Ground

Ground

—

Ignition switch ON

0 V

20

(G)

Ground

Power supply from IGN

—

Ignition switch ON

Battery voltage

32

(L)

Ground

Blower motor control signal

Output

• Ignition switch ON
• Blower speed: 1st speed

(manual)

34

(V)

Ground

Power supply for ambient
meter

Output

Ignition switch ON

5V

35

(G)

Ground

Ambient sensor

Input

—

—

36

(LG)

Ground

In-vehicle sensor

Input

—

—

37

(SB)

Ground

Sensor ground

—

Ignition switch ON

 0 V

39

(B)

Ground

Ground

—

Ignition switch ON

 0 V

40

(Y)

Ground

Power supply from BATT

—

Ignition switch OFF

Battery voltage

SJIA1453J

JSIIA0096ZZ

A/C AUTO AMP.

HAC-97

< ECU DIAGNOSIS INFORMATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

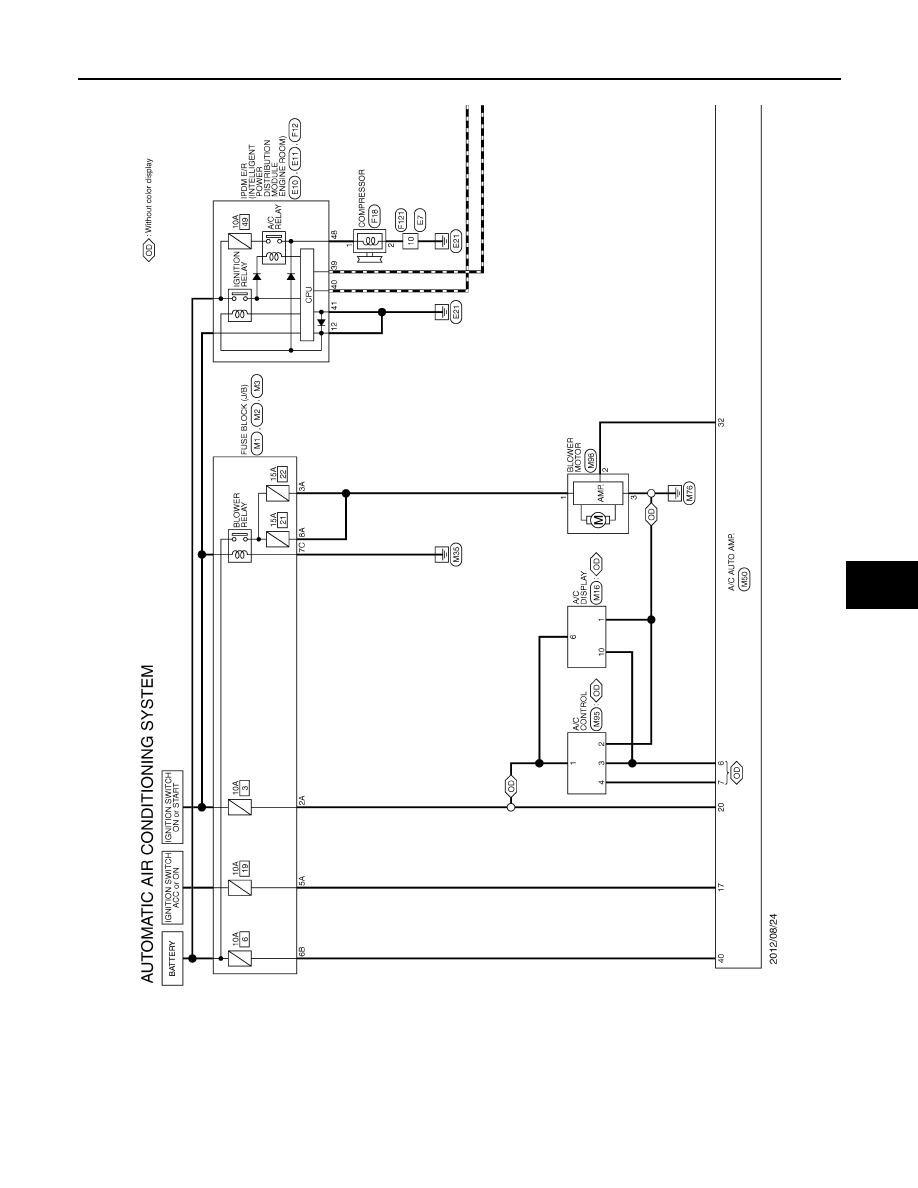

Wiring Diagram - AIR CONDITIONER CONTROL SYSTEM -

INFOID:0000000009722103

JRIWC0486GB
