AUTOMATIC AIR CONDITIONER SYSTEM

• When the intake switch indicator is turned OFF, shifting mode position to D/F or DEF, or when compressor is

turned from ON to OFF, intake switch is automatically turned OFF (set to FRE mode). REC mode can be re-
entered by pressing intake switch again, and then compressor is turned ON. (Except D/F or DEF position)

DUAL Switch

• When the DUAL switch indicator is ON, the driver side and passenger side, temperature can each be set

independently.

• When the DUAL switch indicator is OFF, the driver side outlet and setting temperature are applied to both

sides.

AUTOMATIC AIR CONDITIONER SYSTEM

HAC-19

< SYSTEM DESCRIPTION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

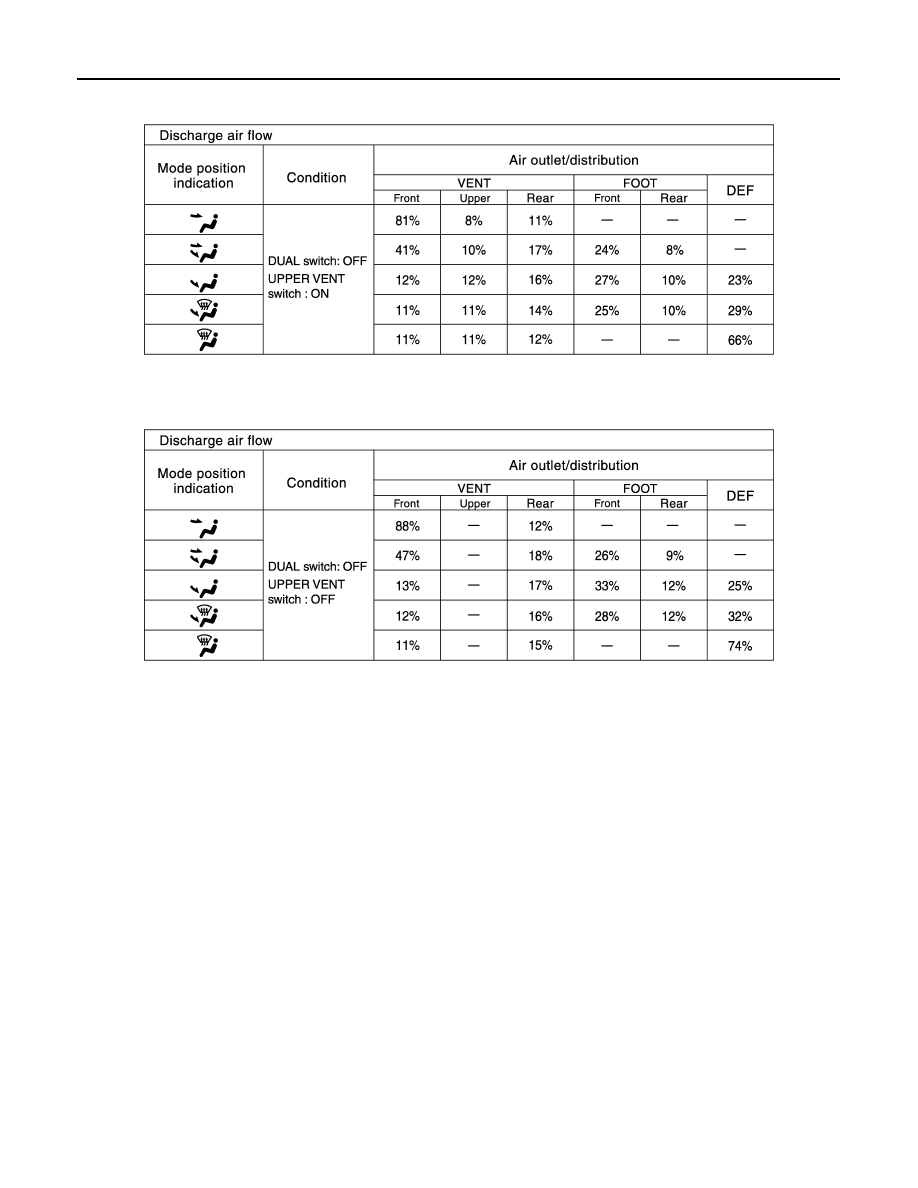

DISCHARGE AIR FLOW

JPIIA0512GB

HAC-20

< SYSTEM DESCRIPTION >

[WITHOUT 7 INCH DISPLAY]

AUTOMATIC AIR CONDITIONER SYSTEM

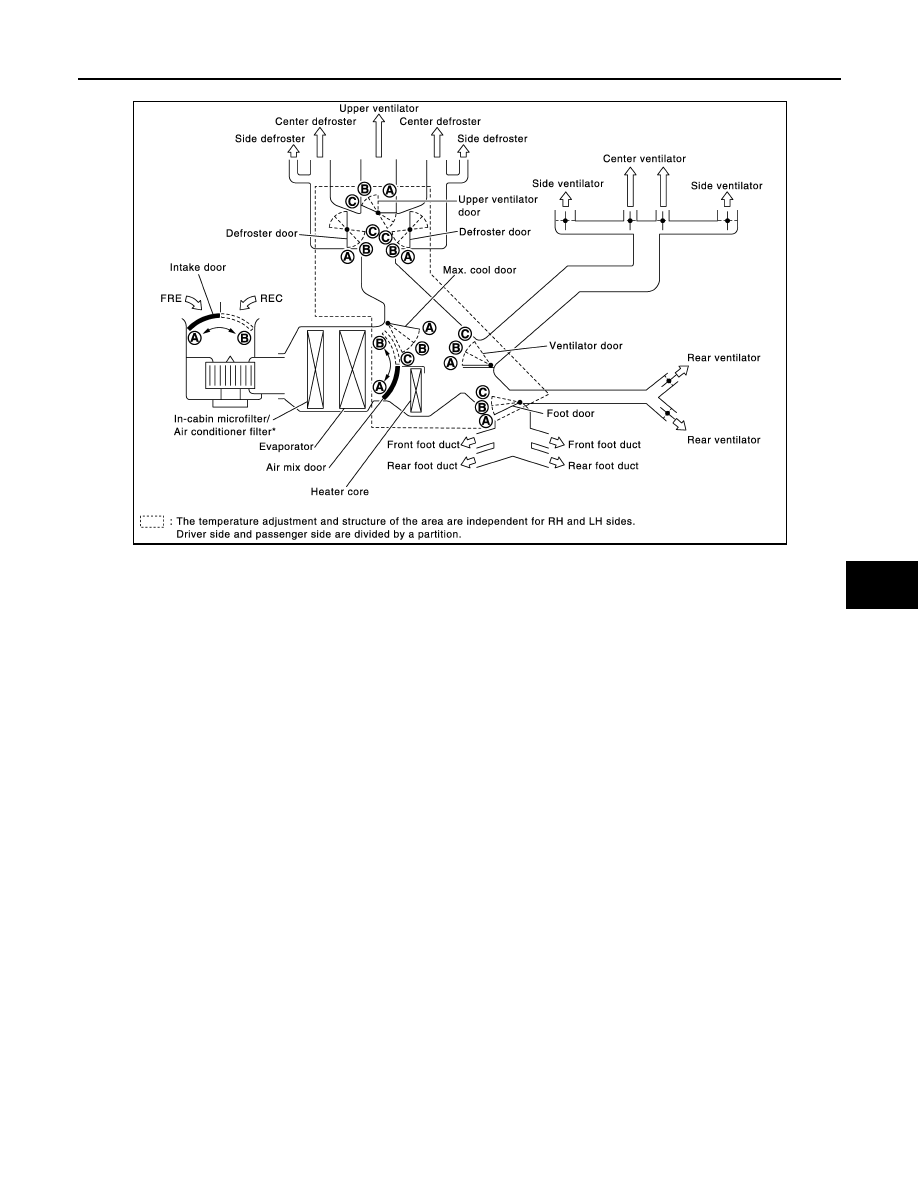

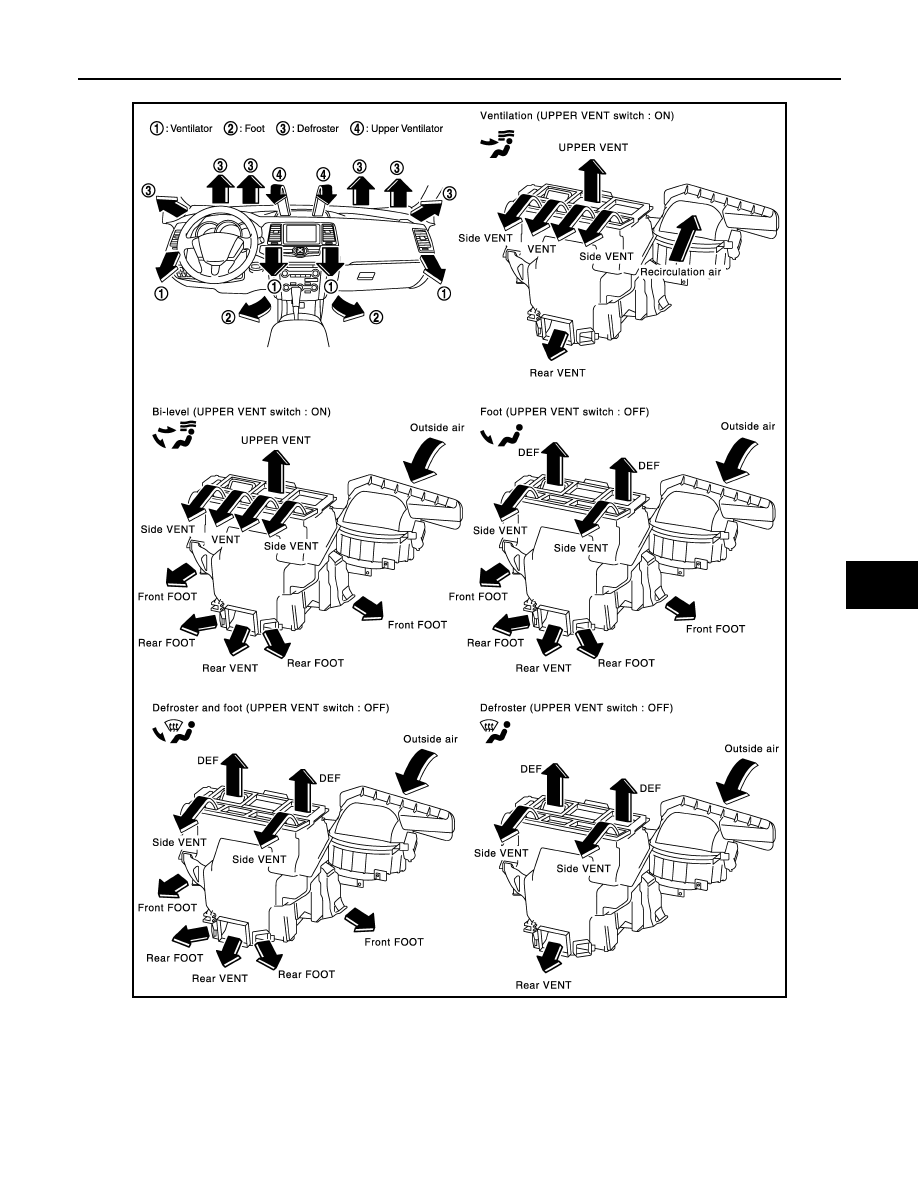

AIR DISTRIBUTION

SWITCHES AND THEIR CONTROL FUNCTION

JPIIA0509GB

JPIIA0510GB

AUTOMATIC AIR CONDITIONER SYSTEM

HAC-21

< SYSTEM DESCRIPTION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

*

: Models for Mexico.

JMIIA0492GB
