FRONT BUMPER

REMOVAL AND INSTALLATION

FRONT BUMPER

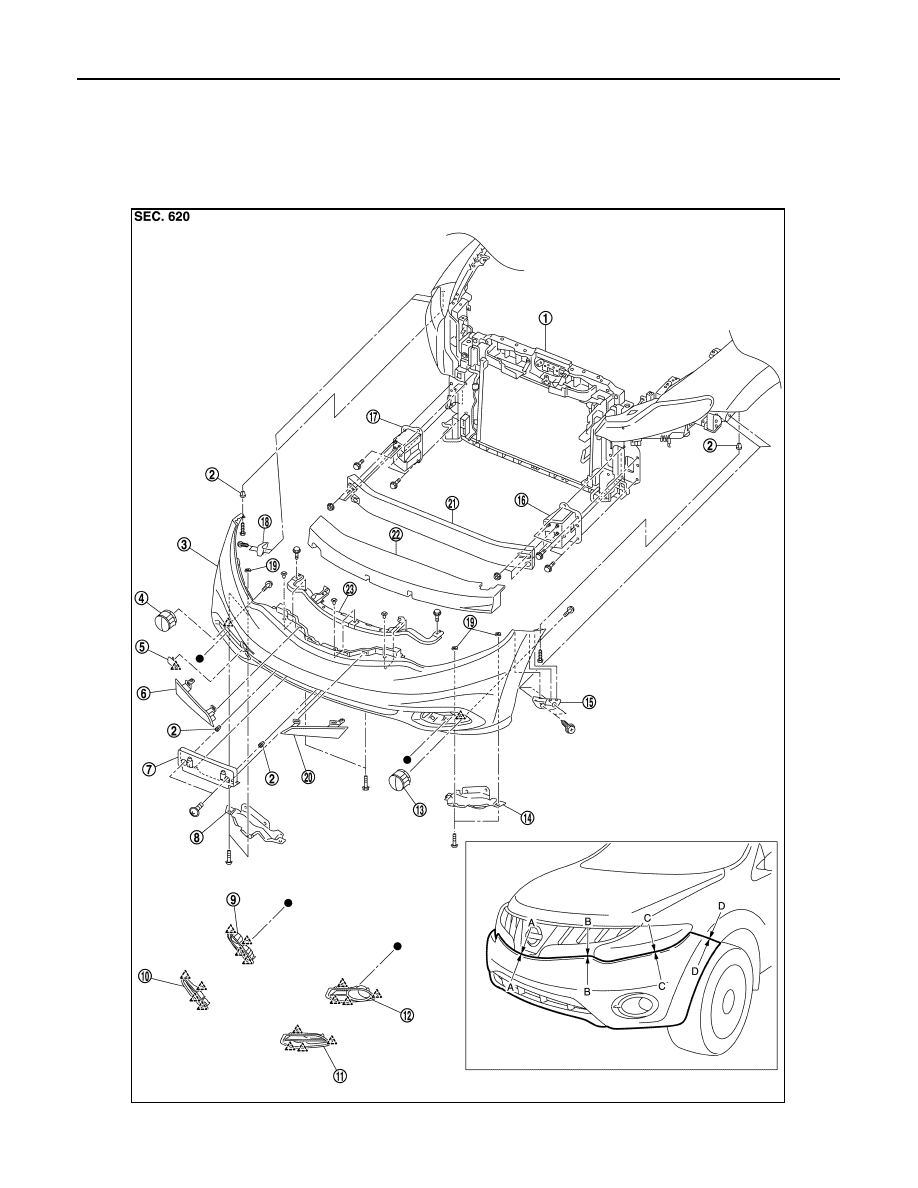

Exploded View

INFOID:0000000009720567

JMKIA6536ZZ

FRONT BUMPER

EXT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal and Installation

INFOID:0000000009720568

REMOVAL

CAUTION:

Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.

1.

Fully open hood assembly.

2.

Remove front grille. Refer to

EXT-21, "Removal and Installation"

.

3.

Remove headlamp extension panel. Refer to

EXL-179, "Removal and Installation"

 (for Xenon type) or

EXL-360, "Removal and Installation"

 (for Halogen type).

4.

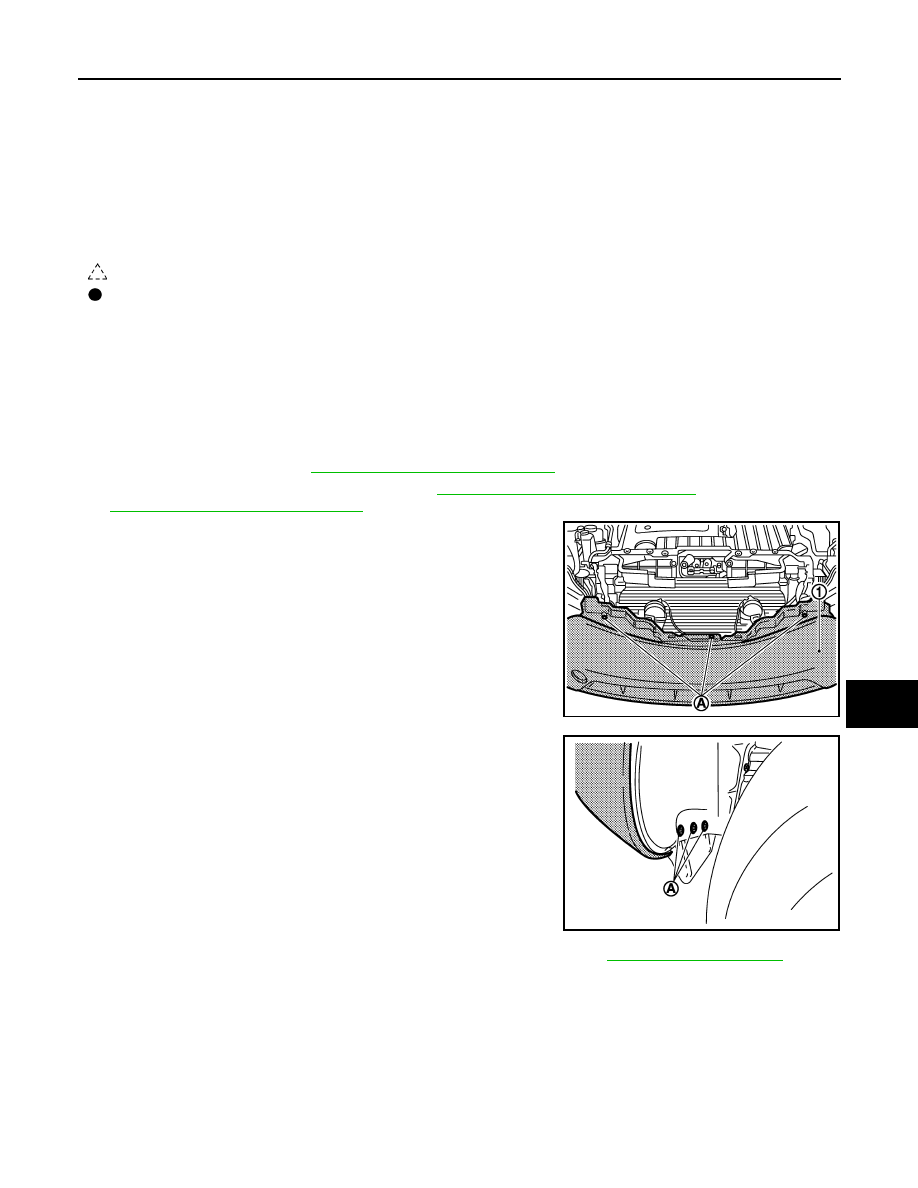

Remove clips (A) of bumper fascia assembly (1) upper side.

5.

Remove fender protector fixing clips (A) (LH/RH).

6.

Remove front under cover and bumper lower finisher (LH/RH). Refer to

EXT-29, "Exploded View"

.

1.

Radiator core support

2.

Grommet

3.

Bumper fascia assembly

4.

Front fog lamp RH

5.

Bumper lower molding

6.

Head lamp extension panel RH

7.

License plate bracket

8.

Bumper lower finisher RH

9.

Bumper molding RH (With fog lamp)

10. Bumper molding RH (Without fog lamp) 11.

Bumper molding LH (Without fog lamp) 12. Bumper molding LH (With fog lamp)

13. Front fog lamp LH

14.

Bumper lower finisher LH

15. Bumper side bracket LH

16. Bumper stay LH

17.

Bumper stay RH

18. Bumper side bracket RH

19. J nut

20.

Head lamp extension panel LH

21. Bumper reinforcement

22. Energy absorber

23.

Bumper retainer assembly

: Pawl

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA1962ZZ

JMKIA1963ZZ

EXT-16

< REMOVAL AND INSTALLATION >

FRONT BUMPER

7.

Remove bumper fascia assembly fixing bolts (A).

8.

Remove bumper fascia assembly fixing screws (A) (LH/RH).

9.

Disconnect front fog lamp harness connector (LH/RH).

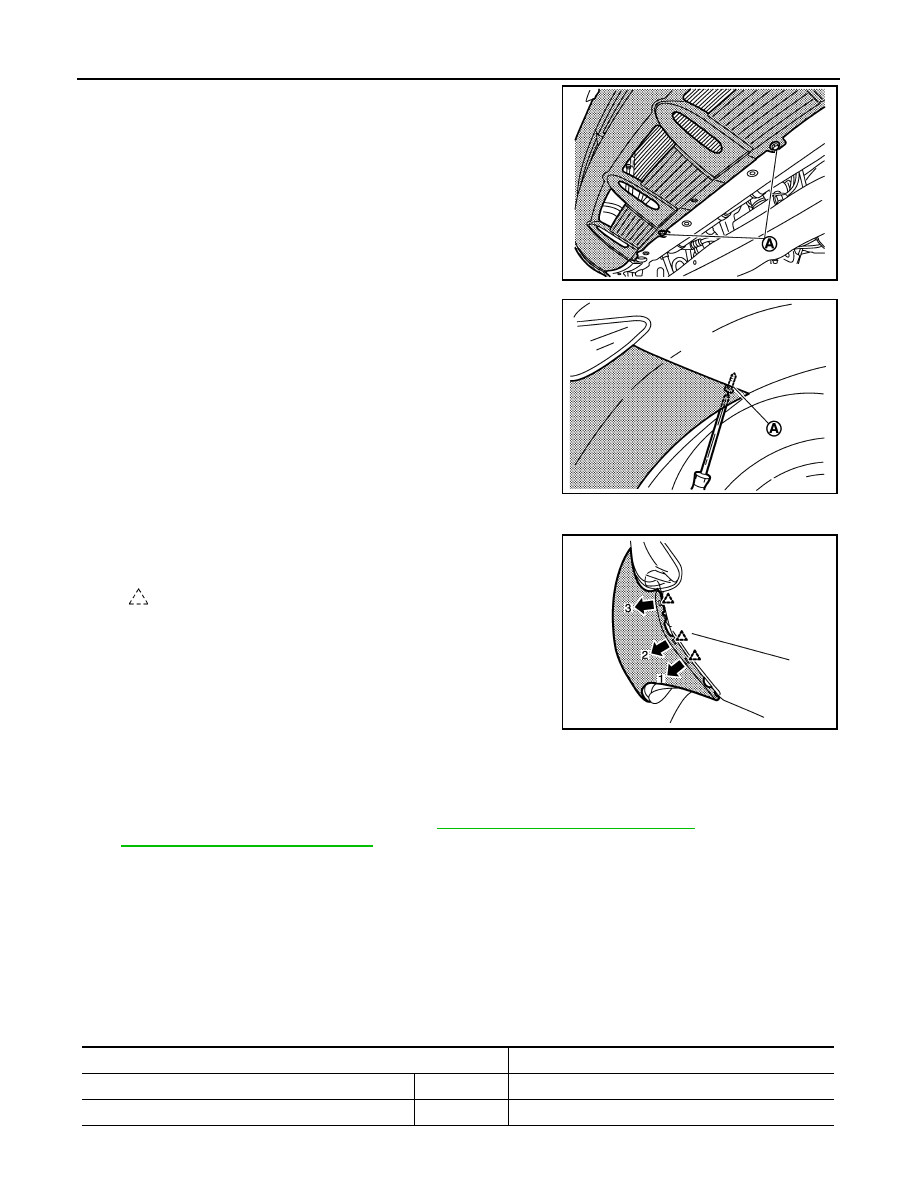

10. Pull the bumper fascia side toward the vehicle side to disengage

the fitting of bumper side bracket and bumper fascia side.

11. Remove bumper fascia assembly.

CAUTION:

When removing bumper fascia assembly, 2 workers are required so as to prevent it from dropping.

12. Remove the following parts after removing bumper fascia assembly.

• Front fog lamp assembly (LH/RH). Refer to

EXL-181, "Removal and Installation"

 (for Xenon type) or

EXL-363, "Removal and Installation"

 (for Halogen type).

• Bumper side bracket (LH/RH)
• License plate bracket

13. Remove energy absorber.
14. Remove bumper reinforcement mounting nuts, and then remove bumper reinforcement.

15. Remove bumper stay (LH/RH) mounting bolts, and then remove bumper stay (LH/RH).

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.

JMKIA1964ZZ

JMKIA1965ZZ

: Pawl

JMKIA1966ZZ

Portion

Clearance

Front bumper – Front grille

A – A

0.2 – 2.8 mm (0.008 – 0.110 in)

Front bumper – Headlamp extension panel

B – B

0.2 – 2.8 mm (0.008 – 0.110 in)

FRONT BUMPER

EXT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Front bumper – Headlamp

C – C

0.3 – 2.7 mm (0.012 – 0.106 in)

Front bumper – Front fender

D – D

0.0 – 0.8 mm (0.000 – 0.031 in)

Portion

Clearance
