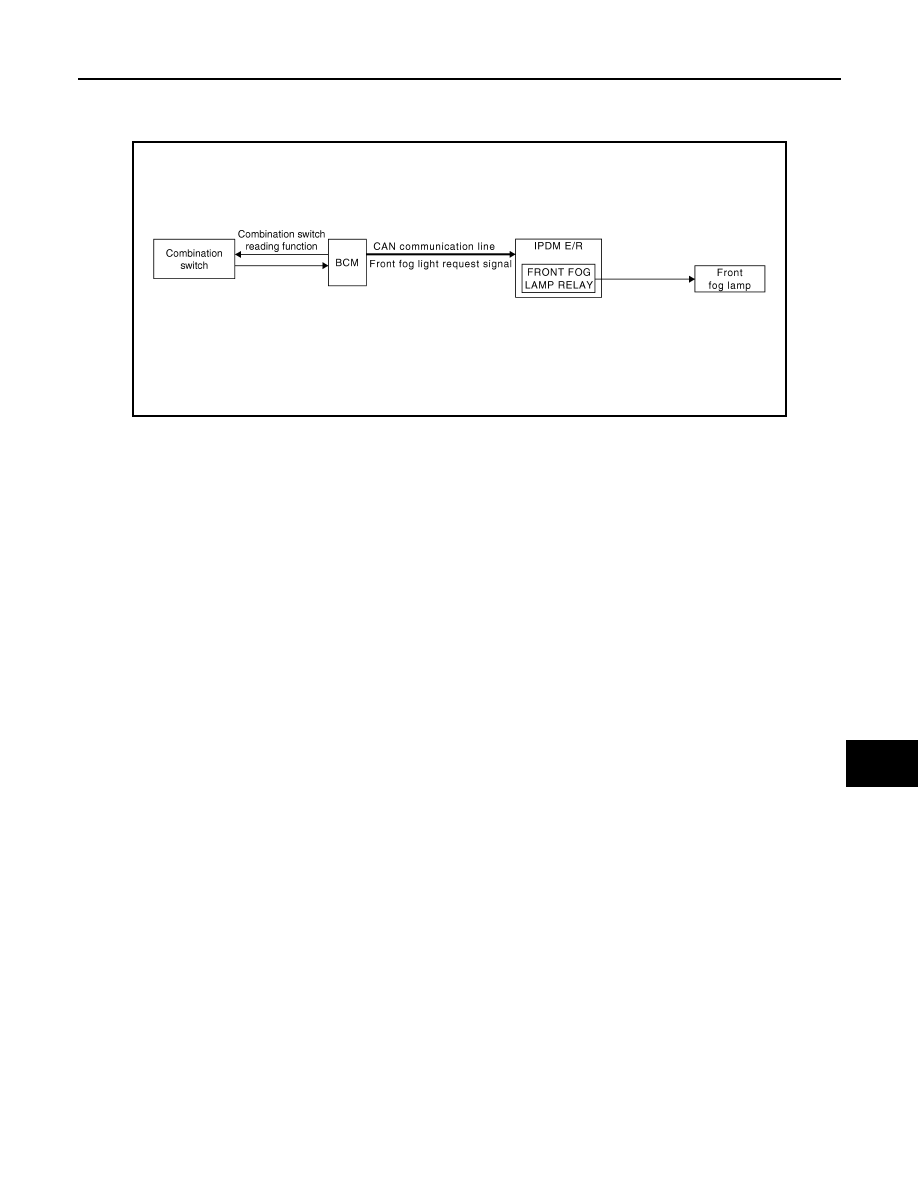

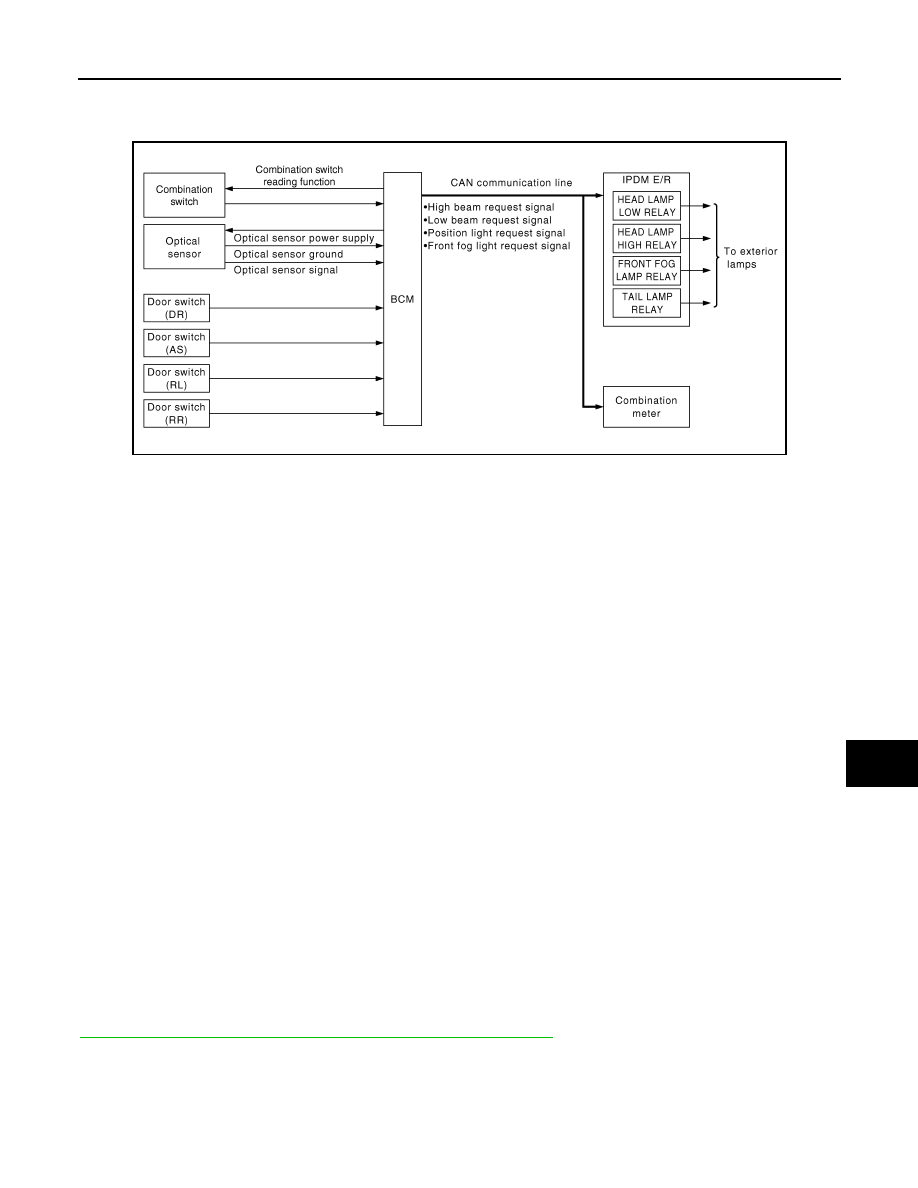

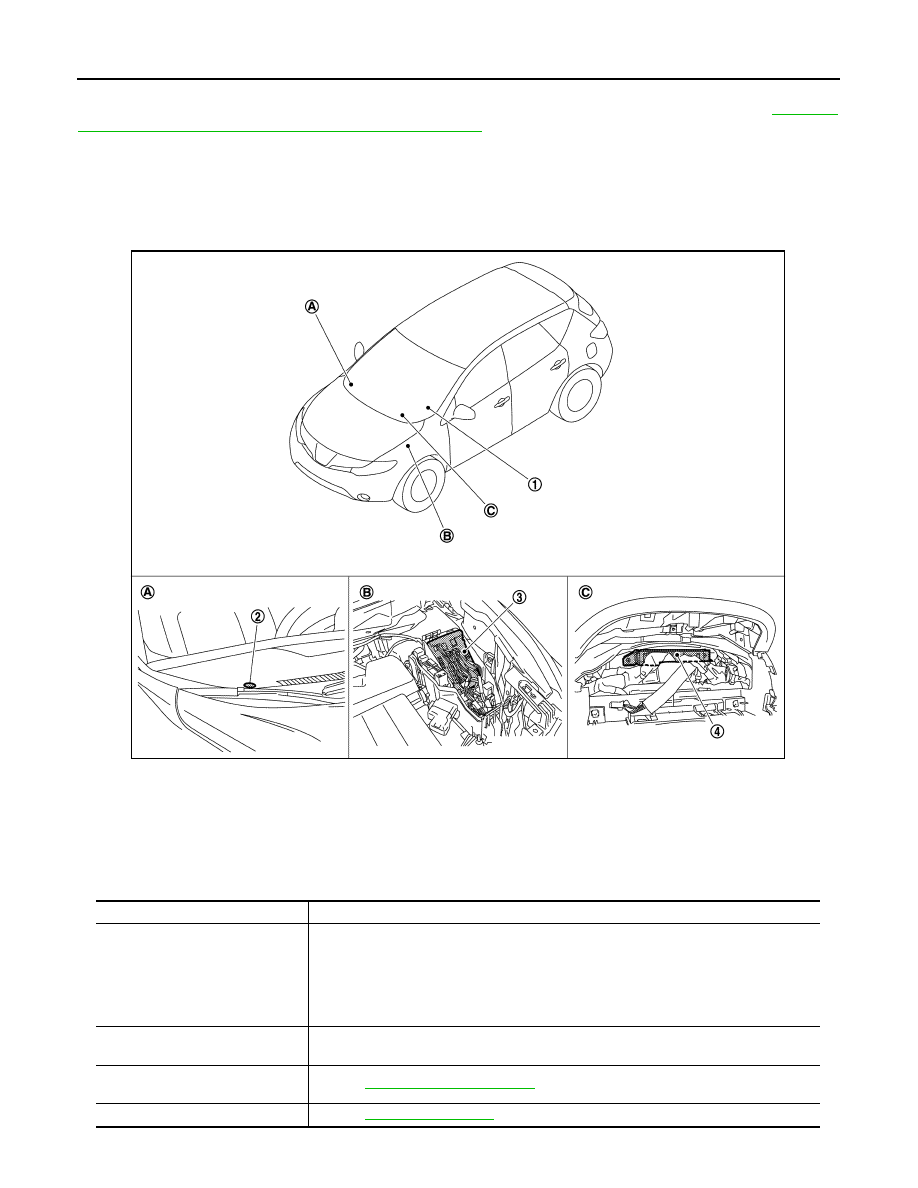

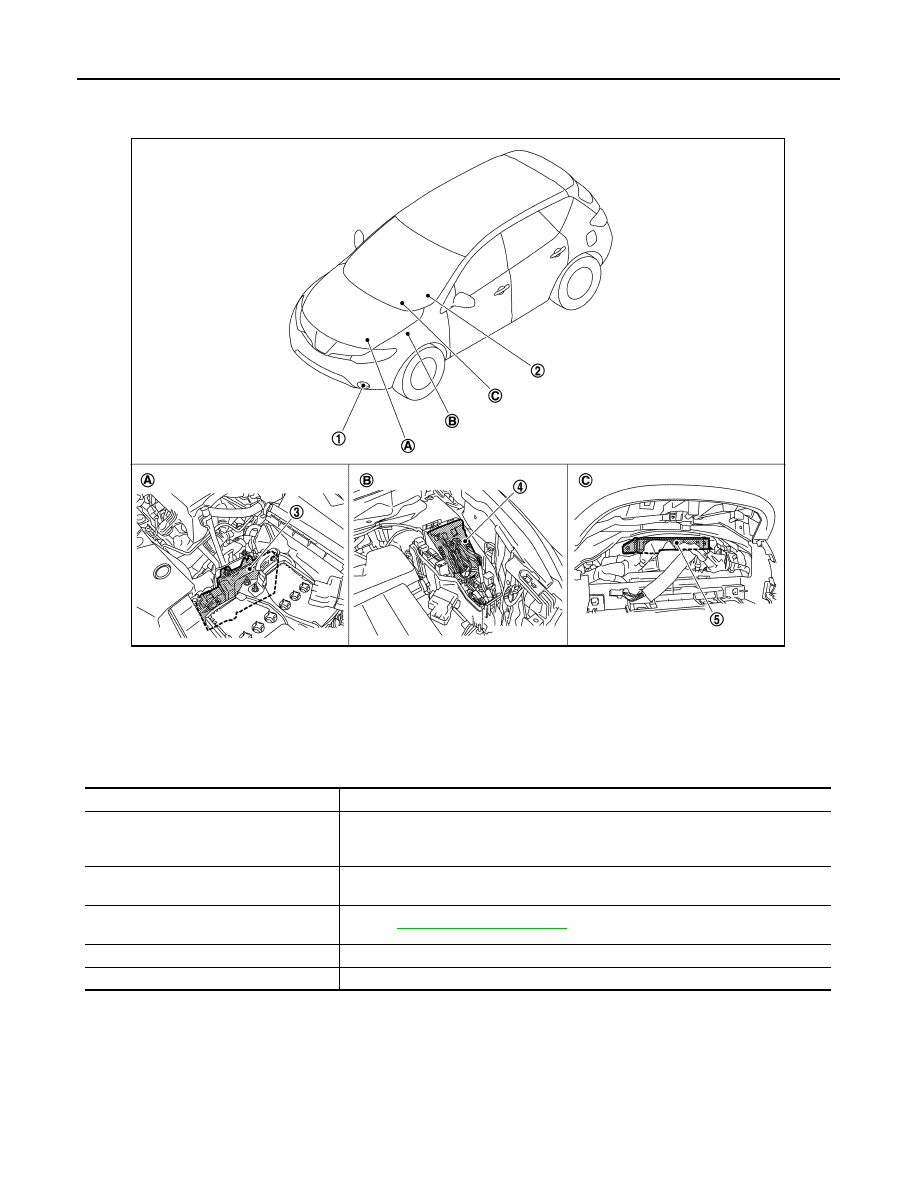

EXL-200 < SYSTEM DESCRIPTION > [HALOGEN TYPE] DAYTIME RUNNING LIGHT SYSTEM Component Parts Location INFOID:0000000009722995 Component Description INFOID:0000000009722996 1. Daytime running light (Front fog lamp) 2. Combination switch 3. ECM 4. IPDM E/R 5. BCM A. Engine room (LH) B. Engine room (LH) C. Behind the combination meter JPLIA0841ZZ Part Description BCM • Detects each switch condition with the combination switch reading function. IPDM E/R Controls the integrated relay and supplies voltage to the load according to the request Combination switch ECM Transmits the engine condition signal to BCM with CAN communication. Combination meter Transmits the parking brake switch signal to BCM with CAN communication. |
