LIGHTING & TURN SIGNAL SWITCH

LIGHTING & TURN SIGNAL SWITCH

Exploded View

INFOID:0000000009722970

Removal and Installation

INFOID:0000000009722971

Lighting & turn signal switch is integrated in the combination switch. Refer to

BCS-99, "Exploded View"

.

HAZARD SWITCH

EXL-185

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HAZARD SWITCH

Exploded View

INFOID:0000000009722972

Removal and Installation

INFOID:0000000009722973

REMOVAL

1.

Remove the instrument stay cover (RH). Refer to

IP-14, "Exploded View"

.

2.

Remove the screws. And then remove the switch bracket from the instrument stay cover.

3.

Remove the hazard switch.

INSTALLATION

Install in the reverse order of removal.

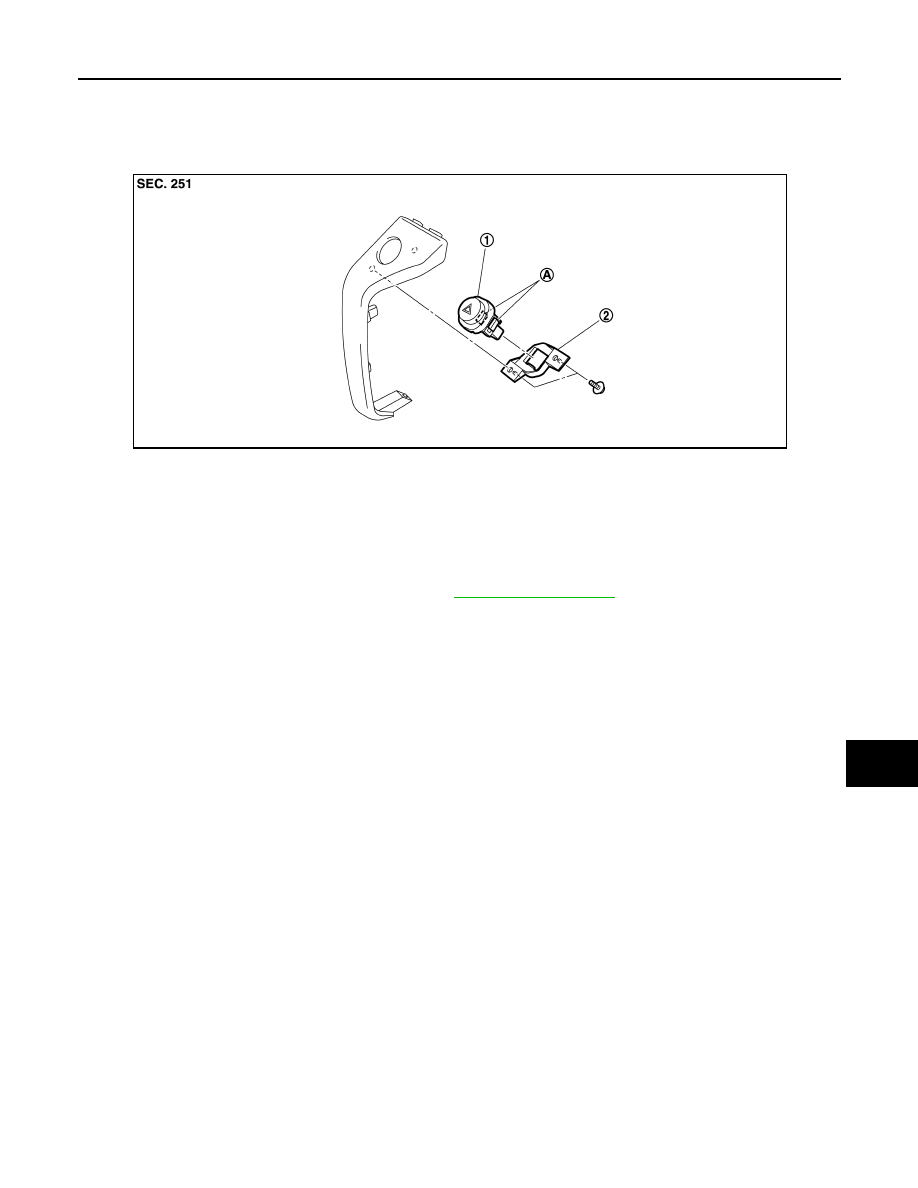

1.

Hazard switch

2.

Switch bracket

A.

Pawls

JPLIA0819ZZ

EXL-186

< REMOVAL AND INSTALLATION >

[XENON TYPE]

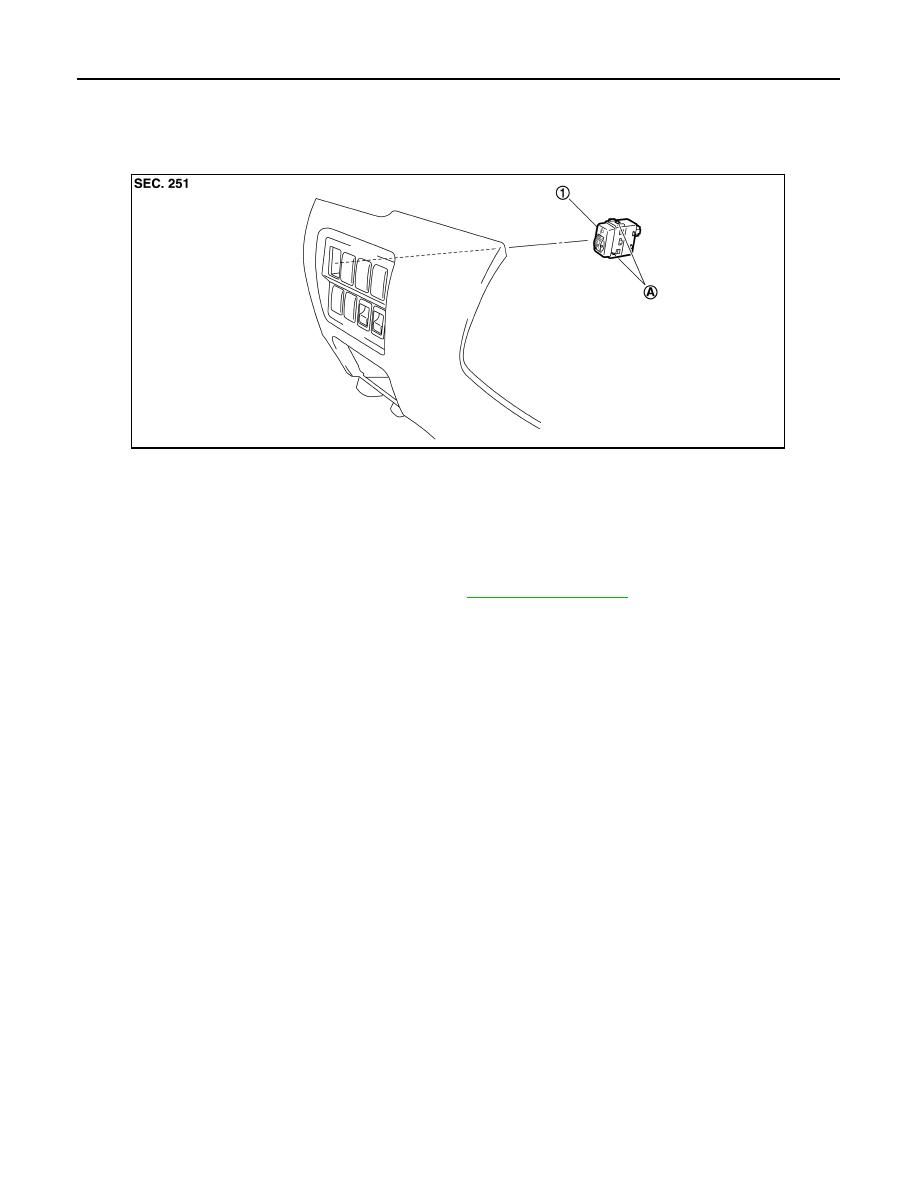

HEADLAMP AIMING SWITCH

HEADLAMP AIMING SWITCH

Exploded View

INFOID:0000000009722974

Removal and Installation

INFOID:0000000009722975

REMOVAL

1.

Remove the instrument driver lower panel. Refer to

IP-14, "Exploded View"

.

2.

Disengage the pawls. And remove the headlamp aiming switch.

INSTALLATION

Install in the reverse order of removal.

1.

Headlamp aiming switch

A.

Pawls

JPLIA0820ZZ

REAR COMBINATION LAMP

EXL-187

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REAR COMBINATION LAMP

Exploded View

INFOID:0000000009722976

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000009722977

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the rear combination lamp finisher.

2.

Remove the rear combination lamp mounting bolts.

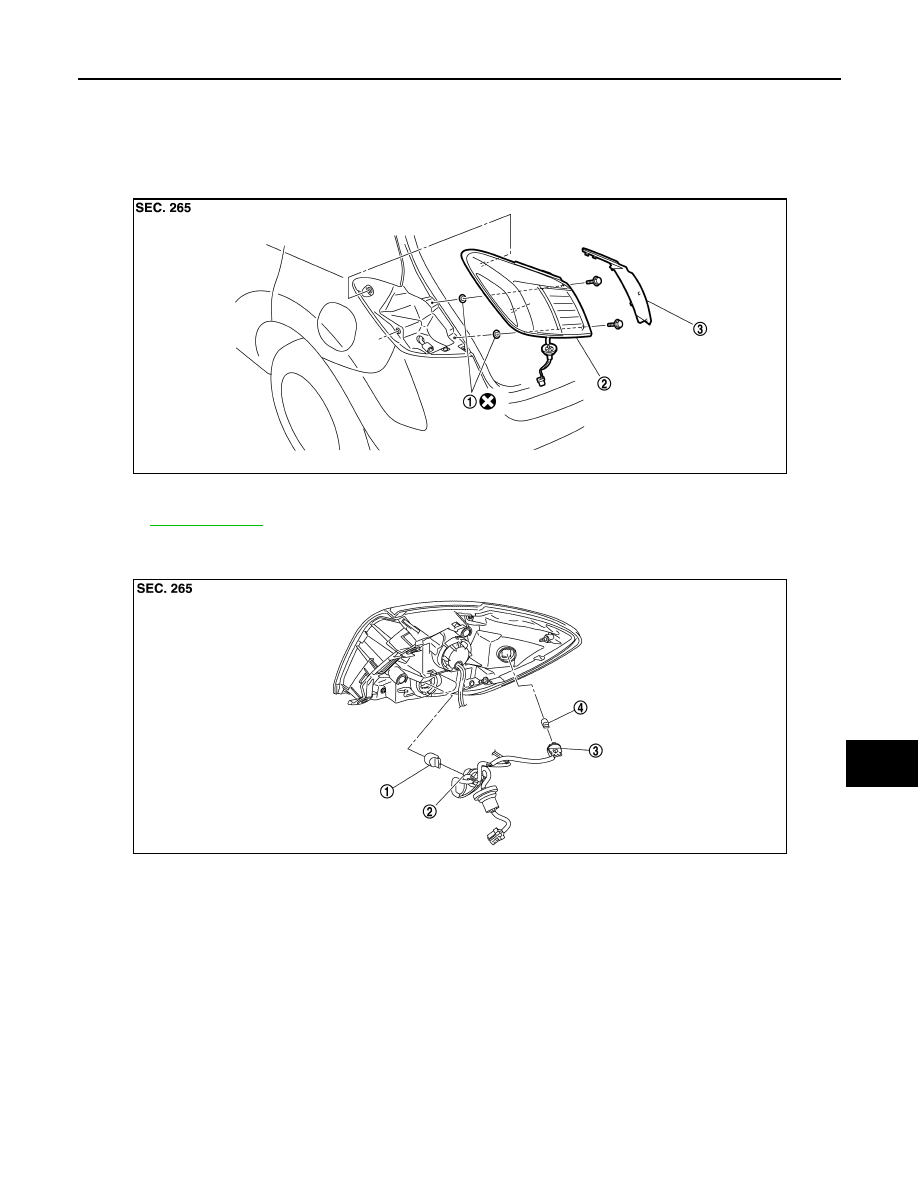

1.

Seal packing

2.

Rear combination lamp

3.

Rear combination lamp finisher

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA0821ZZ

1.

Rear turn signal lamp bulb

2.

Rear turn signal lamp bulb socket

3.

Rear side marker lamp bulb socket

4.

Rear side marker lamp bulb

JMLIA1741ZZ
