EXL-156

< ECU DIAGNOSIS INFORMATION >

[XENON TYPE]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

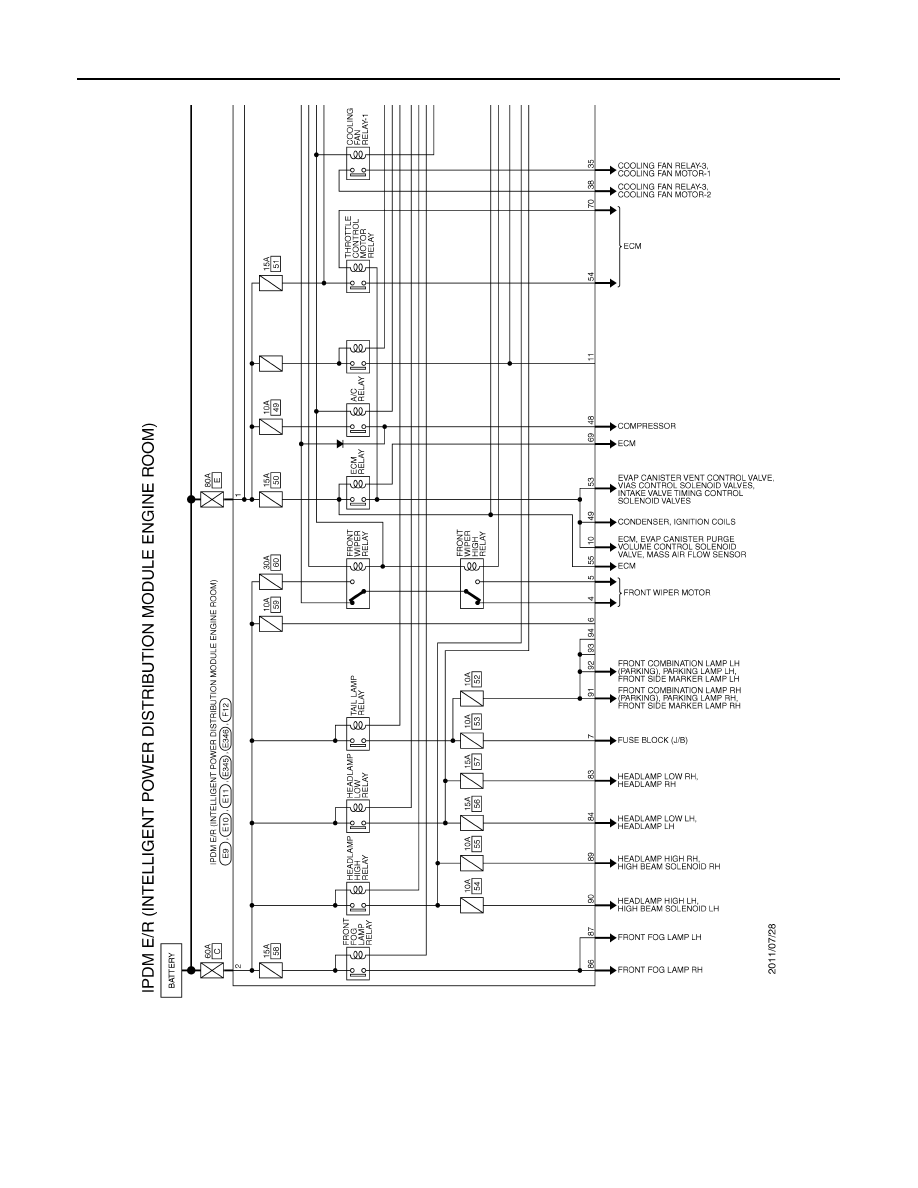

Wiring Diagram - IPDM E/R -

INFOID:0000000010124932

JRMWC5029GB

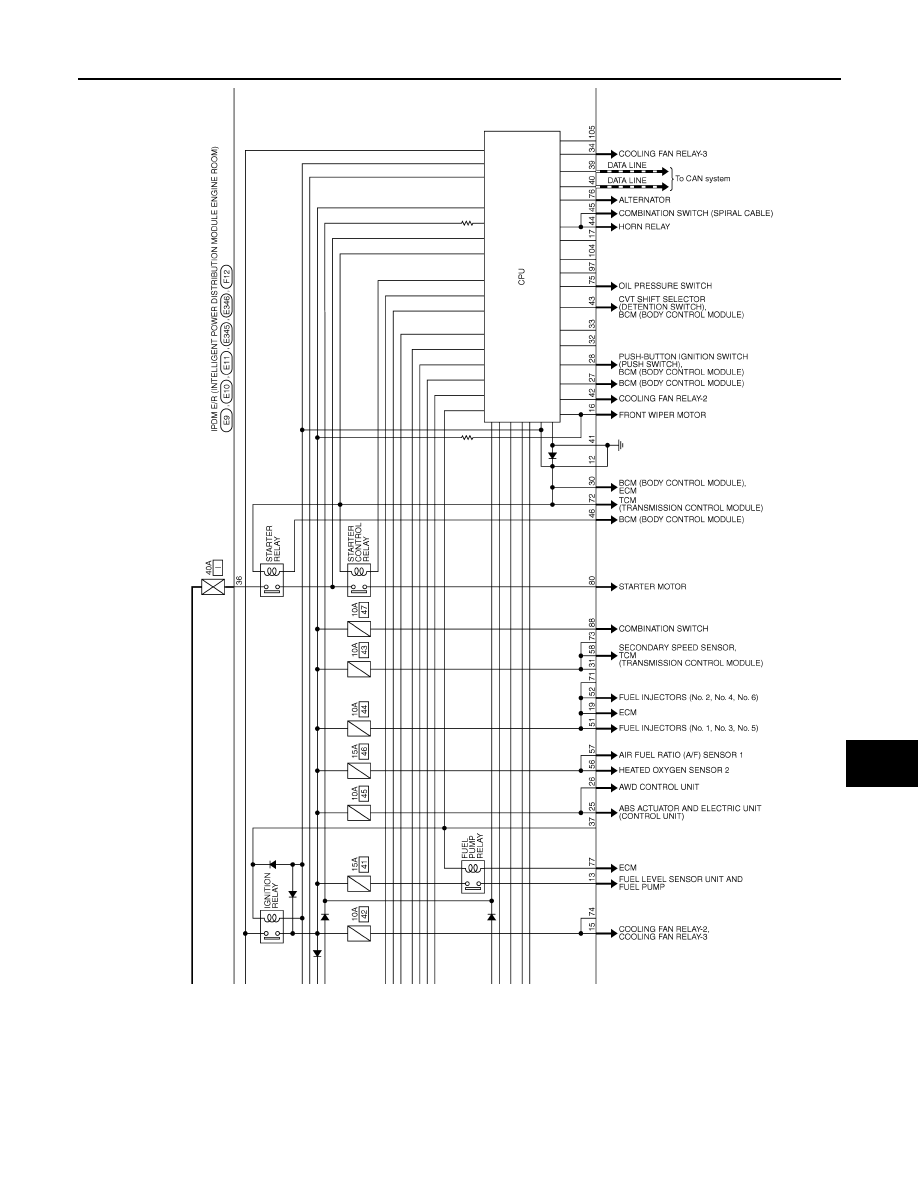

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

EXL-157

< ECU DIAGNOSIS INFORMATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

JRMWC5030GB

EXL-158

< ECU DIAGNOSIS INFORMATION >

[XENON TYPE]

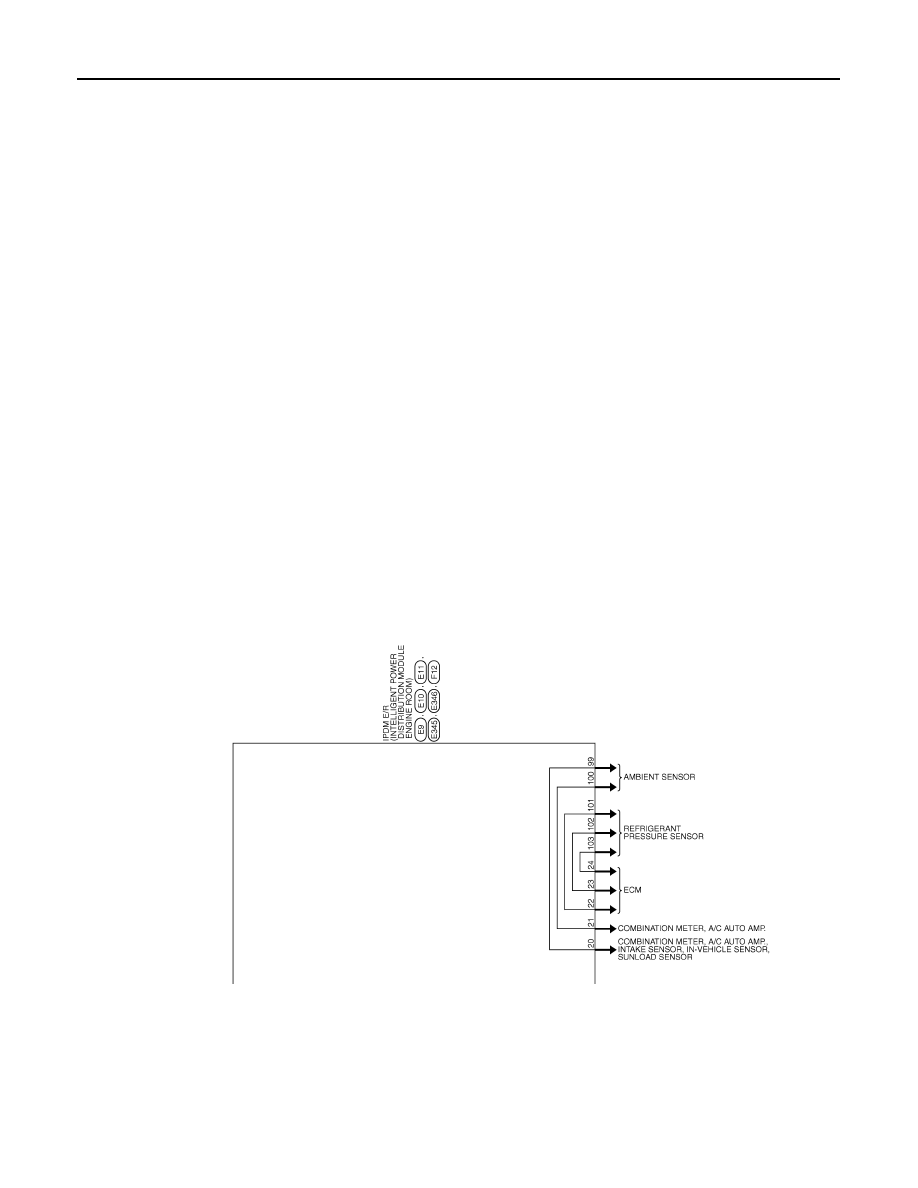

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

JRMWC5031GB

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

EXL-159

< ECU DIAGNOSIS INFORMATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Fail-safe

INFOID:0000000010124933

CAN COMMUNICATION CONTROL

When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN
communication recovers normally, it also returns to normal control.

If No CAN Communication Is Available With ECM

JRMWE5847GB
