Nissan Murano. Manual - part 628





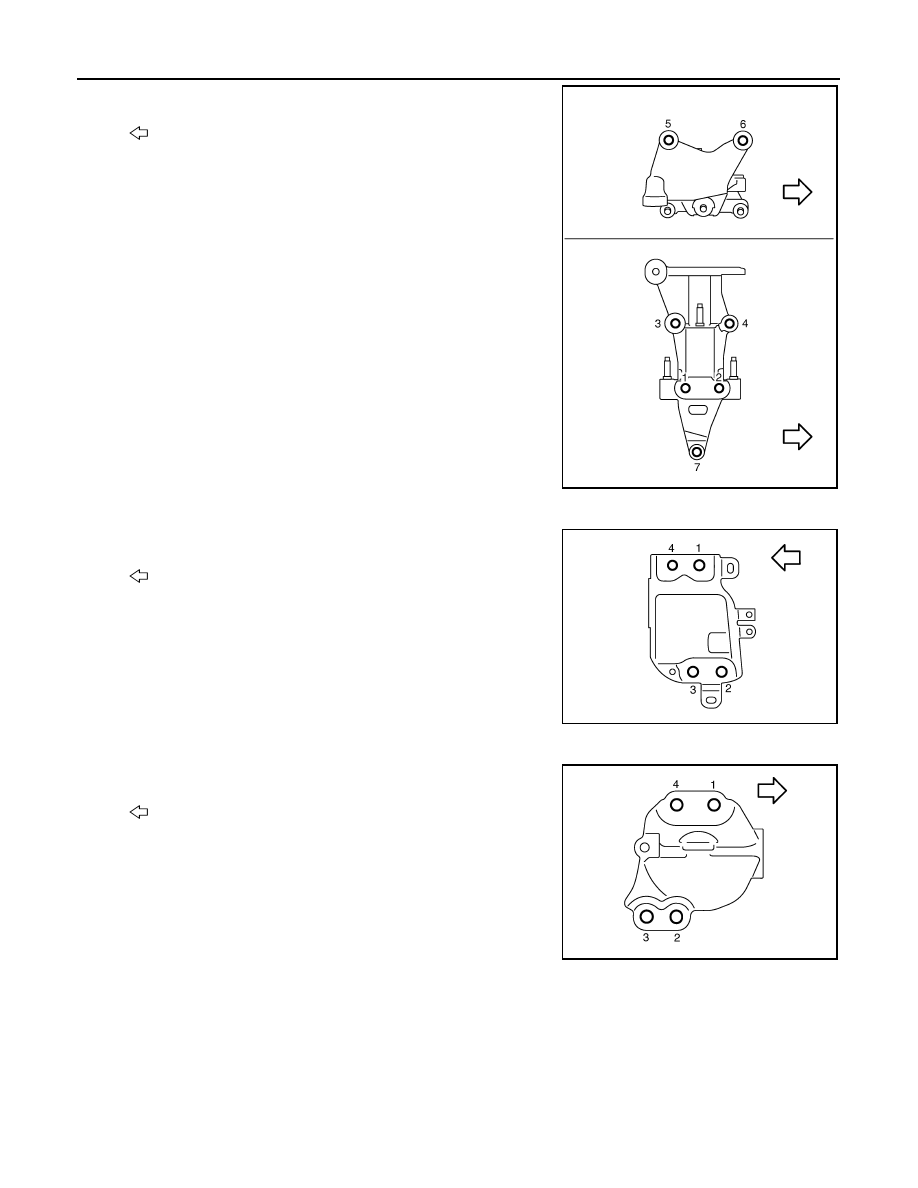

EM-86

< UNIT REMOVAL AND INSTALLATION >

ENGINE ASSEMBLY

a.

Tighten the bolt No. 7 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

2.

Install the engine mounting bracket (front) to the engine as follows:

a.

Tighten the bolt No. 4 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

3.

Install the engine mounting bracket (rear) to the engine as follows:

a.

Tighten the bolt No. 4 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

4.

Install the rear torque rod bracket to the engine as follows:

: Vehicle front

JPBIA1730ZZ

: Engine front

JPBIA1744ZZ

: Engine front

JPBIA1745ZZ

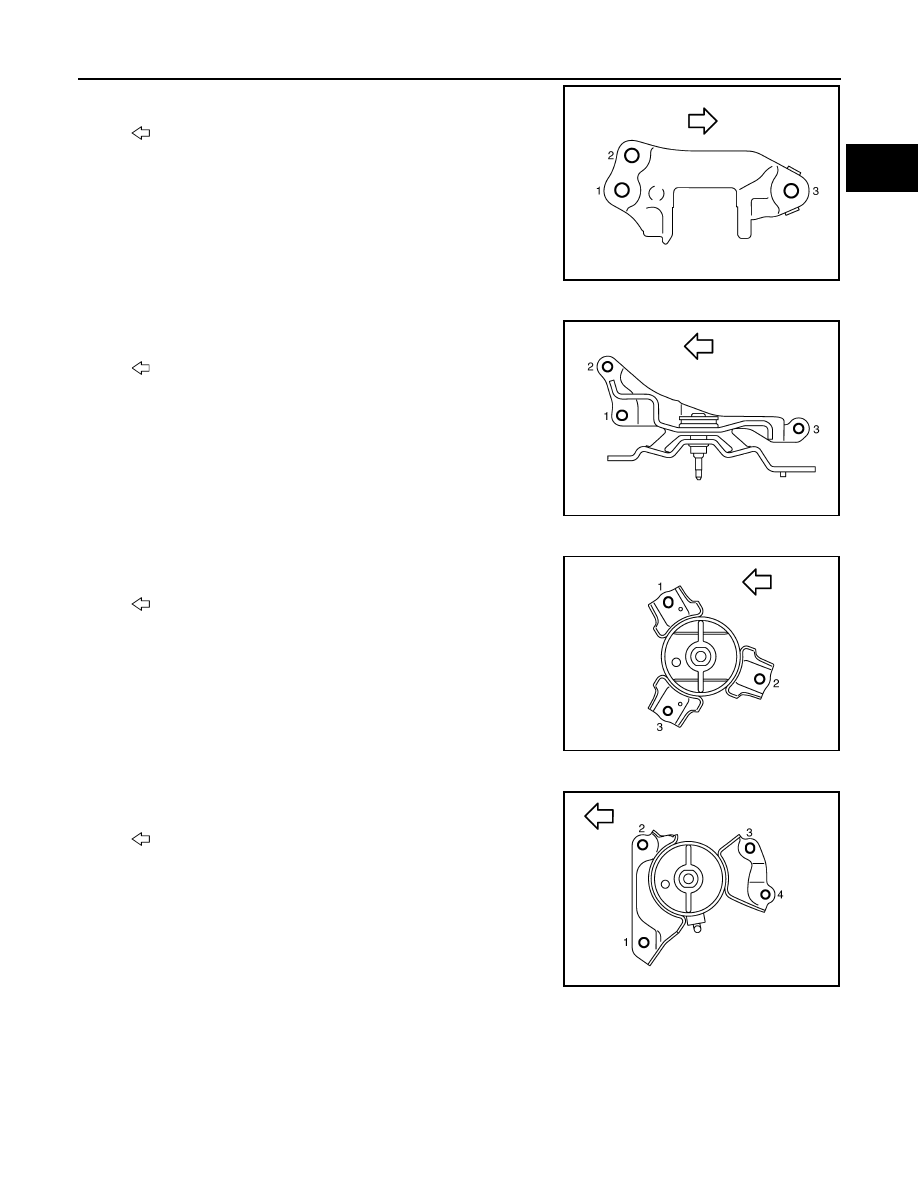

ENGINE ASSEMBLY

EM-87

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

a.

Tighten the bolt No. 3 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

5.

Install the engine mounting insulator (LH) to the transaxle as follows:

a.

Tighten the bolt No. 3 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

6.

Install the engine mounting insulator (front) to the front suspension member as follows:

a.

Tighten the bolt No. 3 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

7.

Install the engine mounting insulator (rear) to the front suspension member as follows:

a.

Tighten the bolt No. 4 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

8.

Install the rear torque rod to the front suspension member as follows:

: Engine front

JPBIA1733ZZ

: Vehicle front

JPBIA1734ZZ

: Vehicle front

JPBIA1735ZZ

: Vehicle front

JPBIA1746ZZ

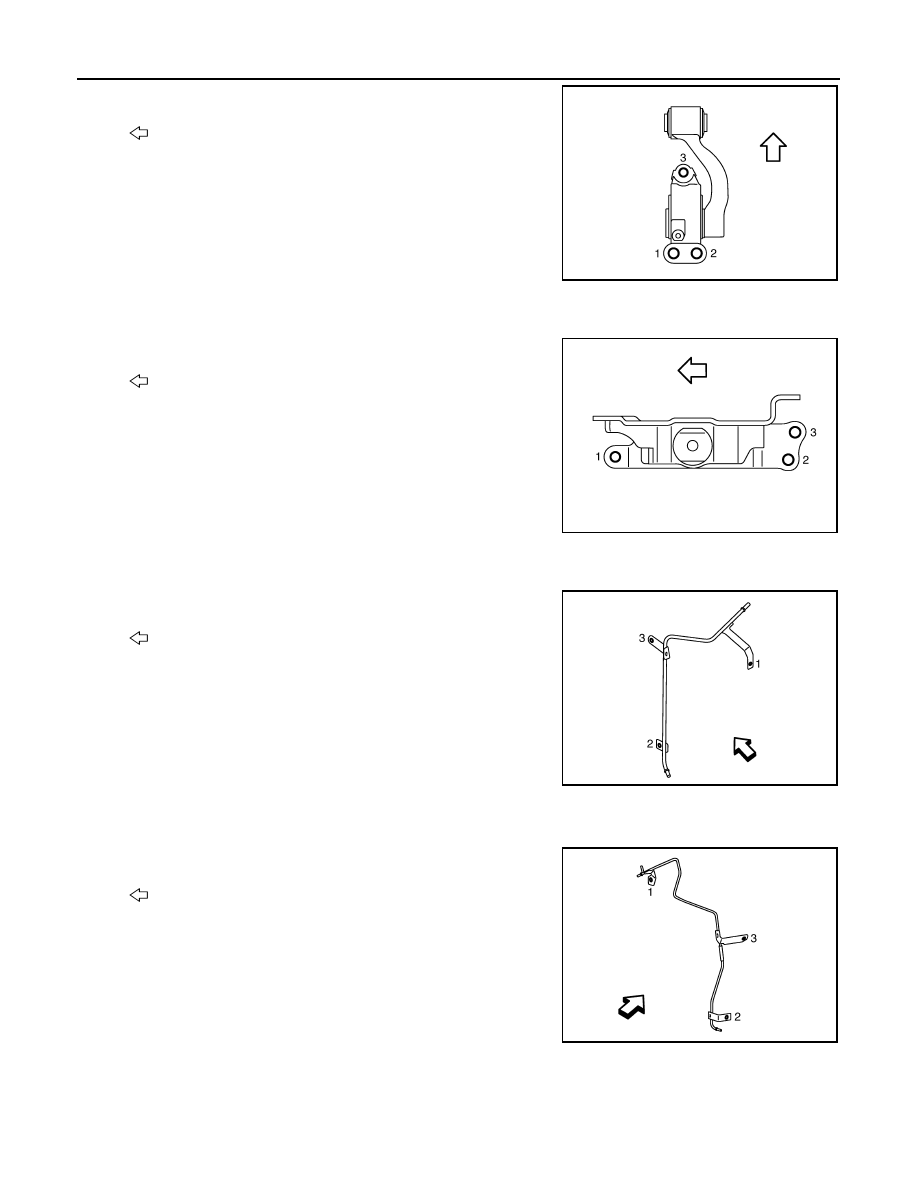

EM-88

< UNIT REMOVAL AND INSTALLATION >

ENGINE ASSEMBLY

a.

Tighten the bolt No. 3 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

9.

Install the engine mounting brackets (front and rear) to the engine mounting insulators (front and rear).

10. Install the engine mounting insulator (LH) to the front suspension member.

• Tighten the bolts in numerical order as shown in the figure.

11. Install the rear torque rod to the rear torque rod bracket.

12. Install the vacuum tube (front) as follows:

a.

Tighten the bolt No. 3 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

With vacuum tube (rear) models

13. Install the vacuum tube (rear) as follows:

a.

Tighten the bolt No. 3 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

Installation

1.

Install the engine mounting insulator (RH) as follows:

: Vehicle front

JPBIA1738ZZ

: Vehicle front

JPBIA1739ZZ

: Engine front

JPBIA1740ZZ

: Engine front

JPBIA1747ZZ

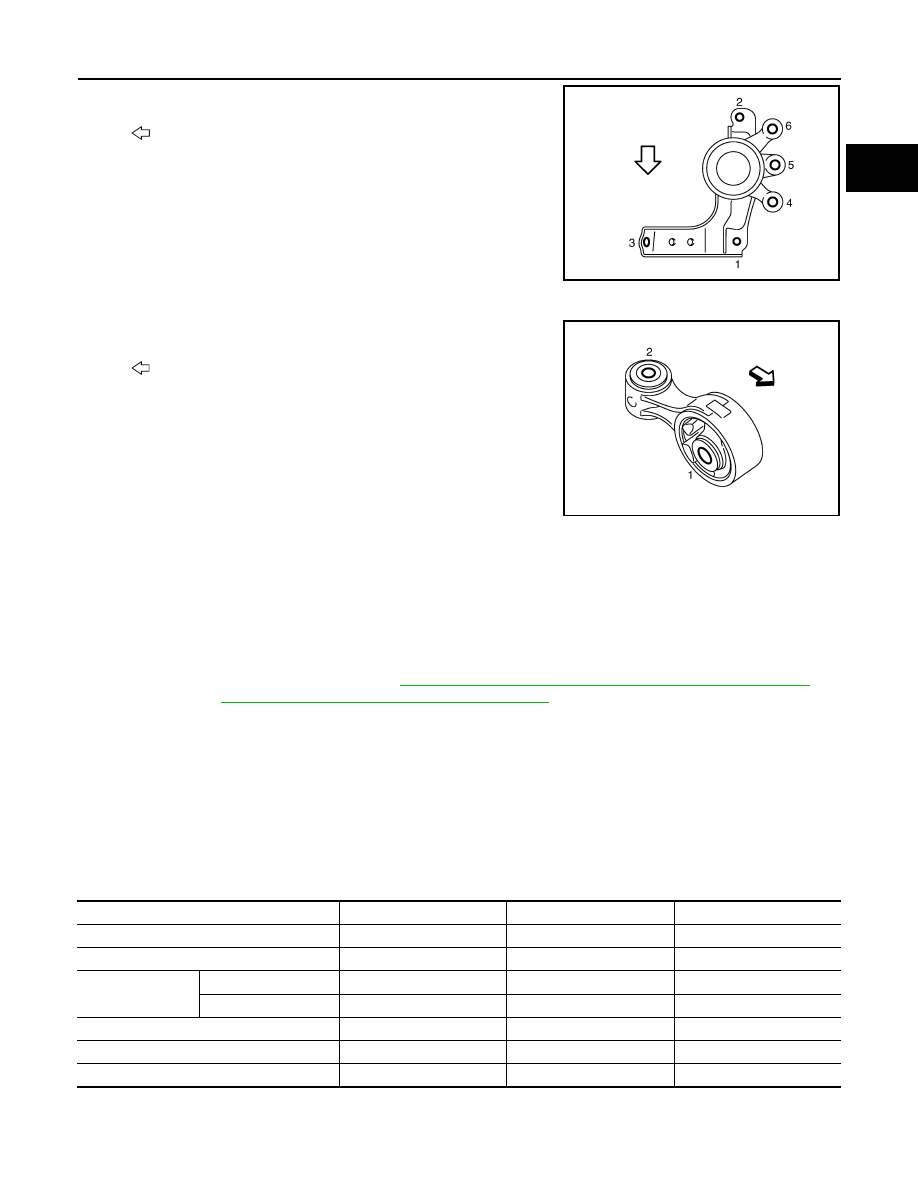

ENGINE ASSEMBLY

EM-89

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

a.

Tighten the bolt No. 1 as shown in the figure. (temporarily)

b.

Tighten the bolts No. 2, 3 in numerical order as shown in the fig-
ure. (specified torque)

c.

Tighten the bolt No. 1 as shown in the figure. (specified torque)

d.

Tighten the bolts No. 4, 5, 6 in numerical order as shown in the
figure. (specified torque)

2.

Install the upper torque rod as follows:

a.

Tighten the bolt No. 2 as shown in the figure. (temporarily)

b.

Tighten the bolts in numerical order as shown in the figure.
(specified torque)

AWD : Inspection

INFOID:0000000009717990

INSPECTION AFTER INSTALLATION

Inspection for Leakage

The following are procedures for checking fluids leakage, lubricates leakage, and exhaust gases leakage.

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-15, "FOR NORTH AMERICA : Fluids and Lubricants"

 (for

North America) or

MA-16, "FOR MEXICO : Fluids and Lubricants"

 (for Mexico).

• Use procedure below to check for fuel leakage.
- Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

- Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.
• Warm up engine thoroughly to check there is no leakage of fuel, exhaust gases, or any oil/fluids including

engine oil and engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the

specified level, if necessary.

Summary of the inspection items:

*: Power steering fluid, brake fluid, etc.

: Vehicle front

JPBIA1742ZZ

: Vehicle front

JPBIA1743ZZ

Items

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Transmission /
transaxle fluid

AT & CVT Models

Leakage

Level / Leakage

Leakage

MT Models

Level / Leakage

Leakage

Level / Leakage

Other oils and fluids*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

Exhaust gases

Leakage
