Nissan Murano. Manual - part 606





EC-534

< PERIODIC MAINTENANCE >

[VQ35DE]

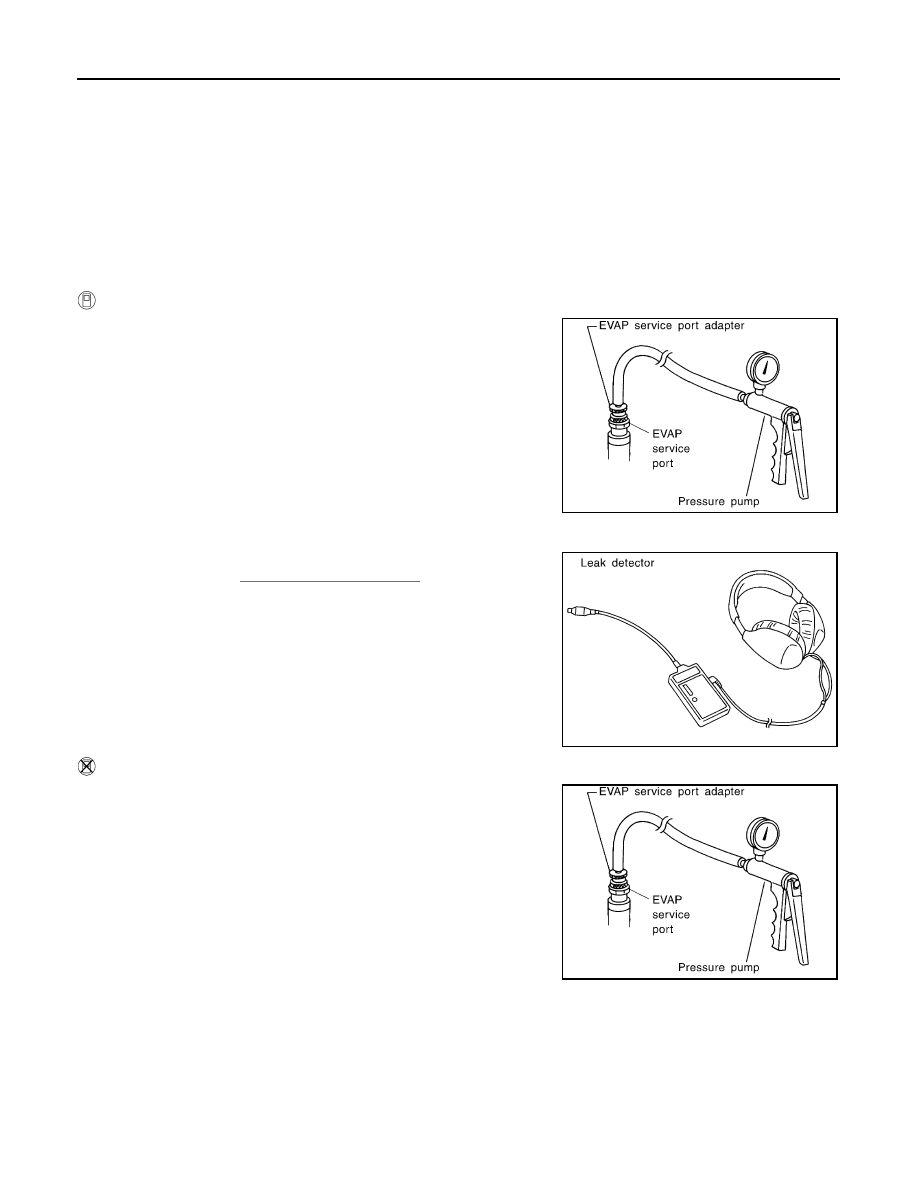

EVAP LEAK CHECK

EVAP LEAK CHECK

Inspection

INFOID:0000000009720257

CAUTION:

• Never use compressed air or a high pressure pump.
• Never exceed 4.12 kPa (0.042 kg/cm

2

, 0.6 psi) of pressure in EVAP system.

NOTE:
• Do not start engine.
• Improper installation of EVAP service port adapter (commercial service tool) to the EVAP service port may

cause a leakage.

 WITH CONSULT

1.

To locate the EVAP leakage, install EVAP service port adapter
(commercial service tool) and pressure pump to EVAP service
port.

2.

Turn ignition switch ON.

3.

Select the “EVAP SYSTEM CLOSE” of “WORK SUPPORT
MODE” with CONSULT.

4.

Touch “START”. A bar graph (Pressure indicating display) will
appear on the screen.

5.

Apply positive pressure to the EVAP system until the pressure
indicator reaches the middle of the bar graph.

6.

Remove EVAP service port adapter (commercial service tool)
and hose with pressure pump.

7.

Locate the leakage using a leakage detector (commercial ser-
vice tool). Refer to

EC-91, "System Diagram"

.

 WITHOUT CONSULT

1.

To locate the EVAP leakage, install EVAP service port adapter
(commercial service tool) and pressure pump to EVAP service
port.

2.

Apply battery voltage between the terminals of EVAP canister
vent control valve to make a closed EVAP system.

3.

To locate the leakage, deliver positive pressure to the EVAP sys-
tem until pressure gauge points reach 1.38 to 2.76 kPa (0.014 to
0.028 kg/cm

2

, 0.2 to 0.4 psi).

4.

Remove EVAP service port adapter (commercial service tool)
and hose with pressure pump.

SEF462UA

SEF200U

SEF462UA

EVAP LEAK CHECK

EC-535

< PERIODIC MAINTENANCE >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

5.

Locate the leakage using a leak detector (commercial service
tool). Refer to

EC-91, "System Diagram"

.

SEF200U

EC-536

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VQ35DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Idle Speed

INFOID:0000000009720258

*: Under the following conditions

• A/C switch: OFF

• Electric load: OFF (Lights, heater fan & rear window defogger)

• Steering wheel: Kept in straight-ahead position

Ignition Timing

INFOID:0000000009720259

*: Under the following conditions

• A/C switch: OFF

• Electric load: OFF (Lights, heater fan & rear window defogger)

• Steering wheel: Kept in straight-ahead position

Calculated Load Value

INFOID:0000000009720260

Mass Air Flow Sensor

INFOID:0000000009720261

*: Engine is warmed up to normal operating temperature and running under no load.

Condition

Specification

No load* (in P or N position)

600

±

 50 rpm

Condition

Specification

No load* (in P or N position)

12

±

 5

°

 BTDC

Condition

Specification (Using CONSULT or GST)

At idle

10 – 35 %

At 2,500 rpm

10 – 35 %

Supply voltage

Battery voltage (11 – 14 V)

Output voltage at idle (in N position)

0.9 – 1.2 V*

Mass air flow (Using CONSULT or GST)

2.0 – 6.0 g/s at idle*

7.0 – 20.0 g/s at 2,500 rpm*

EM-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

EM

A

EM

N

O

P

CONTENTS

ENGINE MECHANICAL

SYMPTOM DIAGNOSIS  ...............................

3

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

3

NVH Troubleshooting - Engine Noise  .......................

3

Use the Chart Below to Help You Find the Cause
of the Symptom  .......................................................
..

4

PRECAUTION ...............................................

5

PRECAUTIONS ...................................................

5

FOR USA AND CANADA ............................................

5

FOR USA AND CANADA : Precaution for Proce-
dure without Cowl Top Cover ..................................
..

5

FOR USA AND CANADA : Precautions for Re-
moving of Battery Terminal  .....................................
..

5

FOR USA AND CANADA : Precaution for Supple-
mental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER" ............................
..

5

FOR USA AND CANADA : Precautions Neces-
sary for Steering Wheel Rotation After Battery Dis-
connection ...............................................................
..

6

FOR USA AND CANADA : Precautions For En-
gine Service  ............................................................
..

6

FOR USA AND CANADA : Precaution for Angle
Tightening ...............................................................
..

7

FOR USA AND CANADA : Precaution for Liquid
Gasket .....................................................................
..

7

FOR MEXICO  ..............................................................

8

FOR MEXICO : Precaution for Procedure without
Cowl Top Cover  ......................................................
..

8

FOR MEXICO : Precautions for Removing of Bat-
tery Terminal  ...........................................................
..

9

FOR MEXICO : Precaution for Supplemental Re-
straint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" .................................................
..

9

FOR MEXICO : Precautions Necessary for Steer-
ing Wheel Rotation After Battery Disconnection  .....
..

9

FOR MEXICO : Precautions For Engine Service ....

10

FOR MEXICO : Precaution for Angle Tightening ....

11

FOR MEXICO : Precaution for Liquid Gasket  .........

11

PREPARATION ...........................................

13

PREPARATION .................................................

13

Special Service Tool ................................................

13

Commercial Service Tool  ........................................

14

PERIODIC MAINTENANCE  ........................

17

DRIVE BELT  .....................................................

17

Exploded View .........................................................

17

Checking ..................................................................

17

Tension Adjustment ................................................

17

Removal and Installation  .........................................

17

AIR CLEANER FILTER .....................................

19

Removal and Installation  .........................................

19

Inspection (Viscous Paper Type) .............................

19

SPARK PLUG  ...................................................

20

Exploded View .........................................................

20

Removal and Installation  .........................................

20

Inspection ................................................................

21

CAMSHAFT VALVE CLEARANCE  ..................

22

Inspection and Adjustment  ......................................

22

COMPRESSION PRESSURE  ...........................

27

Inspection ................................................................

27

REMOVAL AND INSTALLATION  ...............

29

ENGINE COVER  ...............................................

29

Exploded View .........................................................

29

Removal and Installation  .........................................

29

DRIVE BELT AUTO TENSIONER AND IDLER
PULLEY .............................................................

30

Exploded View .........................................................

30

Removal and Installation  .........................................

30
