Nissan Murano. Manual - part 579





EC-426

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

P2135 TP SENSOR

P2135 TP SENSOR

Description

INFOID:0000000009720182

Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.

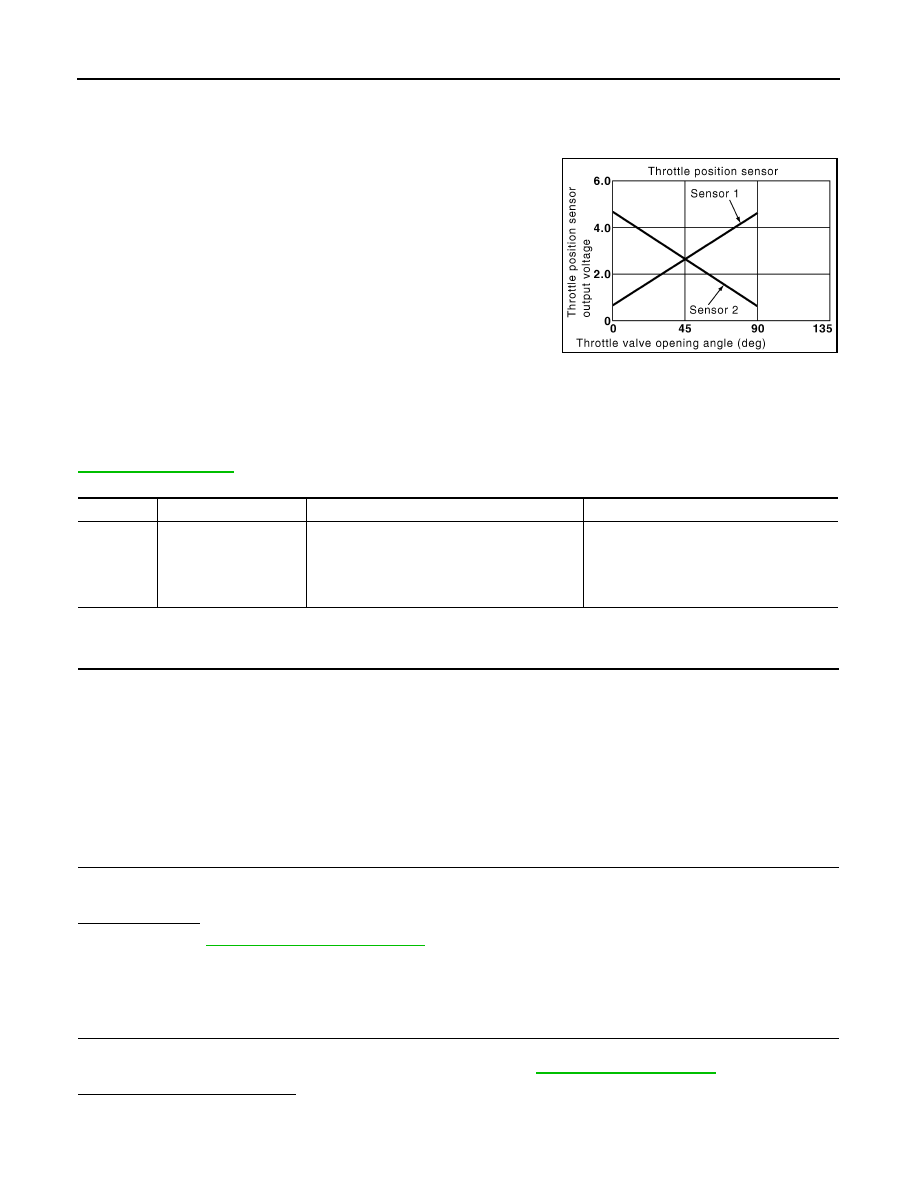

The throttle position sensor has two sensors. These sensors are a
kind of potentiometers which transform the throttle valve position into
output voltage, and emit the voltage signals to the ECM. In addition,
these sensors detect the opening and closing speed of the throttle
valve and feed the voltage signals to the ECM. The ECM judges the
current opening angle of the throttle valve from these signals and the
ECM controls the throttle control motor to make the throttle valve
opening angle properly in response to driving condition.

DTC Logic

INFOID:0000000009720183

DTC DETECTION LOGIC

NOTE:
If DTC P2135 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643. Refer to

EC-352, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8 V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start engine and let it idle for 1 second.

2.

Check DTC.

Is DTC detected?

YES

>> Go to

EC-426, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009720184

1.

CHECK GROUND CONNECTION

1.

Turn ignition switch OFF.

2.

Check ground connection E38. Refer to Ground Inspection in

GI-47, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

PBIB0145E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2135

Throttle position sensor
circuit range/perfor-
mance

Rationally incorrect voltage is sent to ECM
compared with the signals from TP sensor 1
and TP sensor 2.

• Harness or connector

(TP sensor 1 or 2 circuit is open or short-
ed.)

• Electric throttle control actuator

(TP sensor 1 or 2)

P2135 TP SENSOR

EC-427

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2.

CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT-I

1.

Disconnect electric throttle control actuator harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between electric throttle control actuator harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

3.

CHECK THROTTLE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between electric throttle control actuator harness connector and ECM harness con-
nector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

4.

CHECK THROTTLE POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check the continuity between electric throttle control actuator harness connector and ECM harness con-
nector.

2.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

5.

CHECK THROTTLE POSITION SENSOR

Refer to

EC-428, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace electric throttle control actuator. Refer to

EM-33, "Exploded View"

.

2.

Refer to

EC-428, "Special Repair Requirement"

>> INSPECTION END

7.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

Electric throttle control actuator

Ground

Voltage (V)

Connector

Terminal

F29

1

Ground

Approx. 5

Electric throttle control actuator

ECM

Continuity

Connector

Terminal

Connector

Terminal

F29

4

F8

36

Existed

Electric throttle control actuator

ECM

Continuity

Connector

Terminal

Connector

Terminal

F29

2

F8

37

Existed

3

38

EC-428

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

P2135 TP SENSOR

>> INSPECTION END

Component Inspection

INFOID:0000000009720185

1.

CHECK THROTTLE POSITION SENSOR

1.

Turn ignition switch OFF.

2.

Reconnect all harness connectors disconnected.

3.

Perform

EC-428, "Special Repair Requirement"

.

4.

Turn ignition switch ON.

5.

Shift selector lever position to D.

6.

Check the voltage between ECM harness connector terminals under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace electric throttle control actuator. Refer to

EM-33, "Exploded View"

.

2.

Go to

EC-428, "Special Repair Requirement"

.

>> INSPECTION END

Special Repair Requirement

INFOID:0000000009720186

1.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Refer to

EC-19, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

>> GO TO 2.

2.

PERFORM IDLE AIR VOLUME LEARNING

Refer to

EC-20, "IDLE AIR VOLUME LEARNING : Special Repair Requirement"

>> END

ECM

Condition

Voltage

+

Connector

Terminal

Connector

Terminal

F8

37

(TP sensor 1 signal)

F8

36

(Sensor ground)

Accelerator pedal

Fully released

More than 0.36 V

Fully depressed

Less than 4.75 V

38

(TP sensor 2 signal)

Fully released

Less than 4.75 V

Fully depressed

More than 0.36 V

P2138 APP SENSOR

EC-429

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P2138 APP SENSOR

Description

INFOID:0000000009720187

The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometer which transform the accelerator pedal
position into output voltage, and emit the voltage signals to the ECM.
The ECM judges the current opening angle of the accelerator pedal
from these signals and controls the throttle control motor based on
these signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The
ECM uses this signal for engine operations such as fuel cut.

DTC Logic

INFOID:0000000009720188

DTC DETECTION LOGIC

NOTE:
If DTC P2138 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643. Refer to

EC-352, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8 V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start engine and let it idle for 1 second.

2.

Check DTC.

Is DTC detected?

YES

>> Go to

EC-430, "Diagnosis Procedure"

.

NO

>> INSPECTION END

PBIB1741E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2138

Accelerator pedal posi-
tion sensor circuit range/
performance

Rationally incorrect voltage is sent to ECM
compared with the signals from APP sensor 1
and APP sensor 2.

• Harness or connector

(APP sensor 1 or 2 circuit is open or
shorted.)
[CKP sensor (POS) circuit is shorted.]
(Refrigerant pressure sensor circuit is
shorted.)
(EVAP control system pressure sensor
circuit is shorted.)

• Accelerator pedal position sensor

(APP sensor 1 or 2)

• Crankshaft position sensor (POS)
• EVAP control system pressure sensor
• Refrigerant pressure sensor
