EC-294

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

3.

PERFORM DTC CONFIRMATION PROCEDURE B

With CONSULT

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Turn ignition switch ON.

4.

Turn ignition switch OFF and wait at least 10 seconds.

5.

Turn ignition switch ON.

6.

Select “PURG VOL CN/V P1444” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode with
CONSULT.

7.

Touch “START”.

8.

Start engine and let it idle until “TESTING” on CONSULT changes to “COMPLETED”. (It will take approxi-
mately 10 seconds.)
If “TESTING” is not displayed after 5 minutes, retry from step 2.

9.

Touch “SELF-DIAG RESULTS”.

Which is displayed on CONSULT screen?

YES

>> INSPECTION END

NO

>> Go to

EC-294, "Diagnosis Procedure"

.

4.

PERFORM DTC CONFIRMATION PROCEDURE A

With GST

1.

Turn ignition switch ON.

2.

Set voltmeter probes to ECM harness connector terminals.

3.

Start engine and wait at least 60 seconds.

4.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-294, "Diagnosis Procedure"

.

NO

>> GO TO 5.

5.

PERFORM DTC CONFIRMATION PROCEDURE B

With GST

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Turn ignition switch ON.

4.

Turn ignition switch OFF and wait at least 10 seconds.

5.

Start engine and let it idle for at least 20 seconds.

6.

Check 1st trip DTC.

Is 1st trip DTC displayed?

YES

>> Go to

EC-294, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009720022

1.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect EVAP canister purge volume control solenoid valve harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between EVAP canister purge volume control solenoid valve harness connector and
ground.

ECM

Voltage (V)

Connector

+

Terminal

Terminal

M107

95

(Fuel tank temperature sensor signal)

104

(Sensor ground)

3.1 - 4.0

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EC-295

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors F121, E7
• Harness for open or short between EVAP canister purge volume control solenoid valve and IPDM E/R
• Harness for open or short between EVAP canister purge volume control solenoid valve and ECM

>> Repair open circuit, short to ground or short to power in harness or connectors.

3.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT

FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between EVAP canister purge volume control solenoid valve harness connector and
ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

4.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR

1.

Disconnect EVAP control system pressure sensor harness connector.

2.

Check that water is not inside connectors.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace EVAP control system pressure sensor. Refer to

FL-16, "Exploded View"

.

5.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

Refer to

EC-312, "Component Inspection"

.

Is the inspection result normal?

YES-1 >> With CONSULT: GO TO 6.
YES-2 >> Without CONSULT: GO TO 7.
NO

>> Replace EVAP control system pressure sensor. Refer to

FL-16, "Exploded View"

.

6.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

With CONSULT

1.

Turn ignition switch OFF.

2.

Reconnect harness connectors disconnected.

3.

Start engine.

4.

Perform “PURG VOL C/V” in “ACTIVE TEST” mode with CONSULT. Check that engine speed varies
according to the valve opening.

Does engine speed vary according to the valve opening?

EVAP canister purge volume control

solenoid valve

Ground

Voltage

Connector

Terminal

F30

1

Ground

Battery voltage

EVAP canister purge volume con-

trol solenoid valve

ECM

Continuity

Connector

Terminal

Connector

Terminal

F30

2

F7

25

Existed

EC-296

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

YES

>> GO TO 8.

NO

>> GO TO 7.

7.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Refer to

EC-297, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace EVAP canister purge volume control solenoid valve. Refer to

FL-16, "Exploded View"

.

8.

CHECK RUBBER TUBE FOR CLOGGING

1.

Disconnect rubber tube connected to EVAP canister vent control valve.

2.

Check the rubber tube for clogging.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Clean the rubber tube using an air blower.

9.

CHECK EVAP CANISTER VENT CONTROL VALVE

Refer to

EC-303, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Replace EVAP canister vent control valve. Refer to

FL-16, "Exploded View"

.

10.

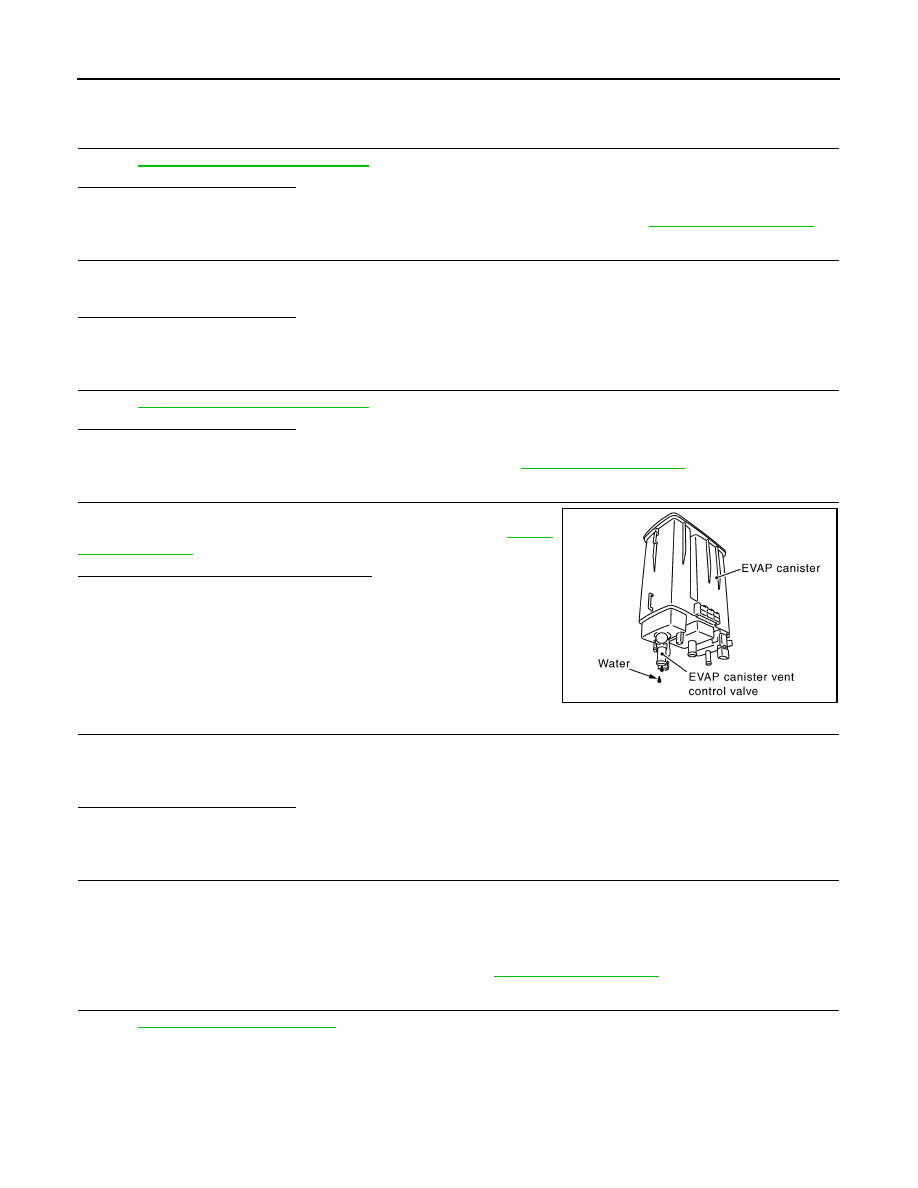

CHECK IF EVAP CANISTER IS SATURATED WITH WATER

Remove EVAP canister with EVAP canister vent control valve and
EVAP control system pressure sensor attached. Refer to

FL-16,

"Exploded View"

.

Does water drain from the EVAP canister?

YES

>> GO TO 11.

NO

>> GO TO 13.

11.

CHECK EVAP CANISTER

Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be less than 2.1 kg (4.6 lb).
Is the inspection result normal?

YES

>> GO TO 13.

NO

>> GO TO 12.

12.

DETECT MALFUNCTIONING PART

Check the following.
• EVAP canister for damage
• EVAP hose between EVAP canister and vehicle frame for clogging or poor connection

>> Repair hose or replace EVAP canister. Refer to

FL-16, "Exploded View"

.

13.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

JMBIA1134GB

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EC-297

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

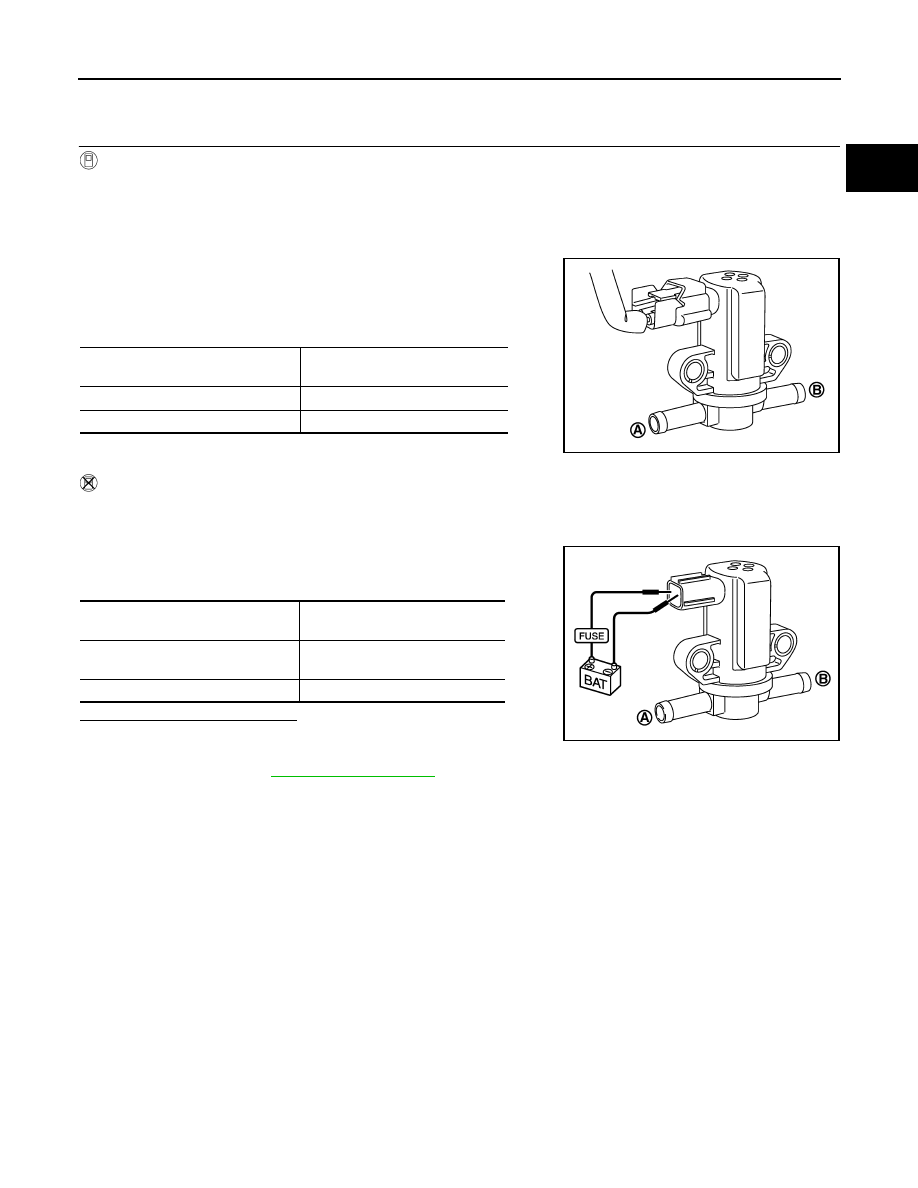

Component Inspection

INFOID:0000000009720023

1.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

With CONSULT

1.

Turn ignition switch OFF.

2.

Reconnect all harness connectors disconnected.

3.

Disconnect EVAP purge hoses connected to EVAP canister purge volume control solenoid valve.

4.

Turn ignition switch ON.

5.

Select “PURG VOL C/V” in “ACTIVE TEST” mode with CONSULT.

6.

Touch “Qd” and “Qu” on CONSULT screen to adjust “PURG
VOL C/V” opening and check air passage continuity of EVAP
canister purge volume control solenoid valve under the following
conditions.

Without CONSULT

1.

Turn ignition switch OFF.

2.

Disconnect EVAP canister purge volume control solenoid valve harness connector.

3.

Disconnect EVAP purge hoses connected to EVAP canister purge volume control solenoid valve.

4.

Check air passage continuity of EVAP canister purge volume
control solenoid valve under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace EVAP canister purge volume control solenoid

valve. Refer to

FL-16, "Exploded View"

.

Condition

(PURG VOL C/V value)

Air passage continuity

between (A) and (B)

100%

Existed

0%

Not existed

PBIB2058E

Condition

Air passage continuity

between (A) and (B)

12 V direct current supply between
terminals 1 and 2

Existed

No supply

Not existed

PBIB2059E
