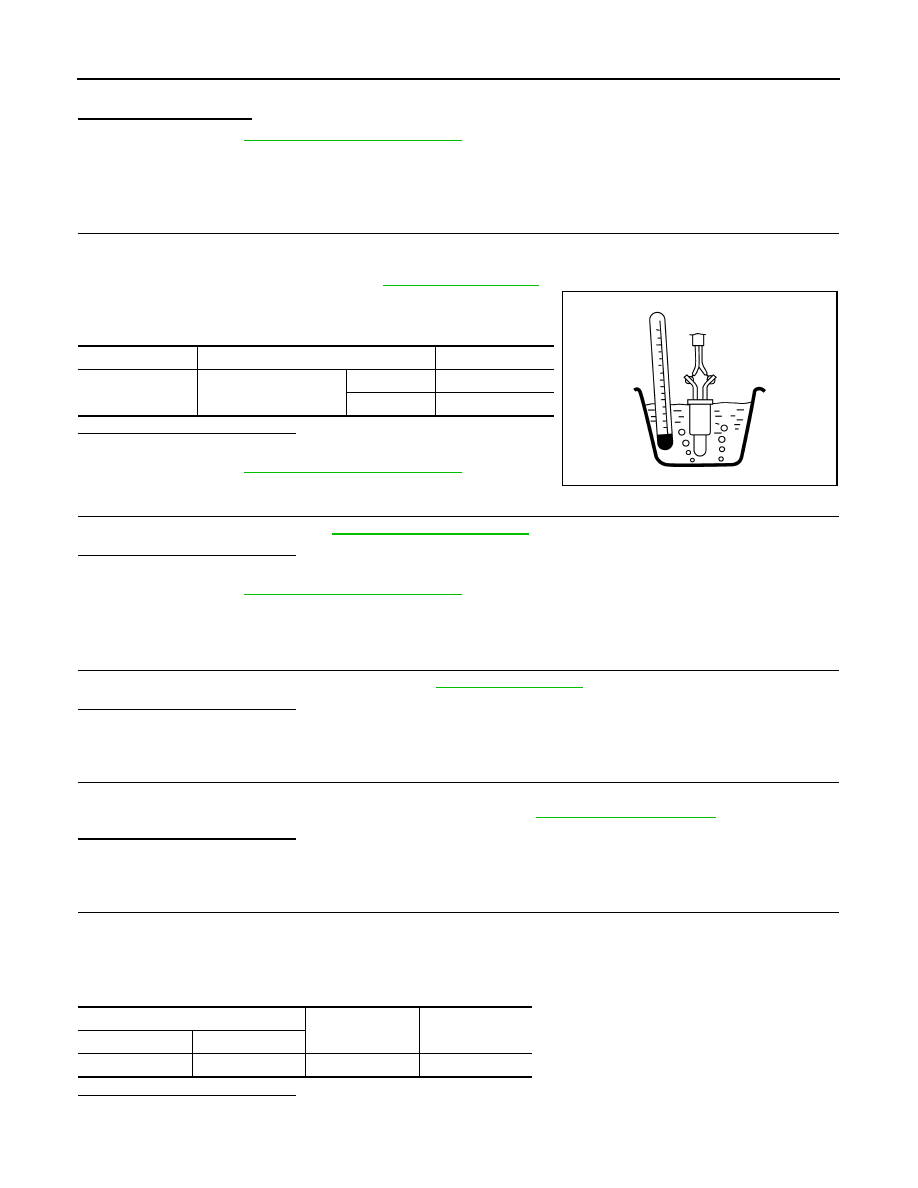

EC-250

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

P0181 FTT SENSOR

5.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Proceed to

EC-250, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Component Function Check

INFOID:0000000009719979

1.

CHECK FUEL TANK TEMPERATURE (FTT) SENSOR

1.

Turn ignition switch OFF.

2.

Disconnect fuel level sensor unit and fuel pump harness connector.

3.

Remove fuel level sensor unit. Refer to

FL-5, "Exploded View"

.

4.

Check resistance between fuel level sensor unit and fuel pump
terminals by heating with hot water as shown in the figure.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Proceed to

EC-250, "Diagnosis Procedure"

.

2.

CHECK INTERMITTENT INCIDENT

Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-250, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009719980

1.

INSPECTION START

Confirm the detected malfunction (A or B). Refer to

EC-248, "DTC Logic"

.

Which malfunction is detected?

A

>> GO  TO  2.

B

>> GO  TO  7.

2.

CHECK GROUND CONNECTION

1.

Turn ignition switch OFF.

2.

Check ground connection E38. Refer to Ground Inspection in

GI-47, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace ground connection.

3.

CHECK FUEL TANK TEMPERATURE SENSOR POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect “fuel level sensor unit and fuel pump” harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between “fuel level sensor unit and fuel pump” harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 4.

Terminals

Condition

Resistance (k

)

4 and 5

Temperature [

°

C (

°

F)]

20 (68)

2.3 – 2.7

50 (122)

0.79 – 0.90

JMBIA0167ZZ

Fuel level sensor unit and fuel pump

Ground

Voltage

Connector

Terminal

B40

4

Ground

Approx. 5 V

P0181 FTT SENSOR

EC-251

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

4.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E104, B4
• Harness for open or short between ECM and “fuel level sensor unit and fuel pump”

>> Repair open circuit, short to ground or short to power in harness or connector.

5.

CHECK FUEL TANK TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between “fuel level sensor unit and fuel pump” harness connector and ECM harness
connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E105, M11
• Harness connectors M77, B11
• Harness for open or short between “fuel level sensor unit and fuel pump” and ECM

>> Repair open circuit, short to ground or short to power in harness or connector.

7.

CHECK FUEL TANK TEMPERATURE SENSOR

Refer to

EC-251, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace “fuel level sensor unit and fuel pump”. Refer to

FL-5, "Exploded View"

.

8.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000009719981

1.

CHECK FUEL TANK TEMPERATURE SENSOR

1.

Turn ignition switch OFF.

2.

Remove fuel level sensor unit. Refer to

FL-5, "Exploded View"

.

Fuel level sensor unit and fuel pump

ECM

Continuity

Connector

Terminal

Connector

Terminal

B40

5

E16

104

Existed

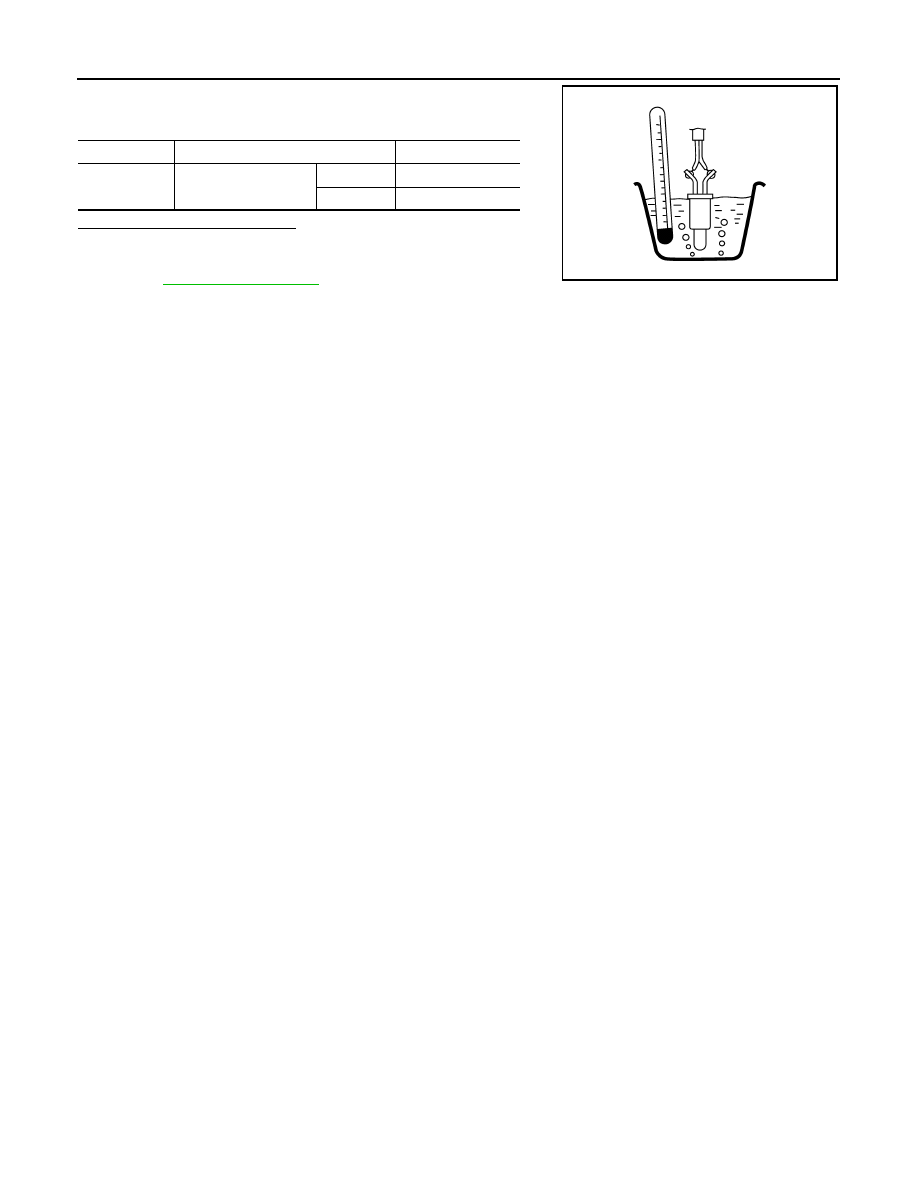

EC-252

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

P0181 FTT SENSOR

3.

Check resistance between “fuel level sensor unit and fuel pump”
terminals by heating with hot water as shown in the figure.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace “fuel level sensor unit and fuel pump”. Refer to

FL-5, "Exploded View"

.

Terminals

Condition

Resistance

4 and 5

Temperature [

°

C (

°

F)]

20 (68)

2.3 - 2.7 k

50 (122)

0.79 - 0.90 k

JMBIA0167ZZ

P0182, P0183 FTT SENSOR

EC-253

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0182, P0183 FTT SENSOR

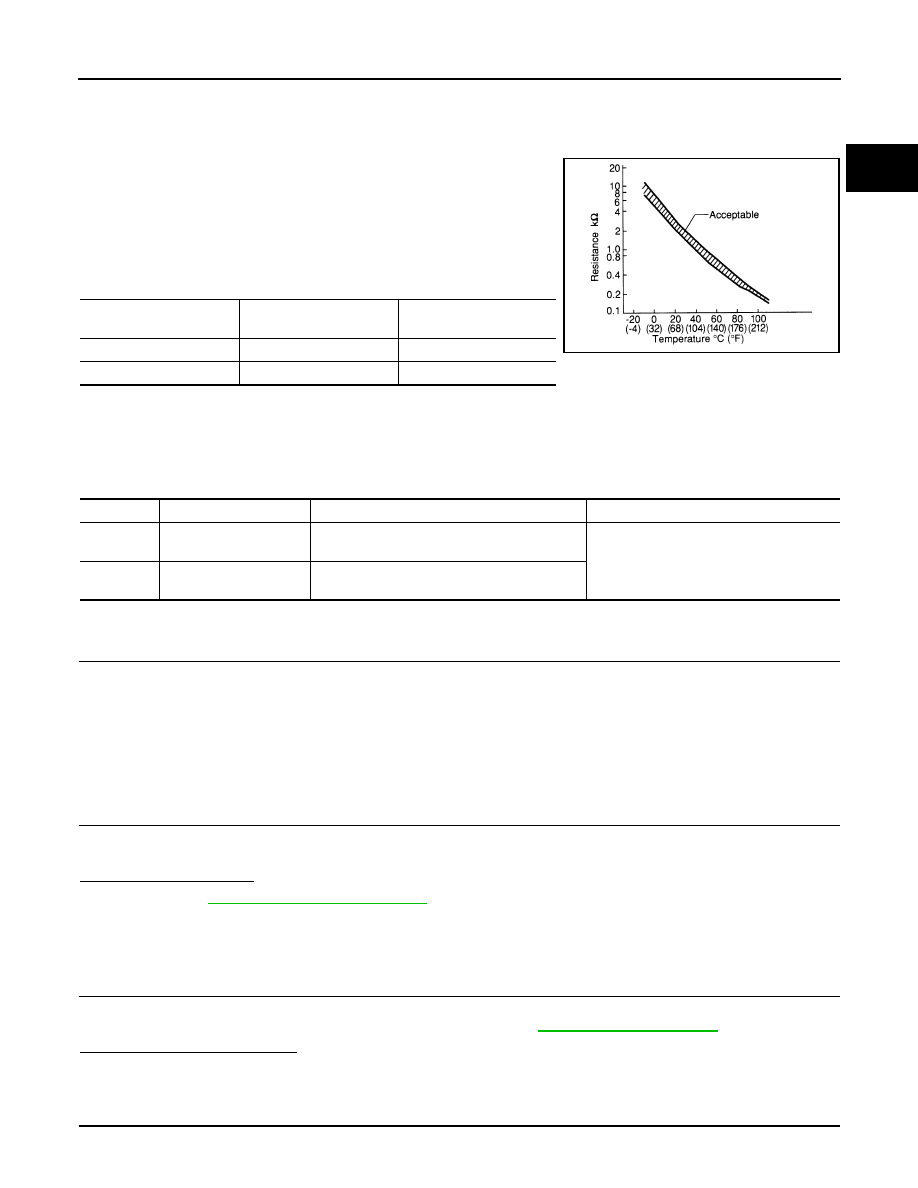

Description

INFOID:0000000009719982

The fuel tank temperature sensor is used to detect the fuel tempera-
ture inside the fuel tank. The sensor modifies a voltage signal from
the ECM. The modified signal returns to the ECM as the fuel temper-
ature input. The sensor uses a thermistor which is sensitive to the
change in temperature. The electrical resistance of the thermistor
decreases as temperature increases.
<Reference data>

*: These data are reference values and are measured between ECM terminals 95 (Fuel tank temperature sensor) and ground.

DTC Logic

INFOID:0000000009719983

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON and wait at least 5 seconds.

2.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-253, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009719984

1.

CHECK GROUND CONNECTION

1.

Turn ignition switch OFF.

2.

Check ground connection E38. Refer to Ground Inspection in

GI-47, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK FUEL TANK TEMPERATURE SENSOR POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

Fluid temperature

[

°

C (

°

F)]

Voltage*

(V)

Resistance

(k

)

20 (68)

3.5

2.3 - 2.7

50 (122)

2.2

0.79 - 0.90

SEF012P

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0182

Fuel tank temperature
sensor circuit low input

An excessively low voltage from the sensor is
sent to ECM.

• Harness or connectors

(The sensor circuit is open or shorted.)

• Fuel tank temperature sensor

P0183

Fuel tank temperature
sensor circuit high input

An excessively high voltage from the sensor is
sent to ECM.
