Nissan Murano. Manual - part 529





EC-226

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

P0138, P0158 HO2S2

>> INSPECTION END

P0139, P0159 HO2S2

EC-227

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

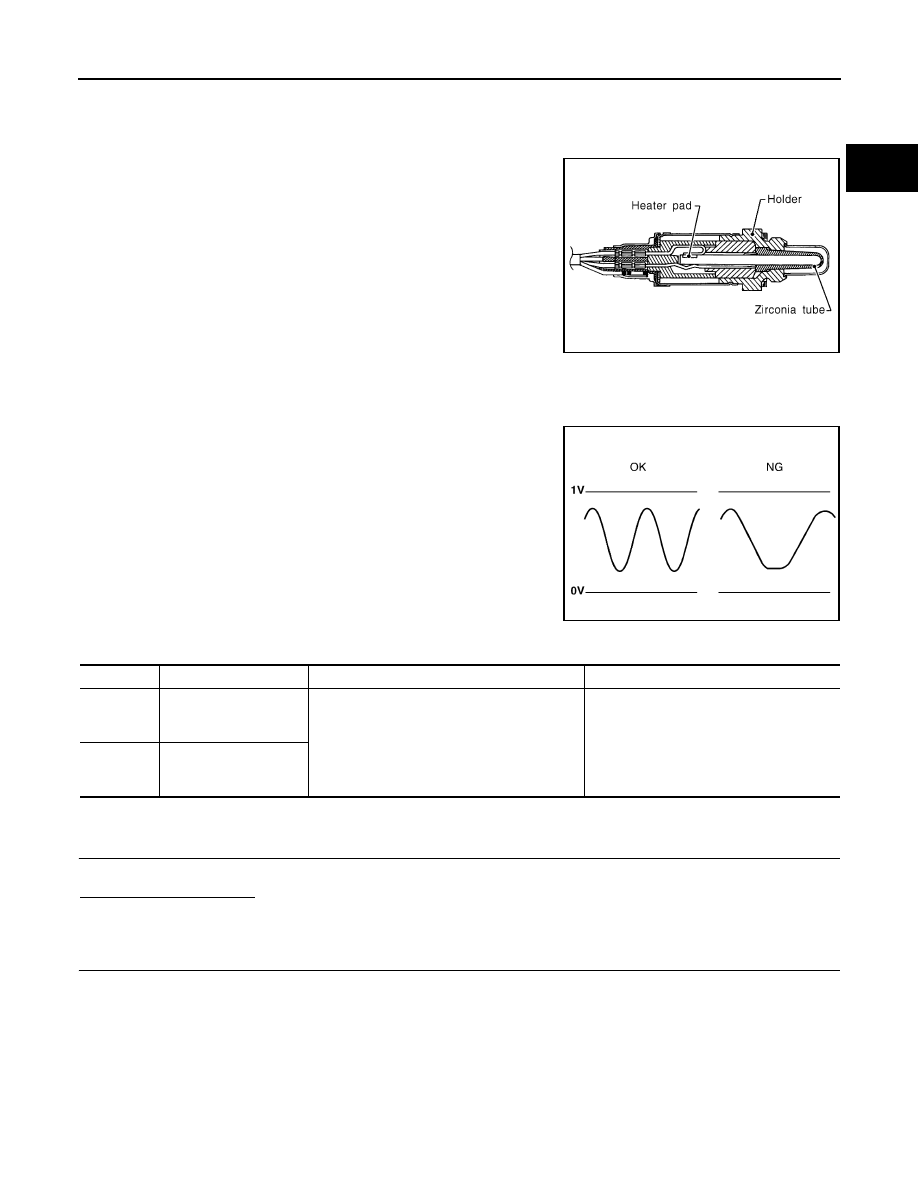

P0139, P0159 HO2S2

Description

INFOID:0000000009719965

The heated oxygen sensor 2, after three way catalyst (manifold),
monitors the oxygen level in the exhaust gas on each bank.
Even if switching characteristics of the air fuel ratio (A/F) sensor 1
are shifted, the air-fuel ratio is controlled to stoichiometric, by the sig-
nal from the heated oxygen sensor 2.
This sensor is made of ceramic zirconia. The zirconia generates volt-
age from approximately 1 V in richer conditions to 0 V in leaner con-
ditions.
Under normal conditions the heated oxygen sensor 2 is not used for
engine control operation.

DTC Logic

INFOID:0000000009719966

DTC DETECTION LOGIC

The heated oxygen sensor 2 has a much longer switching time
between rich and lean than the air fuel ratio (A/F) sensor 1. The oxy-
gen storage capacity of the three way catalyst 1 causes the longer
switching time. To judge the malfunctions of heated oxygen sensor
2, ECM monitors whether the switching response of the sensor's
voltage is faster than specified during various driving conditions such
as fuel cut.

DTC CONFIRMATION PROCEDURE

1.

INSPECTION START

Do you have CONSULT?

Do you have CONSULT?

YES

>> GO TO 2.

NO

>> GO TO 7.

2.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
For better results, perform “DTC WORK SUPPORT” at a temperature of 0 to 30

°

C (32 to 86

°

F).

>> GO TO 3.

SEF327R

SEF302U

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0139

Heated oxygen sensor 2
(bank 1) circuit slow re-
sponse

The switching time between rich and lean of a
heated oxygen sensor 2 signal delays more
than the specified time computed by ECM.

• Harness or connectors

(The sensor circuit is open or shorted)

• Heated oxygen sensor 2
• Fuel system
• EVAP system
• Intake air system

P0159

Heated oxygen sensor 2
(bank 2) circuit slow re-
sponse

EC-228

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

P0139, P0159 HO2S2

3.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT

1.

Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT.

2.

Start engine and warm it up to the normal operating temperature.

3.

Turn ignition switch OFF and wait at least 10 seconds.

4.

Turn ignition switch ON.

5.

Turn ignition switch OFF and wait at least 10 seconds.

6.

Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.

7.

Let engine idle for 1 minute.

8.

Make sure that “COOLAN TEMP/S” indicates more than 70

°

C (158

°

F).

9.

Drive the vehicle in a proper gear at 60 km/h (38MPH) and maintain the speed.

CAUTION:

Always drive vehicle at a safe speed.

10. Release the accelerator pedal fully at least 5 seconds.

CAUTION:

• Enable the engine brake.
• Always drive carefully.
• Never apply brake when releasing the accelerator pedal.

11. Repeat step 9 and 10 at least 8 times.
12. Check the following item of “DATA MONITOR”.

Is “CMPLT” displayed on CONSULT screen?

YES

>> GO TO 6.

NO-1: “CMPLT” is not displayed on DIAG 1>>Perform DTC confirmation procedure again.
NO-2: “CMPLT” is not displayed on DIAG 2>>GO TO 4.

4.

PERFORM DTC WORK SUPPORT

1.

Open engine hood.

2.

Select “HO2S2 (B1) P0139” or “HO2S2 (B2) P0159” of “HO2S2” in “DTC WORK SUPPORT” mode with
CONSULT.

3.

Start engine and follow the instruction of CONSULT display.
NOTE:
It will take at most 10 minutes until “COMPLETED” is displayed.

Is “COMPLETED” displayed on CONSULT screen?

YES

>> GO TO 6.

NO

>> GO TO 5.

5.

PERFORM DTC CONFIRMATION PROCEDURE AGAIN

1.

Turn ignition switch OFF and leave the vehicle in a cool place (soak the vehicle).

2.

Perform DTC confirmation procedure again.

>> GO TO 3.

6.

PERFORM SELF-DIAGNOSIS

With CONSULT

Perform ECM self-diagnosis.

Is DTC “P0139” or “P0159” detected?

YES

>> Proceed to

EC-230, "Diagnosis Procedure"

.

NO

>> INSPECTION END

7.

PERFORM COMPONENT FUNCTION CHECK

DTC

Data monitor item

Status

P0139

HO2 S2 DIAG1 (B1)

CMPLT

HO2 S2 DIAG2 (B1)

P0159

HO2 S2 DIAG1 (B2)

HO2 S2 DIAG2 (B2)

P0139, P0159 HO2S2

EC-229

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Perform component function check. Refer to

EC-229, "Component Function Check"

.

NOTE:
Use component function check to check the overall function of the heated oxygen sensor 2 circuit. During this
check, a 1st trip DTC might not be confirmed.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-230, "Diagnosis Procedure"

.

Component Function Check

INFOID:0000000009719967

1.

PERFORM COMPONENT FUNCTION CHECK-I

Without CONSULT

1.

Start engine and warm it up to the normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Turn ignition switch ON.

4.

Turn ignition switch OFF and wait at least 10 seconds.

5.

Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.

6.

Let engine idle for 1 minute.

7.

Check the voltage between ECM harness connector terminals under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

PERFORM COMPONENT FUNCTION CHECK-II

Check the voltage between ECM harness connector terminals under the following conditions.
.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 3.

3.

PERFORM COMPONENT FUNCTION CHECK-III

Check the voltage between ECM harness connector terminals under the following conditions.

DTC

ECM

Condition

Voltage

Connec-

tor

+

Terminal

Terminal

P0139

F8

33

[HO2S2 (bank 1)

signal]

35

(Sensor
ground)

Revving up to 4,000 rpm under no
load at least 10 times

A change of voltage should be more
than 0.8 V for 1 second during this
procedure.

P0159

34

[HO2S2 (bank 2)

signal]

DTC

ECM

Condition

Voltage

Connec-

tor

+

Terminal

Terminal

P0139

F8

33

[HO2S2 (bank 1)

signal]

35

(Sensor
ground)

Keeping engine at idle for 10 minutes

A change of voltage should be more
than 0.8 V for 1 second during this
procedure.

P0159

34

[HO2S2 (bank 2)

signal]
