EC-58

< SYSTEM DESCRIPTION >

[VQ35DE]

ELECTRIC IGNITION SYSTEM

Component Description

INFOID:0000000009719833

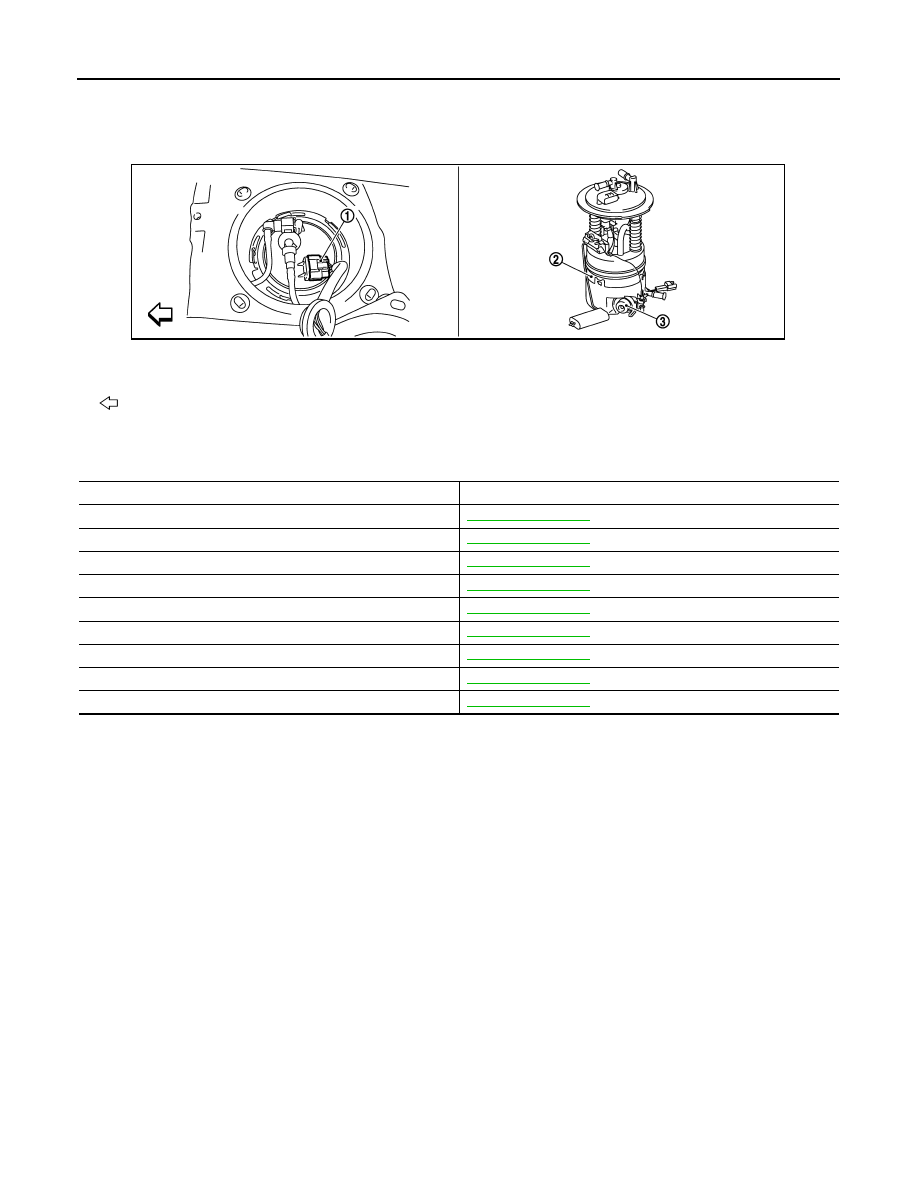

1.

ASCD steering switch

2.

CANSEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

MAIN switch

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump 3.

Fuel pressure regulator

: Vehicle front

JMBIA1121ZZ

Component

Reference

Accelerator pedal position sensor

EC-419, "Description"

Camshaft position sensor (PHASE)

EC-279, "Description"

Crankshaft position sensor (POS)

EC-275, "Description"

Engine coolant temperature sensor

EC-182, "Description"

Ignition signal

EC-453, "Description"

Knock sensor

EC-272, "Description"

Mass air flow sensor

EC-167, "Description"

TCM

EC-355, "Description"

Throttle position sensor

EC-188, "Description"

AIR CONDITIONING CUT CONTROL

EC-59

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

AIR CONDITIONING CUT CONTROL

System Diagram

INFOID:0000000009719834

System Description

INFOID:0000000009719835

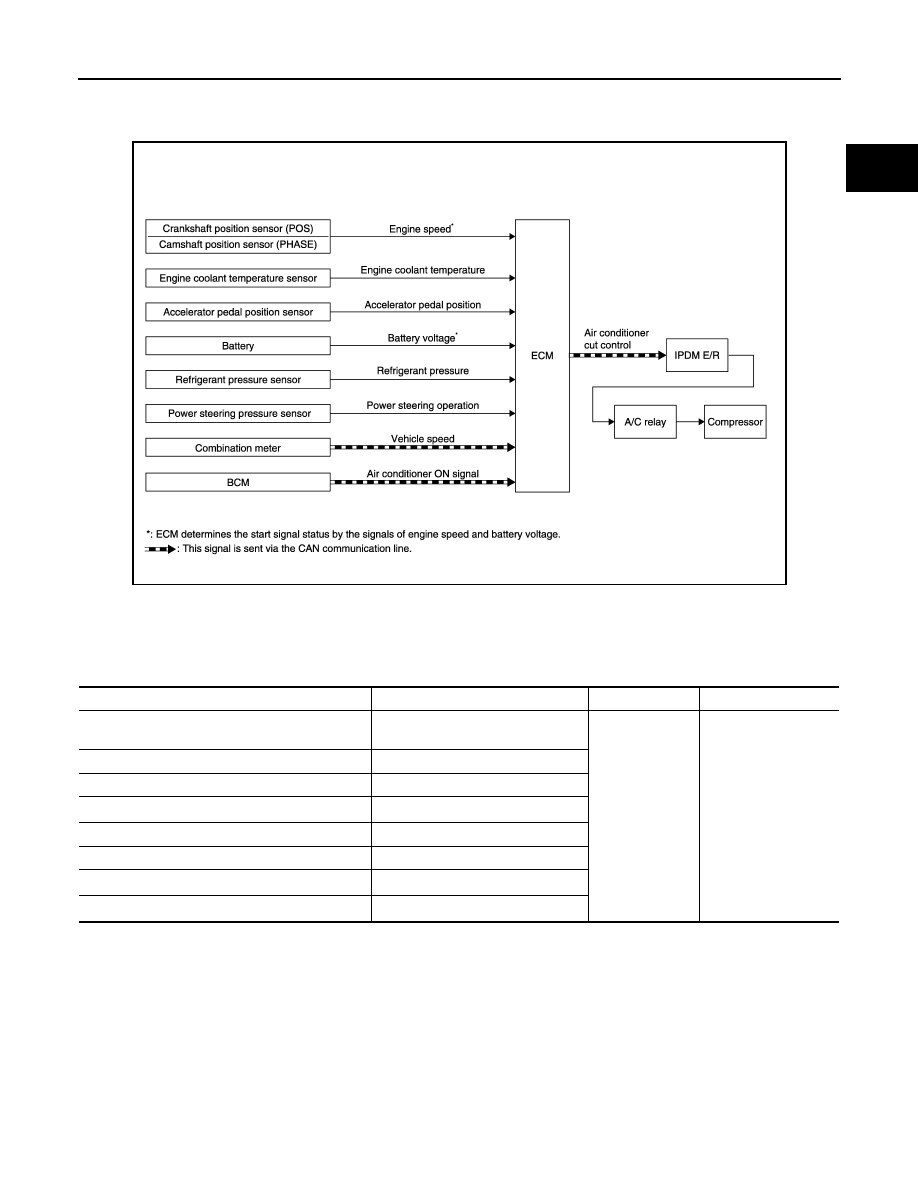

INPUT/OUTPUT SIGNAL CHART

*1: This signal is sent to the ECM via the CAN communication line.

*2: ECM determines the start signal status by the signals of engine speed and battery voltage.

SYSTEM DESCRIPTION

This system improves engine operation when the air conditioner is used.
Under the following conditions, the air conditioner is turned OFF.
• When the accelerator pedal is fully depressed.
• When cranking the engine.
• At high engine speeds.
• When the engine coolant temperature becomes excessively high.
• When operating power steering during low engine speed or low vehicle speed.
• When engine speed is excessively low.
• When refrigerant pressure is excessively low or high.

JMBIA1835GB

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed*

2

Air conditioner
cut control

IPDM E/R

Air conditioner relay

Compressor

Engine coolant temperature sensor

Engine coolant temperature

Accelerator pedal position sensor

Accelerator pedal position

Battery

Battery voltage*

2

Refrigerant pressure sensor

Refrigerant pressure

Power steering pressure sensor

Power steering operation

Combination meter

Vehicle speed*

1

BCM

Air conditioner ON signal*

1

EC-60

< SYSTEM DESCRIPTION >

[VQ35DE]

AIR CONDITIONING CUT CONTROL

Component Parts Location

INFOID:0000000009719836

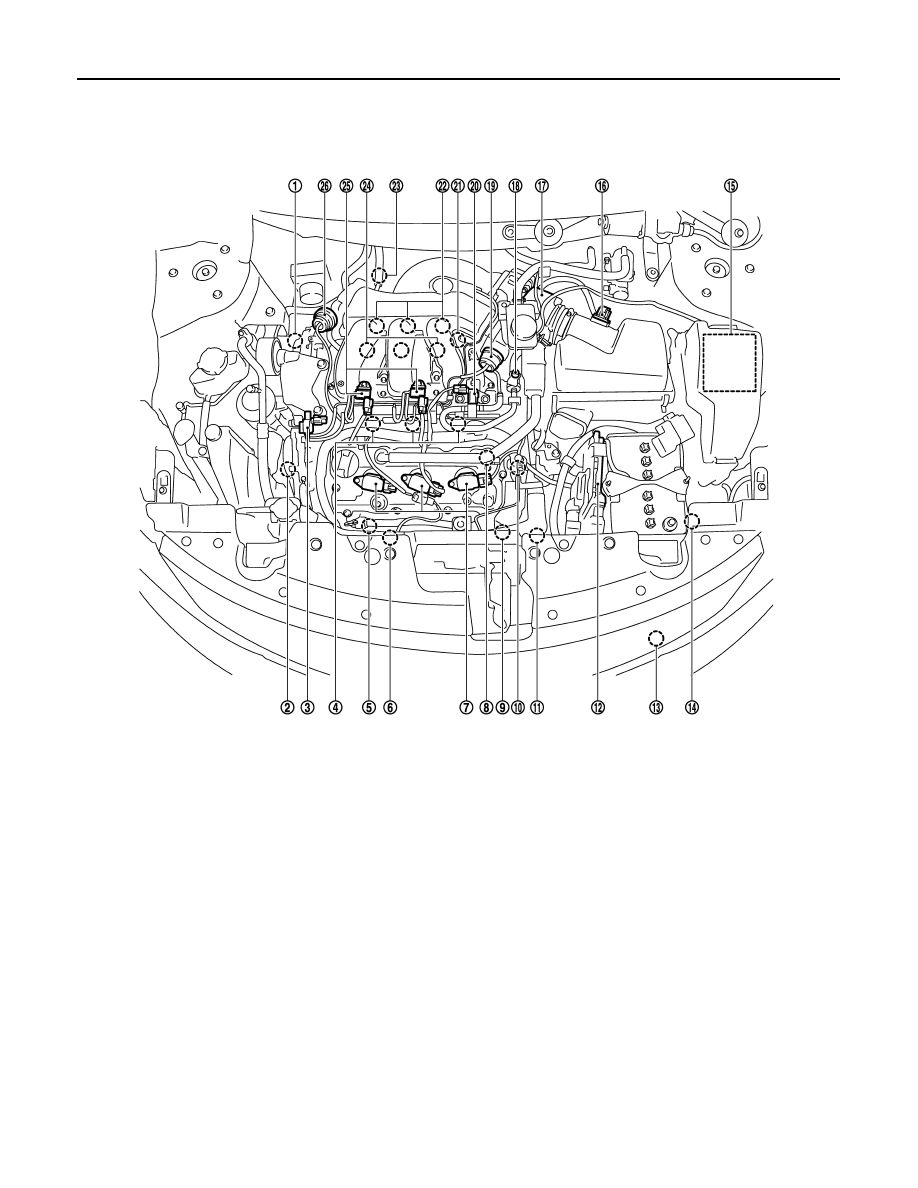

1.

Intake valve timing control solenoid
valve (bank 1)

2.

Intake valve timing control solenoid
valve (bank 2)

3.

Electronic controlled engine mount
control solenoid valve

4.

Fuel injector (bank 2)

5.

A/F sensor 1 (bank 2)

6.

Cooling fan motor-2

7.

Ignition coil (with power transistor)
and spark plug (bank 2)

8.

Camshaft position sensor (PHASE)
(bank 2)

9.

Crankshaft position sensor (POS)

10. Engine coolant temperature sensor

11.

Cooling fan motor-1

12. ECM

13. Refrigerant pressure sensor

14. Battery current sensor

15. IPDM E/R

16. Mass air flow sensor (with intake air

temperature sensor)

17. Electric throttle control actuator

18. EVAP service port

19. Power valve actuator 2

20. EVAP canister purge volume control

solenoid valve

21. Camshaft position sensor (PHASE)

(bank 1)

22. Ignition coil (with power transistor)

and spark plug (bank 1)

23. A/F sensor 1 (bank 1)

24. Fuel injector (bank 1)

25. VIAS control solenoid valve 1 and 2

26. Power valve actuator 1

JMBIA1108ZZ

AIR CONDITIONING CUT CONTROL

EC-61

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

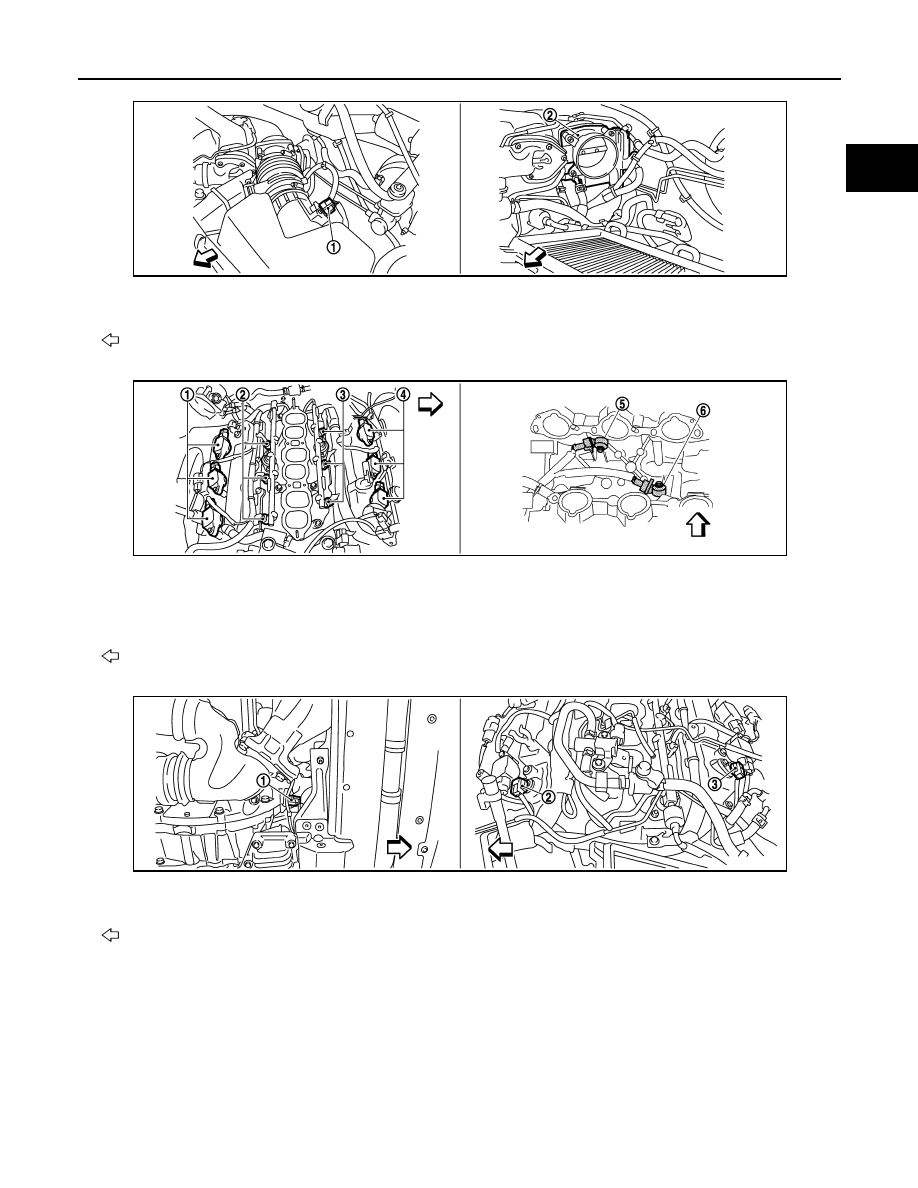

1.

Mas air flow sensor (with intake air
temperature sensor)

2.

Electric throttle control actuator

: Vehicle front

1.

Ignition coil (with power transistor)
and spark plug (bank 1)

2.

Fuel injector (bank 1)

3.

Fuel injector (bank 2)

4.

Ignition coil (with power transistor)
and spark plug (bank 2)

5.

Knock sensor (bank 2)

6.

Knock sensor (bank 1)

: Vehicle front

1.

Crankshaft position sensor (POS)

2.

Camshaft position sensor (PHASE)
(bank 1)

3.

Camshaft position sensor (PHASE)
(bank 2)

: Vehicle front

JMBIA1109ZZ

JMBIA1110ZZ
