DRIVE PINION

DLN-127

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

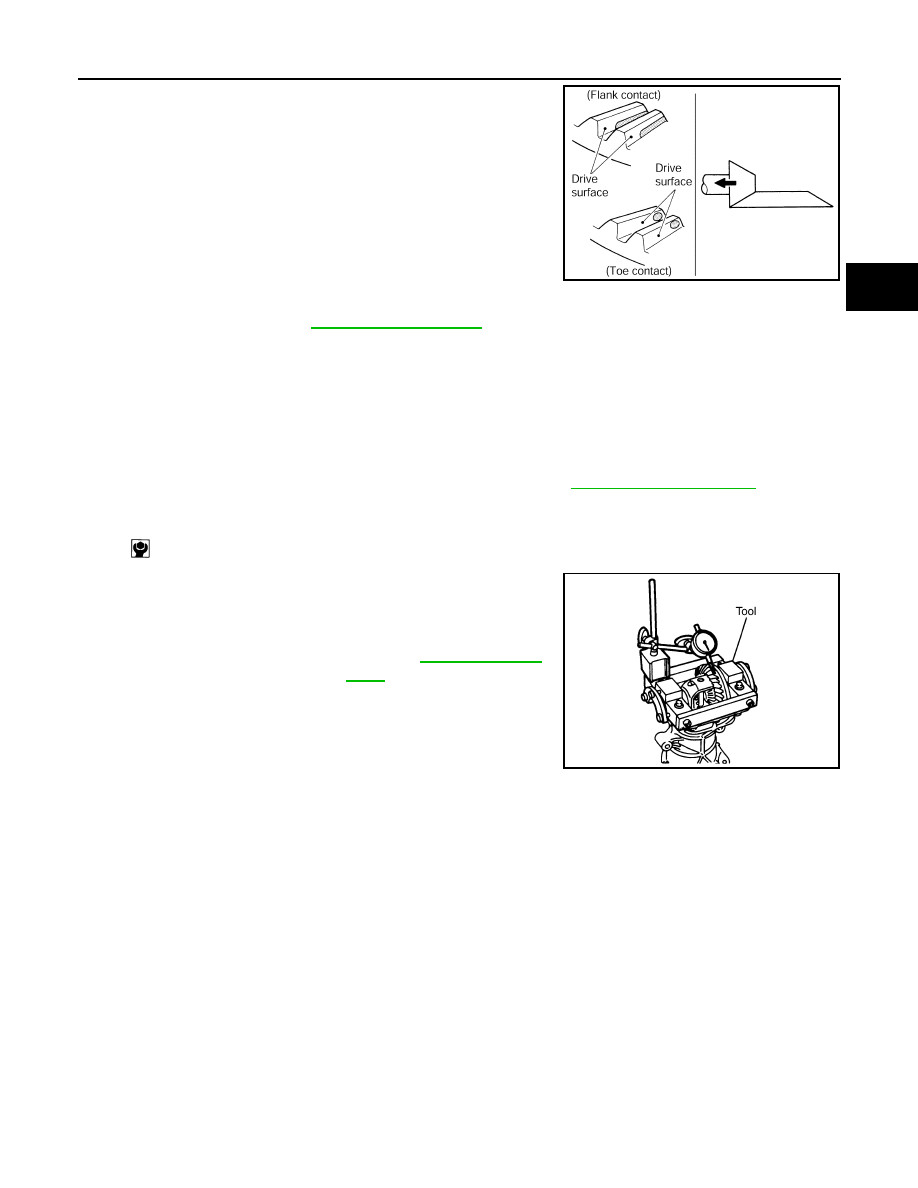

• If the tooth contact is near the flank (flank contact), or near the

toe (toe contact), thin drive pinion gear adjusting shim to move
drive pinion farther from drive gear.
For selecting adjusting shim, refer to the latest parts informa-
tion.

BACKLASH

1.

Remove rear cover. Refer to

DLN-113, "Disassembly"

.

2.

Following the procedure below, install a dummy cover set [SST: KV381086S1 (

)] to gear car-

rier.

a.

Set dummy cover shims [SST: KV38108630 (

)] to the right and left side bearing adjusting

shims.

b.

Temporarily tighten dummy cover [SST: KV38108610 (

)] to gear carrier.

c.

Position dummy cover spacers [SST: KV38108621 (

)] to dummy cover [SST: KV38108610

(

)].

d.

Tighten rear cover mounting bolts to the specified torque. Refer to

DLN-119, "Exploded View"

.

e.

Tighten dummy cover spacer mounting bolts evenly to the specified torque.

3.

Fit a dial indicator to the drive gear face to measure the back-
lash.

• If the backlash is outside of the specified value, change the

thickness of side bearing adjusting shims.

Inspection After Disassembly

INFOID:0000000009718203

DRIVE GEAR AND DRIVE PINION

• Clean up the disassembled parts.
• If the gear teeth never mesh or line-up correctly, determine the cause and adjust or replace as necessary.
• If the gears are worn, cracked, damaged, pitted or chipped (by friction) noticeably, replace with new drive

gear and drive pinion as a set.

BEARING

• Clean up the disassembled parts.
• If any chipped (by friction), pitted, worn, rusted or scratched marks, or unusual noise from the bearing is

observed, replace as a bearing assembly (as a new set).

PDIA0441E

: 5.9 N·m (0.6 kg-m, 52 in-lb)

Standard

Backlash

: Refer to

DLN-129, "Back-

lash"

.

When the backlash is large:

Make drive gear back adjusting shims thicker, and drive
gear front adjusting shims thinner. For selecting ad-
justing shim, refer to the latest parts information.

When the backlash is small:

Make drive gear back adjusting shims thinner, and
drive gear front adjusting shims thicker. For selecting
adjusting shim, refer to the latest parts information.

PDIA0049E

DLN-128

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

DRIVE PINION

SIDE GEAR AND PINION MATE GEAR

• Clean up the disassembled parts.
• If any cracks or damage on the surface of the tooth is found, replace.
• If any worn or chipped mark on the contact sides of the thrust washer is found, replace.

SIDE GEAR THRUST WASHER AND PINION MATE THRUST WASHER

• Clean up the disassembled parts.
• If it is chipped (by friction), damaged, or unusually worn, replace.

OIL SEAL

• Whenever disassembled, replace.
• If wear, deterioration of adherence (sealing force lips), or damage is detected on the lips, replace them.

DIFFERENTIAL CASE

• Clean up the disassembled parts.
• If any wear or crack on the contact sides of the differential case is found, replace.

COMPANION FLANGE

• Clean up the disassembled parts.
• If any chipped mark [about 0.1 mm, (0.004 in)] or other damage on the contact sides of the lips of the com-

panion flange is found, replace.

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-129

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000009718204

Drive Gear Runout

INFOID:0000000009718205

Unit: mm (in)

Differential Side Gear Clearance

INFOID:0000000009718206

Unit: mm (in)

Preload Torque

INFOID:0000000009718207

Unit: N·m (kg-m, in-lb)

Backlash

INFOID:0000000009718208

Unit: mm (in)

Companion Flange Runout

INFOID:0000000009718209

Unit: mm (in)

Applied model

AWD

VQ35DE

CVT

Final drive model

R145

Gear ratio

2.466

Number of teeth (Drive gear/Drive pinion)

37/15

Oil capacity (Approx.)

 (US pt, lmp pt)

0.55 (1-1/8, 1)

Number of pinion gears

2

Drive pinion adjustment spacer type

Collapsible

Item

Limit

Drive gear back face runout

0.05 (0.0020)

Item

Standard

Side gear backlash (Clearance between side gear and differential
case)

0.2 (0.008) or less

(Each gear should rotate smoothly without excessive resistance

during differential motion.)

Item

Standard

Pinion bearing (P

1

)

0.69 – 1.18 (0.07 – 0.12, 7 – 10)

Side bearing (P

2

)

0.64 – 0.98 (0.07 – 0.09, 6 – 8)

Side bearing to pinion bearing (Total preload)
(Total preload = P

1

 + P

2

)

1.33 – 2.16 (0.14 – 0.22, 12 – 19)

Item

Standard

Drive gear to drive pinion gear

0.10 – 0.15 (0.0039 – 0.0059)

Item

Limit

Companion flange face

0.13 (0.0051)

Inner side of the companion flange

0.19 (0.0075)

EC-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

EC

A

EC

N

O

P

CONTENTS

ENGINE CONTROL SYSTEM

VQ35DE

BASIC INSPECTION  ....................................

8

DIAGNOSIS AND REPAIR WORKFLOW  ..........

8

Work Flow  .................................................................

8

Diagnostic Work Sheet ............................................

11

INSPECTION AND ADJUSTMENT ....................

13

BASIC INSPECTION  .................................................

13

BASIC INSPECTION : Special Repair Require-
ment ........................................................................

13

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ........................................................

16

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description  ................................

16

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement  .....

16

IDLE SPEED  ..............................................................

18

IDLE SPEED : Description  ......................................

18

IDLE SPEED : Special Repair Requirement  ...........

18

IGNITION TIMING ......................................................

18

IGNITION TIMING : Description ..............................

18

IGNITION TIMING : Special Repair Requirement

....

18

VIN REGISTRATION  .................................................

18

VIN REGISTRATION : Description  .........................

18

VIN REGISTRATION : Special Repair Require-
ment ........................................................................

19

ACCELERATOR PEDAL RELEASED POSITION
LEARNING ................................................................

19

ACCELERATOR PEDAL RELEASED POSITION
LEARNING : Description .........................................

19

ACCELERATOR PEDAL RELEASED POSITION
LEARNING : Special Repair Requirement  ..............

19

THROTTLE VALVE CLOSED POSITION LEARN-
ING .............................................................................

19

THROTTLE VALVE CLOSED POSITION
LEARNING : Description  .........................................

19

THROTTLE VALVE CLOSED POSITION
LEARNING : Special Repair Requirement  ..............

19

IDLE AIR VOLUME LEARNING  ................................

20

IDLE AIR VOLUME LEARNING : Description  .........

20

IDLE AIR VOLUME LEARNING : Special Repair
Requirement ............................................................

20

MIXTURE RATIO SELF-LEARNING VALUE
CLEAR .......................................................................

21

MIXTURE RATIO SELF-LEARNING VALUE
CLEAR : Description ................................................

21

MIXTURE RATIO SELF-LEARNING VALUE
CLEAR : Special Repair Requirement .....................

22

HOW TO SET SRT CODE  ................................

23

Description ...............................................................

23

SRT Set Driving Pattern  ..........................................

24

Work Procedure .......................................................

26

HOW TO ERASE PERMANENT DTC  ..............

29

Description ...............................................................

29

Work Procedure (Group A) ......................................

30

Work Procedure (Group B) ......................................

32

SYSTEM DESCRIPTION  .............................

35

ENGINE CONTROL SYSTEM  ..........................

35

System Diagram .....................................................

35

System Description ..................................................

36

Component Parts Location ....................................

36

Component Description  ...........................................

41

MULTIPORT FUEL INJECTION SYSTEM  .......

43

System Diagram .....................................................

43

System Description ..................................................

43

Component Parts Location ....................................

46

Component Description  ...........................................

51

ELECTRIC IGNITION SYSTEM  ........................

52
