ELECTRIC CONTROLLED COUPLING

DLN-111

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

• If it is chipped (by friction), damaged, or unusually worn, replace.

OIL SEAL

• Whenever disassembled, replace.
• If wear, deterioration of adherence (sealing force lips), or damage is detected on the lips, replace them.

DIFFERENTIAL CASE

• Clean up the disassembled parts.
• If any wear or crack on the contact sides of the differential case is found, replace.

COMPANION FLANGE

• Clean up the disassembled parts.
• If any chipped mark [about 0.1 mm, (0.004 in)] or other damage on the contact sides of the lips of the com-

panion flange is found, replace.

DLN-112

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

DIFFERENTIAL ASSEMBLY

DIFFERENTIAL ASSEMBLY

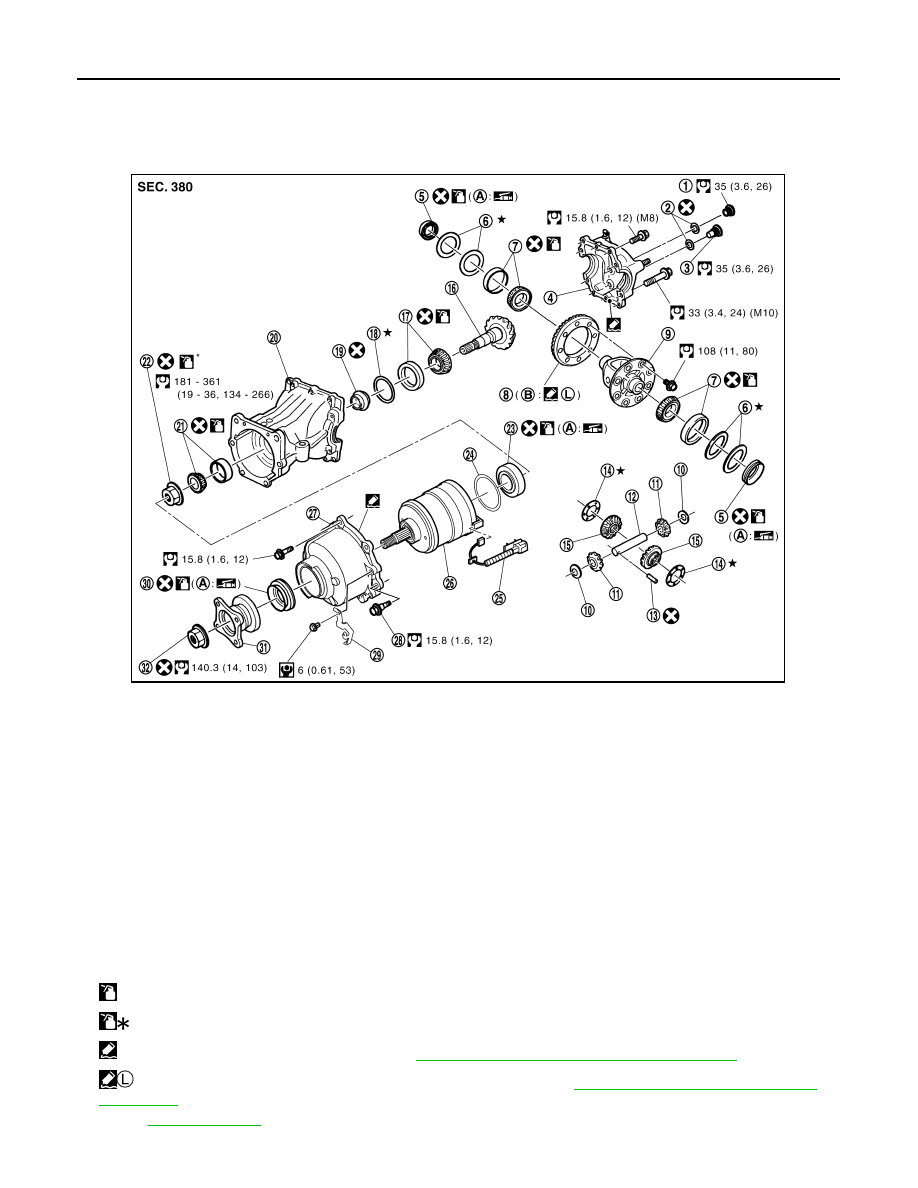

Exploded View

INFOID:0000000009718195

1.

Filler plug

2.

Gasket

3.

Drain plug

4.

Rear cover

5.

Side oil seal

6.

Side bearing adjusting shim

7.

Side bearing

8.

Drive gear

9.

Differential case

10. Pinion mate thrust washer

11.

Pinion mate gear

12. Pinion mate shaft

13. Lock pin

14. Side gear thrust washer

15. Side gear

16. Drive pinion

17. Pinion rear bearing

18. Drive pinion adjusting shim

19. Collapsible spacer

20. Gear carrier

21. Pinion front bearing

22. Drive pinion nut

23. Center oil seal

*

24. Wave spring

25. AWD solenoid harness

26. Electric controlled coupling

*

27. Coupling cover

28. Reamer bolt

29. Connector bracket

30. Front oil seal

31. Companion flange

32. Companion flange lock nut

A.

Oil seal lip

B.

Screw hole

*: When replacing electric controlled coupling, replace center oil seal.

: Apply gear oil.

: Apply anti-corrosive oil.

: Apply Genuine Silicone RTV or equivalent. Refer to

GI-22, "Recommended Chemical Products and Sealants"

.

: Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to

GI-22, "Recommended Chemical Products

and Sealants"

.

Refer to

GI-4, "Components"

 for symbols not described above.

JSDIA3872GB

DIFFERENTIAL ASSEMBLY

DLN-113

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

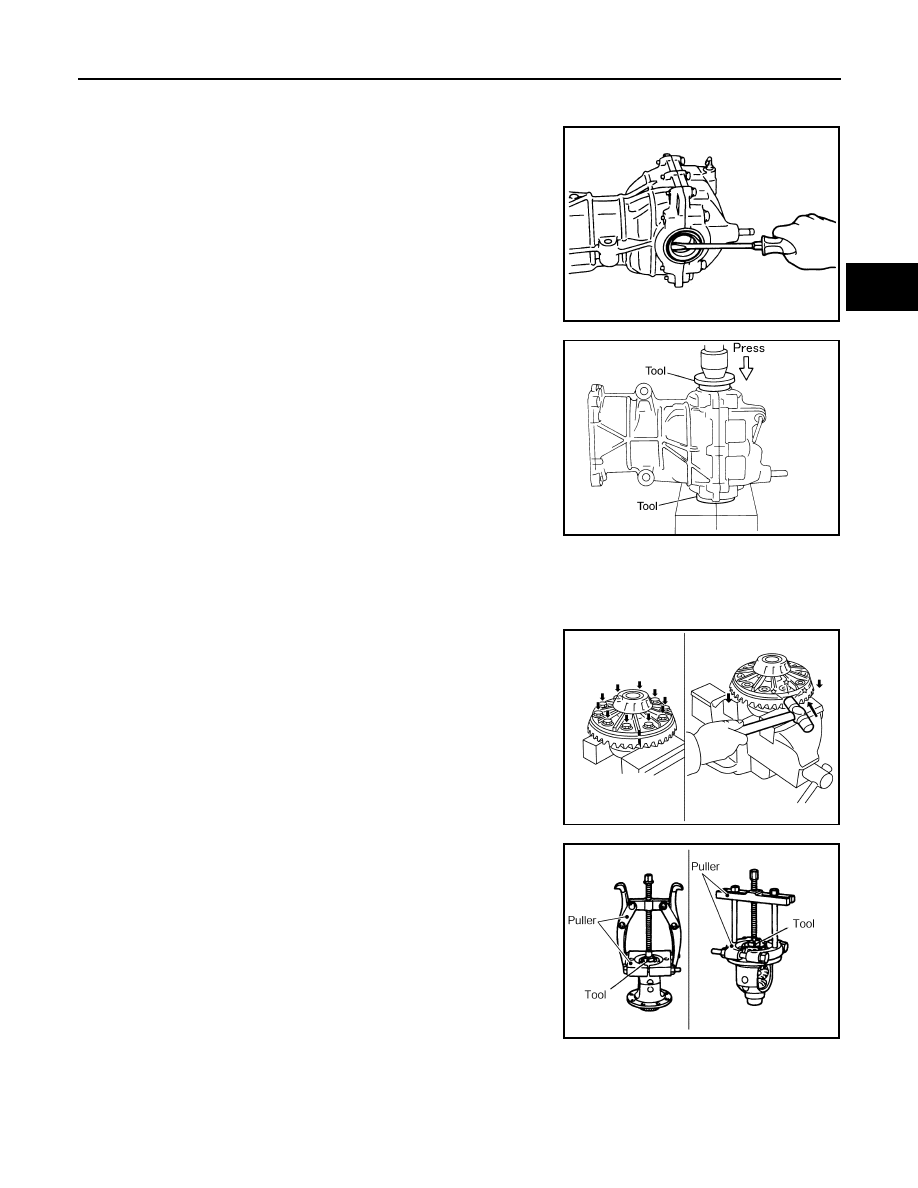

Disassembly

INFOID:0000000009718196

1.

Remove side oil seals, using a suitable tool.

CAUTION:

Be careful not to damage gear carrier and rear cover.

2.

Remove rear cover mounting bolts.

3.

Set drifts [SST: KV40100610 (J-26089)] to the right and left side
bearing adjusting shims individually. Press differential case
assembly with side bearing to remove gear carrier assembly
and rear cover assembly.

CAUTION:

The pressure shall be as low as possible to remove gear
carrier assembly and rear cover assembly. The maximum
pressure shall be 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton).
NOTE:
Differential case assembly, side bearings, and adjusting shims
are compressed and integrated in gear carrier and rear cover.

4.

Remove drain plug and filler plug.

5.

Remove side bearing adjusting shims and side bearing outer races.

CAUTION:

Mark the side bearing adjusting shims so that the original mounting positions (right/left) can be
identified later.

6.

Remove drive gear mounting bolts and then remove drive gear
from differential case.

7.

Remove side bearing inner races, using pullers and the drift
[SST: ST33052000 (

—

)].

PDG0216D

PDIA0065E

PDIA0446E

PDIA0459E

DLN-114

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

DIFFERENTIAL ASSEMBLY

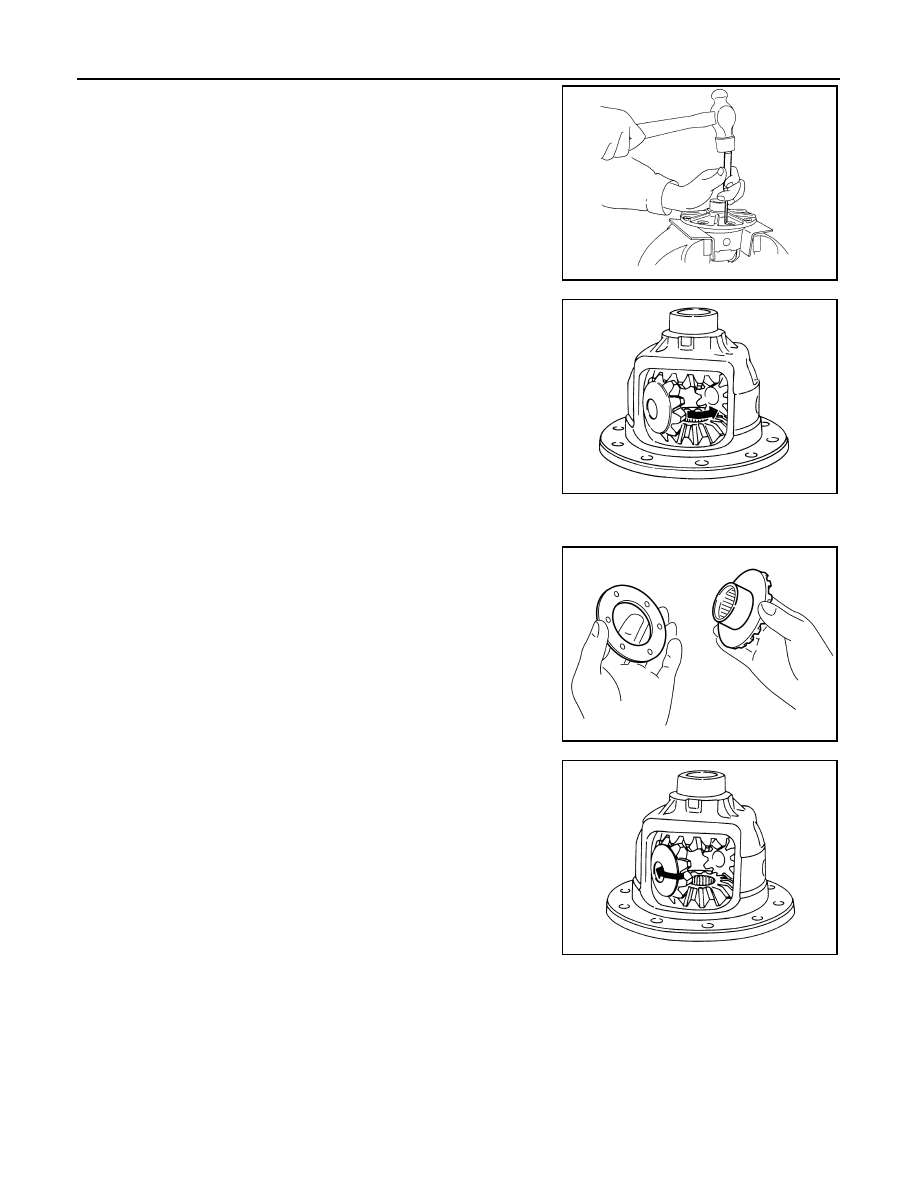

8.

Pull the lock pin out of pinion mate shaft, using the pin punch.

9.

Remove pinion mate shaft, pinion mate gears, pinion mate
thrust washers, side gears, side gear thrust washers from differ-
ential case.

Assembly

INFOID:0000000009718197

1.

Install new side gear thrust washers with the same thickness as
the ones installed prior to disassembly or reinstall the old ones
on the side gears.

2.

Install side gears and side gear thrust washers into differential
case.

3.

Align 2 pinion mate gears in diagonally opposite positions, then
rotate and install them into differential case after installing pinion
mate thrust washers to pinion mate gears.

PDIA0759J

SDIA0032J

SDIA0193J

SDIA0036J
