PREPARATION

DLK-307

< PREPARATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

PREPARATION

PREPARATION

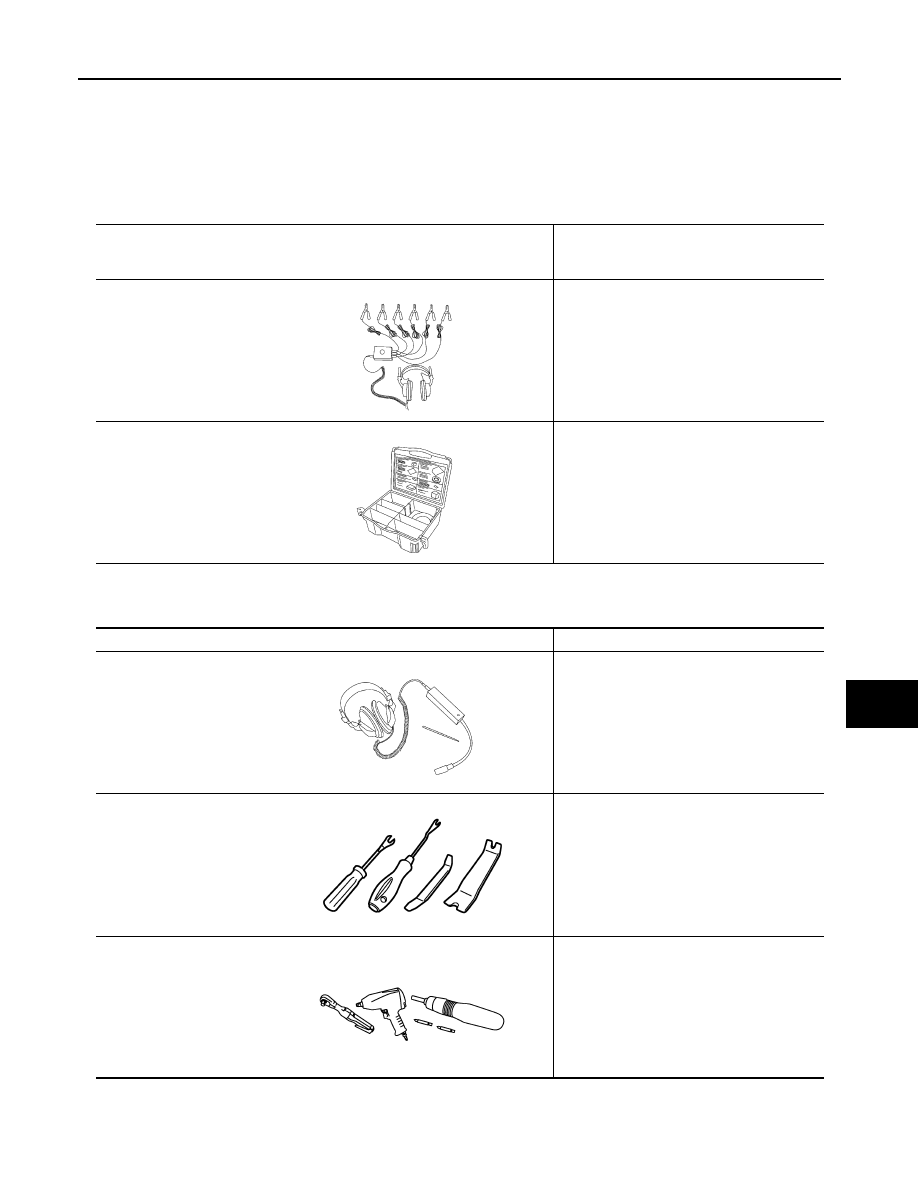

Special Service Tools

INFOID:0000000009719210

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000009719211

Tool number

(Kent-Moore No.)

Tool name

Description

(J-39570)
Chassis ear

Locates the noise

(J-50397)
NISSAN Squeak and Rat-
tle Kit

Repairs the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Locates the noise

Remover tool

Removes the clips, pawls, and metal clips

Power tool

SIIA0995E

JMKIA3050ZZ

PIIB1407E

DLK-308

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

HOOD

REMOVAL AND INSTALLATION

HOOD

HOOD ASSEMBLY

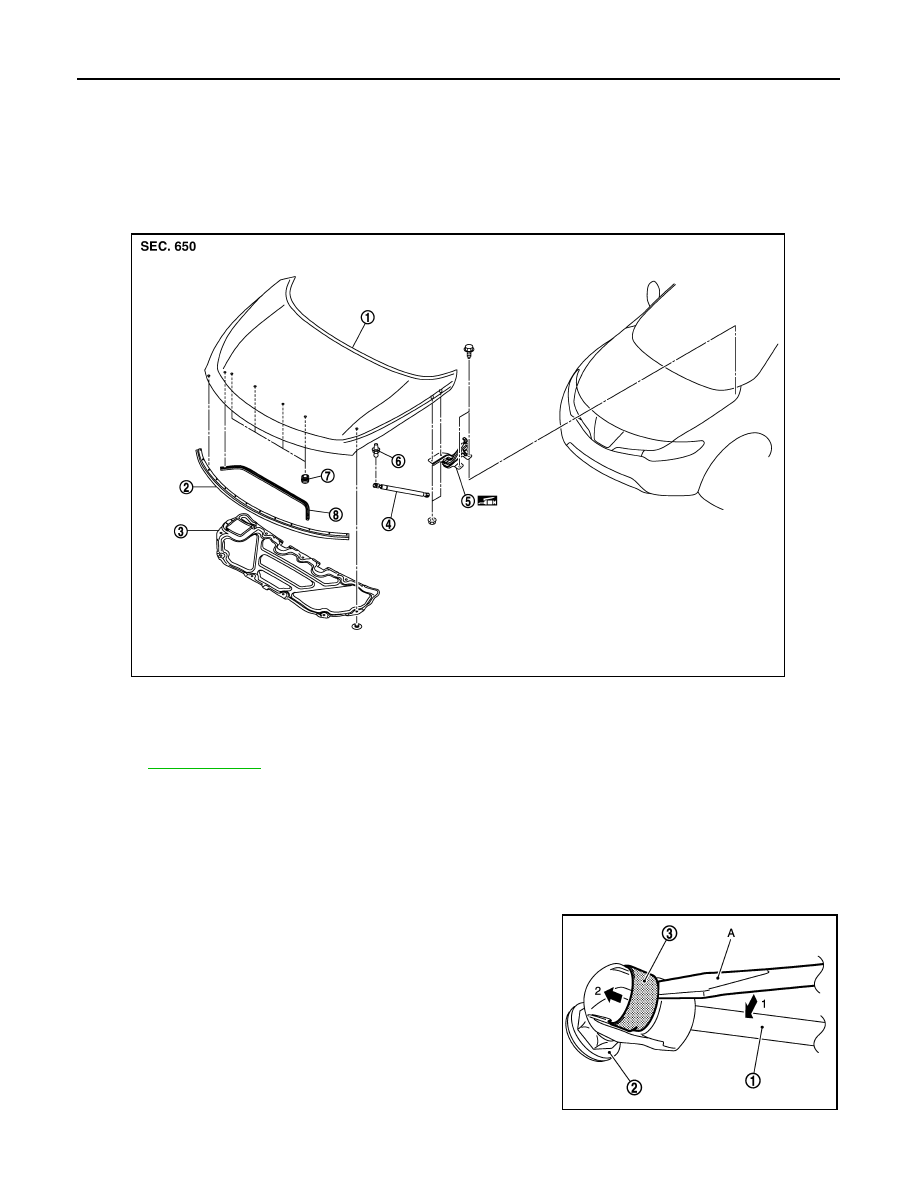

HOOD ASSEMBLY : Exploded View

INFOID:0000000009719212

HOOD ASSEMBLY : Removal and Installation

INFOID:0000000009719213

REMOVAL

1.

Support hood lock assembly with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding hood open when removing hood stay.

2.

Remove the metal clip (3) located on the connection between
the hood stay (1) and the stud ball (2) (hood side), by using a
flatted-blade screwdriver (A).

3.

Disengage the stud ball from the hood stay (hood side).

1.

Hood assembly

2.

Hood front seal

3.

Hood insulator

4.

Hood stay

5.

Hood hinge

6.

Stud ball

7.

Hood bumper rubber

8.

Radiator core seal

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA1797ZZ

JMKIA2255ZZ

HOOD

DLK-309

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

4.

Remove hood hinge mounting nuts on the hood to remove the hood assembly.

CAUTION:

Perform work with 2 workers, because of its heavy weight.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• Before installing the hood hinge, apply anticorrosive agent onto the mounting surface of the vehicle

body.

• After installing, perform hood fitting adjustment. Refer to

DLK-309, "HOOD ASSEMBLY : Adjust-

ment"

.

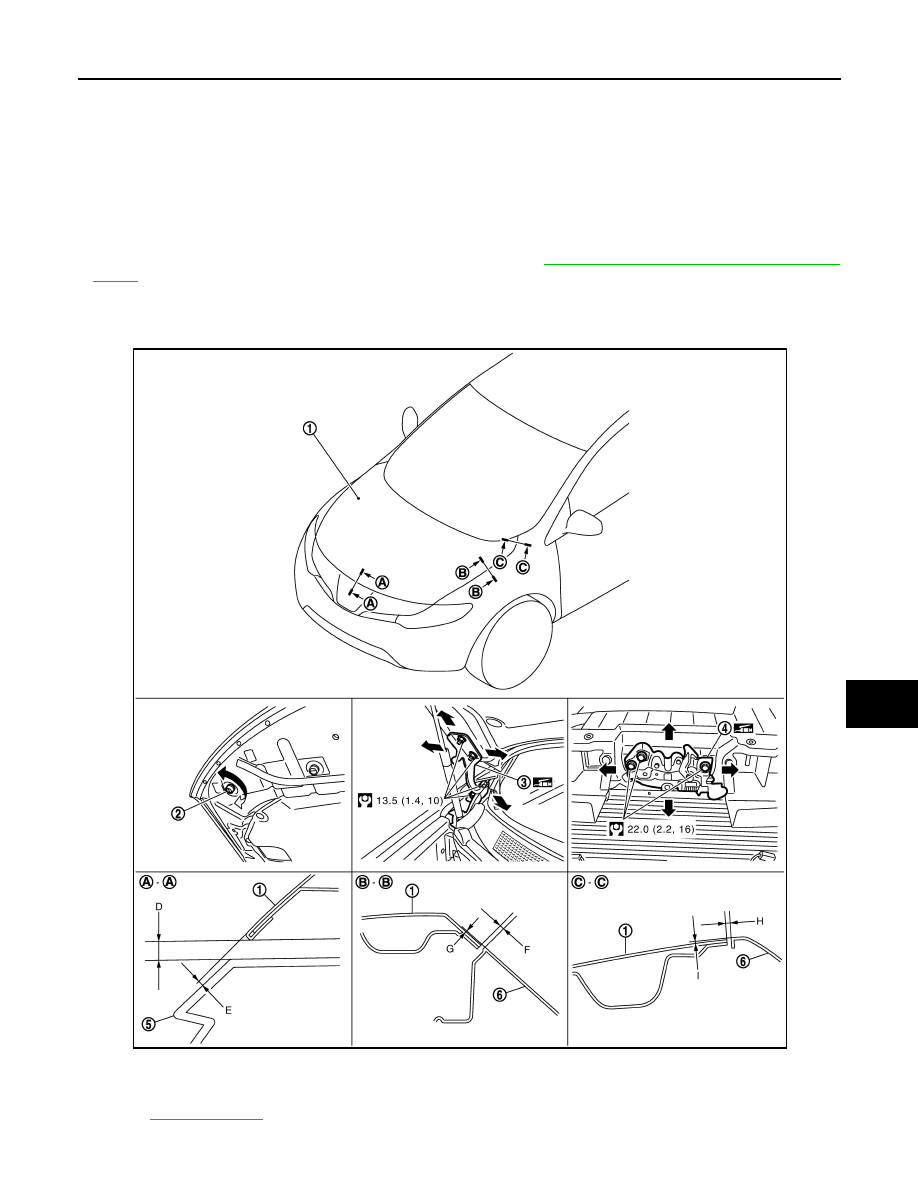

HOOD ASSEMBLY : Adjustment

INFOID:0000000009719214

1.

Hood assembly

2.

Hood bumper rubber side

3.

Hood hinge

4.

Hood lock assembly

5.

Front grille

6.

Front fender

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA1834GB

DLK-310

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

HOOD

Check the clearance and the surface height between hood and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

Unit: mm (in)

1.

Remove hood lock and adjust the height by rotating hood bumper rubber side until hood becomes 1 to1.5
mm (0.039 to 0.059 in) lower than fender.

2.

Temporarily tighten hood lock, and position by engaging it with hood striker. Check hood lock and striker
for looseness and adjust the clearance and evenness with striker to satisfy the specification.

3.

Adjust A and B shown in the figure to the following value with hood's own weight by dropping it from
approximately 200 mm (7.874 in) height or by pressing hood lightly [approximately 29 N (3.0 kg, 6.5lb)].

4.

After adjustment tighten lock bolts to the specified torque.

HOOD HINGE

Portion

Standard

Difference

(RH/LH)

Hood – Front grille

A – A

D

Clearance

3.4 – 7.4 (0.134 – 0.291)

—

E Surface height - 1.4 – 2.6 (- 0.055 – 0.102)

—

Hood – Front fender

B – B

F

Clearance

2.4 – 5.0 (0.094 – 0.197)

< 1.5 (0.059)

G Surface height - 1.3 – 1.3 (- 0.051 – 0.051)

—

C – C

H

Clearance

2.7 – 4.7 (0.106 – 0.185)

< 1.5 (0.059)

I

Surface height - 1.4 – 1.4 (- 0.055 – 0.055)

—

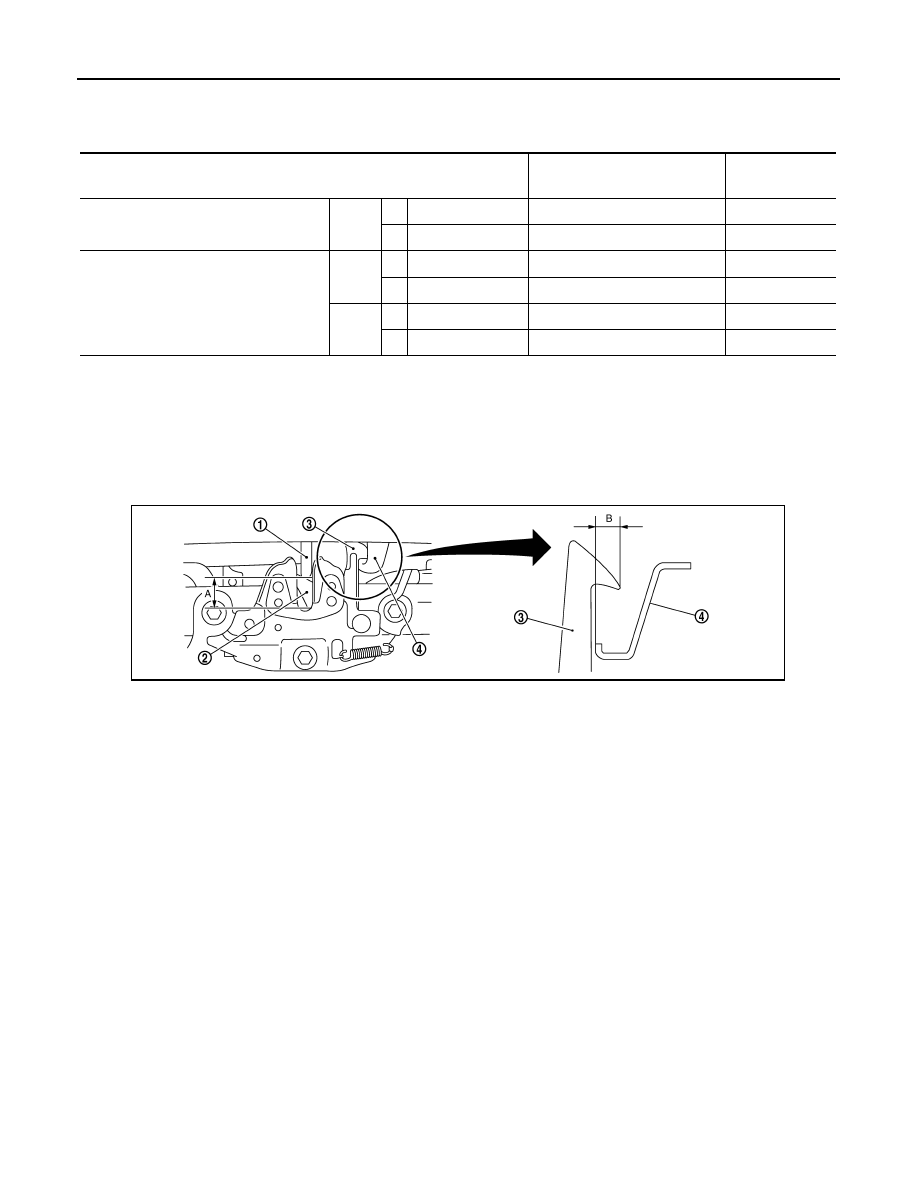

1.

Hood striker

2.

Primary latch

3.

Secondary striker

4.

Secondary latch

A

: 20.0 mm (0.787 in)

B

: 6.8 mm (0.268 in)

PIIB5794E
