INTEGRATED HOMELINK TRANSMITTER

DLK-163

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTEGRATED HOMELINK TRANSMITTER

Description

INFOID:0000000009719110

Integrated Homelink Transmitter can store and transmit a maximum of 3 radio signals.
Allows operation of garage doors, gates, home and office lighting, entry door locks and security system, etc.
Integrated Homelink Transmitter power supply uses vehicle battery, which enables it to maintain every pro-
gram in case battery is discharged or removed.

Component Function Check

INFOID:0000000009719111

1.

CHECK FUNCTION

Check that system receiver (garage door opener, etc.) operates with original hand-held transmitter.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Receiver or hand-held transmitter is malfunctioning.

2.

CHECK ILLUMINATE

1.

Turn ignition switch OFF.

2.

Does red light of transmitter illuminate when any transmitter button is pressed?

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Refer to

DLK-163, "Diagnosis Procedure"

.

3.

CHECK TRANSMITTER

Check transmitter with Tool*.
*:For details, refer to Technical Service Bulletin.

Is the inspection result normal?

YES

>> Receiver or hand-held transmitter malfunction, not vehicle related.

NO

>> Replace auto anti-dazzling inside mirror (homelink universal transceiver). Refer to

MIR-70,

"Removal and Installation"

 (with ADP) or

MIR-93, "Removal and Installation"

 (Without ADP).

Diagnosis Procedure

INFOID:0000000009719112

1.

CHECK POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Disconnect auto anti-dazzling inside mirror (homelink universal transceiver) connector.

3.

Check voltage between auto anti-dazzling inside mirror (home link universal transceiver) harness connec-
tor and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>>

Check the following.

• 10A fuse [No. 3 located in the fuse block (J/B)]
• 10A fuse [No. 6 located in the fuse block (J/B)]
• Harness for open or short between fuse and auto anti-dazzling inside mirror (homelink universal

transceiver).

2.

CHECK GROUND CIRCUIT

Auto anti-dazzling inside mirror

(Homelink universal transceiver)

Condition

Voltage (V)

(Approx.)

Connector

Terminal

R9

10

Ground

Ignition switch position:
OFF

Battery voltage

6

Ignition switch position:
ON

DLK-164

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTEGRATED HOMELINK TRANSMITTER

Check continuity between auto anti-dazzling inside mirror (homelink universal transceiver) harness connector
and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness.

3.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Auto anti-dazzling inside mirror

(Homelink universal transceiver)

Ground

Continuity

Connector

Terminal

R9

8

Existed

POWER DOOR LOCK SYSTEM

DLK-165

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

POWER DOOR LOCK SYSTEM

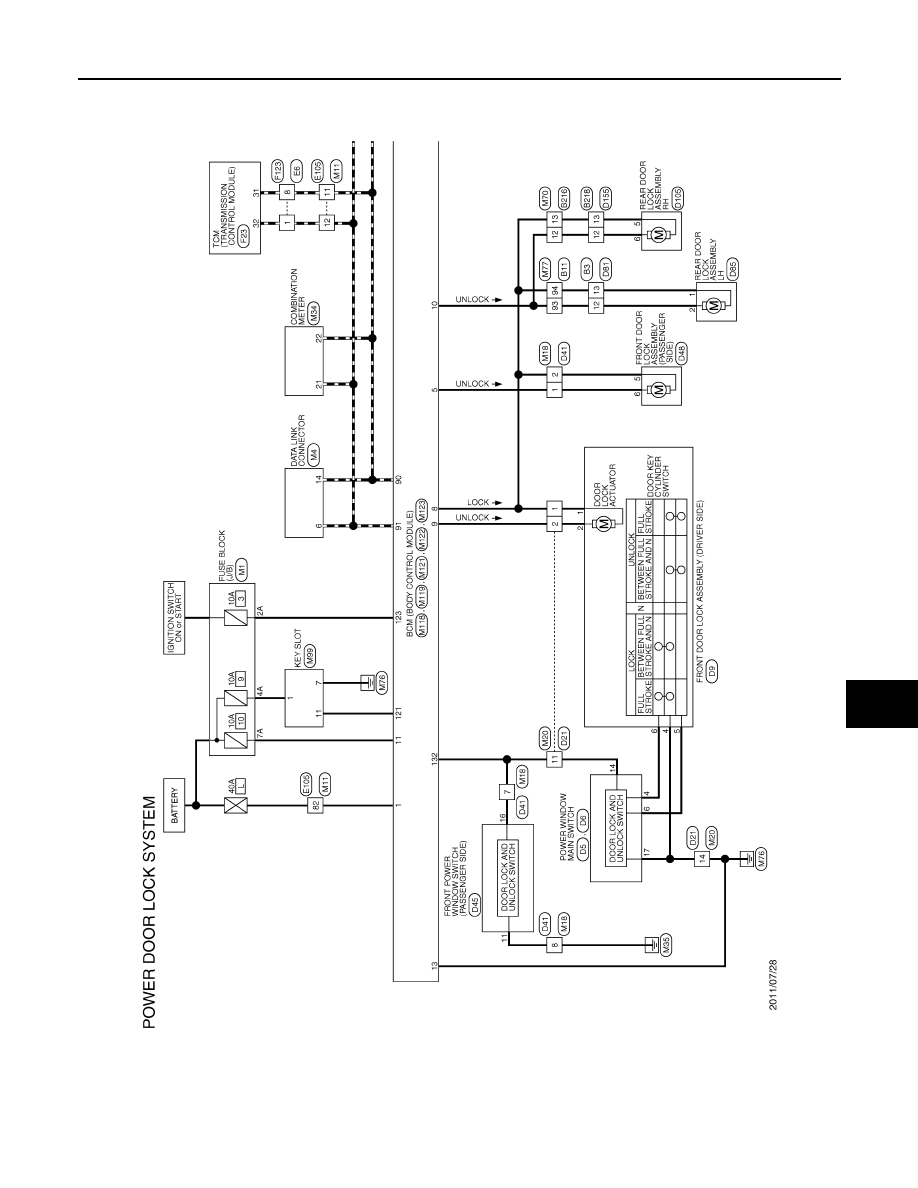

Wiring Diagram - POWER DOOR LOCK SYSTEM -

INFOID:0000000009719113

JRKWC0960GB

DLK-166

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

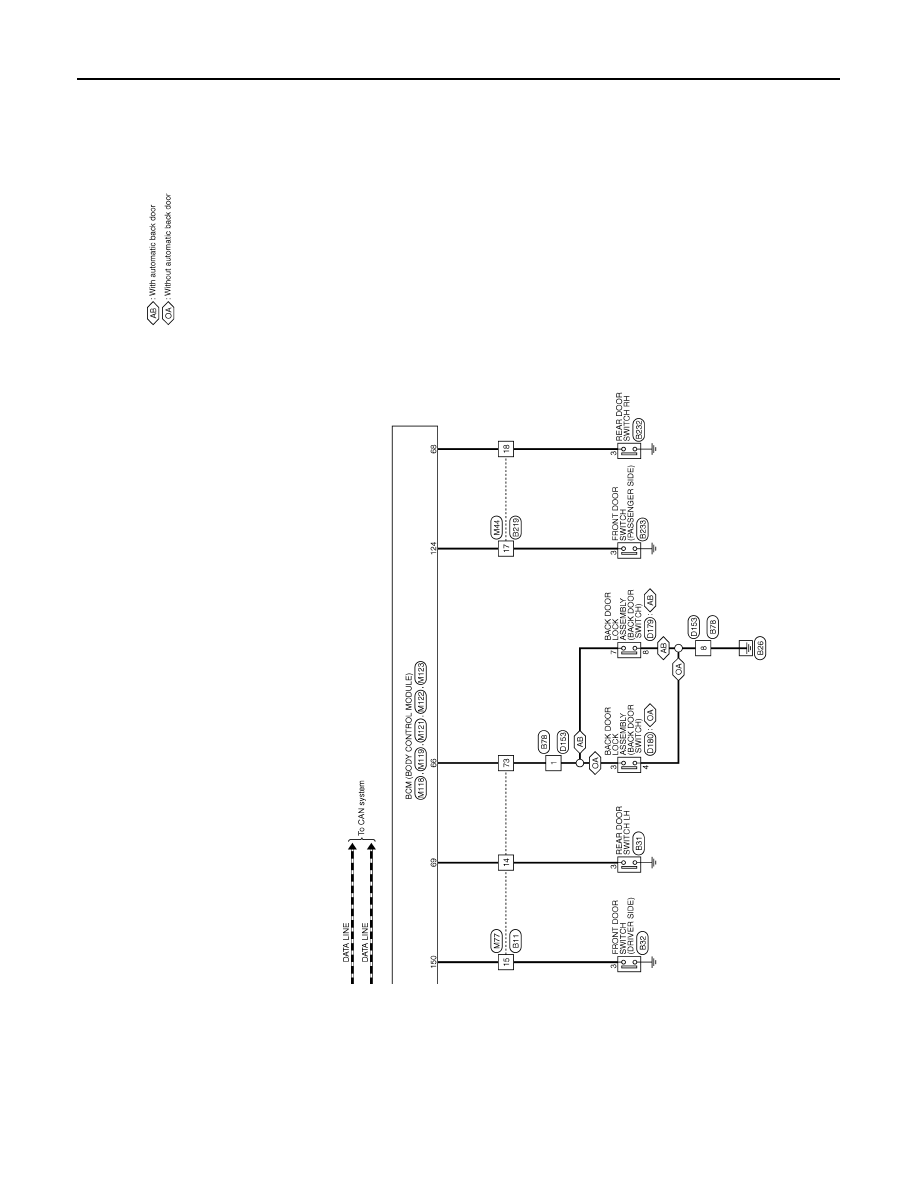

POWER DOOR LOCK SYSTEM

JRKWC0961GB
