Component Description

INFOID:0000000009718908

Item

Function

Automatic back door control unit

Control the automatic back door system

BCM

Transmits and receive signals to the automatic back door control unit

Combination meter

Transmits vehicle speed signal to automatic back door control unit

ABS actuator and electrical

Transmits vehicle speed signal to automatic back door control unit

Automatic back door unit

Automatic back door motor, encoder and clutch are installed

Automatic back door buzzer

Warns the user of the automatic back door condition and inappropriate operations
with the buzzer sounds

Back door lock assembly

Back door closure motor, half latch switch, open switch and close switch are installed

Touch sensor LH/RH

During back door close operation, the touch sensor detects any trapped foreign ma-
terial

Automatic back door close switch

Automatic back door system can be operated from back door area

Automatic back door main switch

Automatic back door system can be active or inactive except automatic back door
switch operation

Automatic back door switch

Automatic back door system can be operated from driver seat area

DLK-52

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

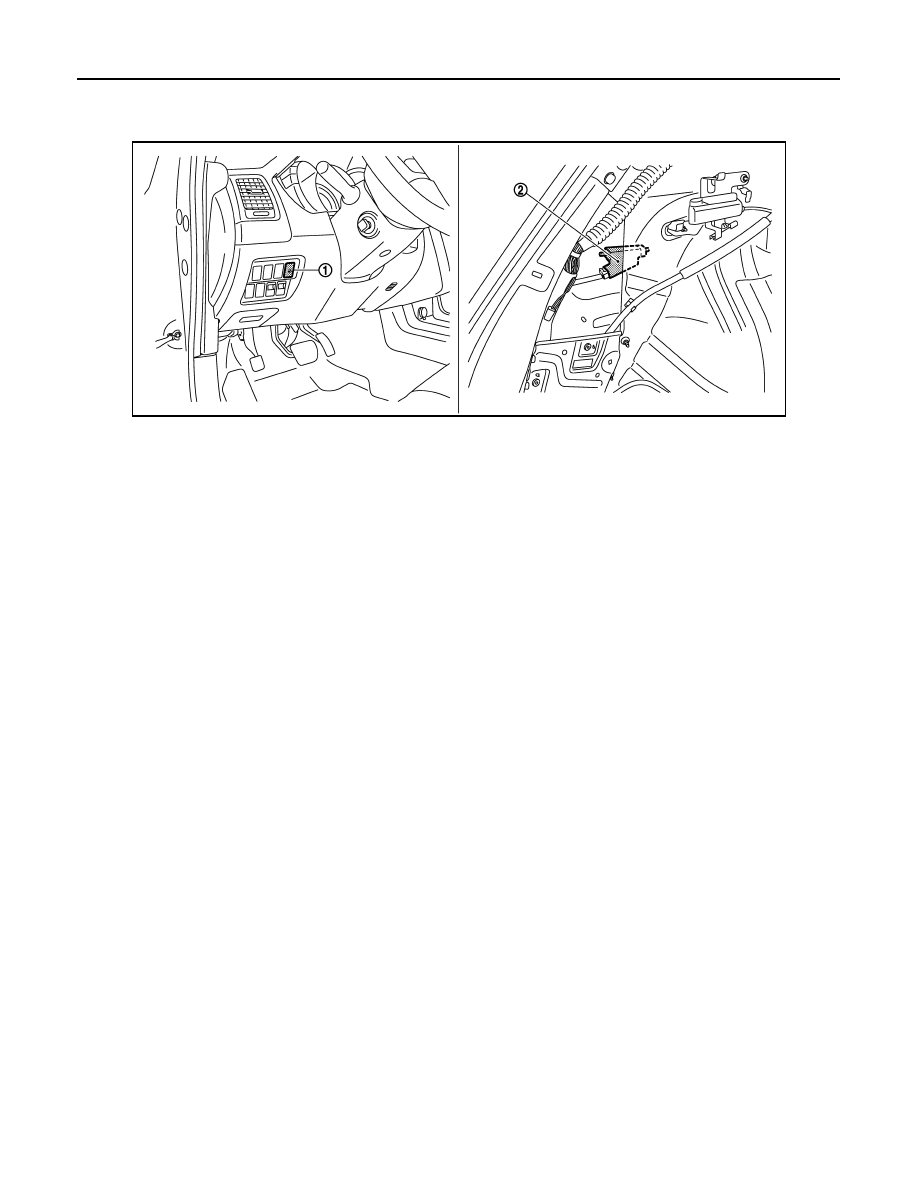

Component Parts Location

INFOID:0000000009718909

JMKIA1956ZZ

1.

Fuel lid opener switch M108

2.

Fuel lid opener actuator B58

INTEGRATED HOMELINK TRANSMITTER

DLK-53

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTEGRATED HOMELINK TRANSMITTER

Component Description

INFOID:0000000009718910

Item

Function

Homelink universal transceiver

A maximum of 3 radio signals can be stored and transmitted to operate the garage door, etc.

DLK-54

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010044856

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

NOTE:

• *1: For models with rain sensor this mode is displayed, but is not used.

• *2: This item is displayed, but is not used.

FREEZE FRAME DATA (FFD)

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

*

1

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

—

AIR CONDITONER*

2

• Intelligent Key system
• Engine start system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door opener system

TRUNK

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

TPMS (AIR PRESSURE MONITOR)

×

×

×
