Nissan Murano. Manual - part 260

BODY ALIGNMENT

BRM-65

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR MEXICO]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

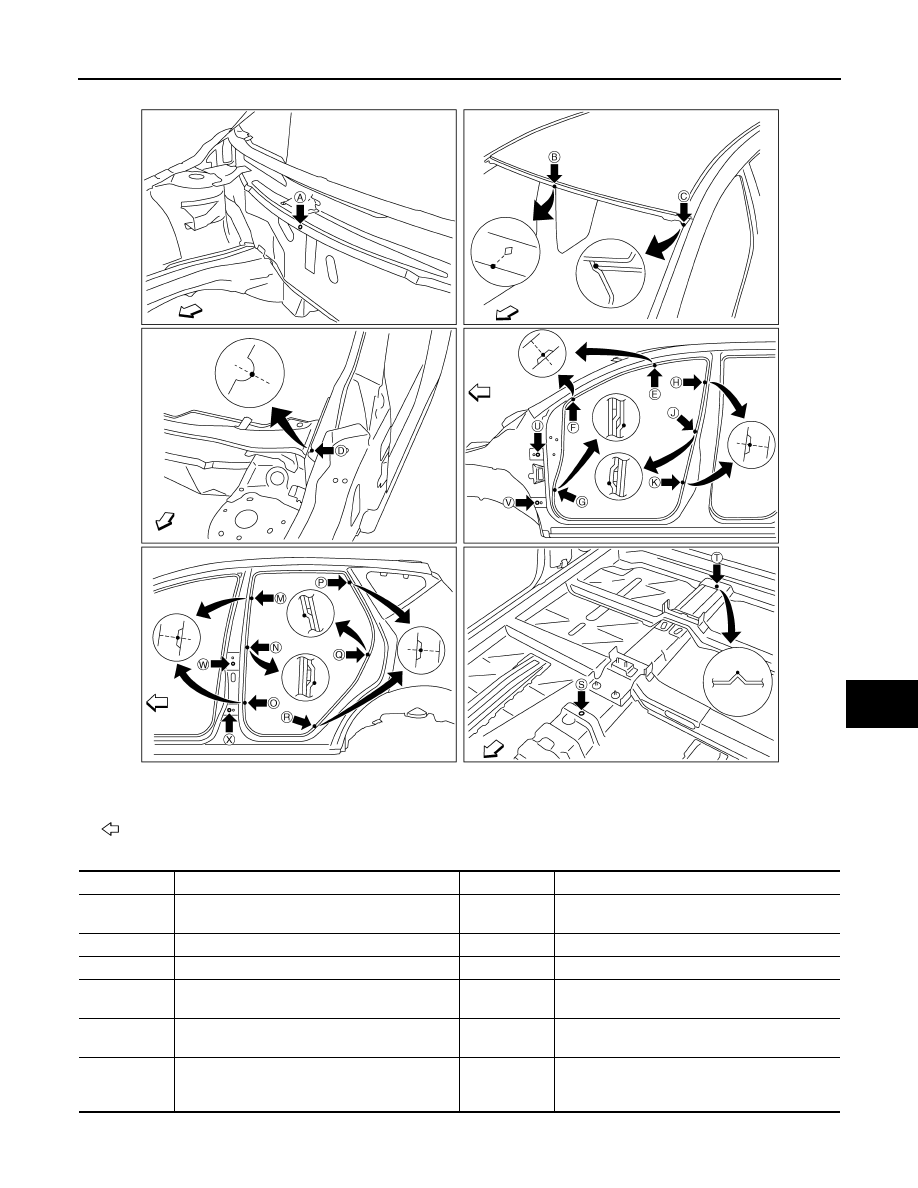

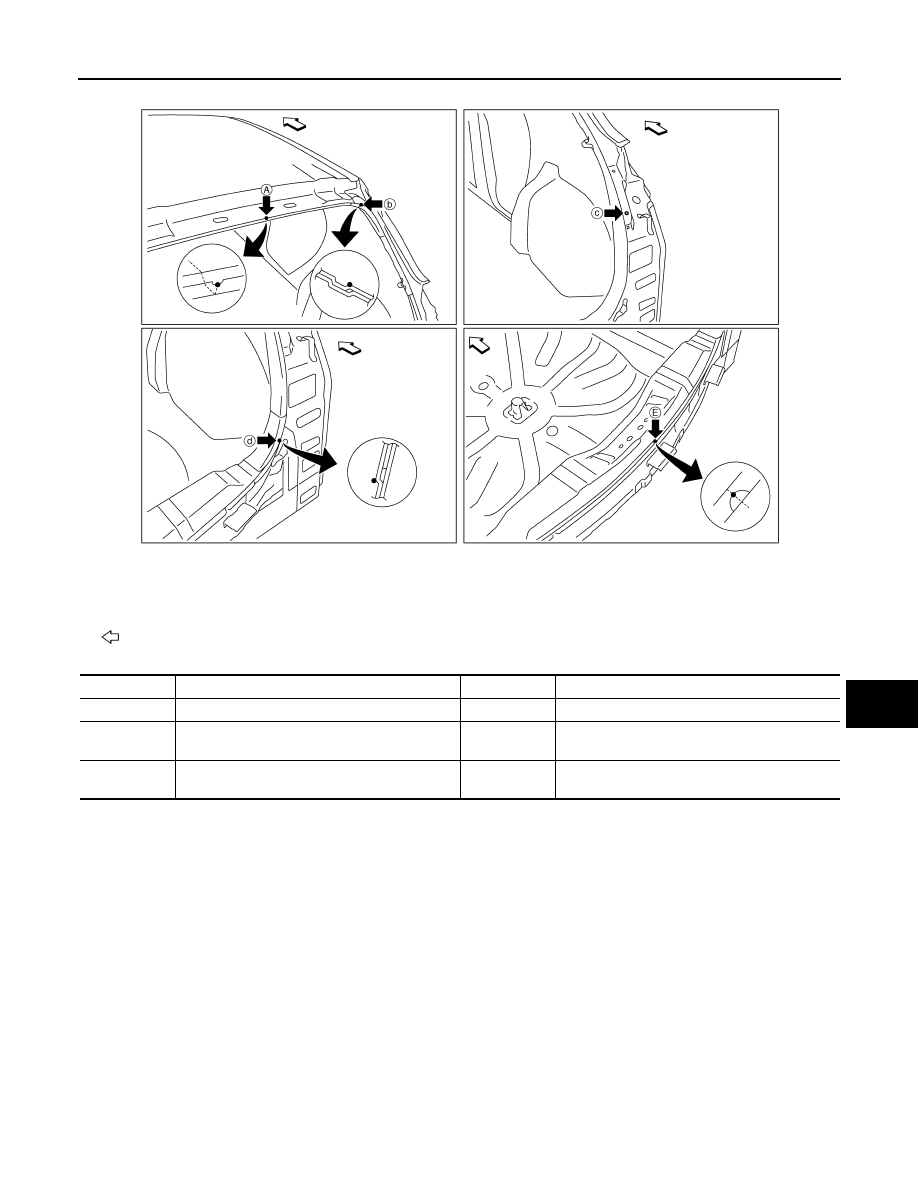

Unit: mm (in)

: Vehicle front

JSKIA0792ZZ

Point

Material

Point

Material

A

Cowl top extension installing hole center of cen-
ter positioning mark

φ

7 (0.28)

J, j, N, n

Inner center pillar joggle

B

Roof flange end of center positioning mark

P, p, R, r

Rear fender indent

C, c

Front pillar joggle

Q, q

Rear pillar inner joggle

D, d, E, e, F, f

Front pillar indent

S

Front floor reinforcement hole center of center
positioning mark

φ

9 (0.35)

G, g

Side dash joggle

T

Front floor positioning mark of center positioning
mark

H, h, K, k, M,
m, O, o

Center pillar indent

U, u, V, v, W,
w, X, x

Door hinge installing hole center
U, u, V, v, X, x:

φ

12 (0.47)

W, w: 14

×

12 (0.55

×

0.47)

BRM-66

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR MEXICO]

BODY ALIGNMENT

Rear Body

INFOID:0000000009718069

MEASUREMENT

Dimensions marked with

″

*

″

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

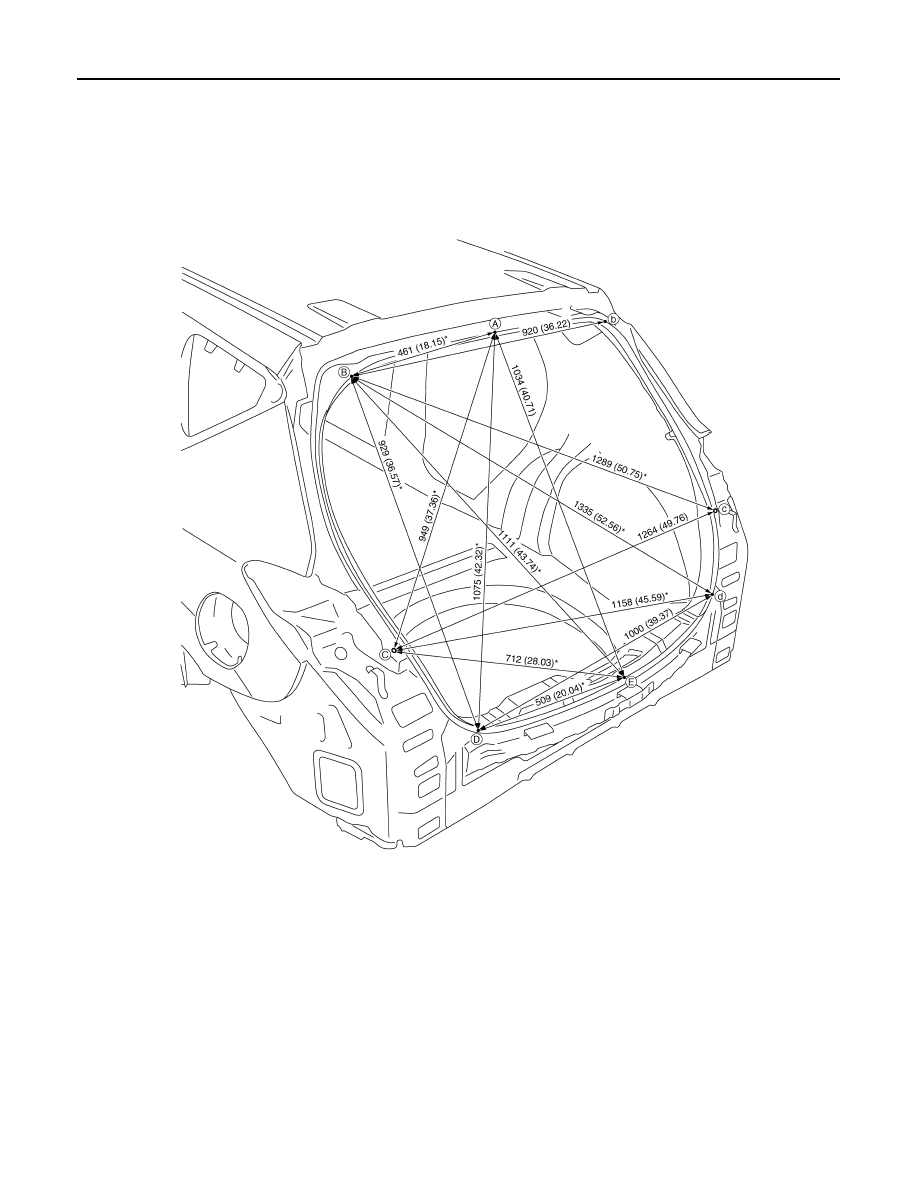

MEASUREMENT POINTS

Unit: mm (in)

JSKIA0550GB

BODY ALIGNMENT

BRM-67

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR MEXICO]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Unit: mm (in)

: Vehicle front

Point

Material

Point

Material

A

Roof indent of center positioning mark

D, d

Rear fender brace joggle

B, b

Back pillar main joggle

E

Upper rear panel indent of center positioning
mark

C, c

Center dovetail bracket installing hole center

φ

7

(0.28)

JSKIA0551ZZ
