BODY ALIGNMENT

BRM-53

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

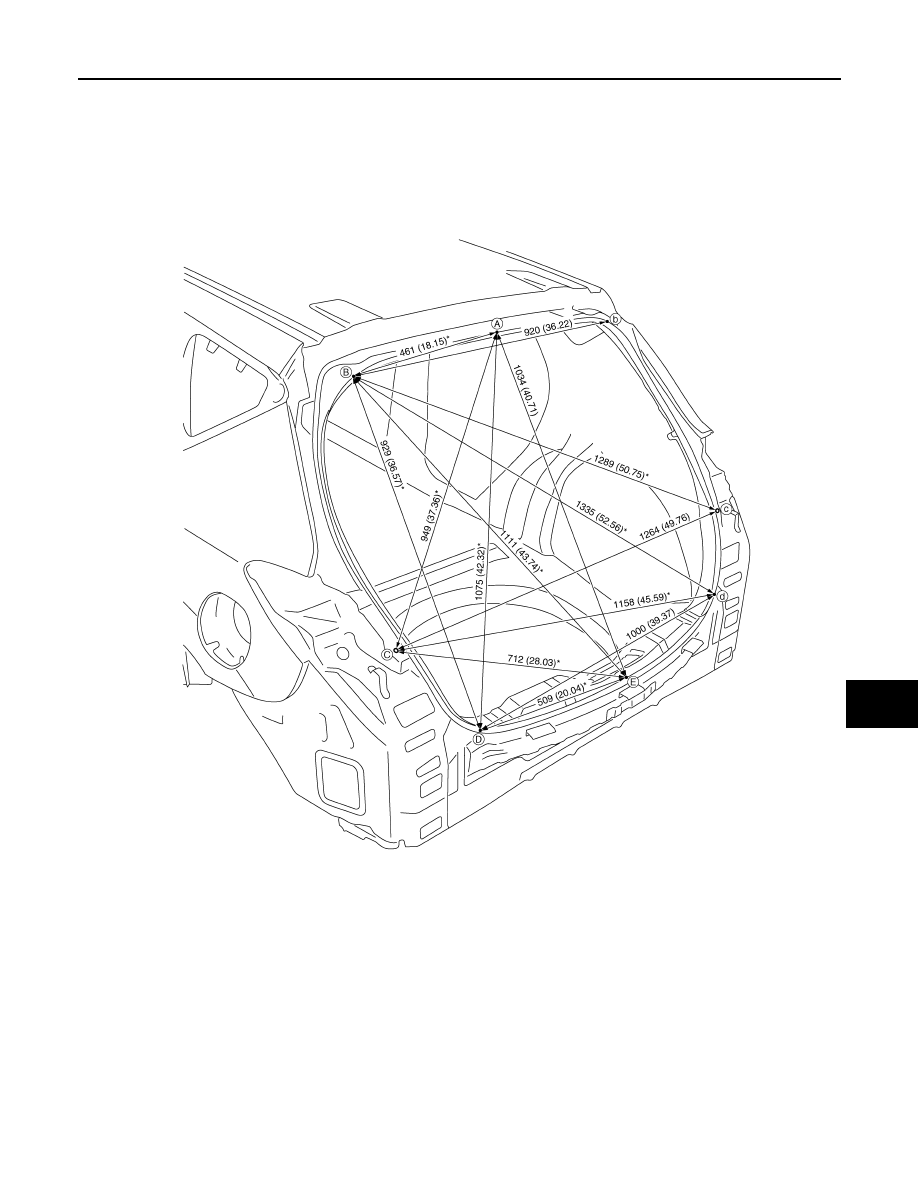

Rear Body

INFOID:0000000009718062

MEASUREMENT

Dimensions marked with

*

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

MEASUREMENT POINTS

Unit: mm (in)

JSKIA0550GB

BRM-54

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR USA AND CANADA]

BODY ALIGNMENT

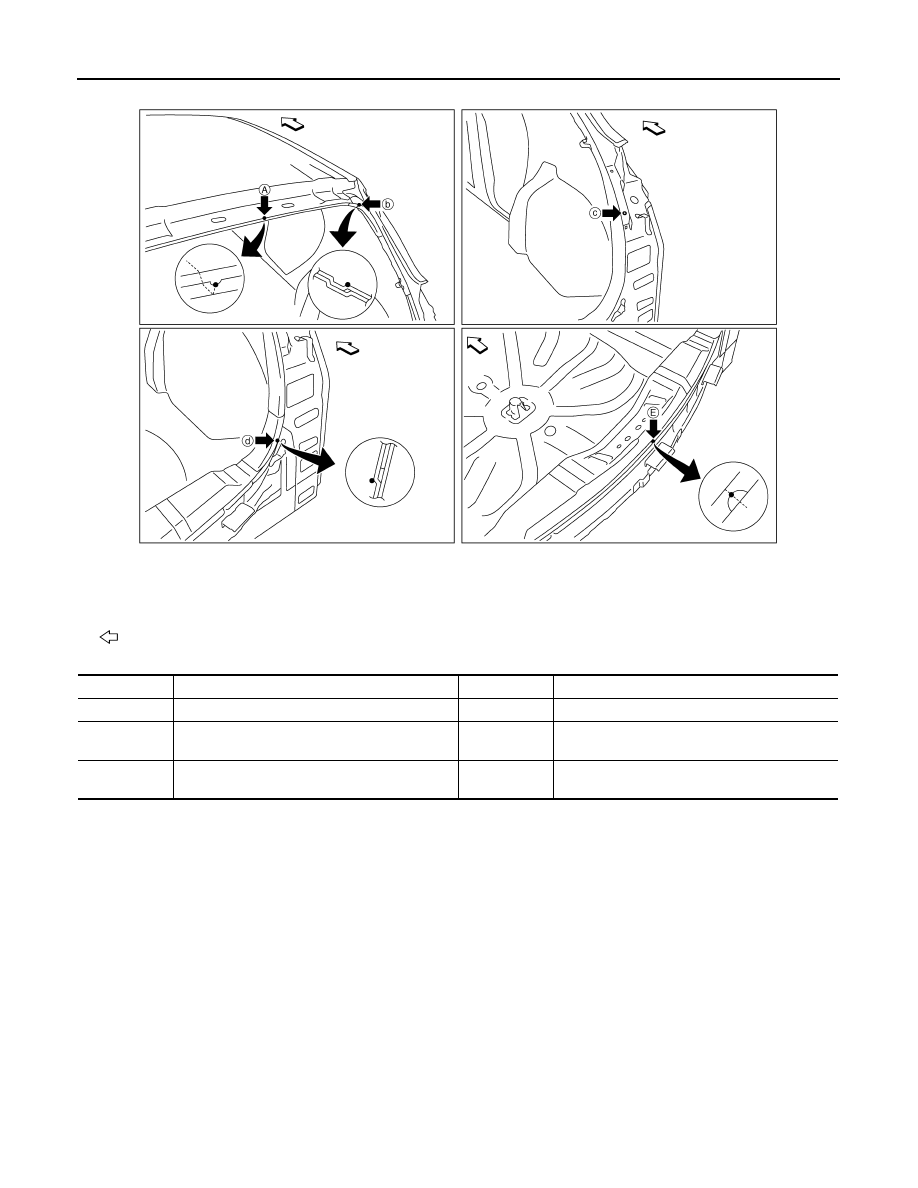

Unit: mm (in)

: Vehicle front

Point

Material

Point

Material

A

Roof indent of center positioning mark

D, d

Rear fender brace joggle

B, b

Back pillar main joggle

E

Upper rear panel indent of center positioning
mark

C, c

Center dovetail bracket installing hole center

φ

(0.28)

JSKIA0551ZZ

LOCATION OF PLASTIC PARTS

BRM-55

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

LOCATION OF PLASTIC PARTS

Precautions for Plastics

INFOID:0000000009718063

CAUTION:

• When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics (influence of heat

and solvent) and remove them if necessary or take suitable measures to protect them.

• Plastic parts should be repaired and painted using methods suiting the materials

,

 characteristics.

Abbre-

viation

Material name

Heat resisting

temperature

°

C (

°

F)

Resistance to gasoline and

solvents

Other cautions

PE

Polyethylene

60 (140)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable

ABS

Acrylonitrile Butadiene Styrene

80 (176)

Avoid gasoline and solvents.

EPM/
EPDM

Ethylene Propylene (Diene) co-
polymer

80 (176)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable

PS

Polystyrene

80 (176)

Avoid solvents.

Flammable

PVC

Poly Vinyl Chloride

80 (176)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Poisonous gas is emitted
when burned.

TPO

Thermoplastic Olefine

80 (176)

Flammable

AAS

Acrylonitrile Acrylic Styrene

85 (185)

Avoid gasoline and solvents.

PMMA

Poly Methyl Methacrylate

85 (185)

EVAC

Ethylene Vinyl Acetate

90 (194)

PP

Polypropylene

90 (194)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable, avoid bat-
tery acid.

PUR

Polyurethane

90 (194)

Avoid gasoline and solvents.

UP

Unsaturated Polyester

90 (194)

Flammable

ASA

Acrylonitrile Styrene Acrylate

100 (212)

Flammable

PPE

Poly Phenylene Ether

110 (230)

TPU

Thermoplastic Urethane

110 (230)

PBT+
PC

Poly Butylene Terephthalate +
Polycarbonate

120 (248)

Flammable

PC

Polycarbonate

120 (248)

POM

Poly Oxymethylene

120 (248)

Avoid battery acid.

PA

Polyamide

140 (284)

Avoid immersing in wa-
ter.

PBT

Poly Butylene Terephthalate

140 (284)

PAR

Polyarylate

180 (356)

PET

Polyethylene terephthalate

180 (356)

PEI

Polyetherimide

200 (392)

BRM-56

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR USA AND CANADA]

LOCATION OF PLASTIC PARTS

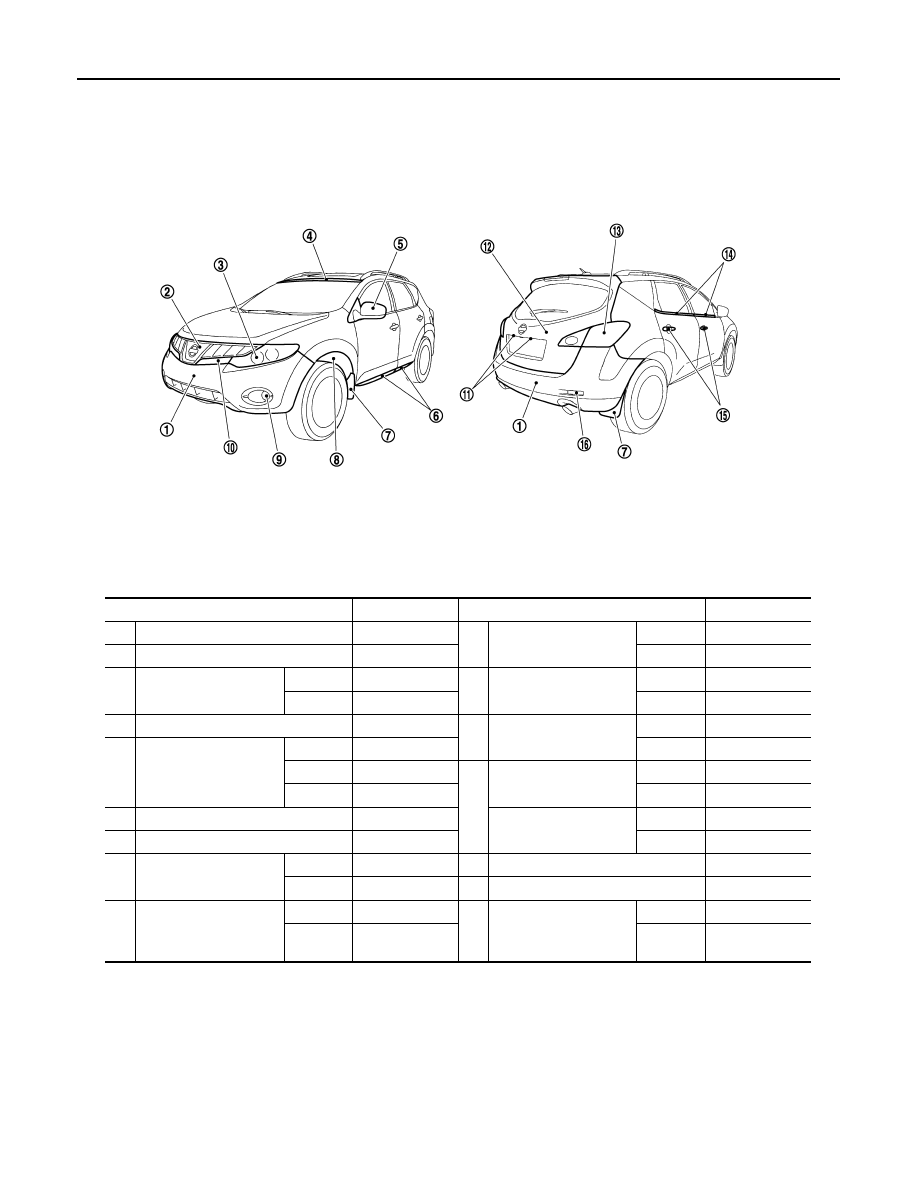

Location of Plastic Parts

INFOID:0000000009718064

Component

Material

Component

Material

1

Bumper fascia

PP + EPM

10

Front combination lamp
extension

Lens

PMMA

2

Radiator grille

ABS

Housing

AAS

3

Front combination lamp

Lens

Glass

11

License plate lamp

Lens

PC

Housing

PP

Housing

PC

4

Windshield molding

EPDM

12

Back door

Outer

PP

5

Door outside mirror

Cover

ABS

Inner

PP

Housing

ABS

13

Rear combination lamp
(Rear fender)

Lens

PMMA

Base

ABS

Housing

ABS

6

Side guard molding

PP

Rear combination lamp
(Back door)

Lens

PMMA

7

Mudguard

TPO

Housing

AAS

8

Fender Protector

Front

PP

14

Door outside molding

PVC + Stainless

Rear

PET

15

Door outside handle

PC + ABS

9

Front fog lamp

Lens

Glass

16

Reflex reflector

Lens

PMMA

Housing

PBT + ASA +

Glass fiber

Housing

ABS

JSKIA0572ZZ
