Nissan Murano. Manual - part 190





BCS

BCM (BODY CONTROL MODULE)

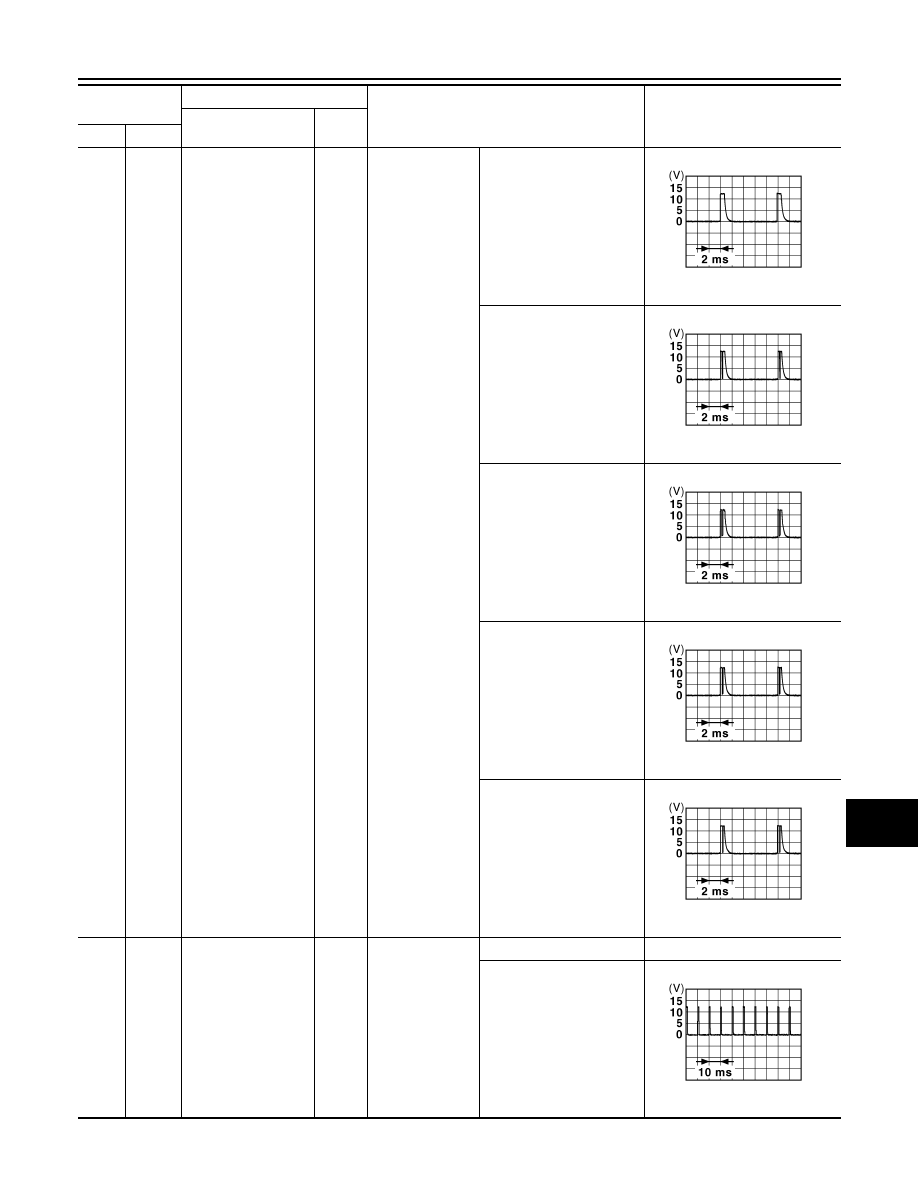

BCS-69

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

109

(SB)

Ground

Combination switch
INPUT 2

Input

Combination
switch
(Wiper intermit-
tent dial 4)

All switches OFF

1.4 V

Lighting switch PASS

1.3 V

Lighting switch 2ND

1.3 V

Front wiper switch INT/
AUTO

1.3 V

Front wiper switch HI

1.3 V

110

(G)

Ground

Hazard switch

Input

Hazard switch

ON

0 V

OFF

1.1 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JPMIA0041GB

JPMIA0037GB

JPMIA0036GB

JPMIA0038GB

JPMIA0040GB

JPMIA0012GB

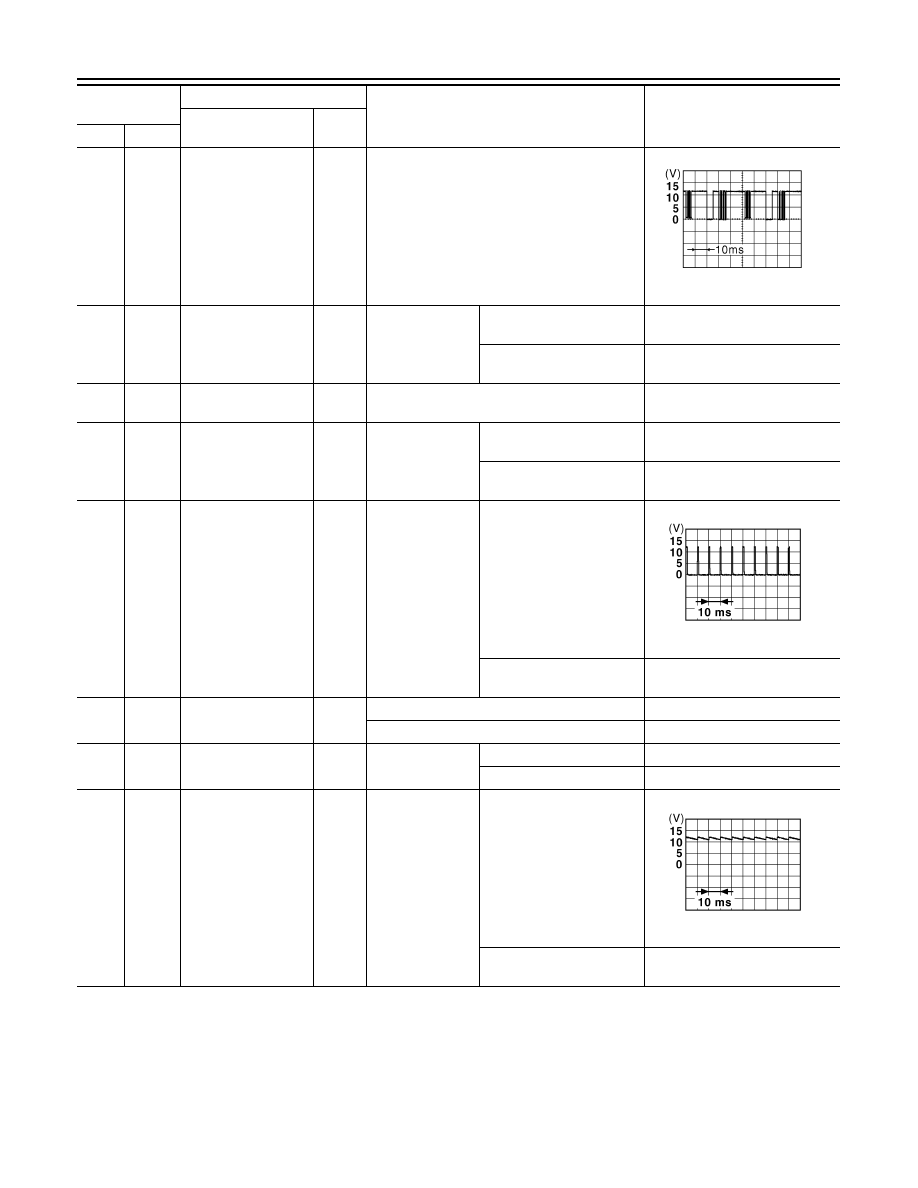

BCS-70

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

112

(R)

Ground

Rain sensor serial
link

Input/

Output

Ignition switch ON

8.7 V

113

(P/B)

Ground

Optical sensor

Input

Ignition switch
ON

When bright outside of the
vehicle

Close to 5 V

When dark outside of the
vehicle

Close to 0 V

116

(GR)

Ground

Stop lamp switch 1

Input

Battery voltage

118

(L)

Ground

Stop lamp switch 2

Input

Stop lamp switch

OFF (Brake pedal is not
depressed)

0 V

ON (Brake pedal is de-
pressed)

Battery voltage

119
(W)

Ground

Front door lock as-
sembly driver side
(Unlock sensor)

Input

Driver door

LOCK status (unlock sen-
sor switch OFF)

1.1 V

UNLOCK status (unlock
sensor switch ON)

0 V

121

(Y)

Ground

Key slot switch

Input

When Intelligent Key is inserted into key slot

Battery voltage

When Intelligent Key is not inserted into key slot

0 V

123

(G)

Ground

IGN feedback

Input

Ignition switch

OFF or ACC

0 V

ON

Battery voltage

124

(R)

Ground

Passenger door
switch

Input

Passenger door
switch

OFF (When passenger
door closes)

11.8 V

ON (When passenger door
opens)

0 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JPMIA0156GB

JPMIA0012GB

JPMIA0011GB

BCS

BCM (BODY CONTROL MODULE)

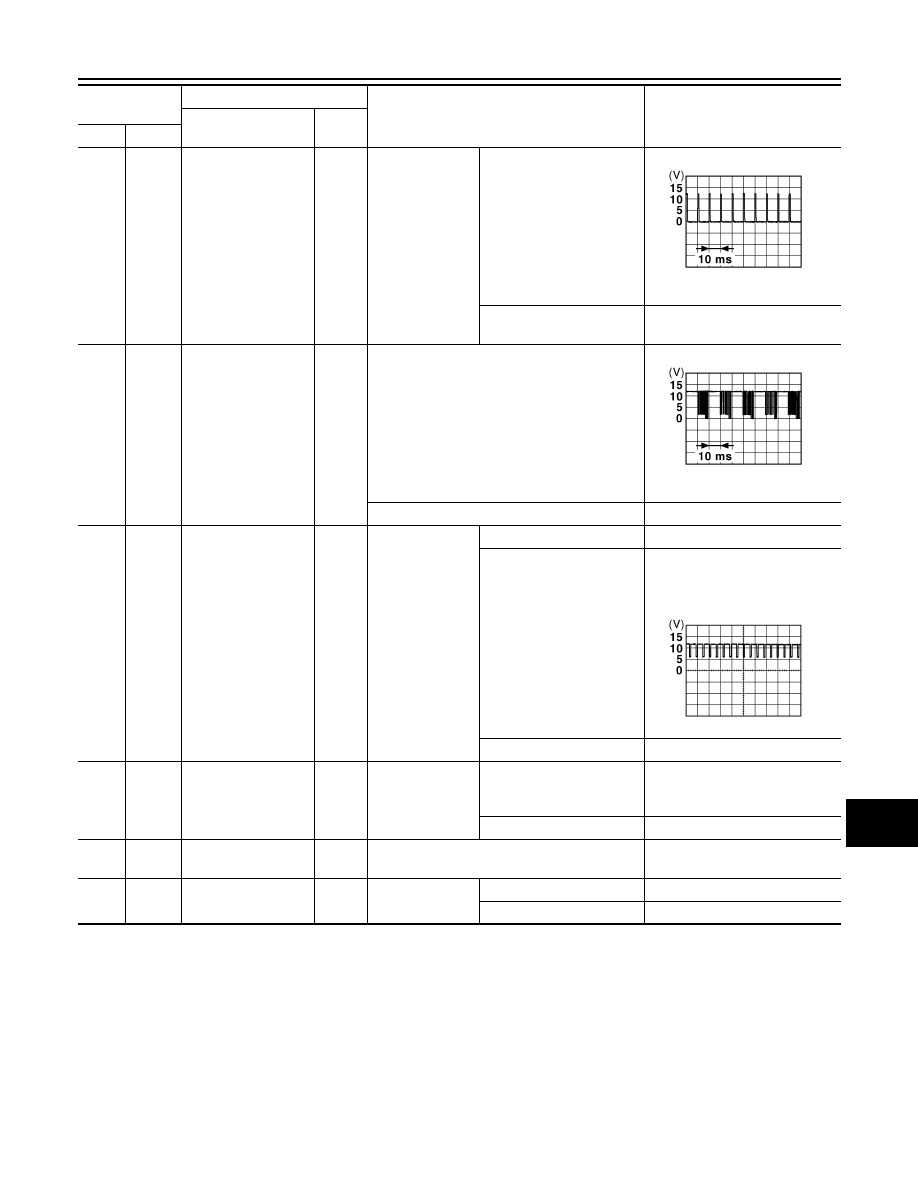

BCS-71

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

130

(BR)

Ground

Rear window defog-
ger switch

Input

Ignition switch
ON

Rear window defogger
switch OFF

1.1 V

Rear window defogger
switch ON

0 V

132

(G)

Ground

Power window switch
communication

Input/

Output

Ignition switch ON

10.2 V

Ignition switch OFF or ACC

Battery voltage

133
(W)

Ground

Push-button ignition
switch illumination

Output

Push-button igni-
tion switch illumi-
nation

ON (When tail lamps OFF)

9.5 V

ON (When tail lamps ON)

NOTE:

The pulse width of this wave is

varied by the illumination bright-

ening/dimming level.

OFF

0 V

134

(R)

Ground

LOCK indicator lamp

Output

LOCK indicator
lamp

OFF (ACC and ON indica-
tor lamps are not illuminat-
ed.)

Battery voltage

ON

0 V

137

(P)

Ground

Receiver and sensor
ground

Input

Ignition switch ON

0 V

138

(V)

Ground

Receiver and sensor
power supply

Output

Ignition switch

OFF

0 V

ACC or ON

5.0 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JPMIA0012GB

JPMIA0013GB

JPMIA0159GB

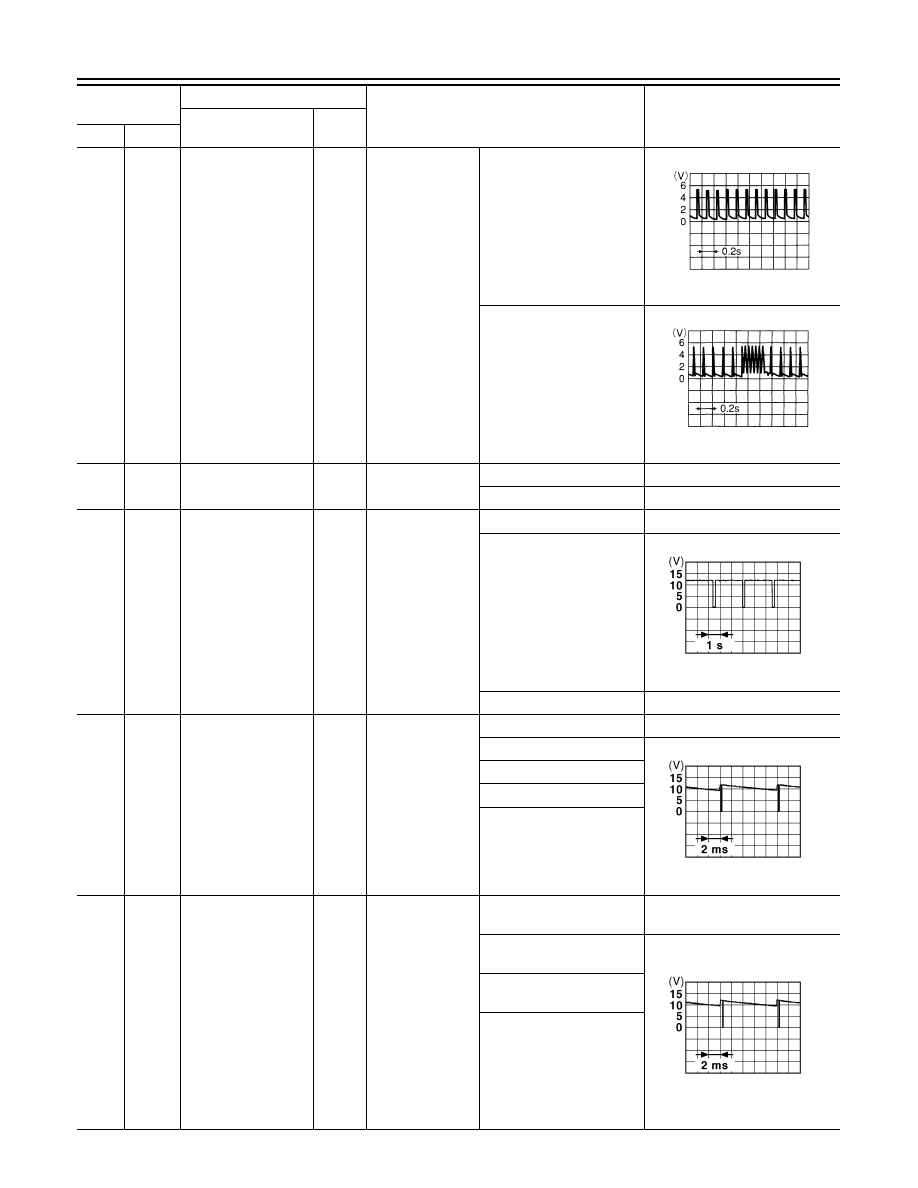

BCS-72

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

139

(O)

Ground

Tire pressure receiv-
er communication

Input/

Output

Ignition switch
ON

Standby state

When receiving the signal
from the transmitter

140

(GR)

Ground

Selector lever P/N
position

Input

Selector lever

P or N position

Battery voltage

Except P and N positions

0 V

141

(O)

Ground

Security indicator

Output

Security indicator

ON

0 V

Blinking

11.3 V

OFF

Battery voltage

142

(L)

Ground

Combination switch
OUTPUT 5

Output

Combination
switch
(Wiper intermit-
tent dial 4)

All switches OFF

0 V

Lighting switch 1ST

10.7 V

Lighting switch HI

Lighting switch 2ND

Turn signal switch RH

143
(W)

Ground

Combination switch
OUTPUT 1

Output

Combination
switch

All switches OFF
(Wiper intermittent dial 4)

0 V

Front wiper switch HI
(Wiper intermittent dial 4)

10.7 V

Rear wiper switch INT
(Wiper intermittent dial 4)

Any of the conditions below
with all switches OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 2
• Wiper intermittent dial 3
• Wiper intermittent dial 6
• Wiper intermittent dial 7

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

OCC3881D

OCC3880D

JPMIA0014GB

JPMIA0031GB

JPMIA0032GB
