Nissan Murano. Manual - part 186





BCS

BCM (BODY CONTROL MODULE)

BCS-53

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

RKE-MODE CHG

LOCK/UNLOCK button of Intelligent Key is not pressed and held si-
multaneously

Off

LOCK/UNLOCK button of Intelligent Key is pressed and held simul-
taneously

On

OPTICAL SENSOR

Bright outside of the vehicle

Close to 5 V

Dark outside of the vehicle

Close to 0 V

REQ SW -DR

Driver door request switch is not pressed

Off

Driver door request switch is pressed

On

REQ SW -AS

Passenger door request switch is not pressed

Off

Passenger door request switch is pressed

On

REQ SW -RR

NOTE:
The item is indicated, but not monitored.

Off

REQ SW -RR

NOTE:
The item is indicated, but not monitored.

Off

REQ SW -BD/TR

Back door request switch is not pressed

Off

Back door request switch is pressed

On

PUSH SW

Push-button ignition switch (push switch) is not pressed

Off

Push-button ignition switch (push switch) is pressed

On

IGN RLY2 -F/B

Ignition switch in OFF or ACC position

Off

Ignition switch in ON position

On

ACC RLY -F/B

NOTE:
The item is indicated, but not monitored.

Off

CLUCH SW

NOTE:
The item is indicated, but not monitored.

Off

BRAKE SW 1

The brake pedal is depressed when No. 7 fuse is blown

Off

The brake pedal is not depressed when No. 7 fuse is blown, or No.
7 fuse is normal

On

BRAKE SW 2

The brake pedal is not depressed

Off

Stop lamp switch 1 signal circuit is normal

On

DETE/CANCL SW

Selector lever in P position

Off

Selector lever in any position other than P

On

SFT PN/N SW

Selector lever in any position other than P and N

Off

Selector lever in P or N position

On

S/L -LOCK

NOTE:
The item is indicated, but not monitored.

Off

S/L -UNLOCK

NOTE:
The item is indicated, but not monitored.

Off

S/L RELAY-F/B

NOTE:
The item is indicated, but not monitored.

Off

UNLK SEN -DR

Driver door is unlocked

Off

Driver door is locked

On

PUSH SW -IPDM

Push-button ignition switch (push-switch) is not pressed

Off

Push-button ignition switch (push-switch) is pressed

On

IGN RLY1 -F/B

Ignition switch in OFF or ACC position

Off

Ignition switch in ON position

On

DETE SW -IPDM

Selector lever in any position other than P

Off

Selector lever in P position

On

Monitor Item

Condition

Value/Status

BCS-54

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

SFT PN -IPDM

Selector lever in any position other than P and N

Off

Selector lever in P or N position

On

SFT P -MET

Selector lever in any position other than P

Off

Selector lever in P position

On

SFT N -MET

Selector lever in any position other than N

Off

Selector lever in N position

On

ENGINE STATE

Engine stopped

Stop

While the engine stalls

Stall

At engine cranking

Crank

Engine running

Run

S/L LOCK-IPDM

NOTE:
The item is indicated, but not monitored.

Off

S/L UNLK-IPDM

NOTE:
The item is indicated, but not monitored.

Off

S/L RELAY-REQ

NOTE:
The item is indicated, but not monitored.

Off

VEH SPEED 1

While driving

Equivalent to speed-

ometer reading

VEH SPEED 2

While driving

Equivalent to speed-

ometer reading

DOOR STAT-DR

Driver door is locked

LOCK

Wait with selective UNLOCK operation (5 seconds)

READY

Driver door is unlocked

UNLOCK

DOOR STAT-AS

Passenger door is locked

LOCK

Wait with selective UNLOCK operation (5 seconds)

READY

Passenger door is unlocked

UNLOCK

ID OK FLAG

Power supply position in LOCK position

Reset

Power supply position in any position other than LOCK

Set

PRMT ENG STRT

The engine start is prohibited

Reset

The engine start is permitted

Set

PRMT RKE STRT

NOTE:
The item is indicated, but not monitored.

Reset

KEY SW -SLOT

Intelligent Key is not inserted into key slot

Off

Intelligent Key is inserted into key slot

On

RKE OPE COUN1

During the operation of Intelligent Key

Operation frequency of

Intelligent Key

RKE OPE COUN2

NOTE:
The item is indicated, but not monitored.

CONFRM ID ALL

The Intelligent Key ID that the key slot receives is not recognized by
any Intelligent Key ID registered to BCM.

Yet

The Intelligent Key ID that the key slot receives is recognized by any
Intelligent Key ID registered to BCM.

Done

CONFIRM ID4

The Intelligent Key ID that the key slot receives is not recognized by
the fourth Intelligent Key ID registered to BCM.

Yet

The Intelligent Key ID that the key slot receives is recognized by the
fourth Intelligent Key ID registered to BCM.

Done

Monitor Item

Condition

Value/Status

BCS

BCM (BODY CONTROL MODULE)

BCS-55

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

CONFIRM ID3

The Intelligent Key ID that the key slot receives is not recognized by
the third Intelligent Key ID registered to BCM.

Yet

The Intelligent Key ID that the key slot receives is recognized by the
third Intelligent Key ID registered to BCM.

Done

CONFIRM ID2

The Intelligent Key ID that the key slot receives is not recognized by
the second Intelligent Key ID registered to BCM.

Yet

The Intelligent Key ID that the key slot receives is recognized by the
second Intelligent Key ID registered to BCM.

Done

CONFIRM ID1

The Intelligent Key ID that the key slot receives is not recognized by
the first Intelligent Key ID registered to BCM.

Yet

The Intelligent Key ID that the key slot receives is recognized by the
first Intelligent Key ID registered to BCM.

Done

TP 4

The ID of fourth Intelligent Key is not registered to BCM

Yet

The ID of fourth Intelligent Key is registered to BCM

Done

TP 3

The ID of third Intelligent Key is not registered to BCM

Yet

The ID of third Intelligent Key is registered to BCM

Done

TP 2

The ID of second Intelligent Key is not registered to BCM

Yet

The ID of second Intelligent Key is registered to BCM

Done

TP 1

The ID of first Intelligent Key is not registered to BCM

Yet

The ID of first Intelligent Key is registered to BCM

Done

AIR PRESS FL

Ignition switch ON (Only when the signal from the transmitter is re-
ceived)

Air pressure of front LH

tire

AIR PRESS FR

Ignition switch ON (Only when the signal from the transmitter is re-
ceived)

Air pressure of front

RH tire

AIR PRESS RR

Ignition switch ON (Only when the signal from the transmitter is re-
ceived)

Air pressure of rear RH

tire

AIR PRESS RL

Ignition switch ON (Only when the signal from the transmitter is re-
ceived)

Air pressure of rear LH

tire

ID REGST FL1

ID of front LH tire transmitter is registered

Done

ID of front LH tire transmitter is not registered

Yet

ID REGST FR1

ID of front RH tire transmitter is registered

Done

ID of front RH tire transmitter is not registered

Yet

ID REGST RR1

ID of rear RH tire transmitter is registered

Done

ID of rear RH tire transmitter is not registered

Yet

ID REGST RL1

ID of rear LH tire transmitter is registered

Done

ID of rear LH tire transmitter is not registered

Yet

WARNING LAMP

Tire pressure indicator OFF

Off

Tire pressure indicator ON

On

BUZZER

Tire pressure warning alarm is not sounding

Off

Tire pressure warning alarm is sounding

On

Monitor Item

Condition

Value/Status

BCS-56

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

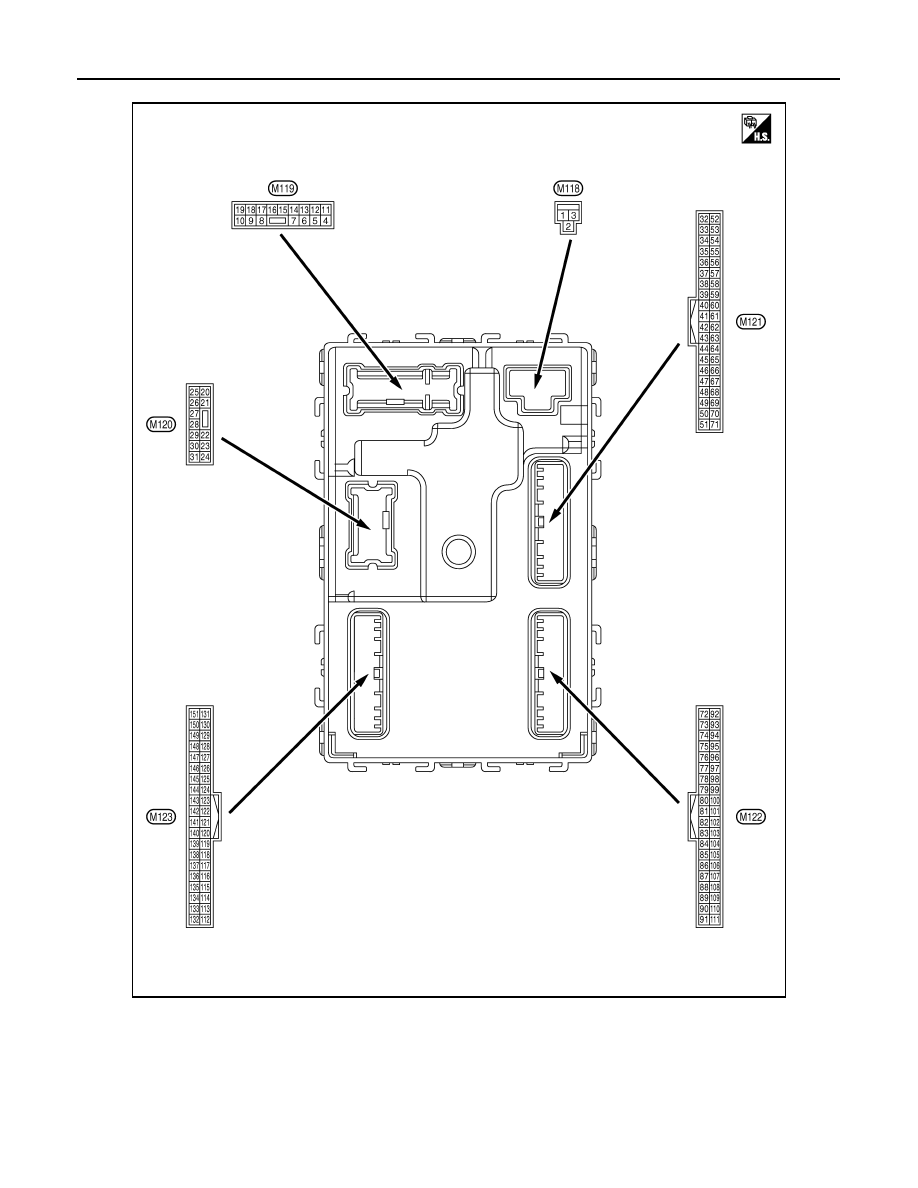

TERMINAL LAYOUT

PHYSICAL VALUES

JPMIA0062ZZ
