WT-48

< REMOVAL AND INSTALLATION >

TIRE PRESSURE SENSOR

TIRE PRESSURE SENSOR

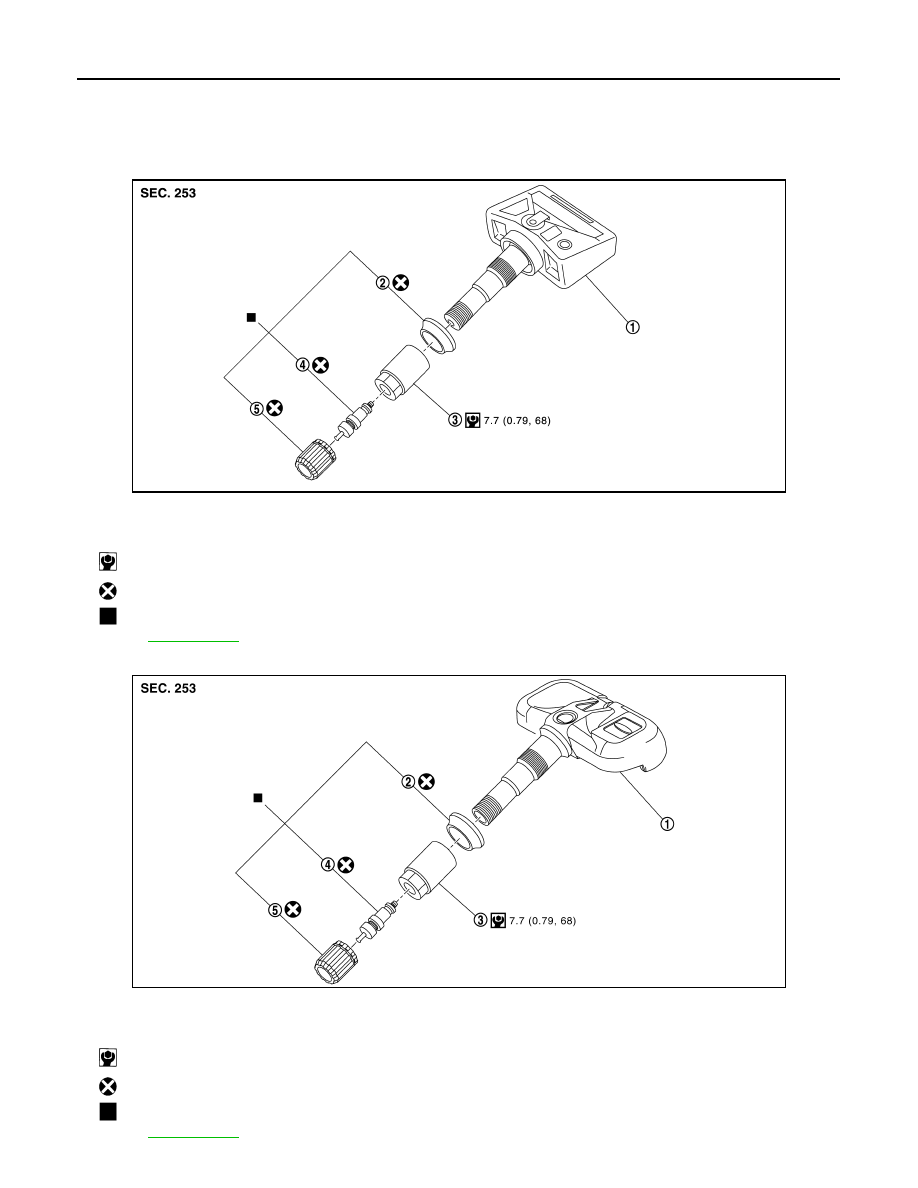

Exploded View

INFOID:0000000009722289

FOR SCHRADER TYPE

FOR PACIFIC TYPE

JSEIA0384GB

1.

Tire pressure sensor

2.

Grommet seal

3.

Valve nut

4.

Valve core

5.

Valve cap

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

: Parts that are replaced as a set when the tire is replaced.

Refer to

GI-3, "Contents"

 for symbols not described above.

JSEIA0572GB

1.

Tire pressure sensor

2.

Grommet seal

3.

Valve nut

4.

Valve core

5.

Valve cap

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

: Parts that are replaced as a set when the tire is replaced.

Refer to

GI-3, "Contents"

 for symbols not described above.

TIRE PRESSURE SENSOR

WT-49

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

Removal and Installation

INFOID:0000000009722290

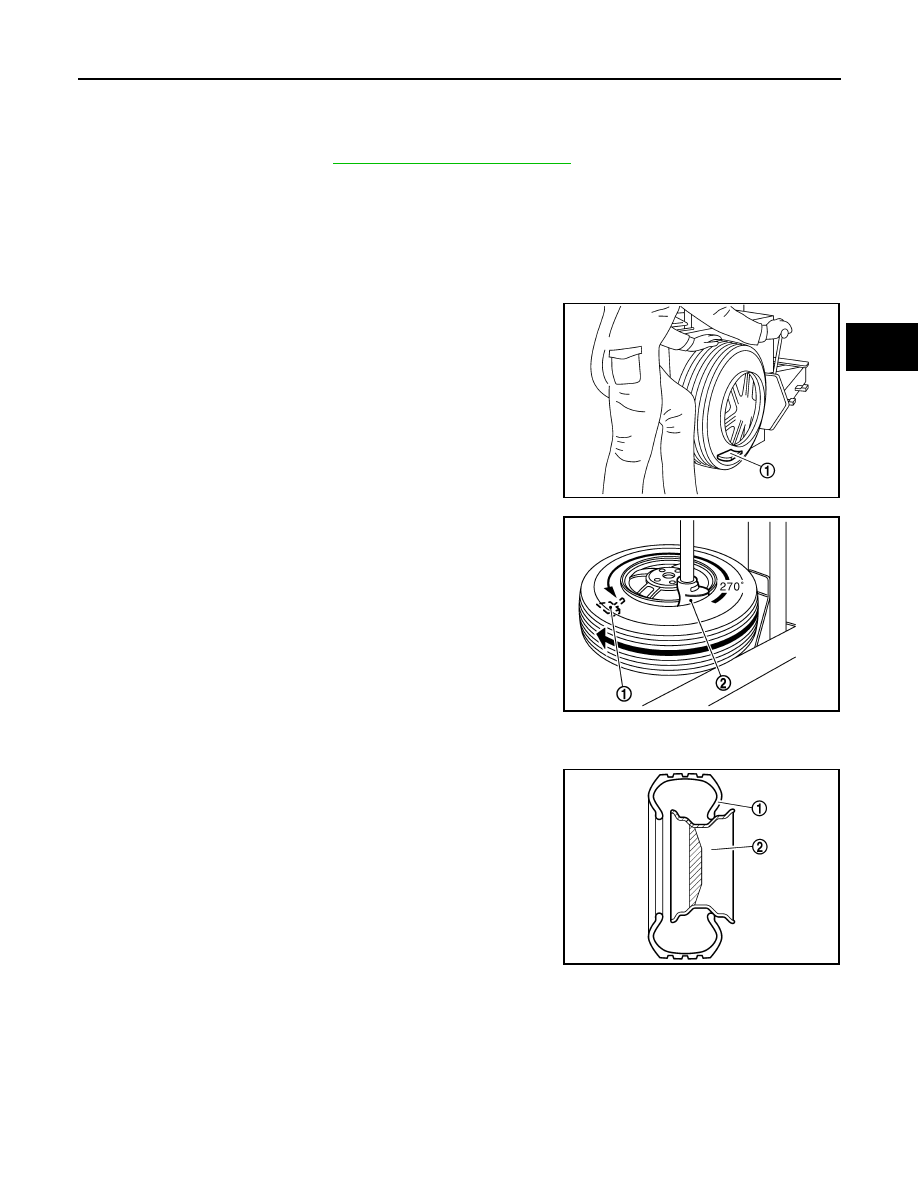

REMOVAL

1.

Remove tire assembly. Refer to

WT-46, "Removal and Installation"

.

2.

Remove valve cap, valve core and then deflate tire.
NOTE:
If the tire is reused, apply a matching mark to the position of the tire road wheel valve hole for the purpose
of wheel balance adjustment after installation.

3.

Remove valve nut retaining tire pressure sensor and allow tire pressure sensor to fall into tire.

4.

Use the tire changer and disengage the tire beads.

CAUTION:

• Verify that the tire pressure sensor (1) is at the bottom of

the tire while performing the above.

• Be sure not to damage the road wheel or tire pressure

sensor.

5.

Apply bead cream or an equivalent to the tire beads.

6.

Set tire onto the tire changer turntable so that the tire pressure
sensor inside the tire is located close to the road wheel valve
hole.

7.

Turn tire so that valve hole is at bottom and bounce so that tire
pressure sensor (1) is near valve hole. Carefully lift tire onto
turntable and position valve hole (and tire pressure sensor) 270
degree from mounting/dismounting head (2).

CAUTION:

Be sure not to damage the road wheel and tire pressure
sensor.

8.

Remove tire pressure sensor from tire.

9.

Remove the grommet seal.

INSTALLATION

1.

Apply bead cream or an equivalent to the tire beads.

2.

Install the tire inside beads (1) onto the road wheel (2) in the
position shown in the figure.

3.

Install grommet seal to the tire pressure sensor.

CAUTION:

• Never reuse grommet seal.
• Insert grommet seal all the way to the base.

JPEIC0104ZZ

JPEIC0014GB

JPEIC0105ZZ

WT-50

< REMOVAL AND INSTALLATION >

TIRE PRESSURE SENSOR

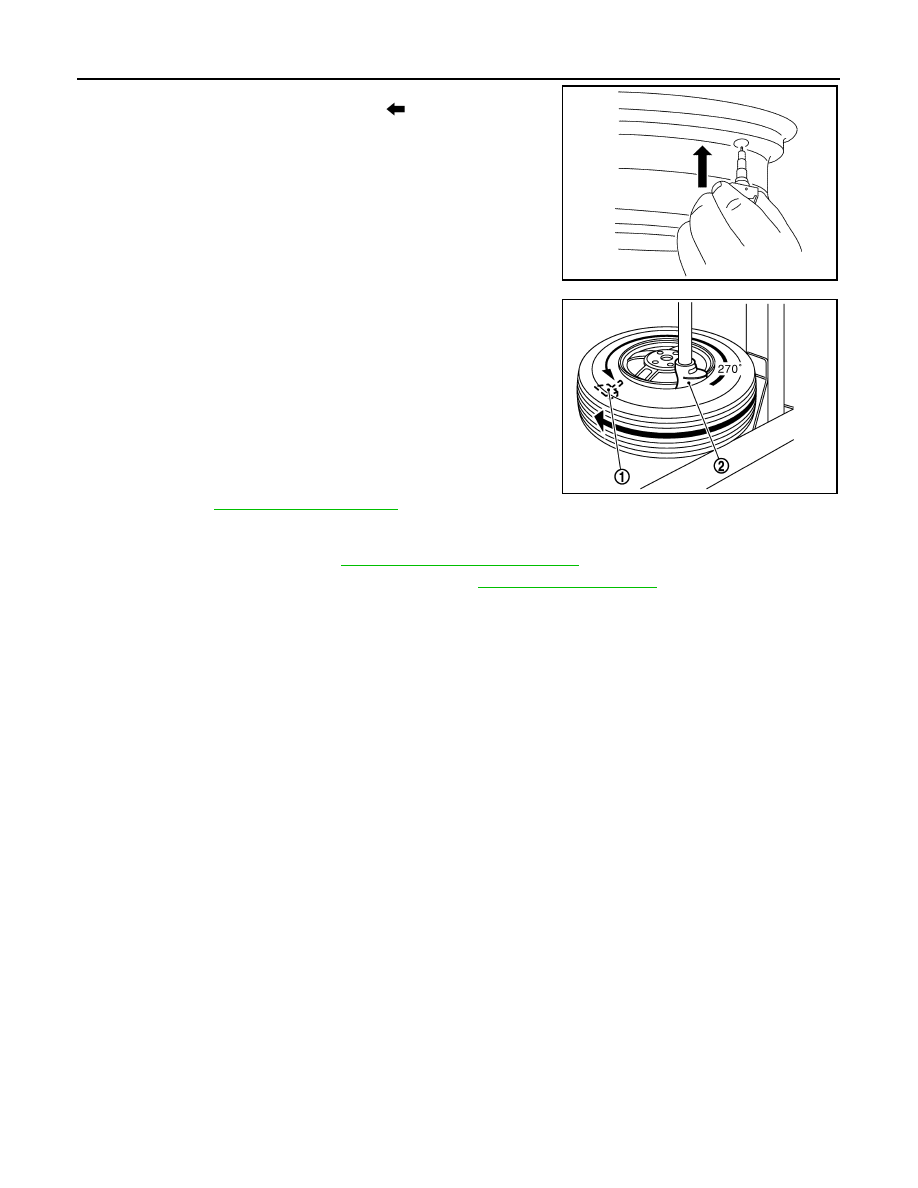

4.

Hold tire pressure sensor as shown in the figure, and press the
sensor in the direction shown by arrow (

) to bring it into abso-

lute contact with valve hole. After this, tighten valve nut to the
specified torque.

CAUTION:

• Never reuse valve core and valve cap.
• Check that grommet seal is free of foreign matter.
• Check that grommet seal contacts horizontally with road

wheel.

• Manually tighten valve nut all the way to the wheel. (Never

use a power tool to avoid impact.)

5.

Set the tire onto the turntable so that the tire changer arm (2) is
at a position approximately 270

°

 from the tire pressure sensor

(1).

CAUTION:

Be sure that the arm does not contact the tire pressure sen-
sor.

6.

Install the tire outer side beads onto the road wheel.

CAUTION:

When installing, check that the tire does not turn together
with the road wheel.

7.

Check the tire pressure for all wheels and adjust to the specified
value. Refer to

WT-52, "Tire Air Pressure"

.

NOTE:
Before adding air, align the tire with the position of the matching mark applied at the time of removal.

8.

Install tire to the vehicle. Refer to

WT-46, "Removal and Installation"

.

9.

Perform tire pressure sensor ID registration. Refer to

WT-21, "Work Procedure"

.

JSEIA0466GB

JPEIC0014GB

TIRE PRESSURE RECEIVER

WT-51

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

TIRE PRESSURE RECEIVER

Removal and Installation

INFOID:0000000009722291

REMOVAL

1.

Remove the instrument lower panel LH. Refer to

IP-14, "Exploded View"

.

2.

Disconnect tire pressure receiver harness connector.

3.

Remove tire pressure receiver.

INSTALLATION

Install is the reverse order of removal.
